User Manual for Impact 500Ws 2-Light Wireless Monolight Kit Click to enlarge the picture
Contents of the user manual for the Impact 500Ws 2-Light Wireless Monolight Kit
- Product category: Monolights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Monolights
|
User manual for the Impact 500Ws 2-Light Wireless Monolight Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

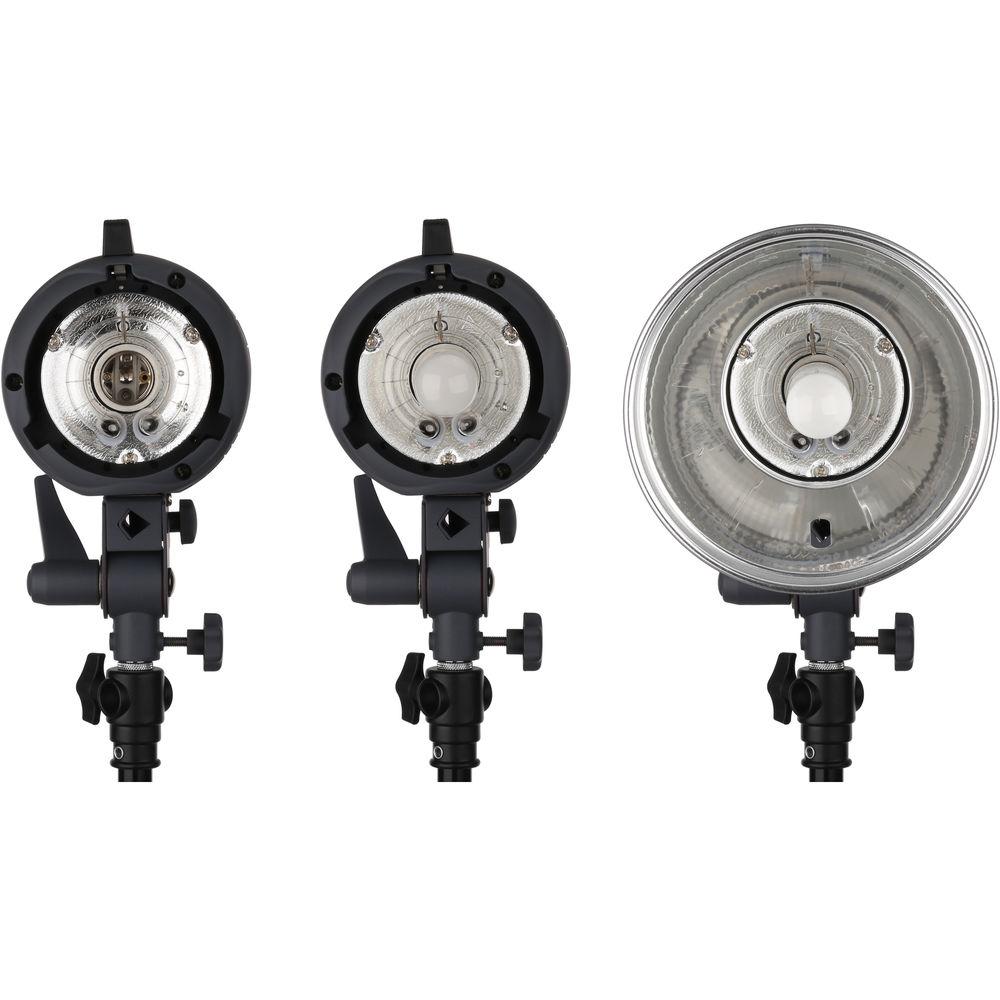

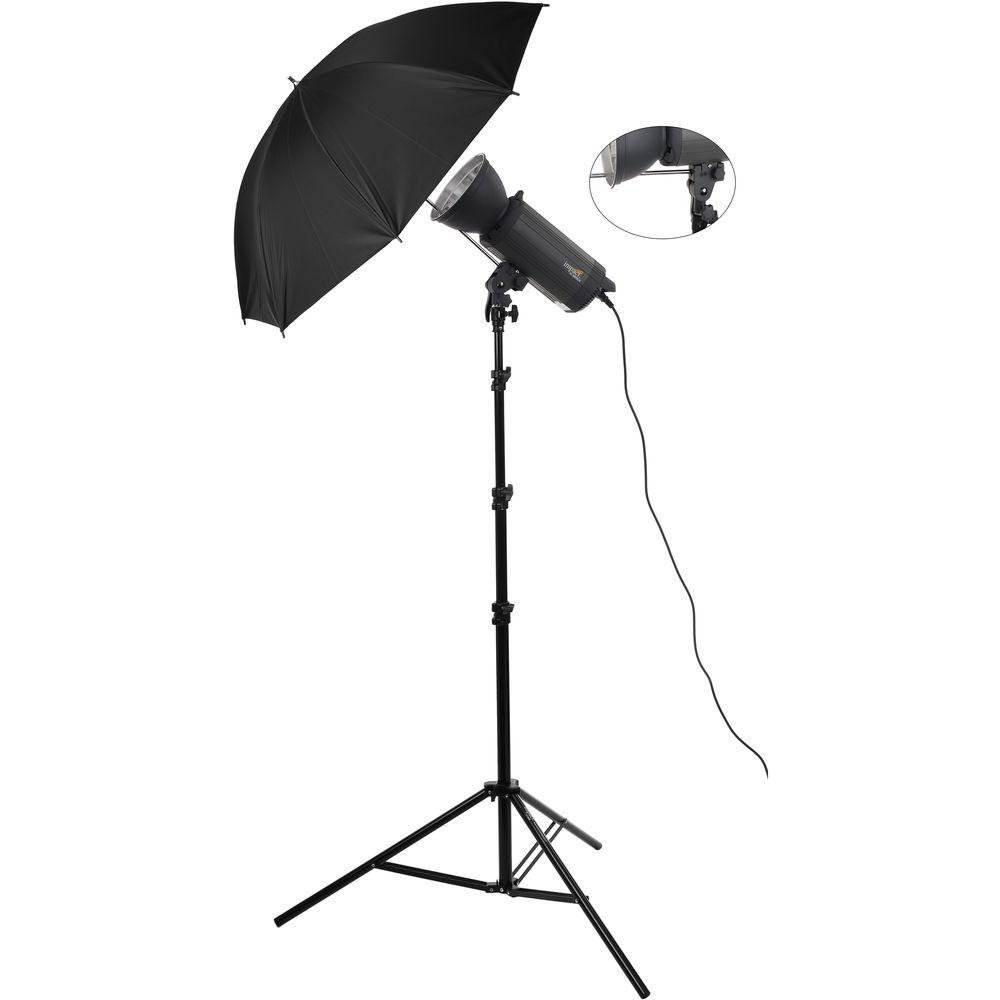

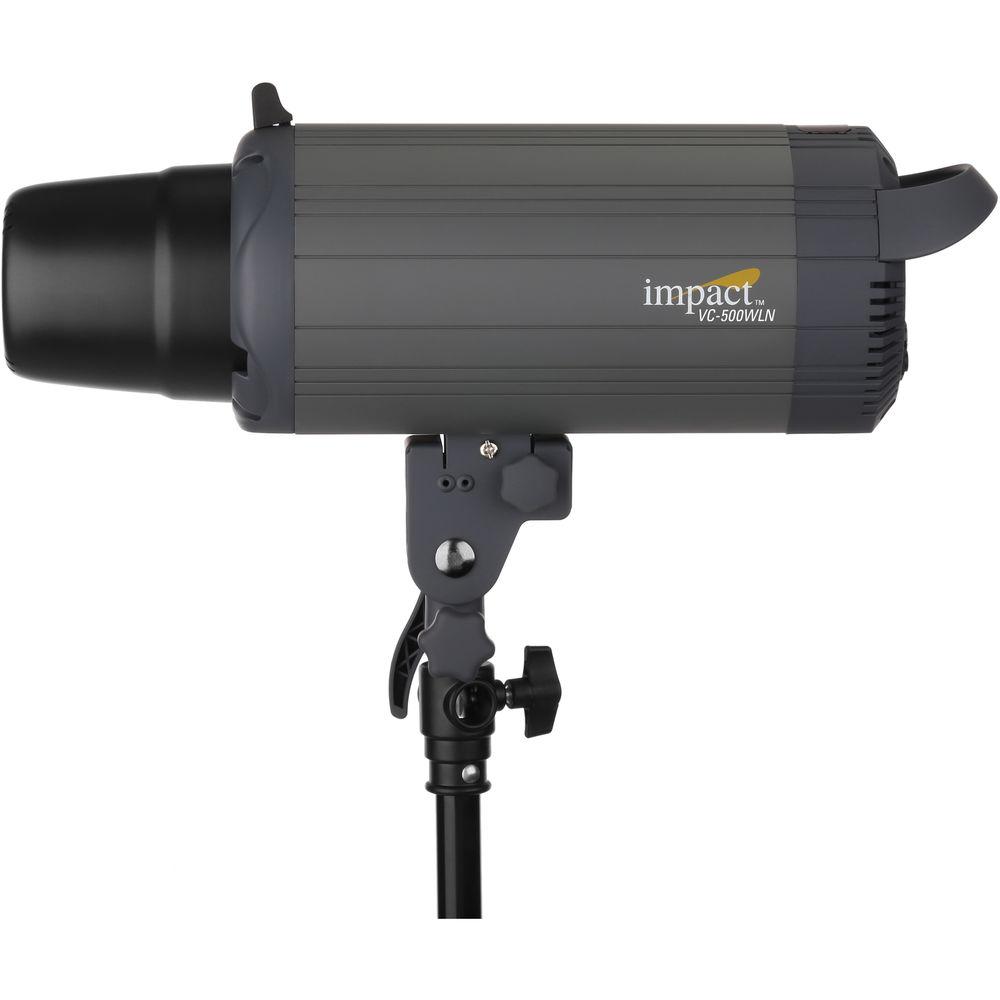

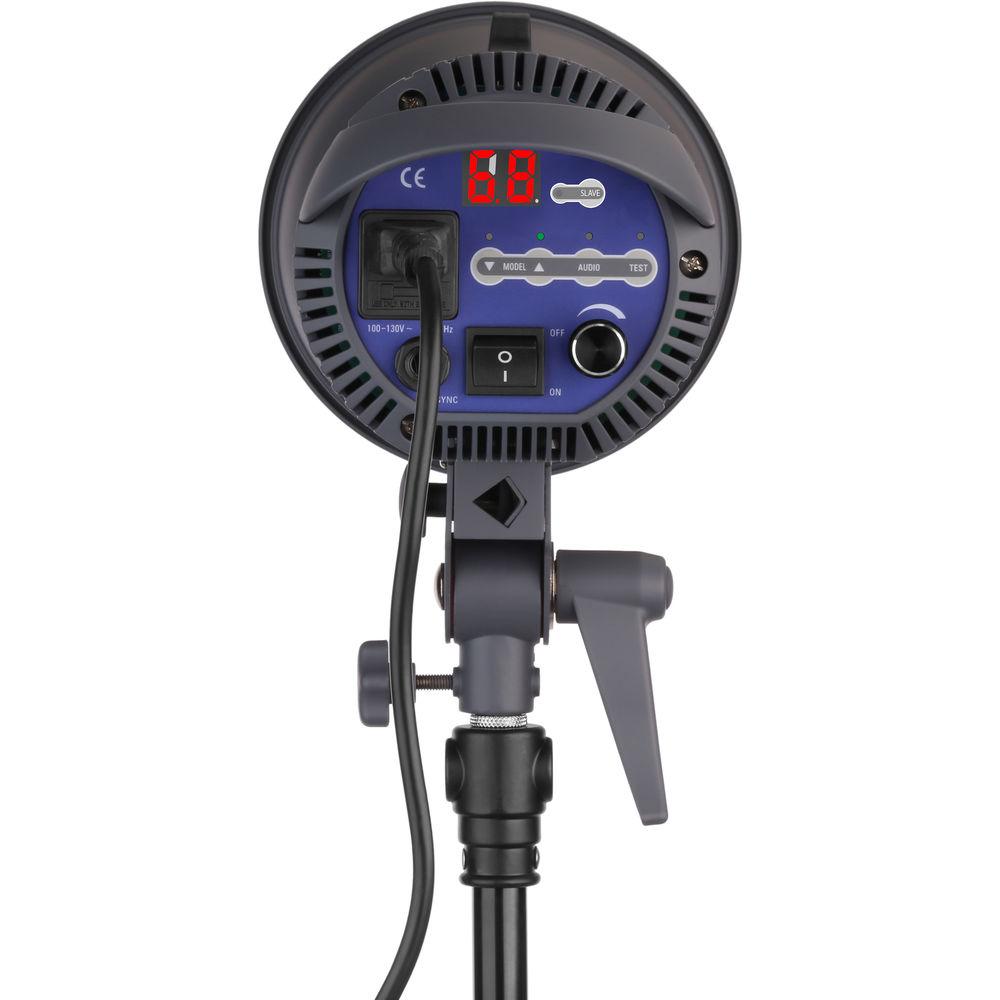

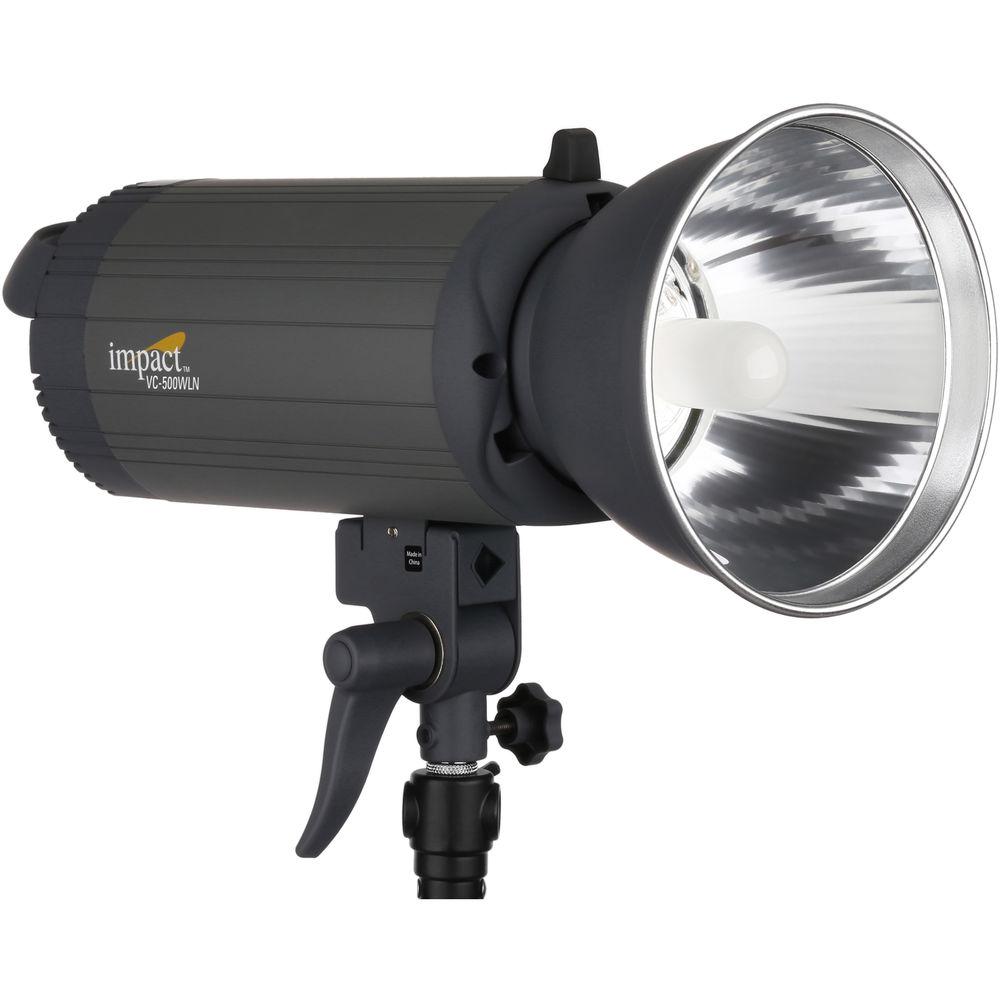

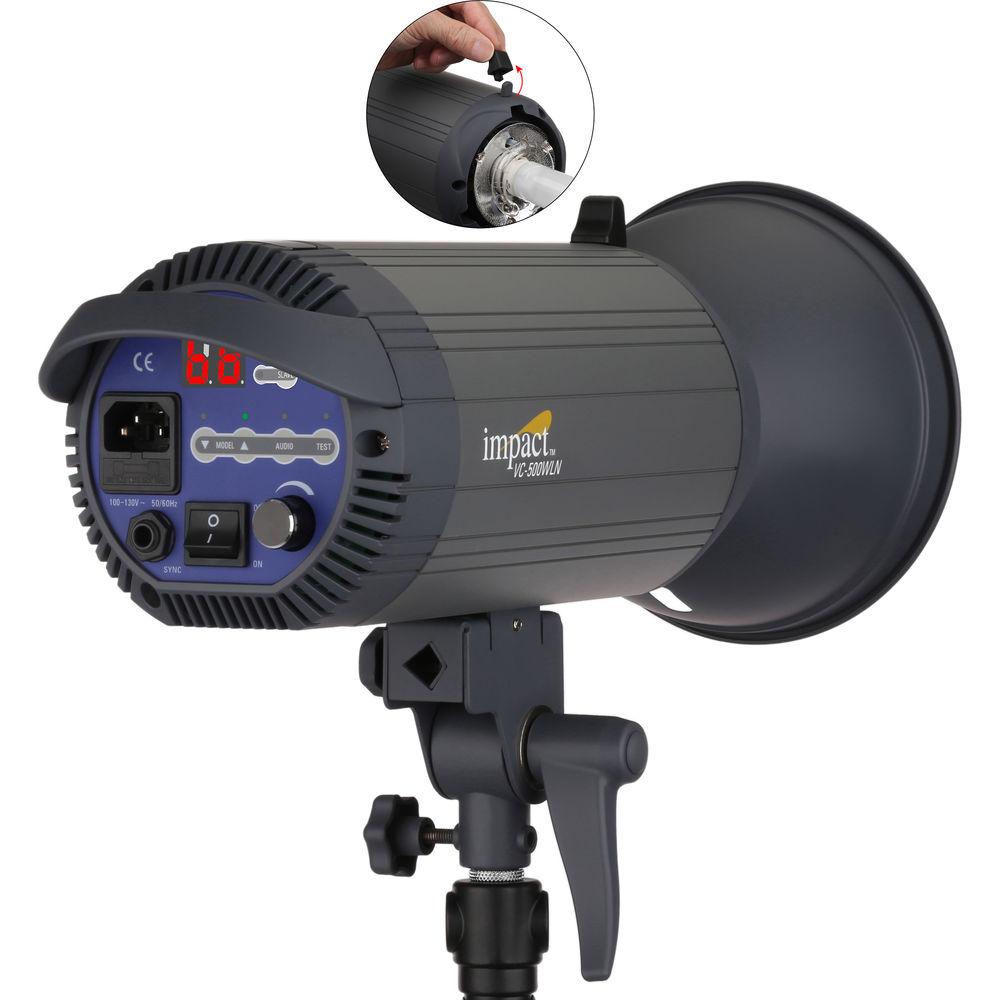

Product description Used for the studio or on the road, the 500Ws 2-Light Wireless Monolight Kit from Impact has the features and performance that fulfill the savvy photographers' wish list. The kit is comprised of two VC-500WLN 500Ws monolights, each with a reflector, a 36" white umbrella with black backing, an 8' air-cushioned light stand, and a 250W modeling lamp. Since the monolights have a built-in 16-channel receiver, Impact includes a wireless controller that allows you to trigger the flash heads at distances up to 328'. A 24 x 36" softbox with a speed ring is included to offer another light quality option. All of the kit items fit in the included wheeled kit case. - VC-500WLN 500Ws Monolight A host of impressive core and convenience features make the VC-500WLN 500Ws Monolight from Impact an asset on any shoot. The monolight recycles to full power in a fast 1.5 seconds and at a fraction of that at minimum power. Fast recycling coupled with flash durations as short as 1/1200 second make the VC-500WLN ideal for kinetic subjects in sports, dance, or wildlife applications. The monolight has multiple triggering options, such as an optical slave and a PC sync socket. The slaves' seven preflash modes have a learning mode that memorizes the number of preflashes, allowing you to use your on-camera flash as the master slave to trigger one or more VC-500WLN's. The flash head also has a built-in 16-channel wireless receiver that, with the separate purchase of a radio transmitter, will allow to trigger your flash at distances up to 328'. The VC-500WLN's user-replaceable 250W modeling lamp can be set to Proportional mode to approximate how the light is falling on your subject or at a user-selected brightness independently of the flash power setting. Soft-start circuitry ensures long modeling lamp life. The monolight has three types of technology that protects its circuitry. CMOS chip technology limits the heat generated by the circuit board, overheating and overvoltage protection shields against unstable voltage and Adaptive Thermal Control keeps the quiet cooling fan engaged. Lastly, the versatile VC-500WLN employs the popular S-type front accessory mount for the included reflector and other Impact light shapers, but the light is also compatible with accessories from the many manufacturers that use this popular mount.
- Short Flash Durations and Recycle Times
- Flash durations as short as 1/1200 second coupled with 1.5 second full power recycling are useful for freezing action when shooting fast-breaking subjects in wildlife, sports, and fashion.
- Triggering Options
- The VC-500WLN has a built-in 16-channel receiver (separate purchase of transmitter required) that allows wireless triggering at distances up to 328'. You can also trip the flash using an optional sync cord or the built-in optical slave. The slave has red-eye reduction and synchronous modes.
- 250W Modeling Light
- The user-replaceable 250W modeling light can be set to Proportional mode to approximate how the light is falling on your subject, or at a user-selected brightness independently of the flash power. Soft-start circuitry ensures long modeling lamp life.
- Slave / Preflash Modes
- The VC-500WLN has seven preflash modes as well as a learning mode that automatically memorizes the amount of preflashes and allows you to use your monolights as slaves with most on-camera flashes.
- Thermal Control
- The monolight has three types of technology that protects its circuitry. CMOS chip technology limits the heat generated by the circuit board, overheating and overvoltage protection shields against unstable voltage, and Adaptive Thermal Control keeps the quiet cooling fan engaged.
- S-Mount
- The flash head has an S-type front accessory mount for Impact or other brands of light shapers that use this popular mount.
- Audio Alerts
- Makes it easy to know when your flash is fully recycled and ready to shoot again.
- 5V Trigger Voltage
- Low trigger voltage makes the VC-500WLN safe for use with all cameras.
UPC: 847628597310 - VC-500WLXMT Wireless 2.4 GHz Transmitter for VC-500WL Monolight Take wireless control of your Impact VC-500WL Monolights with this VC-500WLXMT Wireless 2.4 GHz Transmitter. Easily mounted to the hot shoe of most cameras, this powerful unit allows the user to control and trigger multiple studio flashes from up to 328' away. It also has access to 16 channels and 4 groups for elaborate lighting setups and can be used to adjust modeling light output. Additionally, a test flash button is available to trigger all lights on the same channel and the unit is equipped with a 3.5mm input port for connecting to a camera using the included 3.5mm to PC sync cable. UPC: 847628581418

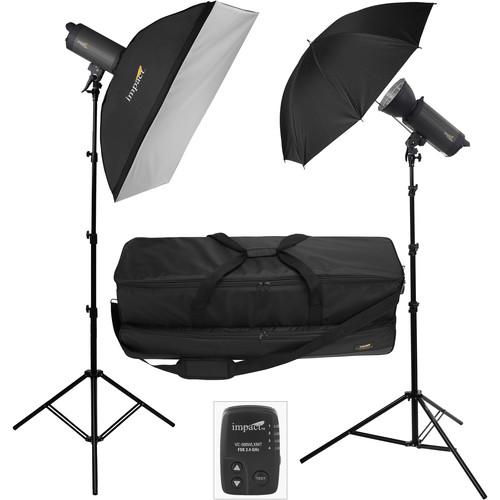

In the Box Bundle Items 2 x VC-500WLN 500Ws Monolight ewceyevxbvewdxsbbvcazqdy - Flashtube for VC500 Monolight
VC-500WLXMT Wireless 2.4 GHz Transmitter for VC-500WL Monolight
Also Includes - 2 x Air-Cushioned Light Stands (8')

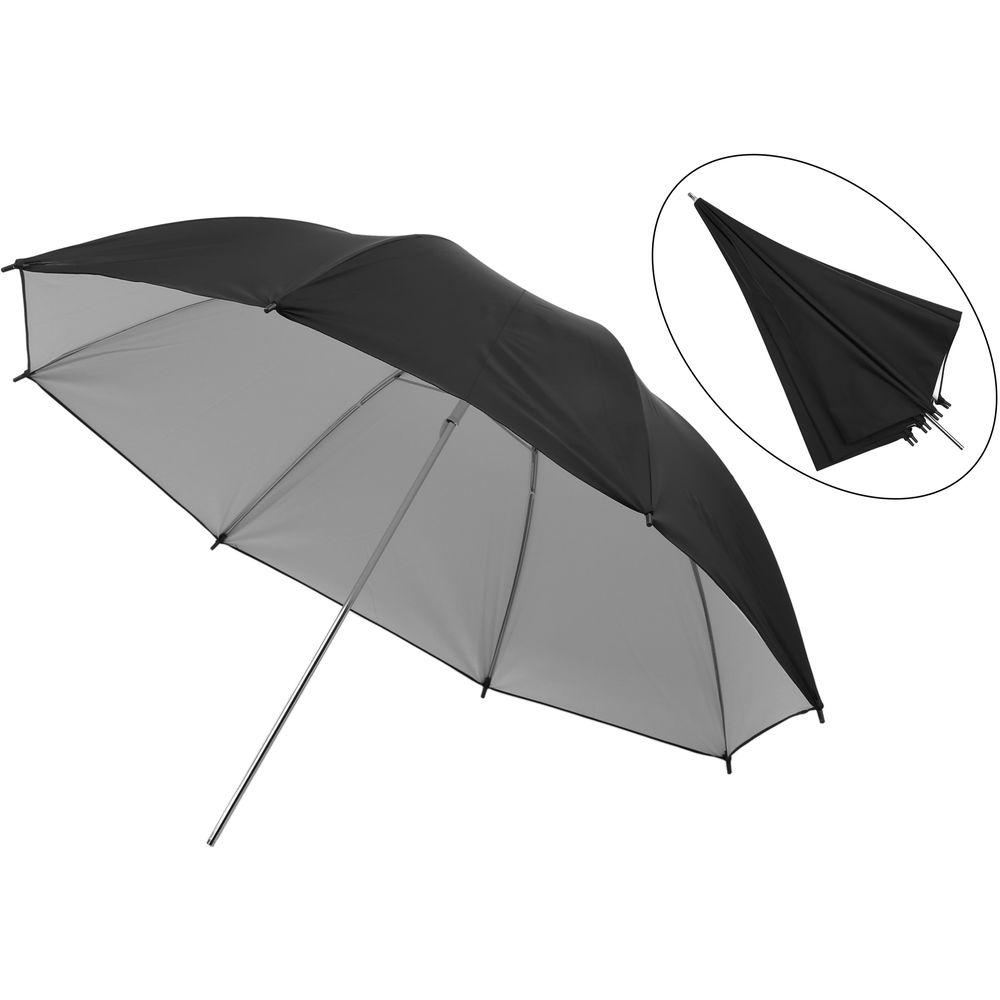

- 2 x White Umbrellas with Black Backing (36")

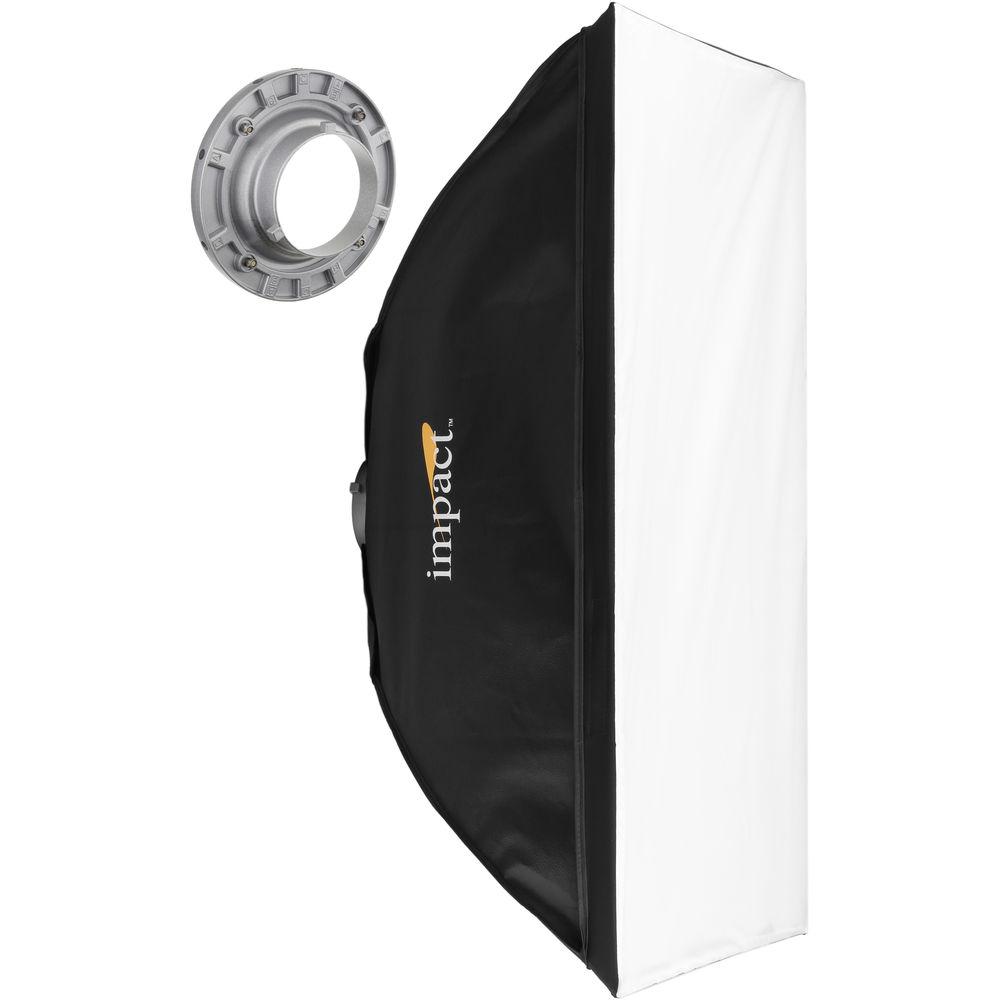

- Softbox with Speed Ring, 24 x 36"
- Wheeled Kit Case
- Limited 1-Year Warranty
User Manual PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact 500Ws 2-Light Wireless Monolight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - VC-500WLN 500Ws Monolight
| Maximum Power | 500 Ws | Power Control | 6 Stops in 1/10-Stop Increments | Guide Number | 255' / 78 m at ISO100 | Flash Duration | 1/1200 to 1/800 Sec | Recycle Time | 0.2 to 1.5 Sec () | Color Temperature | 5600K ± 100K | Flash Ready Indicator | Audio, Visual | Accessory Fitting Type | Bowens S Type | | Type | Tungsten | Base Type | E26/E27 | Wattage | 250 W | Control Modes | Independent, Off, Proportional | | Sync Type | Cable, Optical, Radio | Wireless Frequency Bands | 2.4 GHz | Wireless Channels / Groups | 16 / X | Wireless Range | 328' / 100 m (Radio) | Interface | 1/4" Sync | Sync Voltage | 5 V | | AC Input Voltage | 100to130 VAC, 60 Hz | Circuit Protection | Adaptive Thermal Control, Fuse, Soft Start Circuitry | Fuse | 12.5 A | | Display | None | Mount | 5/8" / 16 mm Receptacle | Auto Dump | Yes | Fan Cooled | Yes | Dimensions | H: 5.0 x W: 5.0 x L: 16.5" / H: 13.0 x W: 13.0 x L: 42.0 cm | Weight | 5.45 lb / 2.47 kg | | Box Dimensions (LxWxH) | 19.8 x 11.2 x 8.8" | - VC-500WLXMT Wireless 2.4 GHz Transmitter for VC-500WL Monolight
| Channels | 16 | Wireless Range | 300 to 400' / 91.4 to 121.9 m | Radio Frequency | 2.4 GHz | | Dimensions | 2.3 x 1.5 x 0.8" / 6 x 4 x 2.1 cm (Transmitter) | Weight | 1.6 oz / 45.4 g | | Box Dimensions (LxWxH) | 5.75 x 3.2 x 1.5" |
