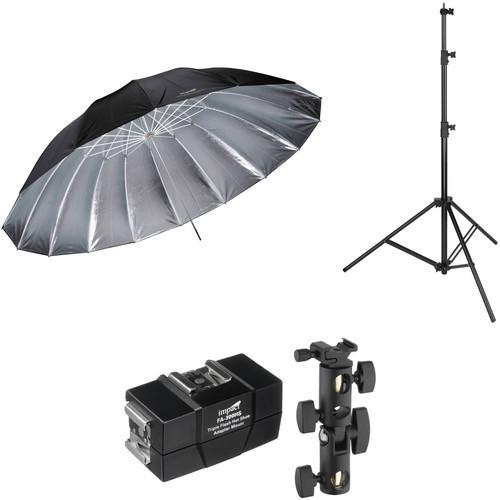

Impact 7' Parabolic Umbrella With Light

User Manual for Impact 7' Parabolic Umbrella With Light Stand Kit

• Product category: Umbrellas Impact
• Brand: Impact
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Impact Umbrellas

Product description

• Impact 7' Improved Parabolic Umbrella (Silver) If you had to choose a single light shaping tool, you might do well to pick the silver Impact 7' Parabolic Umbrella. First of all, it's a huge broad light source that wraps light around your subject, yielding clean highlights and rich open shadows. But due to the special shape of the umbrella there's a unique mix of soft enveloping light with the kind of crisp detail you only get from reflectors. Put another way, if you combined a beauty dish with a softbox, you'd have a parabolic umbrella.This umbrella has a unique structural design as well. The shaft is reinforced for strength and instead of bendable metal, the 16 inner ribs are made of durable fiberglass. The fixed black backing ensures that all of the light output is bounced back to your subject instead of through the umbrella. The silver interior provides a more specular and contrasty look than a white umbrella. You can also vary the light-to-umbrella distance along the shaft for a harder or softer light. In addition, an optional diffuser is available for this umbrella, which effectively converts it to a large softbox with just a 1/2 stop loss of output. This silver version is ideal for throwing the light over a long distance. Two of them, for instance, could light an entire auditorium or a large graduating class. The umbrella features an improved finger-friendly locking mechanism for secure and fast set up and break down.
  Improved Locking Mechanism
  • Improved locking mechanism provides fast, secure, and "finger-friendly" set up and break down.
  Parabolic Shape
  • The parabolic shape produces a more natural wraparound light than a regular umbrella. This soft and natural light is what makes this umbrella a favorite of wedding and portrait photographers.
  Wide Diameter
  • The 7-foot diameter ensures a soft light quality. This umbrella produces enough light for stunning group photos. It will also emit a broad enough beam for full-length portraits.
  Silver Interior
  • A highly reflective silver ripstop nylon lines the umbrella's interior. It produces maximum light output that's great for studio or outdoor shooting where more contrast or specular highlights are wanted. Often used by fashion photographers for its punchy light.
  16-Rib Design
  • For an umbrella to be effective, it needs to maintain its shape, and the fabric should remain taut. The umbrella features a 16-rib design that maintains the shape of the umbrella and the tension of the fabric for an even light spread.
  UPC: 847628008915
• Impact FA-300HS Triple-Flash Hot Shoe Adapter Mount The FA-300HS Triple-Flash Hot Shoe Adapter Mount from Impact allows you to mount, sync and fire up to three flashes from this single adapter. You can fire the flashes at full power for greater light output or, for faster recycle times, fire them at half power to conserve the energy. This unique adapter features a female 1/4"-20 thread for universal mounting, and may be combined with an umbrella or other similar lighting accessories (all sold separately).

  The mount has a 3.5mm jack that allows you to use a sync cord to connect the adapter to your camera or wireless receiver. If you own an Impact PowerSync DC Radio Slave System or a similar wireless unit, you can fire them all with a single receiver attached to the adapter. While not designed for use with high-voltage flashes, you can mix and match flashes from most major digital camera manufacturers without issue - though the electrical requirements should always be considered beforehand.
  • Mount and sync three different shoe-mount flashes with a single bracket, and fire all three with a wireless receiver. You can also mix and match flashes from most major digital camera manufacturers.
  • The adapter has a female 1/4"-20 thread for universal mounting, and a 1/8" (3.5 mm) jack for a sync cord or wireless receiver.
  UPC: 847628552586
• Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5') This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628012004
• Impact Deluxe Umbrella Mount with Adjustable Shoe A useful and versatile addition to any lighting kit, the Deluxe Umbrella Mount with Adjustable Shoe from Impact is designed to maximize the utility small lights or shoe-mount flashes while the heavy-duty mount has a socket that can support umbrellas up to 60" in diameter.Able to tilt 180-degrees and swivel 360-degrees, the anodized black aluminum Umbrella Mount can be installed on any industry-standard light stand with a 5/8" top stud from either end of the mount. Additional 5/8" holes are tapped into to unit to allow you to mount it vertically or horizontally for maximum versatility. The Deluxe Umbrella Mount includes removable 3/8"-16 and 1/4"-20 brass stud adapters to support accessories. One of them, for example, fastens a cold shoe with a knurled locking knob for a secure connection to your flash.
  Tilt and Swivel
  • 180-degree tilt and 360-degree swivel
  Vertical or Horizontal Mounting
  • Bottom and side taps allow space-saving mounting options
  Adjustable Cold Shoe
  • Allows you to maximize the potential of your shoe-mount flash
  Umbrella Socket
  • Supports up to 60" umbrellas
  Included Adapters
  • Female 3/8"-16 and male 1/4"-20 stud adapters add compatibility with various accessories
  Mounting Options and Adjustments
  • Adds significant flexibility to a simple light stand
  UPC: 847628000636

• 7' Improved Parabolic Umbrella (Silver) ztfaywbucxfqbzdqurfr
• Carrying Case
• Limited 1-Year Warranty

• FA-300HS Triple-Flash Hot Shoe Adapter Mount

• Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

• Deluxe Umbrella Mount with Adjustable Shoe

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Impact 7' Improved Parabolic Umbrella (Silver)

  Size	84.0" / 213.4 cm
  Interior	Silver
  Exterior	Black
  Shaft Diameter	8 mm
  Rods	16
  Material of Construction	Fiberglass, Nylon
  Folded Size	L: 43.5" / L: 110.5 cm
  Weight	2.4 lb / 1.1 kg

  Box Dimensions (LxWxH)	45.5 x 3.75 x 3.75"

• Impact FA-300HS Triple-Flash Hot Shoe Adapter Mount

  Mount Types	3x Hot shoe mount adapter
  Interface	1/8" (3.5 mm) jack for sync cord or wireless receiver 1/4"-20 female thread size
  Dimensions	2.5 x 1.1 x 1.4" (6.4 x 2.9 x 3.5 cm)
  Weight	1.6 oz (44 g)

  Box Dimensions (LxWxH)	4.75 x 2.4 x 1.4"

• Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

  Maximum Load	22 lb (10 kg)
  Maximum Height	114" (290 cm)
  Minimum Height	48" (123 cm)
  Closed Length	42" (106.7 cm)
  Footprint Diameter	52" (132 cm)
  Leg Tip	0.98" (25 mm)
  Attachment Size	Removable 5/8" (16 mm) spigot with 1/4"-20 and 3/8"-16 threaded ends
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	4.4 lb (2.0 kg)

  Box Dimensions (LxWxH)	42.8 x 5.5 x 5.2"

• Impact Deluxe Umbrella Mount with Adjustable Shoe

  Adjustments	360° swivel, 180° tilt
  Material of Construction	Anodized black aluminum
  Mount	5/8" (16 mm) receiver 3/8"-16 female stud adapter 1/4"-20 male stud adapter

  Box Dimensions (LxWxH)	8.3 x 4.2 x 1.7"
