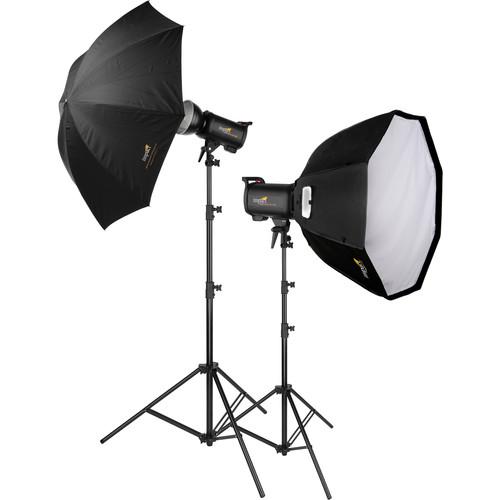

Impact Astral Extreme 2-Monolight Portrait Kit

User Manual for Impact Astral Extreme 2-Monolight Portrait Kit

• Product category: Monolights Impact
• Brand: Impact
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Impact Monolights

Product description

• 2 x Impact Astral Extreme AS-X-400 Monolight When describing the aptly-named 400Ws Astral Extreme AS-X-400 Monolight from Impact the operative word is speed. The light is designed so you'll never miss a shot while waiting for it to recycle. Recycling time is a fast 0.4 seconds at full power, flash duration is an impressive 1/5,000 of a second, and continuous shooting speed can reach a rapid-fire 10 frames per second. This strong emphasis on speed makes the Astral Extreme a smart choice for fashion and event shooting and since it's fast enough to capture almost any movement at its peak, it's ideal for high-speed photography. You can even bring the Astral Extreme on location, powering it from a generator or inverter if there's no AC power available.Easy might be the next way to describe AS-X-400. Adjustments are easily made on the light's back panel which incorporates a carry handle. Soft push buttons control the modeling light, ready beep, and optical slave on/off function. The slave allows you set Instant-Fire or Skip Pre-flash modes and trigger the flash head at distances up to 33'. You can also hard wire the AS-X-400 to your camera via the included 1/4" phono sync cord, or easier still, use an optional wireless radio system such as Impact's ControlSync 16 to trigger the flash from up to 150' away and remotely control its power, modeling and audible alert.The Astral Extreme's power level, which is adjustable in 1/10 stops over a 6 stop range is displayed on an easy-to-read LCD screen. Both power and modeling lamp intensity are adjustable via simple knobs. The 150W modeling light dims when the flash is triggered while a switchable beep indicates full recycling.A handy feature of the AS-X-400 is the adjustable mounting bracket that allows you to find the center of gravity for better balance when using heavy front accessories such as large softboxes. A built-in receiver can support umbrella shafts up to 8mm and umbrellas up to 7' in diameter. The speedring/reflector mount is S-type, providing you with a wide range of choices, not only from Impact but from the many manufacturers who have standardized on this mount. Impact includes a reflector that accepts 7" grids.
  Benefits and Attributes
  • Ultra-fast 0.4 sec. recycle time at full power means you'll never miss a shot while waiting for your light to recycle
  • Speedy 1/5,000 sec. flash duration and 10 fps continuous shooting speed make this monolight great for event work as well as high-speed photography
  • Flash power output is up to 400Ws, with precise output control in 0.1 stop increments over a 6 stop range
  • Built-in 8mm umbrella mount and S-type bayonet mount allow you to attach light-modifiers like umbrellas, softboxes, and beauty dishes to customize and shape your light
  • Fan-cooling system, heat sinks, and speed-dedicated internal components prevent overheating when shooting at high speeds
  UPC: 847628575707
• 2 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5') This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628012004
• Impact Luxbanx Duo Deep Small Octagonal Softbox (39") The Impact Luxbanx Duo Deep Small Octagonal Softbox is a versatile 39" diameter light shaping tool with a textured silver interior for high output, removable front diffuser and a removable interior baffle. It's compatible with strobe lights, fluorescent, or LED light sources. It's also compatible with hot lights up to 1000W. When using it with hot lights remove the interior baffle. The Duo Octa's shape renders a signature quality of soft wrap-around light due to its large surface area and creates round, natural catchlights in your subject's eyes, making it ideal for portraiture and fashion. Separate purchase of a speed ring is required for use and Impact makes models to fit most popular brands. Do not use inner baffle with hot lights. UPC: 847628564510
• Impact Fabric Grid for Small/Deep Octagonal Luxbanx (39") The Impact Fabric Grid for Small/Deep Octagonal Luxbanx is a 39" light modifier that attaches quickly to the softbox's recessed front via touch-fasteners. The 40° grid narrows the beam spread from your softbox to control spill light and add directionality similar to a reflector while maintaining a soft quality of light. Unlike unwieldy rigid grids, Impact fabric grids are extremely lightweight and fold flat for transport in the included carry case. UPC: 847628567030
• Impact Speed Ring for Impact, Bowens S, Westcott & Aputure The Speed Ring for Impact, Bowens S, Westcott & Aputure from Impact features indexed flex rod holes that allow you to effortlessly mount any square, rectangular, strip, or octagonal Luxbanx softbox to Impact, Bowens S, Westcott, and Aputure heads. The ring will also fit most other brands of softbox. The sturdy all-metal ring rotates 360 degrees to facilitate orientation or to clear obstacles in tight quarters. It has 3/8"-16 taps on two sides to allow mounting directly to grip gear such as Impact's Swivel Umbrella Adapter, 3 Section Double Articulated Arm, Super Clamp, and more. UPC: 847628003309
• Impact Convertible Umbrella - White Satin with Removable Black Backing - 45" This is an Impact 45" white satin umbrella with removable black backing. Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a softbox. Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush. This size is perfect for a 1 - 2 person half-length portrait, or a 3x4 ft product setup.
  • Backing may be removed half way, providing a unique combination of light bounced from different surfaces.
  UPC: 847628013308
• Impact ControlSync 16 Transmitter The Impact ControlSync 16 Transmitter provides photographers with a wireless solution for triggering their select flash head at distances up to 150'. The ControlSync 16 is compatible only with Impact's AS-X-400 Astral Extreme and its kits. It also works with Interfit's Strobies line of flashes and the Angler Q-400. The 16-channel, 16-group transmitter has a built-in antenna and hot shoe and uses a separately purchased 16-channel, 16-group receiver that is powered by its host flash without using batteries.Operating on the 433 MHz frequency, the ControlSync 16 Transmitter can raise and lower the power of the slave flash in 1/10 or 1/3 stop increments as well as turn modeling lights and audio alerts on and off. It's also capable of turning the AF assist on or off on flash units that have this feature. The ControlSync 16 transmitter runs on 2 AA batteries and is intended for use with the CS-16-R receiver. Besides triggering your flash from up to 150' away, the ControlSync 16 transmitter can be used as a handheld remote controller to adjust the settings on all your compatible flash units that are connected to a ControlSync receiver, even if you use a different device or method to trigger them. UPC: 847628589629
• Impact ControlSync16 Receiver The ControlSync 16 Receiver from Impact is an advanced 16 channel, 16 group radio triggering device that can fire your compatible remote flash at sync speeds up to 1/250 second at distances up to 150' as well as control its power level. Operating on the 433 MHz frequency and powered by the host device, the receiver, when used with its separately purchased Impact CS-16-T transmitter, can raise and lower the power of the slave flash in 1/10 or 1/3 stop increments as well as turn modeling lights and audio alerts on and off. It's also capable of turning the AF assist on or off on flash units that have this feature. The ControlSync16 Receiver is compatible with the Impact AS-X-400 Astral Extreme 400Ws moonlight and Interfit Strobies flash heads.
  Benefits
  • Triggers flash wirelessly from up to 150'
  • Adjusts power levels remotely
  • Turns modeling lamp and audio alert on and off
  • 16 Channels and groups
  • USB powered, no batteries
  Compatibility
  • Impact AS-X-400 Astral Extreme 400 Ws monolight
    Interfit Strobies flash heads
  UPC: 847628575721

• 2 x Astral Extreme AS-X-400 Monolight fyxefbscsdxfwraffw
• Flash Tube
• Modeling Lamp
• Protective Glass Dome
• Transport Cover
• Grid Reflector (7")
• Power Cord
• PC Sync to 1/4˝ Phono Cord
• Spare Fuse
• User Manual
• Limited 1-Year Warranty

• 2 x Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

• Luxbanx Duo Deep Small Octagonal Softbox (39")

• Fabric Grid for Small/Deep Octagonal Luxbanx (39") fyxefbscsdxfwraffw

• Speed Ring for Impact, Bowens S, Westcott & Aputure

• Convertible Umbrella - White Satin with Removable Black Backing - 45"

Includes Free

• ControlSync 16 Transmitter

• ControlSync16 Receiver

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Impact Astral Extreme AS-X-400 Monolight

  Maximum Power	400 Ws
  Power Control	6 Stops in 1/10-Stop Increments
  Guide Number	213' / 65 m at ISO100
  Flash Duration	1/8000 to 1/5000 Sec
  Recycle Time	0.4 Sec
  Color Temperature	5600K ± 100K
  Flash Ready Indicator	Audio
  Reflector	7.0" / 17.8 cm Changeable
  Accessory Fitting Type	8 mm Umbrella Shaft, Bowens S Type

  Type	Tungsten
  Base Type	E27
  Wattage	150 W

  Sync Type	Button, Cable, Optical, Radio
  Interface	1/4" Sync

  AC Input Voltage	110 VAC, 60 Hz
  Circuit Protection	Fuse
  Fuse	8 A

  Display	None
  Mount	5/8" / 16 mm Receptacle
  Fan Cooled	Yes
  Dimensions	H: 5.5 x W: 5.5 x L: 16.1" / H: 14.0 x W: 14.0 x L: 41.0 cm
  Weight	7.15 lb / 3.24 kg, Including Flash Tube, Modeling Lamp, and Reflector

  Box Dimensions (LxWxH)	18.7 x 10.9 x 8.6"

• 2 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

  Maximum Load	22 lb (10 kg)
  Maximum Height	114" (290 cm)
  Minimum Height	48" (123 cm)
  Closed Length	42" (106.7 cm)
  Footprint Diameter	52" (132 cm)
  Leg Tip	0.98" (25 mm)
  Attachment Size	Removable 5/8" (16 mm) spigot with 1/4"-20 and 3/8"-16 threaded ends
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	4.4 lb (2.0 kg)

  Box Dimensions (LxWxH)	42.8 x 5.5 x 5.2"

• Impact Luxbanx Duo Deep Small Octagonal Softbox (39")

  Shape	Octagon
  Interior	Silver
  Requires Speed Ring	Yes, Not Included
  Accepts Grids	Yes
  Maximum Wattage	1000 W (Hot Lights)
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
