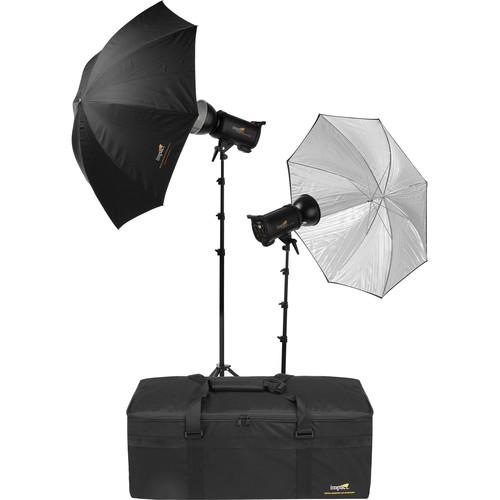

Impact Astral Extreme AS-X-400 2-Monolight Kit

User Manual for Impact Astral Extreme AS-X-400 2-Monolight Kit

• Product category: Monolights Impact
• Brand: Impact
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Impact Monolights

Product description

• 2 x Impact Astral Extreme AS-X-400 Monolight When describing the aptly-named 400Ws Astral Extreme AS-X-400 Monolight from Impact the operative word is speed. The light is designed so you'll never miss a shot while waiting for it to recycle. Recycling time is a fast 0.4 seconds at full power, flash duration is an impressive 1/5,000 of a second, and continuous shooting speed can reach a rapid-fire 10 frames per second. This strong emphasis on speed makes the Astral Extreme a smart choice for fashion and event shooting and since it's fast enough to capture almost any movement at its peak, it's ideal for high-speed photography. You can even bring the Astral Extreme on location, powering it from a generator or inverter if there's no AC power available.Easy might be the next way to describe AS-X-400. Adjustments are easily made on the light's back panel which incorporates a carry handle. Soft push buttons control the modeling light, ready beep, and optical slave on/off function. The slave allows you set Instant-Fire or Skip Pre-flash modes and trigger the flash head at distances up to 33'. You can also hard wire the AS-X-400 to your camera via the included 1/4" phono sync cord, or easier still, use an optional wireless radio system such as Impact's ControlSync 16 to trigger the flash from up to 150' away and remotely control its power, modeling and audible alert.The Astral Extreme's power level, which is adjustable in 1/10 stops over a 6 stop range is displayed on an easy-to-read LCD screen. Both power and modeling lamp intensity are adjustable via simple knobs. The 150W modeling light dims when the flash is triggered while a switchable beep indicates full recycling.A handy feature of the AS-X-400 is the adjustable mounting bracket that allows you to find the center of gravity for better balance when using heavy front accessories such as large softboxes. A built-in receiver can support umbrella shafts up to 8mm and umbrellas up to 7' in diameter. The speedring/reflector mount is S-type, providing you with a wide range of choices, not only from Impact but from the many manufacturers who have standardized on this mount. Impact includes a reflector that accepts 7" grids.
  Benefits and Attributes
  • Ultra-fast 0.4 sec. recycle time at full power means you'll never miss a shot while waiting for your light to recycle
  • Speedy 1/5,000 sec. flash duration and 10 fps continuous shooting speed make this monolight great for event work as well as high-speed photography
  • Flash power output is up to 400Ws, with precise output control in 0.1 stop increments over a 6 stop range
  • Built-in 8mm umbrella mount and S-type bayonet mount allow you to attach light-modifiers like umbrellas, softboxes, and beauty dishes to customize and shape your light
  • Fan-cooling system, heat sinks, and speed-dedicated internal components prevent overheating when shooting at high speeds
  UPC: 847628575707
• 2 x Impact Air-Cushioned Light Stand (Black, 10') This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628030626
• Impact Light Kit Bag #2 (34 x 13.5 x 12") The black Light Kit Bag #2 (34 x 13.5 x 12") from Impact makes transporting your lighting kit easy and secure. The bag is designed to hold three monolights along with their reflectors (such as Impact VC500LR), four stands, boom, umbrellas, cables and other support gear but can also be used to hold other lighting equipment instead. You'll have plenty of room to take along enough lighting gear for a portrait session - all packed in an organized and accessible way. A touch fastened divider tray separates the stands, boom and umbrellas from the lights preventing them from bumping together and causing scratches or damage. For additional smaller equipment such as cables and small accessories, there are three interior 10.5 x 8.0" zippered mesh pockets.The bag is made from soft, padded water-resistant nylon and contains six movable touch fastened interior dividers (6 large, 2 small) that will permit you to configure the bag to accommodate the gear you need that day. The Light Kit Bag is carried by its two 2" wide overlapping top carry handles that can easily be extended into dual shoulder straps. The contents are accessed via dual zippers that when placed together will accept a user-supplied lock. For even more protection, the bottom of the bag contains three rubber feet for when the bag is placed on the ground. And the bag folds down to a quarter of its height for convenient storage and easy setup. Whether for storage or transport, the Impact Light Kit Bag will serve both pro or amateur well.
  • The soft padded carry case is designed to hold three monolights with reflectors, four light stands, umbrellas, cables and other accessories
  • The interior has six movable, touch fastened dividers that permit you to configure the bag to suit your needs; dividers consist of six large and two smaller styles
  • 2" (5.1 cm) wide overlapping dual carry handles that convert to a shoulder strap
  • Interior has three zippered 10.5 x 8.0" mesh pockets (26.7 x 20.3 cm)
  • Touch fastened protective nylon tray separates light stands and umbrellas from monolights
  • Water-resistant padded nylon construction
  • Folds down to less then 4" for convenient storage and easy setup
  • Dual zippered opening; accepts user-supplied lock
  UPC: 847628030619
• 2 x Impact Convertible Umbrella - White Satin with Removable Black Backing - 45" This is an Impact 45" white satin umbrella with removable black backing. Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a softbox. Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush. This size is perfect for a 1 - 2 person half-length portrait, or a 3x4 ft product setup.
  • Backing may be removed half way, providing a unique combination of light bounced from different surfaces.
  UPC: 847628013308

• 2 x Astral Extreme AS-X-400 Monolight wbarttfcyuttzzybxvxeqfsyvcf
• Flash Tube
• Modeling Lamp
• Protective Glass Dome
• Transport Cover
• Grid Reflector (7")
• Power Cord
• PC Sync to 1/4˝ Phono Cord
• Spare Fuse
• User Manual
• Limited 1-Year Warranty

• 2 x Air-Cushioned Light Stand (Black, 10')

• Light Kit Bag #2 (34 x 13.5 x 12")

• 2 x Convertible Umbrella - White Satin with Removable Black Backing - 45"

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Impact Astral Extreme AS-X-400 Monolight

  Maximum Power	400 Ws
  Power Control	6 Stops in 1/10-Stop Increments
  Guide Number	213' / 65 m at ISO100
  Flash Duration	1/8000 to 1/5000 Sec
  Recycle Time	0.4 Sec
  Color Temperature	5600K ± 100K
  Flash Ready Indicator	Audio
  Reflector	7.0" / 17.8 cm Changeable
  Accessory Fitting Type	8 mm Umbrella Shaft, Bowens S Type

  Type	Tungsten
  Base Type	E27
  Wattage	150 W

  Sync Type	Button, Cable, Optical, Radio
  Interface	1/4" Sync

  AC Input Voltage	110 VAC, 60 Hz
  Circuit Protection	Fuse
  Fuse	8 A

  Display	None
  Mount	5/8" / 16 mm Receptacle
  Fan Cooled	Yes
  Dimensions	H: 5.5 x W: 5.5 x L: 16.1" / H: 14.0 x W: 14.0 x L: 41.0 cm
  Weight	7.15 lb / 3.24 kg, Including Flash Tube, Modeling Lamp, and Reflector

  Box Dimensions (LxWxH)	18.7 x 10.9 x 8.6"

• 2 x Impact Air-Cushioned Light Stand (Black, 10')

  Maximum Load	8.5 lb (3.8 kg)
  Maximum Height	121.5" (308.6 cm)
  Minimum Height	40.5" (102.9 cm)
  Closed Length	33.5" (85 cm)
  Footprint Diameter	38" (96.5 cm)
  Leg Tip	0.8" (20 mm)
  Attachment Size	5/8" (16 mm) stud with 1/4"-20 male threads
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	2.4 lb (1.1 kg)

  Box Dimensions (LxWxH)	34.0 x 3.0 x 3.0"

• Impact Light Kit Bag #2 (34 x 13.5 x 12")

  Interior Dimensions	34 x 13.5 x 12" / 86.4 x 34.3 x 30.5 cm

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	34.5 x 14 x 13" / 87.6 x 35.6 x 33 cm
  Weight	5.8 lb / 2.6 kg

  Box Dimensions (LxWxH)	35.0 x 14.0 x 12.5"

• 2 x Impact Convertible Umbrella - White Satin with Removable Black Backing - 45"

  Size	45.0" / 114.3 cm
  Interior	White
  Exterior	Black
  Shaft Diameter	8 mm
  Folded Size	L: 29.8" / L: 75.5 cm

  Box Dimensions (LxWxH)	31.2 x 4.0 x 1.6"
