User Manual for Impact Astral Extreme AS-X-400 Monolight Click to enlarge the picture
Contents of the user manual for the Impact Astral Extreme AS-X-400 Monolight
- Product category: Monolights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Monolights
 |
User manual for the Impact Astral Extreme AS-X-400 Monolight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

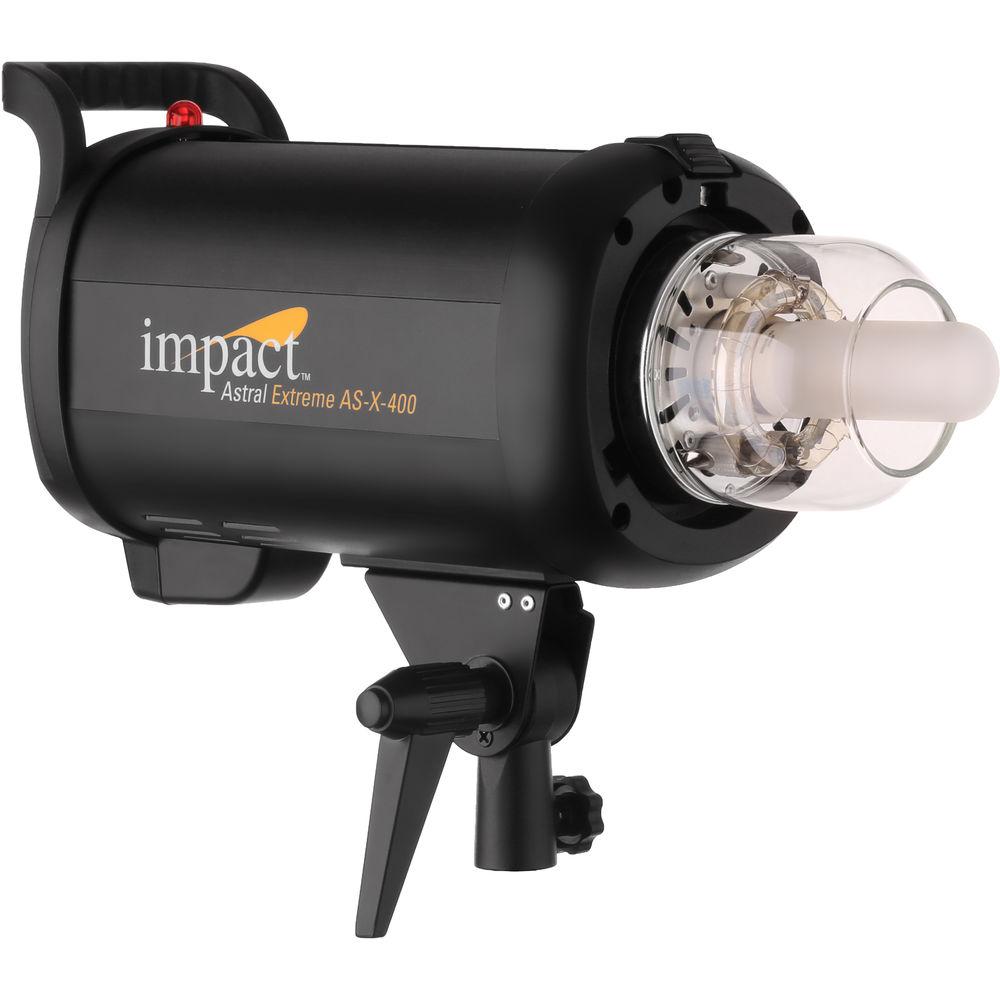

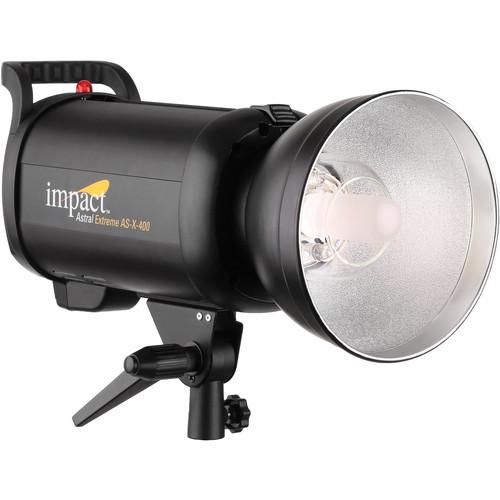

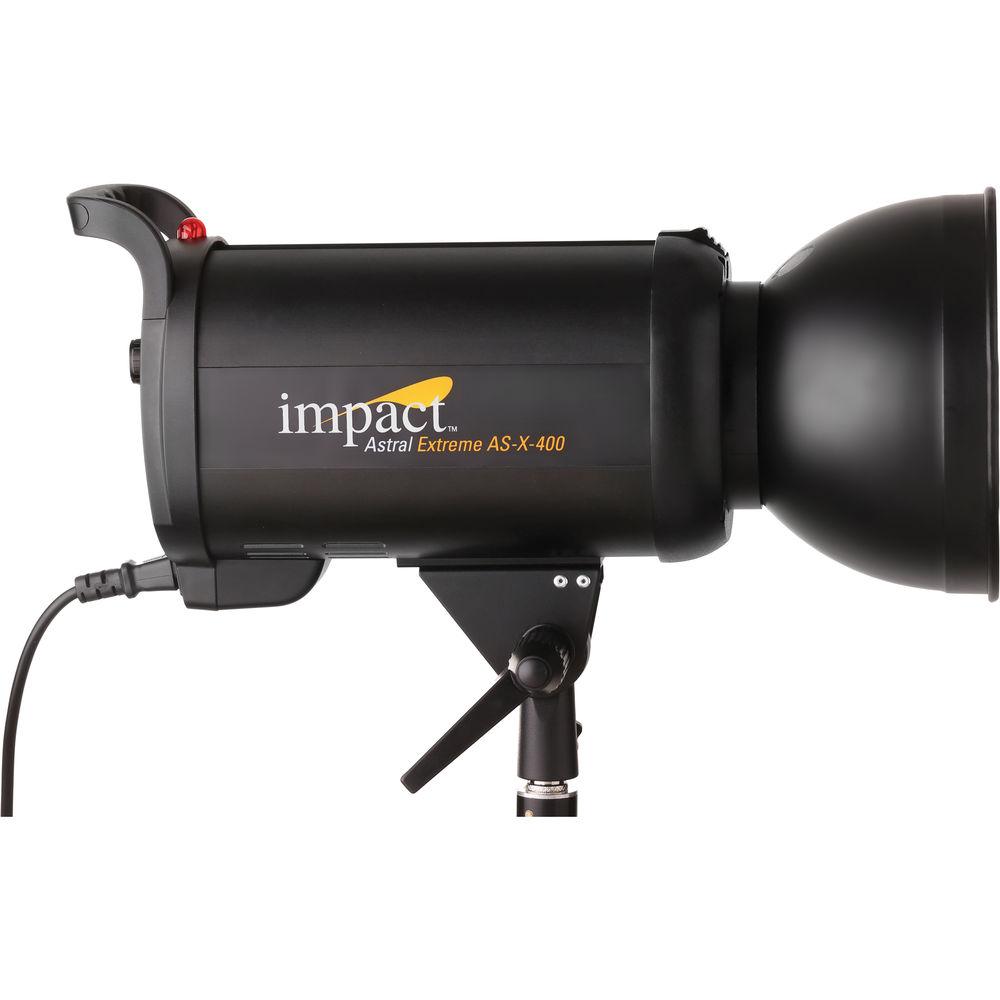

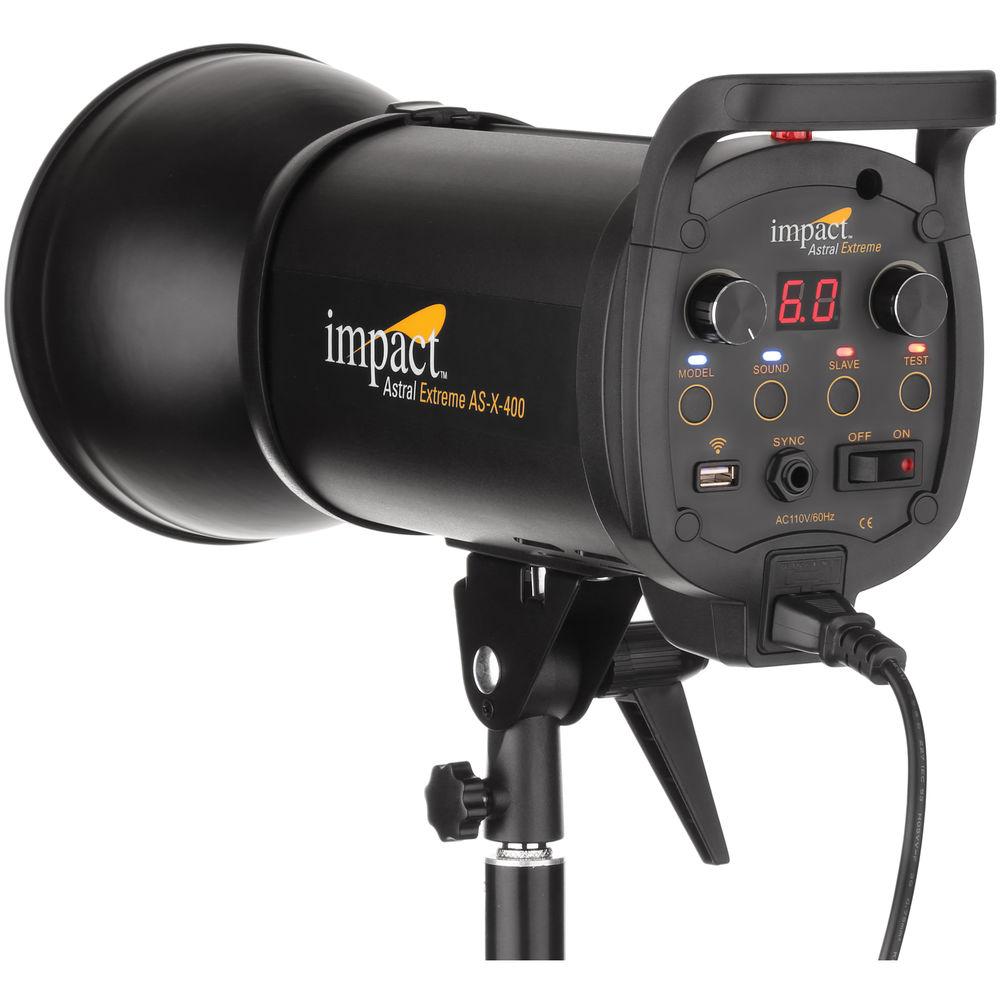

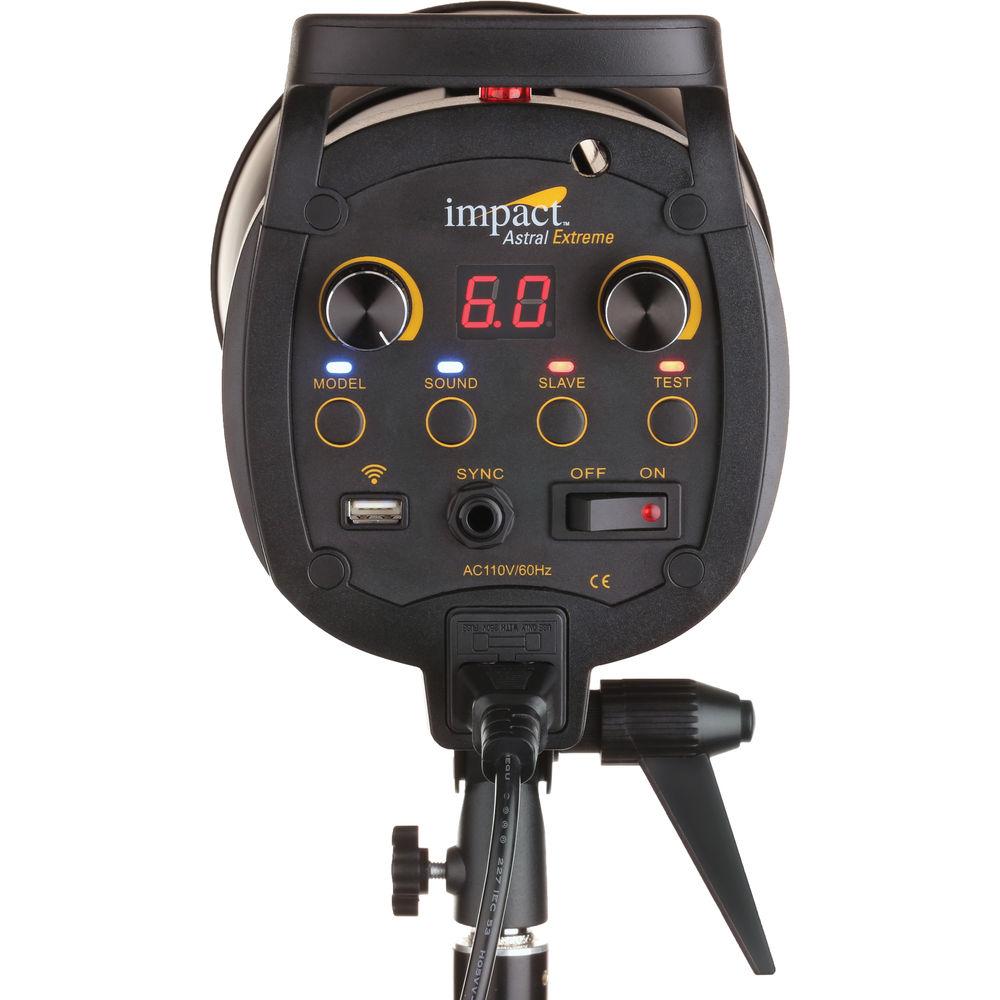

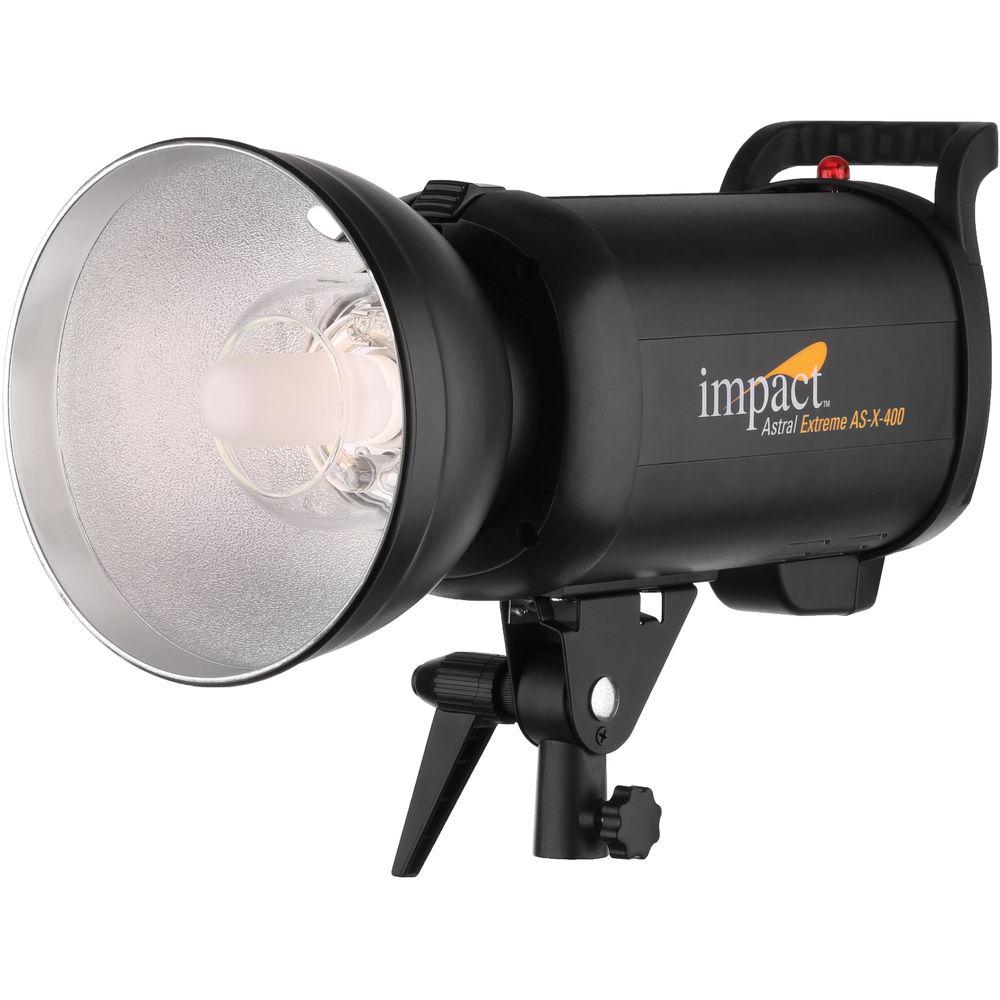

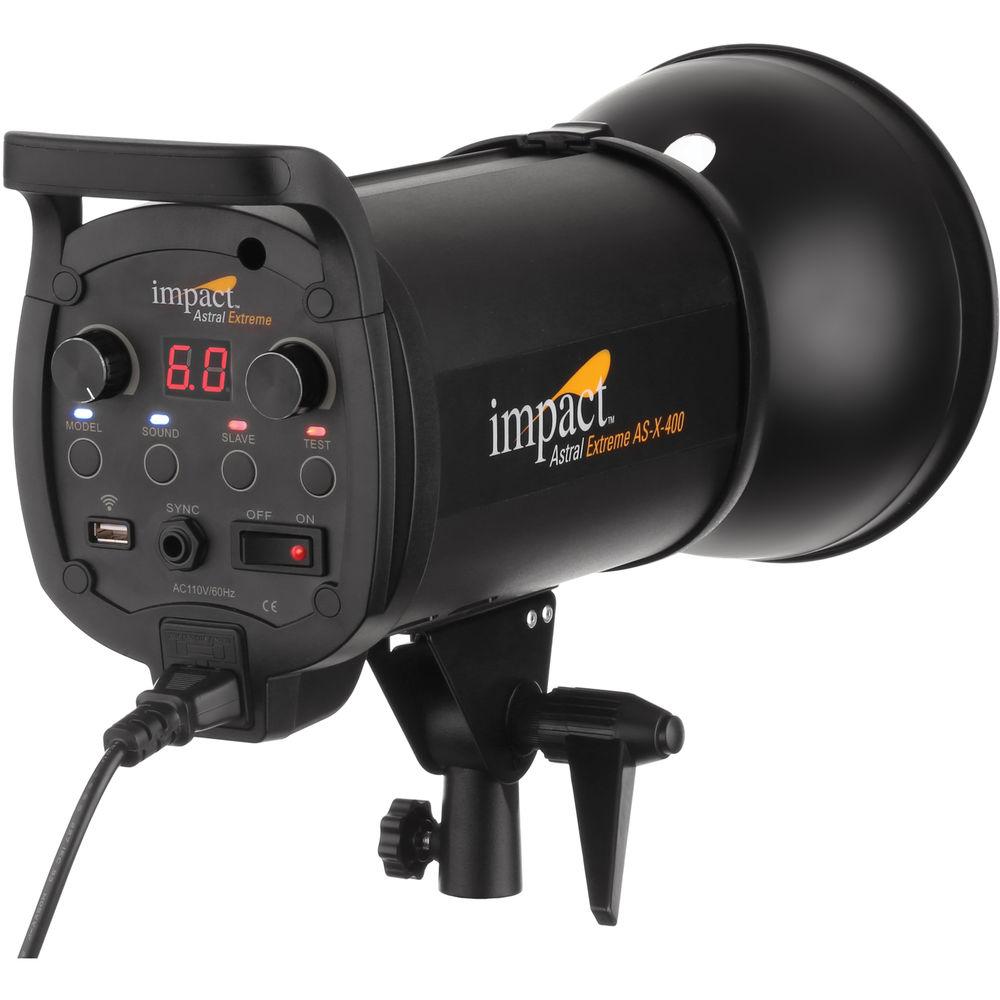

Product description When describing the aptly-named 400Ws Astral Extreme AS-X-400 Monolight from Impact the operative word is speed. The light is designed so you'll never miss a shot while waiting for it to recycle. Recycling time is a fast 0.4 seconds at full power, flash duration is an impressive 1/5,000 of a second, and continuous shooting speed can reach a rapid-fire 10 frames per second. This strong emphasis on speed makes the Astral Extreme a smart choice for fashion and event shooting and since it's fast enough to capture almost any movement at its peak, it's ideal for high-speed photography. You can even bring the Astral Extreme on location, powering it from a generator or inverter if there's no AC power available.Easy might be the next way to describe AS-X-400. Adjustments are easily made on the light's back panel which incorporates a carry handle. Soft push buttons control the modeling light, ready beep, and optical slave on/off function. The slave allows you set Instant-Fire or Skip Pre-flash modes and trigger the flash head at distances up to 33'. You can also hard wire the AS-X-400 to your camera via the included 1/4" phono sync cord, or easier still, use an optional wireless radio system such as Impact's ControlSync 16 to trigger the flash from up to 150' away and remotely control its power, modeling and audible alert.The Astral Extreme's power level, which is adjustable in 1/10 stops over a 6 stop range is displayed on an easy-to-read LCD screen. Both power and modeling lamp intensity are adjustable via simple knobs. The 150W modeling light dims when the flash is triggered while a switchable beep indicates full recycling.A handy feature of the AS-X-400 is the adjustable mounting bracket that allows you to find the center of gravity for better balance when using heavy front accessories such as large softboxes. A built-in receiver can support umbrella shafts up to 8mm and umbrellas up to 7' in diameter. The speedring/reflector mount is S-type, providing you with a wide range of choices, not only from Impact but from the many manufacturers who have standardized on this mount. Impact includes a reflector that accepts 7" grids. - Benefits and Attributes
-
- Ultra-fast 0.4 sec. recycle time at full power means you'll never miss a shot while waiting for your light to recycle
- Speedy 1/5,000 sec. flash duration and 10 fps continuous shooting speed make this monolight great for event work as well as high-speed photography
- Flash power output is up to 400Ws, with precise output control in 0.1 stop increments over a 6 stop range

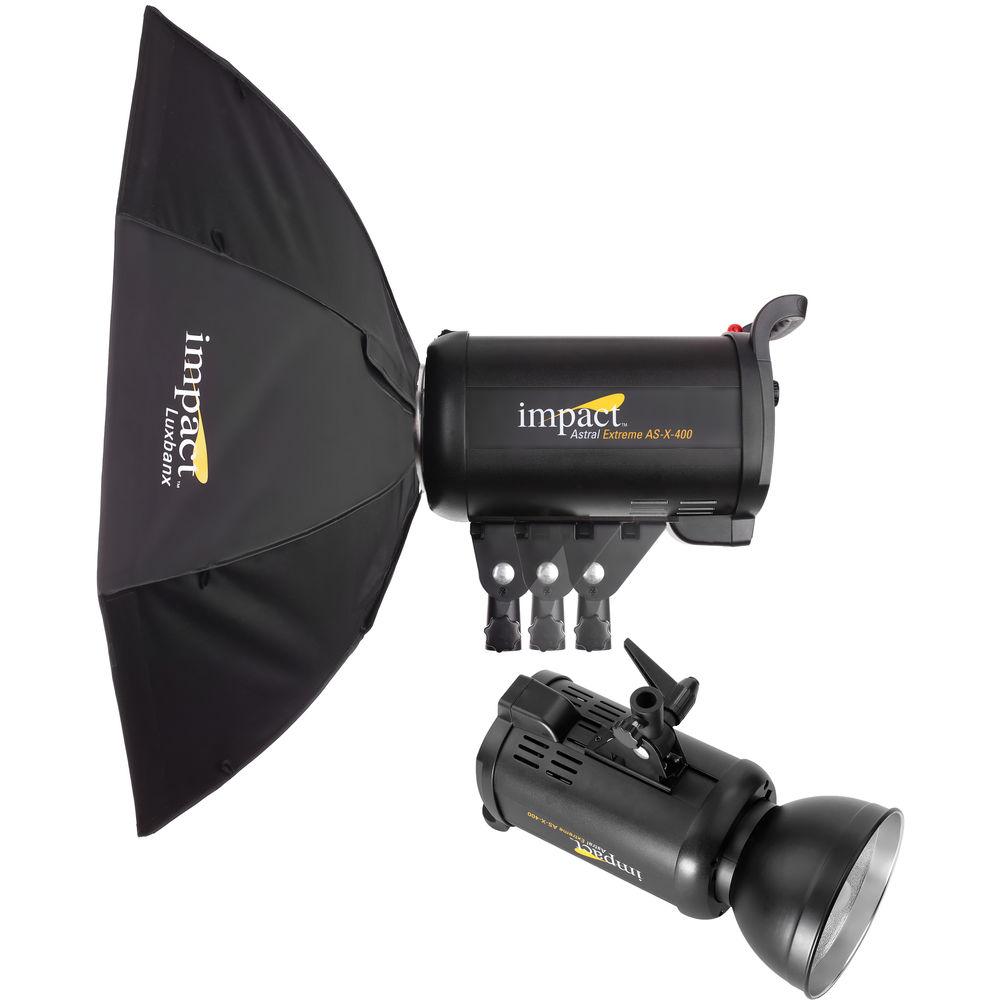

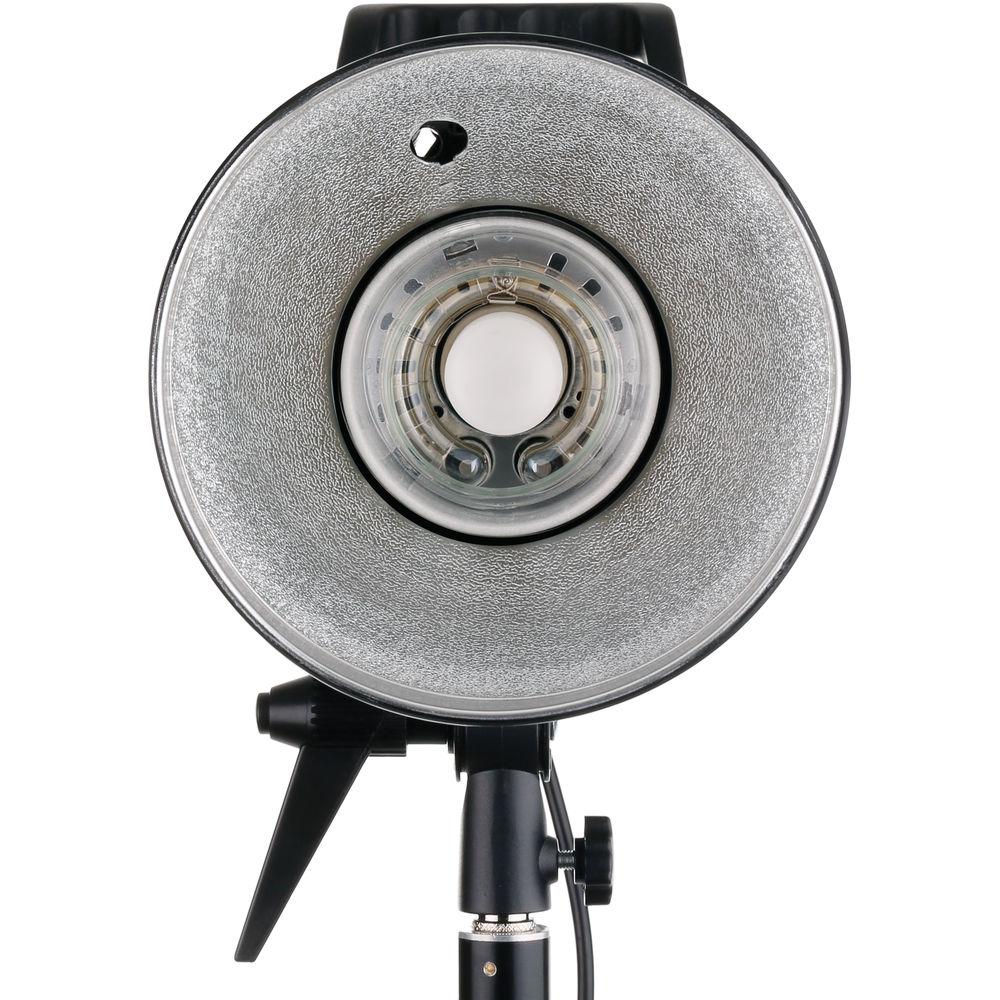

- Built-in 8mm umbrella mount and S-type bayonet mount allow you to attach light-modifiers like umbrellas, softboxes, and beauty dishes to customize and shape your light
- Fan-cooling system, heat sinks, and speed-dedicated internal components prevent overheating when shooting at high speeds
UPC: 847628575707 In the Box Impact Astral Extreme AS-X-400 Monolight Flash Tube Modeling Lamp Protective Glass Dome Transport Cover Grid Reflector (7") Power Cord PC Sync to 1/4˝ Phono Cord Spare Fuse User Manual Limited 1-Year Warranty User Manual PDF 3.1mbruquwwuaarwyeuyszczdxftwfsu Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Astral Extreme AS-X-400 Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

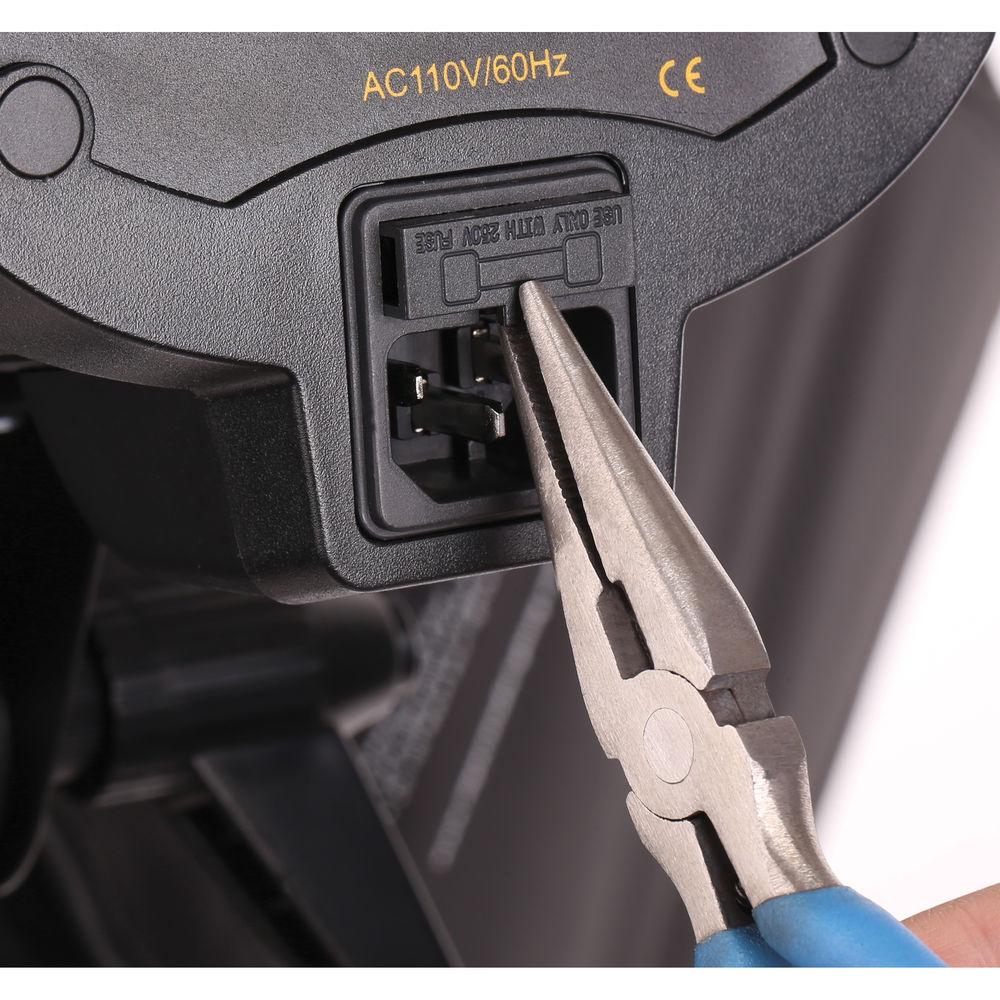

Technical parametersImpact AS-X-400 Specs | | | Maximum Power | 400 Ws | | Power Control | 6 Stops in 1/10-Stop Increments | | Guide Number | 213' / 65 m at ISO100 | | Flash Duration | 1/8000 to 1/5000 Sec | | Recycle Time | 0.4 Sec | | Color Temperature | 5600K ± 100K | | Flash Ready Indicator | Audio | | Reflector | 7.0" / 17.8 cm Changeable | | Accessory Fitting Type | 8 mm Umbrella Shaft, Bowens S Type | | | | Type | Tungsten | | Base Type | E27 | | Wattage | 150 W | | | | Sync Type | Button, Cable, Optical, Radio | | Interface | 1/4" Sync | | | | AC Input Voltage | 110 VAC, 60 Hz | | Circuit Protection | Fuse | | Fuse | 8 A | | | | Display | None | | Mount | 5/8" / 16 mm Receptacle | | Fan Cooled | Yes | | Dimensions | H: 5.5 x W: 5.5 x L: 16.1" / H: 14.0 x W: 14.0 x L: 41.0 cm | | Weight | 7.15 lb / 3.24 kg, Including Flash Tube, Modeling Lamp, and Reflector | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 18.7 x 10.9 x 8.6" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
