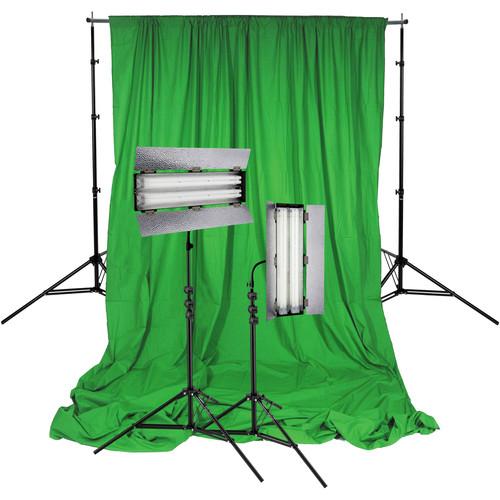

Impact Background Support System Chroma Kit

User Manual for Impact Background Support System Chroma Kit

• Product category: Fluorescent Lights Impact
• Brand: Impact
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Impact Fluorescent Lights

Product description

• Impact Background Support System - 12' Wide The Impact 12' Background Support System will support seamless paper up to 11' in width, as well as accommodate the 12' width of any brand of muslin background. Total weight distributed across the length of the crossbar should not exceed 20 lb. The system consists of 2 heavy-duty professional support stands with 3 positive locking knobs and tubular legs, a sturdy 4 piece crossbar that snaps together with positive button locking devices, and a heavy-duty canvas carry bag.It is suggested to secure the stands with gaffer tape, or weight bags when using any background setup where there are several people, or active children on the set.
  • Strong support for paper, or cloth backgrounds.
  • Crossbar may be used by combining some, or all the sections.
  UPC: 847628010772
• Impact Chroma Sheet Background (10 x 12', Green) Use the Impact Chroma Sheet Background if you go on a shoot and need to throw up a quick background for a headshot. Impact makes this chroma sheet background that is perfect for the job. This background also features a hemmed loop, which allows it to be used on a crossbar.Made from rugged muslin, the chroma colors are great for any kind of tv or video production. Supplied in its own carry bag, it can be folded with ease and stores easily in its own see-thru bag. And, if you own more than one, the see-thru feature allows you to quickly choose which Impact background you need without having to open several bags. Note: Colors depicted may vary slightly, due to differences in computer monitors, printed media, and variances in manufacturer's dyes or paints UPC: 847628010703
• 2 x Angler Steady Cool 2-Lamp Fluorescent Fixture The IUF-55 Steady Cool 2-Lamp Fluorescent Fixture from Angler is a lightweight fixture that serves as an ideal portable core unit for any setup. The 22.25 x 7 x 3.25" fixture weighs just 3.75 lb and comes with two 55W daylight-balanced lamps that can be swapped out for optional tungsten bulbs. Its hammered reflective silver barndoors help control the IUF-55's output as well as containing spill light. Its flexible gooseneck mount allows for multiple setup options while its 5/8" receiver accepts light stands with a matching stud.The IUF-55 Steady Cool draws very little power for a fast ROI in the studio while its multi-voltage 110-220 VAC power supply allows location use anywhere in the world. The light comes with a padded carry case for storage and transport.
  • Cool running, low power draw, daylight-balanced fluorescent light
  • Padded carrying case
  • Air-cooled for quiet operation
  • Flicker-free performance
  • Fused circuit protection
  UPC: 847628589049
• 2 x Impact Air-Cushioned Light Stand (Black, 10') This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628030626

• Background Support System - 12' Wide aztexysfyswddseezvtevyzfyrsxwdcu
• 2 x 10.5' Stands
• 4 x Crossbar Sections
• Canvas Case
• 1 Year Manufacturer's Warranty

• Chroma Sheet Background (10 x 12', Green)

• 2 x Angler - Steady Cool 2-Lamp Fluorescent Fixture

• 2 x Air-Cushioned Light Stand (Black, 10')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Impact Background Support System - 12' Wide

  Maximum Height	10.5' (3.2 m)
  Minimum Height	39" (99 cm)
  Closed Length	39" (99 cm)
  Maximum Width	12.5' (3.8 m)
  Minimum Width	6' (1.8 m)
  Weight Capacity	20 lb (9 kg)
  Weight	12 lb (5.4 kg)

  Box Dimensions (LxWxH)	41.5 x 6.9 x 5.0"

• Impact Chroma Sheet Background (10 x 12', Green)

  Color	Chroma Green
  Size	10 x 12' / 3 x 3.7 m

  Box Dimensions (LxWxH)	14.7 x 14.6 x 9.0"

• 2 x Angler Steady Cool 2-Lamp Fluorescent Fixture

  Construction	Aluminum
  Lamps	2 x Included 55 W daylight-balanced fluorescent
  Mounting	5/8" / 16 mm
  Input Voltage	110-220 VAC @ 50/60 Hz, 1.1 A
  Amperage	1.1 A
  Dimensions	22.25 x 7.0 x 3.25" / 56.5 x 17.8 x 8.25 cm
  Weight	3.75 lb / 1.7 kg

  Box Dimensions (LxWxH)	26.0 x 9.0 x 5.0"

• 2 x Impact Air-Cushioned Light Stand (Black, 10')

  Maximum Load	8.5 lb (3.8 kg)
  Maximum Height	121.5" (308.6 cm)
  Minimum Height	40.5" (102.9 cm)
  Closed Length	33.5" (85 cm)
  Footprint Diameter	38" (96.5 cm)
  Leg Tip	0.8" (20 mm)
  Attachment Size	5/8" (16 mm) stud with 1/4"-20 male threads
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	2.4 lb (1.1 kg)

  Box Dimensions (LxWxH)	34.0 x 3.0 x 3.0"
