User Manual for Impact Basic Varipole Support System Click to enlarge the picture
Contents of the user manual for the Impact Basic Varipole Support System
- Product category: Autopoles Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Autopoles
|
User manual for the Impact Basic Varipole Support System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

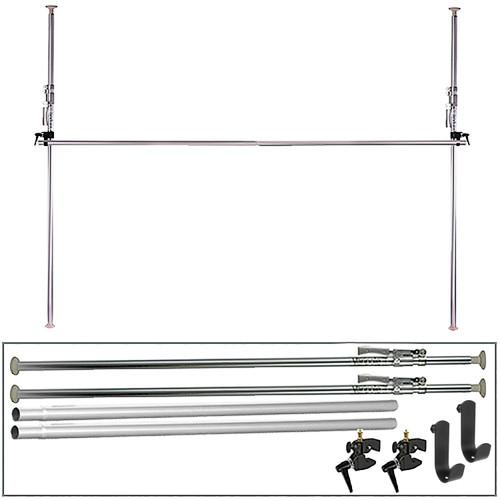

Product description The Impact Basic Varipole Support System is comprised of a pair of Varipoles, 2 super clamps that accept the included U-Hooks and a crossbar that will hold seamless rolls up to 107". The Varipole easily and quickly mounts between floor and ceiling providing stable support for backdrops, reflectors, lights and grip accessories. With a strong tension mechanism and locking system, the Varipole is secured by its own force of pressure between solid walls or floors and ceilings. Adjustable between 6'11" (2.1 m) and 12'1" (3.7 m), the Deluxe Varipole is capable of turning most rooms into a photo studio without damage to walls or ceilings. Simply snap the U-Hooks into the Super Clamps to provide a cradle for the crossbar, add optional seamless paper and shoot. - Impact Deluxe Varipole Support System - Silver (Pair) The adjustable Deluxe Varipole Support System (Pair) from Impact offers two Varipoles to create a functional studio backdrop and grip system. The Varipole easily and quickly mounts between floor and ceiling providing stable support for backdrops, reflectors, lights and grip accessories. With a strong tension mechanism and locking system, the Varipole is secured by its own force of pressure between solid walls or floors and ceilings. Adjustable between 6'11" (2.1 m) and 12'1" (3.7 m), the Deluxe Varipole is capable of turning most rooms into a photo studio without damage to walls or ceilings. The Varipole is available in black powder or brushed aluminum silver finishes.This Varipole set comes with two Varipoles of the same color at a budget-friendly price and will allow you more capability and load bearing strength. Purchase a cross-bar to hang a complex lighting set-up for portraiture or even stage lighting.
- Sturdy support system for lights, backgrounds and grip accessories
- Adjustable between 6'11" (2.1 m) and 12'1" (3.7 m).
- Solid rubber cushions give no-slip grip and minimize marks and damage to walls, floors and ceilings.
- Extension poles of 59" (1.5 m) and 78" (2 m) are available separately to increase the length of the Varipole.
UPC: 847628028784 - 2 x Impact Super Clamp with Ratchet Handle The Impact Super Clamp with Ratchet Handle is a versatile grip tool made of lightweight cast alloy. With a load capacity of 33 lb, the clamp can hold a wide variety of items such as cameras, lights, umbrellas, hooks, shelves, plate glass, cross bars, even other Super Clamps.The Super Clamp can be securely mounted on any tube or pipe from 0.5" to 2.1" and is supplied with a wedge insert for clamping onto flat surfaces. The ratchet handle allows you to disengage it and tighten it down from any angle; a very handy feature when you're using the clamp in tight quarters. A built-in socket holds 5/8" accessories such as the supplied SRP-102 Hex Stud with 1/4"-20 male thread. UPC: 847628538870
- Impact U-Hook Cross Bar Holders for Super Clamp - Pair This is a pair of black U-Hook Cross Bar Holders for Super Clamp from Impact. They are meant to hold up the cross bar of your background support system. The hex head studs on the U-Hook Holders fit neatly into your two optional Super Clamps that are then connected to your background system uprights. The Impact U-Hooks are made from solid aluminum.
- Hold up cross bar of optional background system
- Easily snaps into optional Super Clamps
- Black powder-coated aluminum
UPC: 847628001350 - 2 x Impact 59" Varipole Extension (Silver) The Impact 59" Varipole Extension is a 59" (1.5 m) extension pole for the Varipole Support System. The maximum reach of the basic Varipole is 12.1' (3.7 m), and if that is not long enough for your needs, use the Varipole Extension to extend it with an extra 59" (1.5 m). The Varipole Support System mounts between floors, ceilings or walls to provide support for grip accessories, reflectors or lights. This extension bar can also be used as a background crossbar, when using the Varipole system in the horizontal orientation. Varipole Extension bars come in lengths of 59" (1.5 m) and 78" (2 m), and in either a black powder or a brushed aluminum silver finish. The Varipole Extension is solidly built and easy to set up. Simply remove the spring-loaded tube from the top of the Varipole and insert the narrow end of the Varipole Extension. Replace the tube of the Varipole and you now have more reach capability for that higher ceiling or farther wall.
- Sturdy 59" (1.5 m) extension for the Varipole System
UPC: 847628017047 In the Box - Deluxe Varipole Support System - Silver (Pair) wdtyrwwrzvxyccsfrqssf
- Four Rubber Cushions
- One Year Limited Warranty
- 2 x Super Clamp with Ratchet Handle
- U-Hook Cross Bar Holders for Super Clamp - Pair
- 2 x 59" Varipole Extension (Silver)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Basic Varipole Support System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact Deluxe Varipole Support System - Silver (Pair)
Maximum Load | 55 lbs (25 kg) | Minimum Height | 6'11" (2.1 m) | Maximum Height | 12'1" (3.7 m) | Temperature Range | -20 to 140º F (-30 to 60º C) | Weight | 8.9 lbs (4 kg) | | Box Dimensions (LxWxH) | 87.0 x 8.5 x 4.5" | - 2 x Impact Super Clamp with Ratchet Handle
Clamp Type | Jaw | Jaw Shape | Round | Jaw Opening | 0.5 to 2.1 " / 1.3 to 5.3 cm | Load Capacity | 33 lb / 15 kg | Weight | 1.4 lb / 0.6 kg | | Box Dimensions (LxWxH) | 10.2 x 5.35 x 2.3" | - Impact U-Hook Cross Bar Holders for Super Clamp - Pair
| Box Dimensions (LxWxH) | 4.4 x 3.7 x 1.3" | - 2 x Impact 59" Varipole Extension (Silver)
| Box Dimensions (LxWxH) | 60.0 x 2.1 x 2.0" |
