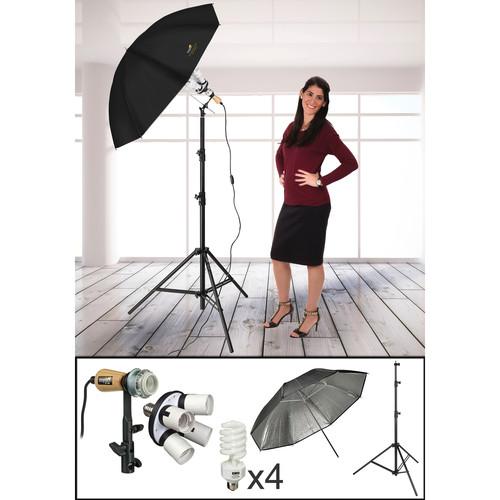

User Manual for Impact Compact Fluorescent Kit 2 Click to enlarge the picture
Contents of the user manual for the Impact Compact Fluorescent Kit 2
- Product category: Fluorescent Lights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Fluorescent Lights
|
User manual for the Impact Compact Fluorescent Kit 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|
Product description The Impact Compact Fluorescent Kit 2 was put together by B&H to provide a basic lighting setup with extra power that is ideal for anything from portraiture to larger products to groups and video applications. The kit includes a wooden-handled, stay-cool umbrella socket that is compatible with lamps up to 500W, a single socket to four socket adapter, four 42W daylight compact fluorescent lamps, a 9.5' air-cushioned, heavy-duty light stand and a high-output 43" beaded-silver umbrella. Each socket on the adapter can handle up to 150W but the total wattage should not exceed the 500W rating of the Porcelain Socket Umbrella Mount. - Impact Porcelain Socket with Adjustable Umbrella Mount (500W) The Impact Porcelain Socket with Umbrella Mount (500W) is a cost-effective way to utilize a wide variety of E26 (Edison) based lamps for photo or video work. Options include simple household lamps as well as photoflood and quartz halogen bulbs. This highly versatile product has an adjustable metal mount with a 5/8" receiver for light stands and an 8mm umbrella receptacle. The Floodlight Socket tilts and locks in place at the desired angle by grasping the stay-cool wooden handle and releasing the locking knob. Lamps up to 500W won't melt the ceramic base which is impervious to heat. The socket also accepts screw-on reflectors of various sizes.
- High-heat ceramic socket won't melt like plastic sockets
- Supports 500W bulbs maximum
- Wooden control handle stays cool
- Accepts screw-on aluminum reflectors
- 10' 3-prong AC power cord with inline switch
- Built-in adjustable umbrella mount
UPC: 847628013636 - Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5') This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
- Air-Cushioned
- Protects equipment and fingers from damage
- Compact Design
- Will fit easily into most location cases
- Accepts Casters
- For easy positioning of lights
UPC: 847628012004 - Impact 4 Socket Fluorescent Adapter The 4 Socket Fluorescent Adapter from Impact was designed to turn the single socket FF-S1 Fluorescent Fixture into a 4-lamp fixture that accepts Edison-base compact fluorescent lamps. Screw in four 105W CFL bulbs and you now have a single unit with a total light output of 420W. Note: When used within a softbox, a total maximum of 200W is suggested. UPC: 847628563636
- 4 x Eiko Spiral Fluorescent Lamp 40W/120V 5000K E26 Base This is the Eiko Spiral Fluorescent 40W/120V 5500K E26 Base Lamp. It fits Photoflex StarliteQL, Westcott Spiderlite, or any other floodlight fixture that can accept a floodlight bulb. It provides 5000° Kelvin (daylight), equivalent in brightness to a 150 watt tungsten bulb.
- Low heat, long life - 10,000 hours
UPC: 031293054234 - Impact Umbrella - Beaded Silver - 43" This is a 43" umbrella with a beaded silver reflective surface. It will intensify and slightly soften the light output of a strobe light fixture. Umbrellas soften, broaden, and diminish the light output of flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.
- Softens and broadens the light output of any strobe of medium wattage
UPC: 847628013285 In the Box - Porcelain Socket with Adjustable Umbrella Mount (500W) euytzssbrauweewf
- Limited 1-Year Warranty
- Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')
- 4 Socket Fluorescent Adapter
- 4 x Eiko - Spiral Fluorescent Lamp 40W/120V 5000K E26 Base
- Umbrella - Beaded Silver - 43"
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Compact Fluorescent Kit 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact Porcelain Socket with Adjustable Umbrella Mount (500W)
| | | Bulb Type | 1 x E26/E27 | | Max Bulb Wattage | 500 W | | Focusable | No | | Umbrella Mount | Yes | | | | AC Input Power | 120 VAC, 60 Hz | | Mounting | 5/8" Receiver (via Fixture) | | Cable Length | 10' / 3 m | | Inline Switch | Yes | | Weight | 1 lb / 454 g | | | | Box Dimensions (LxWxH) | 8.05 x 5.85 x 4.15" | - Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')
| Maximum Load | 22 lb (10 kg) | | Maximum Height | 114" (290 cm) | | Minimum Height | 48" (123 cm) | | Closed Length | 42" (106.7 cm) | | Footprint Diameter | 52" (132 cm) | | Leg Tip | 0.98" (25 mm) | | Attachment Size | Removable 5/8" (16 mm) spigot with 1/4"-20 and 3/8"-16 threaded ends | | Accepts Wheels | Yes, casters | | Air Cushioned | Yes | | Weight | 4.4 lb (2.0 kg) | | | | Box Dimensions (LxWxH) | 42.8 x 5.5 x 5.2" | - Impact 4 Socket Fluorescent Adapter
| Input Voltage | 120VAC | | Lamps | 4 CFL (compact fluorescent lamps) purchased separately | | Ballast | In lamps | | Mounting | 5/8" (16 mm) | | Dimensions (Diam. x Depth) | 4.5 x 5.25" (11.4 x 13.3 cm) | | Weight | 8 oz (228 g) | | | | Box Dimensions (LxWxH) | 5.95 x 4.6 x 4.55" | - 4 x Eiko Spiral Fluorescent Lamp 40W/120V 5000K E26 Base
| Code | SP42/50K | | Base Type | E26 | | Bulb Shape | Spiral | | Lumens | 2650 | | Wattage | 40 W | | Color Temperature | 5000K | | Bulb Color | None | | Color Accuracy Standard | CRI 80 | | Average Life | 10,000 Hours | | Maximum Overall Length (MOL) | 7.1" / 18.0 cm | | AC Input Power | 120 VAC, 60 Hz | | | | Box Dimensions (LxWxH) | 7.8 x 2.95 x 2.9" | - Impact Umbrella - Beaded Silver - 43"
| Size | 43.0" / 109.2 cm | | Interior | Silver | | Exterior | Black | | Shaft Diameter | 8 mm | | Folded Size | L: 28.3" / L: 71.8 cm | | | | Box Dimensions (LxWxH) | 29.0 x 3.5 x 1.5" |
