User Manual for Impact ControlSync16 Receiver Click to enlarge the picture
Contents of the user manual for the Impact ControlSync16 Receiver
- Product category: Radio & Infrared Transmitters Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Radio & Infrared Transmitters
 |
User manual for the Impact ControlSync16 Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

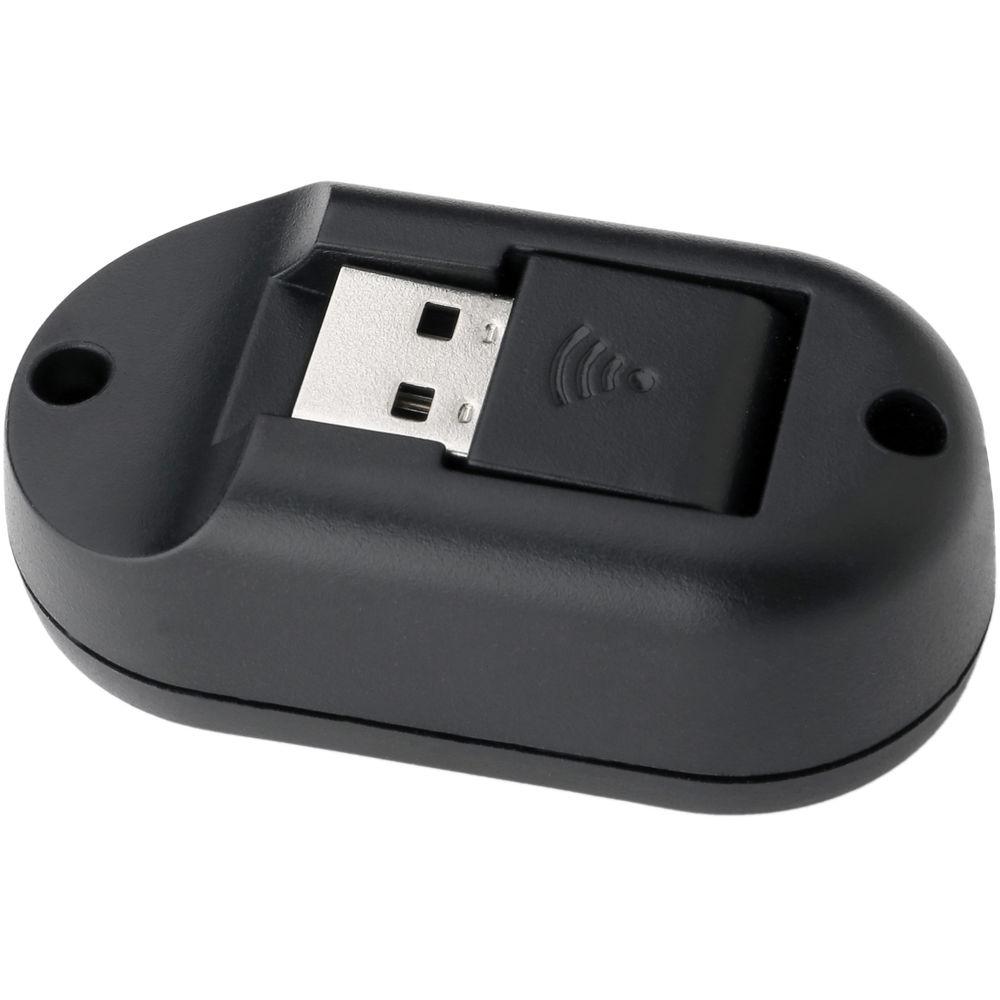

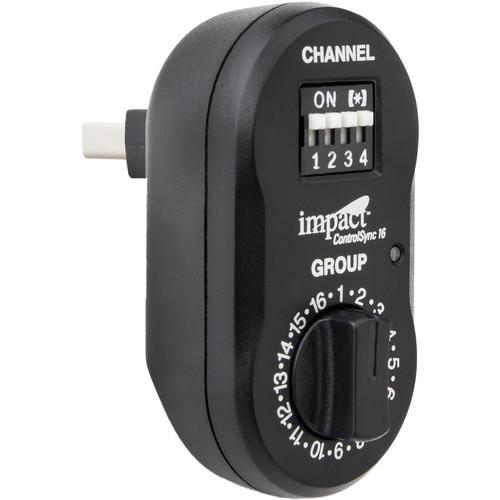

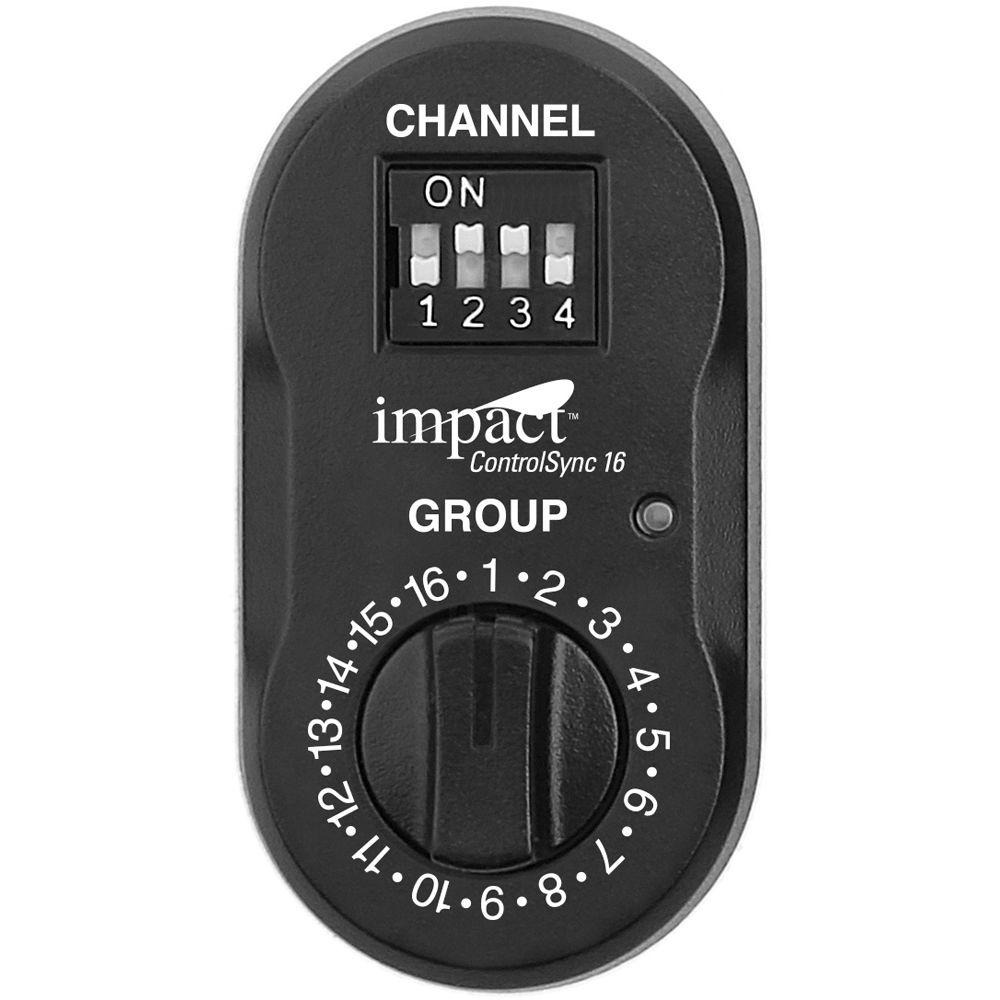

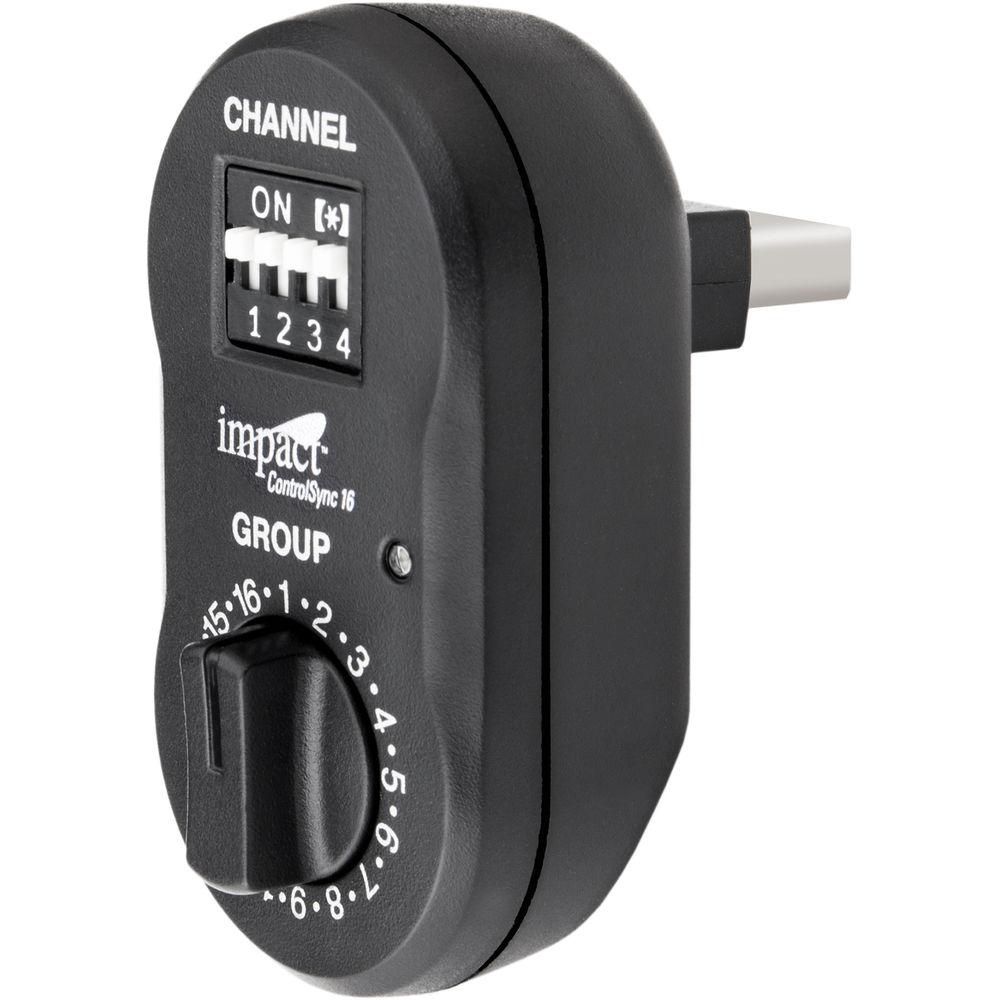

Product description The ControlSync 16 Receiver from Impact is an advanced 16 channel, 16 group radio triggering device that can fire your compatible remote flash at sync speeds up to 1/250 second at distances up to 150' as well as control its power level. Operating on the 433 MHz frequency and powered by the host device, the receiver, when used with its separately purchased Impact CS-16-T transmitter, can raise and lower the power of the slave flash in 1/10 or 1/3 stop increments as well as turn modeling lights and audio alerts on and off. It's also capable of turning the AF assist on or off on flash units that have this feature. The ControlSync16 Receiver is compatible with the Impact AS-X-400 Astral Extreme 400Ws moonlight and Interfit Strobies flash heads. - Benefits
-
- Triggers flash wirelessly from up to 150'
- Adjusts power levels remotely
- Turns modeling lamp and audio alert on and off
- 16 Channels and groups

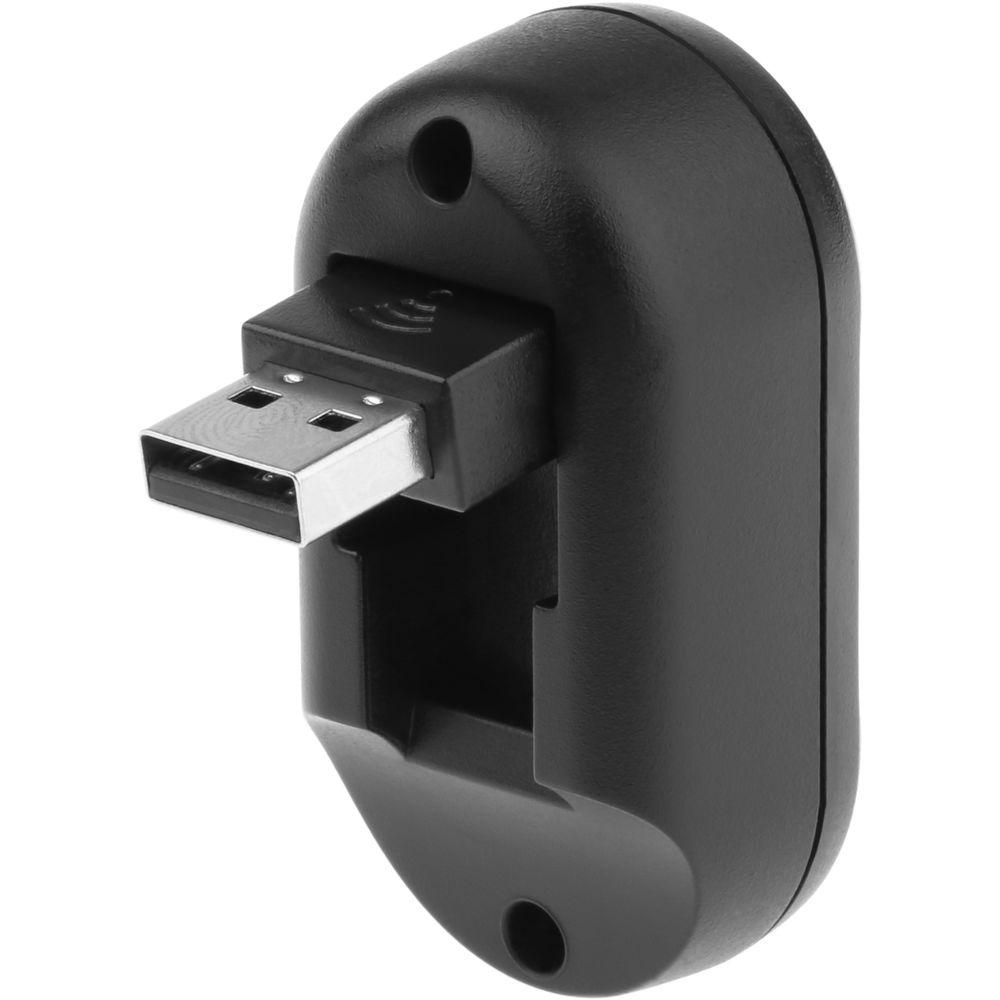

- USB powered, no batteries
- Compatibility

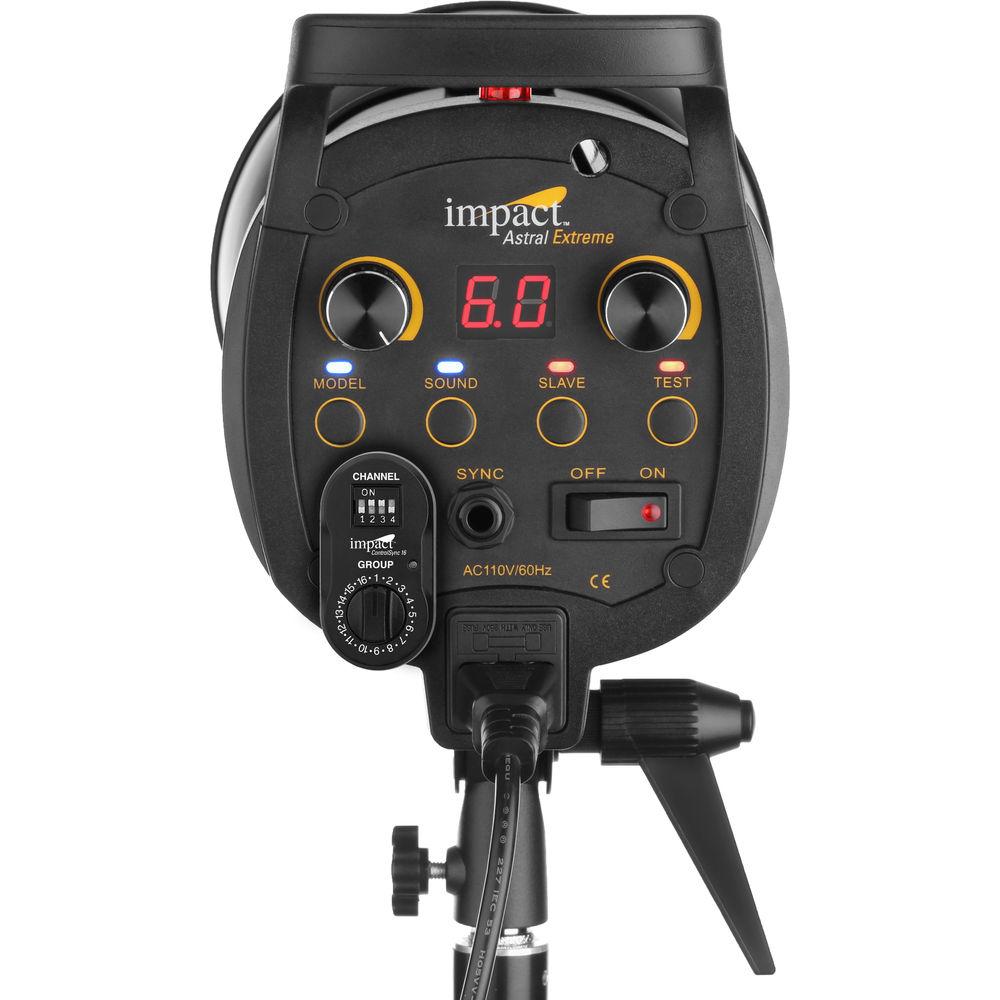

- Impact AS-X-400 Astral Extreme 400 Ws monolight
Interfit Strobies flash heads UPC: 847628575721 In the Box Impact ControlSync16 Receiver Limited 1-Year Warranty User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact ControlSync16 Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersImpact CS-16-R Specs | | | Channels | 16 | | Groups | 16 | | Wireless Range | 150' / 45.7 m | | Radio Frequency | 433 MHz | | | | Dimensions | 2.2 x 1.2 x 1" / 57 x 30 x 27 mm (Receiver) | | Weight | 0.7 oz / 20 g | | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 2.55 x 1.25 x 1.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
