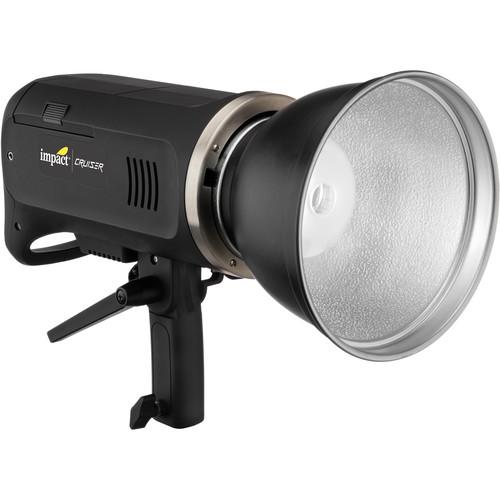

Product description - The Impact Cruiser: the Monolight That's Built for Everywhere
With the introduction of the Cruiser AC/DC 500Ws Battery Powered TTL Monolight Impact brings you wireless freedom not only from the AC outlet, but from PC and TTL cords as well. The flash head is powered by a removable lithium-ion battery and can provide up to 350 full-power flashes on a single charge. You can also run the Cruiser in the studio on AC power via its multi-voltage adapter. A charger is provided to top up the power in the removable battery. The light's 10W LED modelling is designed to draw minimal power. The flash head's wireless TTL works with your camera's auto-exposure system like a speedlight. The Cruiser has a built-in wireless receiver that allows you to control the light wirelessly at distances up to 328'. A Cruiser Wireless Controller for Nikon, Canon, or Sony cameras is required for remote use. You can also shoot in manual mode for simple remote triggering. Part of the TTL system, HSS (High Speed Sync) allows flash syncing (Canon and Nikon) up to 1/8000 sec to overwhelm the sun, control background light intensity or to shoot with wide apertures. The Cruiser backs its wireless technology with solid core specs. It has a 9-stop power range that can be fine-tuned in 1/10 stop increments, while it recycles to full power in just three seconds. It also boasts short flash durations from 1/1000 to 1/9000 sec. for freezing action in sports or dance or for special effects with water or other liquids, while maintaining a steady color temperature of 5700K. The Cruiser is ready for worldwide use thanks to the inclusion of a 100-240 VAC AC adapter and battery charger. The light also comes with a 7" reflector, stand mount, PC cord, and a protective cap. The unit is firmware updatable to keep you current with enhanced capabilities. - TTL, High Speed Sync and Manual Mode

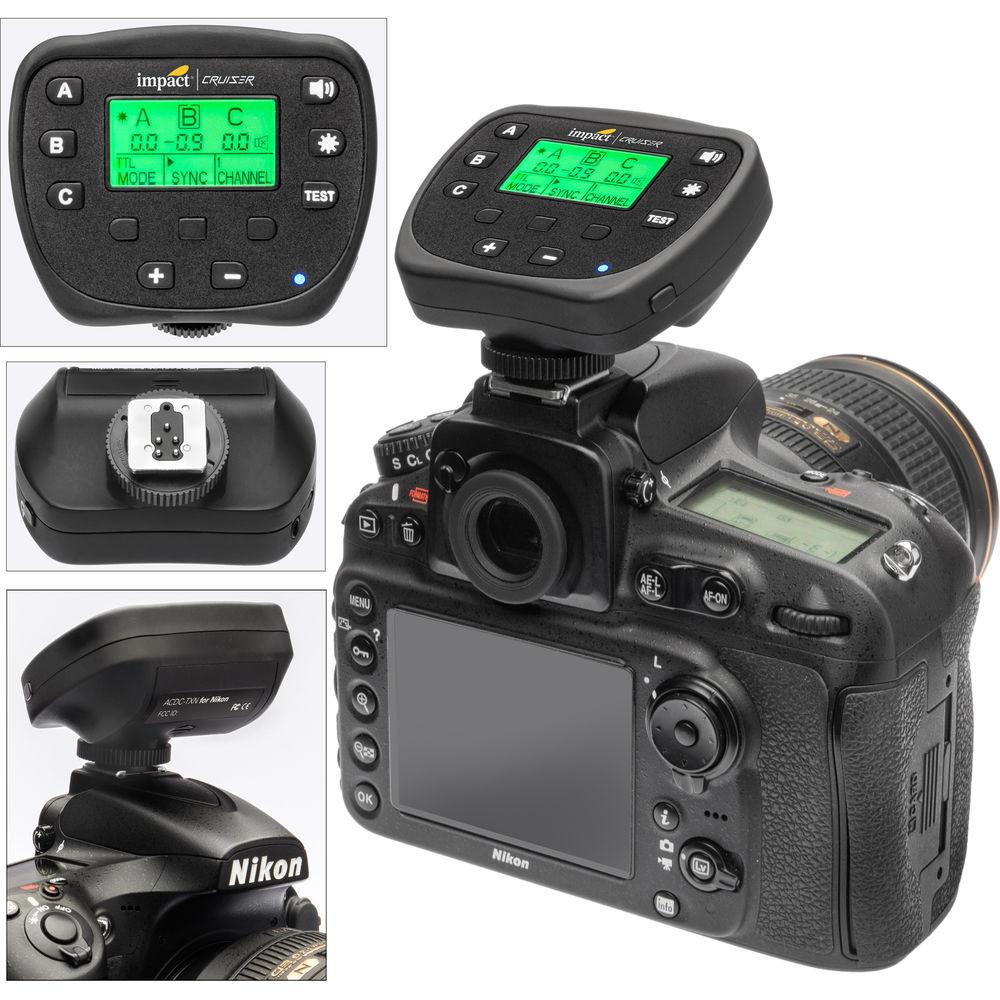

- The Cruiser's dedicated 2.4 GHz transmitter for Canon, Nikon, or Sony enables photographers to take advantage of their camera's TTL system just as they would with a speedlight. Having 8 channels, 4 groups provides complete control of the Cruiser with +/- 3 stop EV fine tuning from a distance of 328 feet. Part of the TTL system users can access is the Cruiser's High Speed Sync mode (Nikon and Canon only), which enables syncing at shutter speeds up to 1/8000 of a sec to control ambient light levels or shoot with wide apertures. Wireless manual shooting is also available utilizes the entire 9-stop power range; in 1/10th stop increments from the controller.
- AC or Battery Power

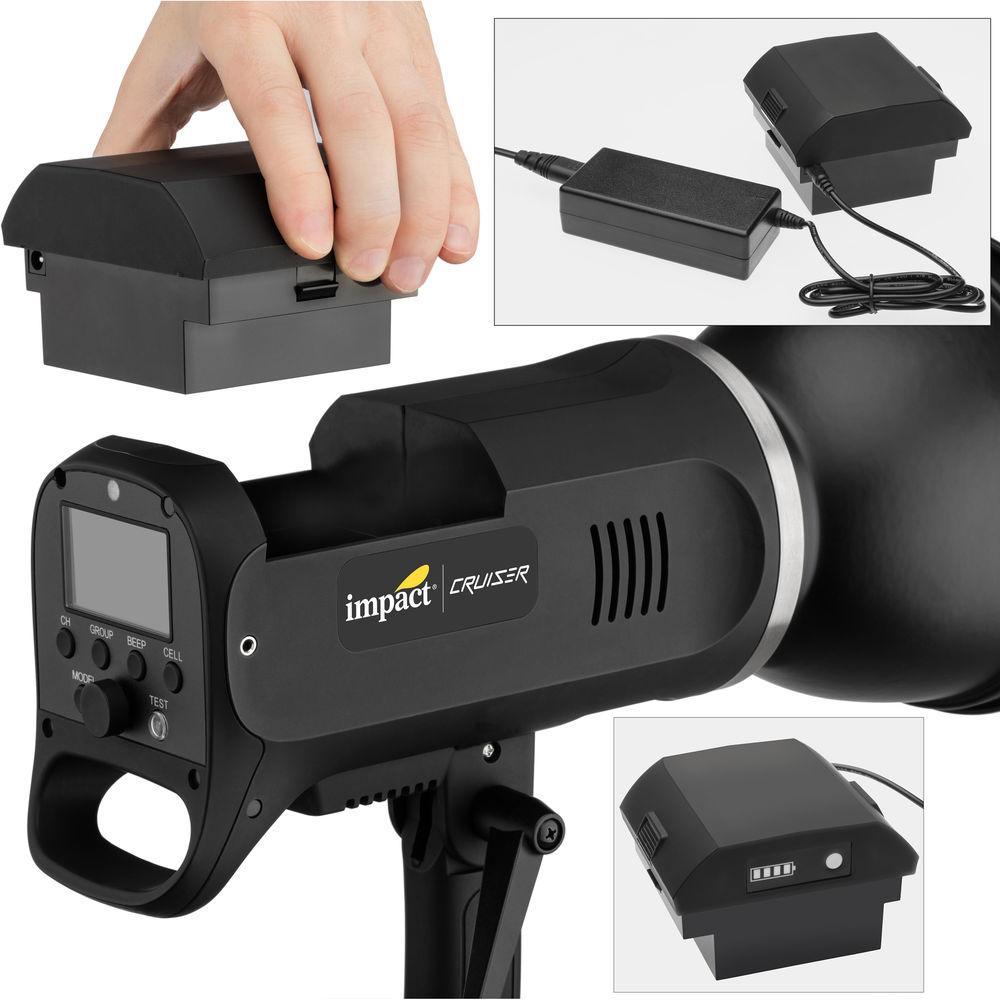

- The Cruiser runs on 100-240 VAC current via its adapter but can also output up to 350 full power flashes with its lithium-ion battery.
- LED Modeling Lamp
- The Cruiser's 10W LED modeling lamp is designed for minimal drain on the flash head's battery.
- Freeze Action with Short Flash Durations
- Flash durations as short as 1/1000 to 1/9000 sec allow action freezing for sports, dance, or special effects like water or liquid splashes.
- Traditional Sync Modes
- Besides wireless operation, the Cruiser can be triggered by its onboard optical slave or hard wired with the included PC cord.
- Universal Voltage
- Both the AC adapter and the battery accept 100-240 VAC current for worldwide use.
UPC: 847628001978 In the Box Impact Cruiser AC/DC 500Ws Battery Powered TTL Monolight Battery for ADDC-500-TTL Monolight Battery Charger Stand Mount PC Cord 7" Reflector AC Adapter Protective Cap Limited 1-Year Warranty User Manual PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Cruiser AC DC 500Ws Battery Powered TTL Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersImpact AC/DC 500 TTL Specs | | | Maximum Power | 500 Ws | | Power Control | 9 Stops in 1/10-Stop Increments | | Flash Duration | 1/9000 to 1/1000 Sec | | Recycle Time | 3 Sec (Full Power) | | Color Temperature | 5700K ± 150K | | Flash Ready Indicator | Audio, Visual | | Reflector | 7.0" / 17.8 cm Changeable | | Accessory Fitting Type | Bowens S Type | | | | Sync Type | Cable, Infrared, Optical, Radio | | Sync Speed | 1/1/8000 Sec (High-Speed) | | Wireless Frequency Bands | 2.4 GHz | | Wireless Channels / Groups | 8 / 3 | | Wireless Range | 328' / 100 m (Radio) | | Interface | PC Sync (3.5 mm) | | Sync Voltage | 4.3 V | | | | AC Input Voltage | 100to240 VAC, 50 / 60 Hz | | Circuit Protection | Overheat Cutout | | | | Battery Chemistry | Lithium-Ion | | Maximum Output Voltage | 14.4 VDC | | Capacity (mAh) | 4500 mAh | | Flashes Per Charge | 350 Flashes (Full Power) | | Recharge Time | 3 Hours | | Weight | 1.5 lb / 680.4 g | | | | Display | None | | Dimensions | H: 6.6 x W: 4.9 x L: 14.0" / H: 16.8 x W: 12.4 x L: 35.6 cm | | Weight | 5.9 lb / 2.7 kg, Including Battery
4.4 lb / 2.0 kg | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 20.5 x 10.0 x 9.0" |
