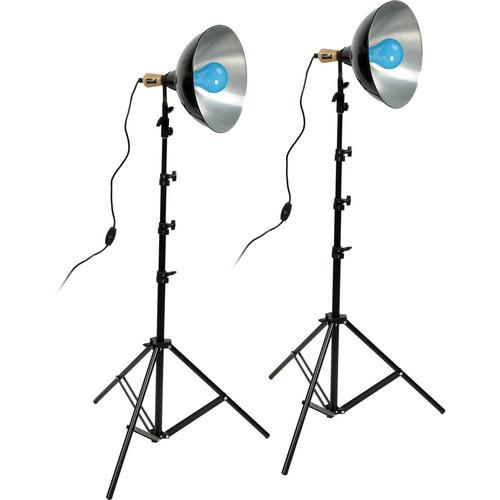

User Manual for Impact Daylight Two-Floodlight Light Kit Click to enlarge the picture
Contents of the user manual for the Impact Daylight Two-Floodlight Light Kit
- Product category: Tungsten Lights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Tungsten Lights
|
User manual for the Impact Daylight Two-Floodlight Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|
Product description The Impact Daylight Floodlight Kit is built around the Impact true 500W 12" reflector unit. The kit includes two light stands and two daylight (4800K) balanced screw-in floodlights. The light socket features a high heat ceramic socket and high heat metal that won't melt like units with plastic sockets. It also features a wooden control handle that stays cool, and includes a built-in adjustable umbrella mount. The attached cord comes with an in-line switch, and the adjustable metal mount features a 5/8" receiver for light stands and an 8mm umbrella receptacle. - Floodlight Reflector - 12" Replacement Reflector for the Impact 12" Floodlight.
Made of heavy-grade aluminum, are hand-spun and chemically etched to maximize the light output. Black painted exterior. The reflector mount size is 1 5/8". UPC: 847628012516 - Porcelain Socket with Adjustable Umbrella Mount (500W) The Impact Porcelain Socket with Umbrella Mount (500W) is a cost-effective way to utilize a wide variety of E26 (Edison) based lamps for photo or video work. Options include simple household lamps as well as photoflood and quartz halogen bulbs. This highly versatile product has an adjustable metal mount with a 5/8" receiver for light stands and an 8mm umbrella receptacle. The Floodlight Socket tilts and locks in place at the desired angle by grasping the stay-cool wooden handle and releasing the locking knob. Lamps up to 500W won't melt the ceramic base which is impervious to heat. The socket also accepts screw-on reflectors of various sizes.
- High-heat ceramic socket won't melt like plastic sockets
- Supports 500W bulbs maximum
- Wooden control handle stays cool
- Accepts screw-on aluminum reflectors
- 10' 3-prong AC power cord with inline switch
- Built-in adjustable umbrella mount
UPC: 847628013636 - EBW Lamp (500W/120V) The Eiko EBW Lamp (500W/120V) is a photo flood medium screw lamp that produces approximately 10,500 lumens, has an average life of 6 hours and a color temperature of 4,800K. UPC: 031293019608
- Light Stand, Black (6') This 6' Impact Black Light Stand is one of the most economical light stands available. It has a 5/8" stud top with a 1/4"-20 thread.
- For small light fixtures or boom arms.
UPC: 847628011953 In the Box Bundle Items 2 x Floodlight Reflector - 12" ztqwsbtedxcteqdyz 2 x Porcelain Socket with Adjustable Umbrella Mount (500W) 2 x EBW Lamp (500W/120V) 2 x Light Stand, Black (6') ztqwsbtedxcteqdyz
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Daylight Two-Floodlight Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Floodlight Reflector - 12"
| | | Box Dimensions (LxWxH) | 11.95 x 11.75 x 8.55" | - Porcelain Socket with Adjustable Umbrella Mount (500W)
| Rating | 500 W | | Socket (Lampholder) | Ceramic E26 (Edison) | | Mount | 5/8" (16 mm) receiver for light stand
Tilting action with locking knob
8 mm (standard) umbrella receptacle with locking knob | | Cable | 10' / 3.0 m | | | | Box Dimensions (LxWxH) | 8.05 x 5.85 x 4.15" | - EBW Lamp (500W/120V)
| Bulb Type | PS25 | | Base Type | E26 | | Filament Type | C-9 | | ANSI Code | EBW | | Wattage | 500 W | | Voltage | 120 V | | Lumens | 10,500 | | Burning Position | Any | | Color Temperature | 4800K | | Bulb Finish | Frost | | Average Life | 6 Hours | | Maximum Overall Length (MOL) | 6.1" / 155 mm | | Maximum Overall Diameter (MOD) | 3.15" / 80 mm | | | | Box Dimensions (LxWxH) | 6.25 x 3.3 x 3.3" | - Light Stand, Black (6')
| Load Capacity | 4 lb / 1.8 kg | | Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 6' / 1.8 m | | Minimum Working Height | 26.3" / 66.8 cm | | Collapsed Height | 26.3" / 66.8 cm | | Footprint Diameter | 30" / 76.20 cm | | Leg Shape | Round | | Accepts Wheels | Yes | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 26.4 x 3.5 x 3.5" |
