User Manual for Impact Deluxe Umbrella Mount with Adjustable Shoe Click to enlarge the picture
Contents of the user manual for the Impact Deluxe Umbrella Mount with Adjustable
- Product category: Flash & Umbrella Mounting Accessories Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Flash & Umbrella Mounting Accessories
 |
User manual for the Impact Deluxe Umbrella Mount with Adjustable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

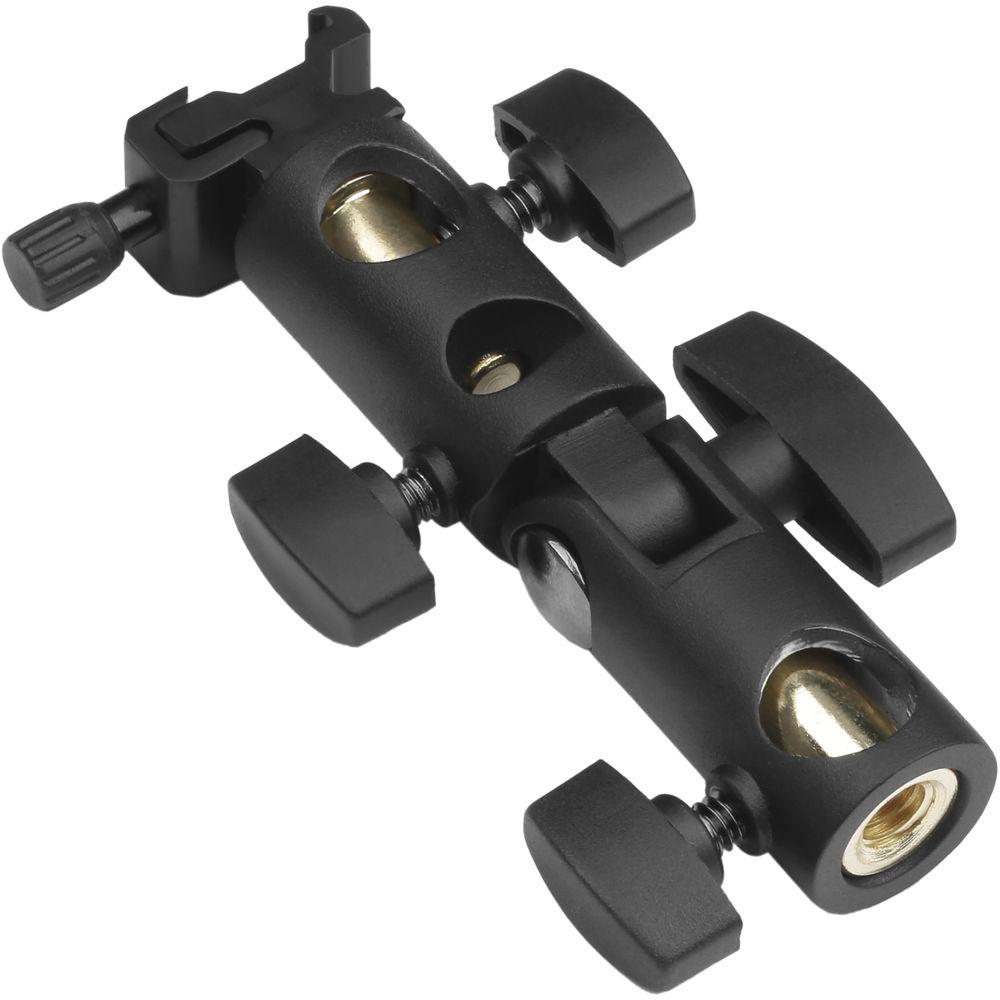

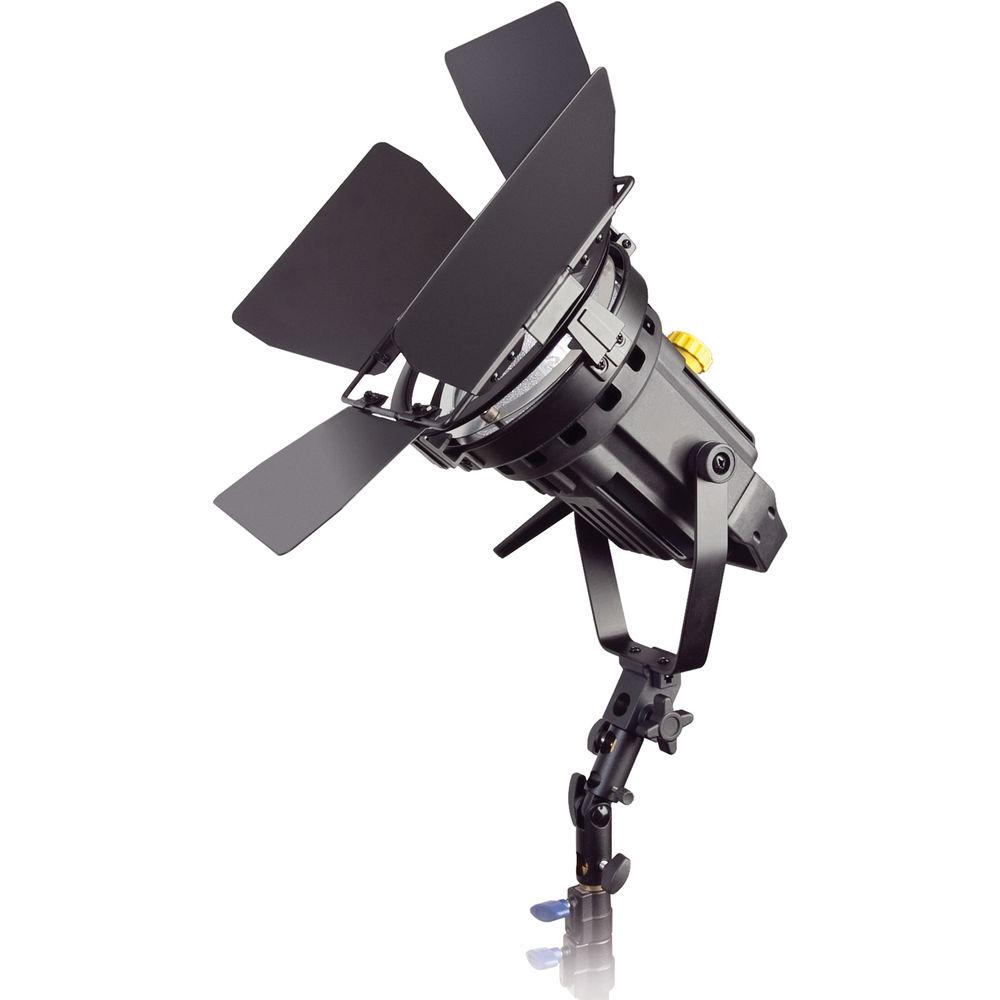

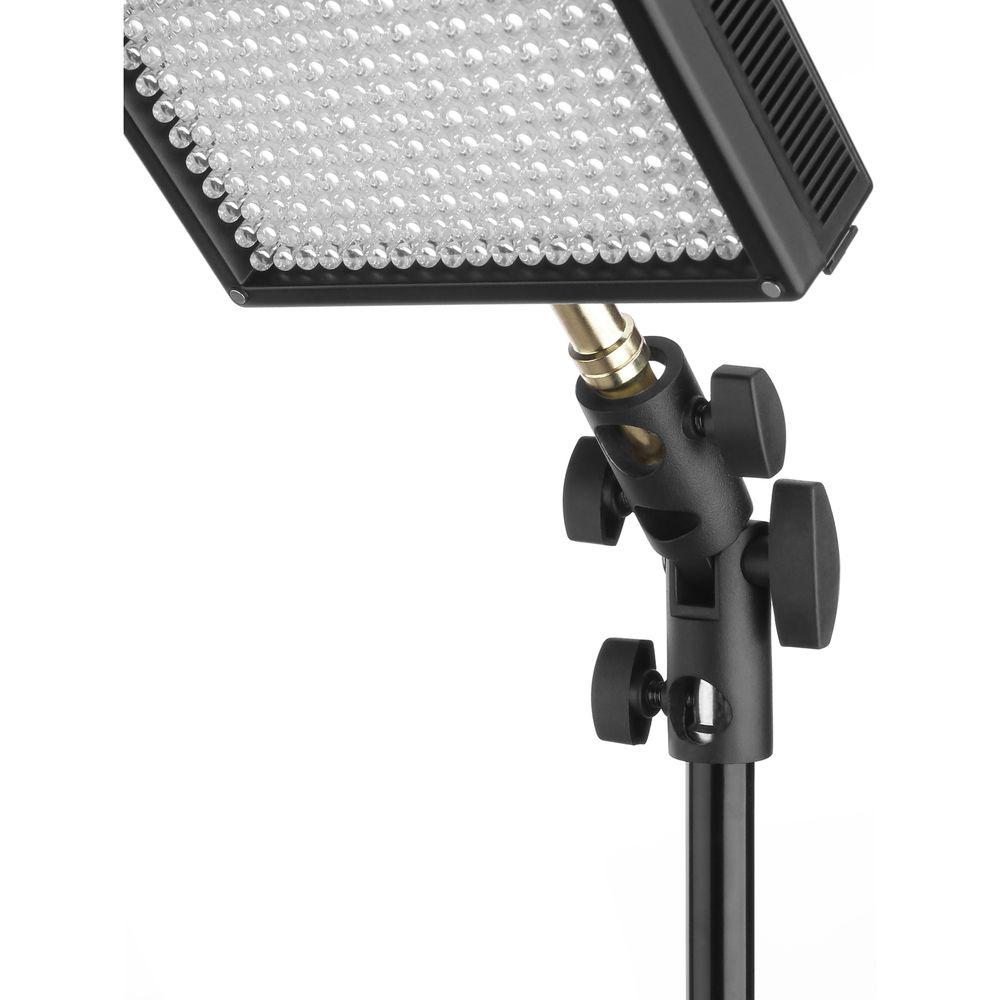

Product description A useful and versatile addition to any lighting kit, the Deluxe Umbrella Mount with Adjustable Shoe from Impact is designed to maximize the utility small lights or shoe-mount flashes while the heavy-duty mount has a socket that can support umbrellas up to 60" in diameter.Able to tilt 180-degrees and swivel 360-degrees, the anodized black aluminum Umbrella Mount can be installed on any industry-standard light stand with a 5/8" top stud from either end of the mount. Additional 5/8" holes are tapped into to unit to allow you to mount it vertically or horizontally for maximum versatility. The Deluxe Umbrella Mount includes removable 3/8"-16 and 1/4"-20 brass stud adapters to support accessories. One of them, for example, fastens a cold shoe with a knurled locking knob for a secure connection to your flash. - Tilt and Swivel

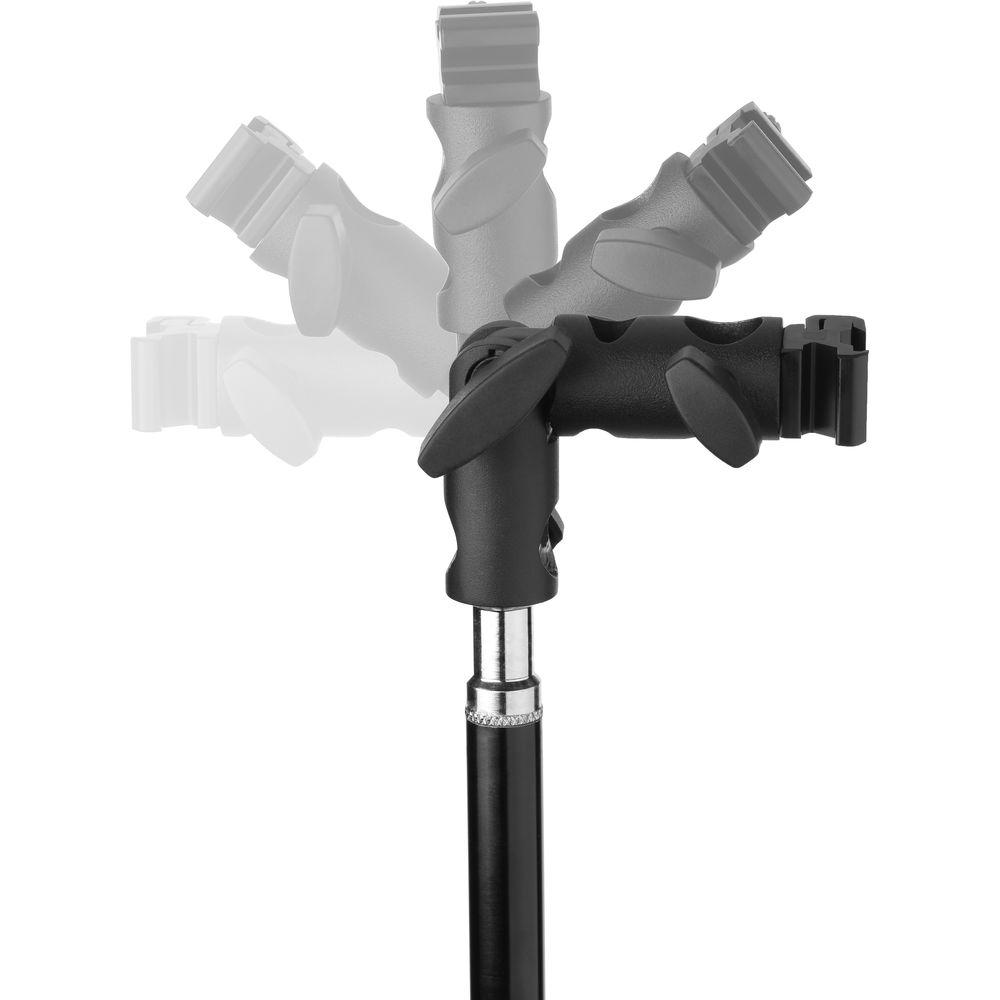

- 180-degree tilt and 360-degree swivel
- Vertical or Horizontal Mounting
- Bottom and side taps allow space-saving mounting options

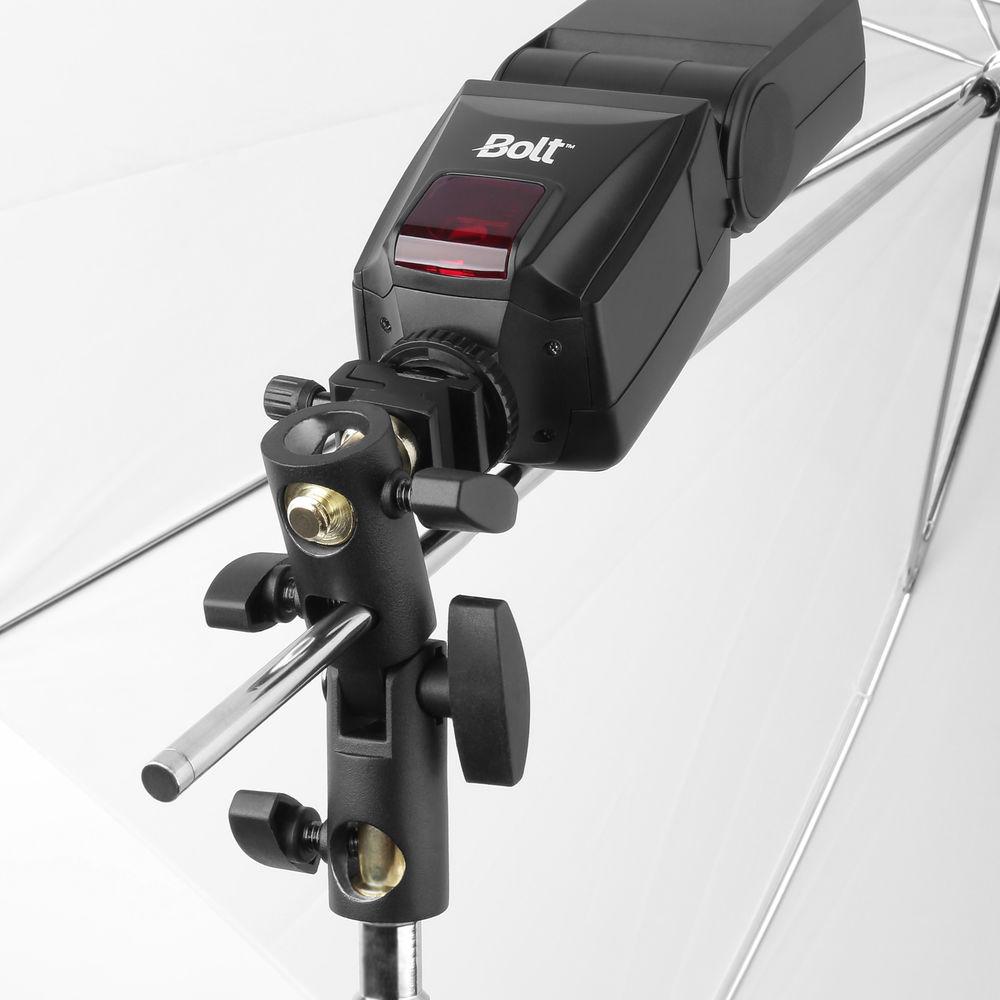

- Adjustable Cold Shoe
- Allows you to maximize the potential of your shoe-mount flash
- Umbrella Socket
- Supports up to 60" umbrellas

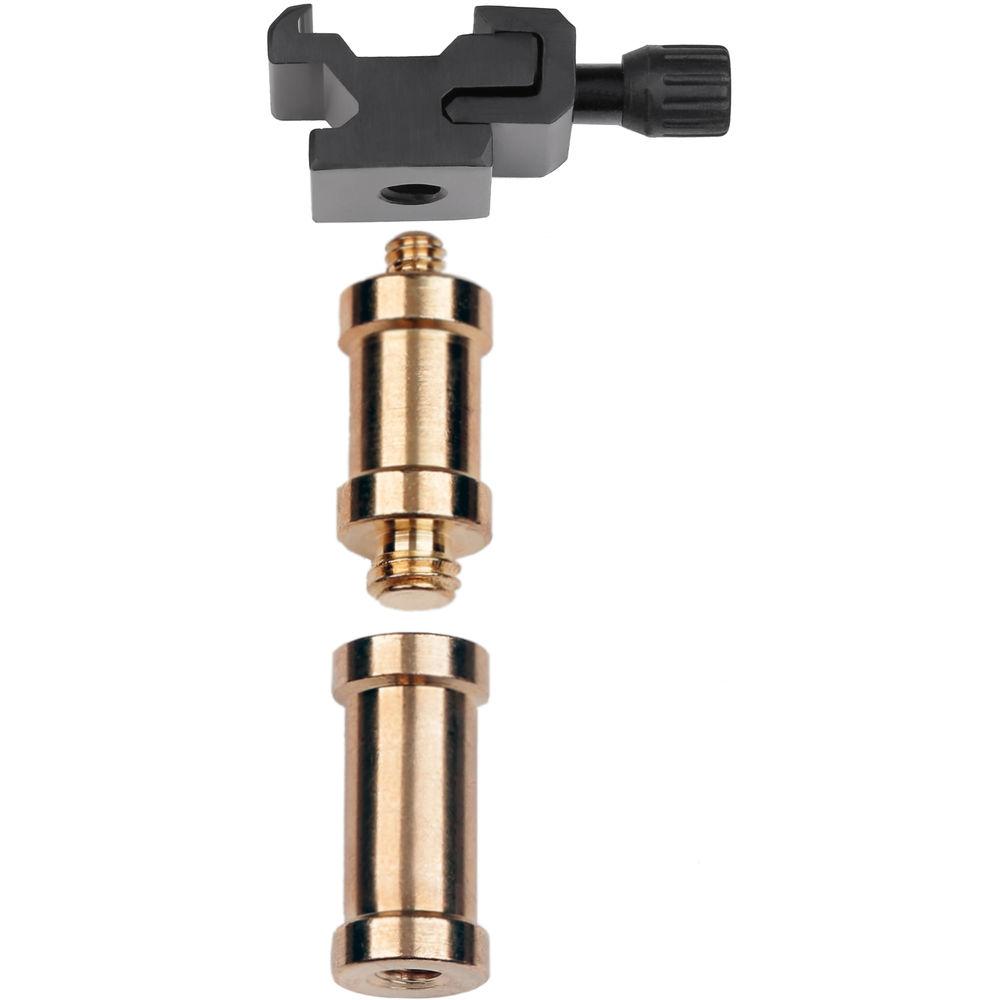

- Included Adapters
- Female 3/8"-16 and male 1/4"-20 stud adapters add compatibility with various accessories
- Mounting Options and Adjustments
- Adds significant flexibility to a simple light stand
UPC: 847628000636 In the Box Impact Deluxe Umbrella Mount with Adjustable Shoe Female 3/8"-16 to 5/8" Stud Adapter Male 1/4"-20 to 5/8" Stud Adapter Cold Shoe Limited 1-Year Warranty User Manual PDF 8.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Deluxe Umbrella Mount with Adjustable Shoe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersImpact DUB-2 Specs | Adjustments | 360° swivel, 180° tilt | | Material of Construction | Anodized black aluminum | | Mount | 5/8" (16 mm) receiver
3/8"-16 female stud adapter
1/4"-20 male stud adapter | | | | Package Weight | 0.51 lb | | Box Dimensions (LxWxH) | 8.3 x 4.2 x 1.7" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
