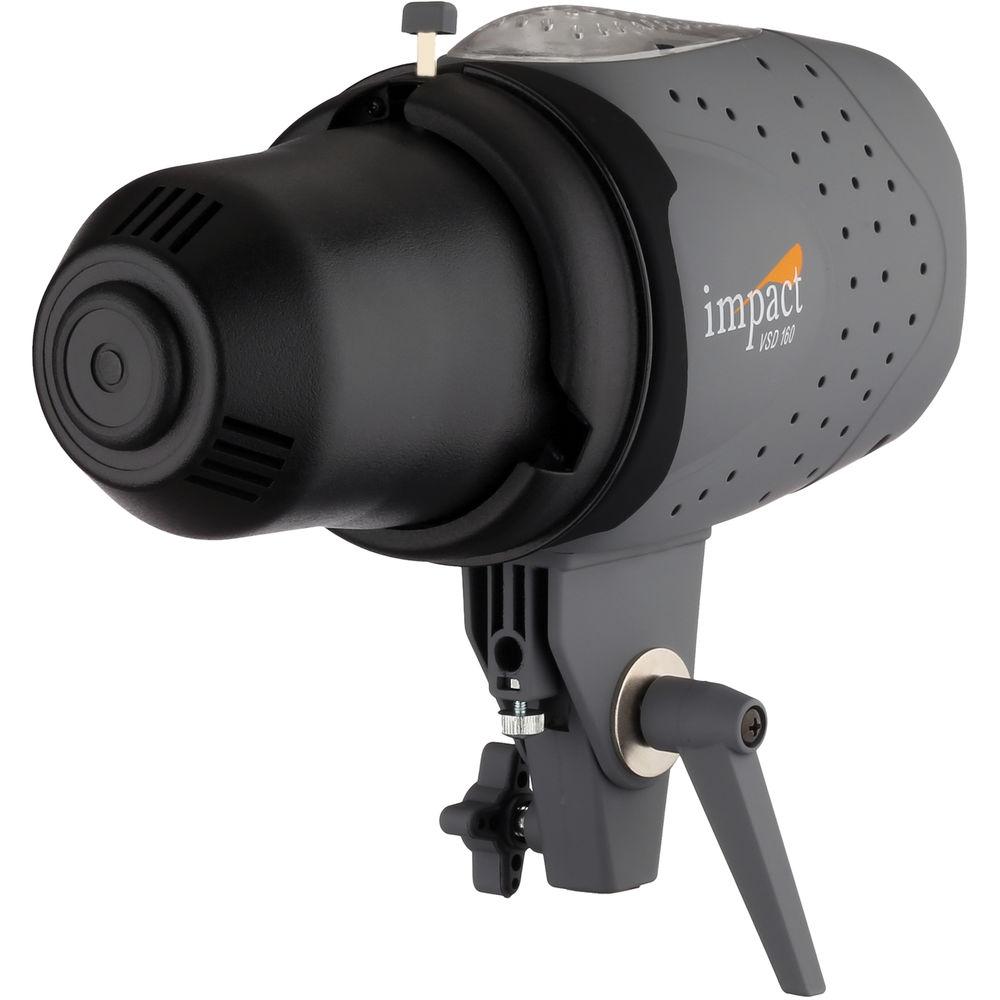

User Manual for Impact Digital Monolight 160W s Click to enlarge the picture
Contents of the user manual for the Impact Digital Monolight 160W s
- Product category: Monolights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Monolights
 |
User manual for the Impact Digital Monolight 160W s contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

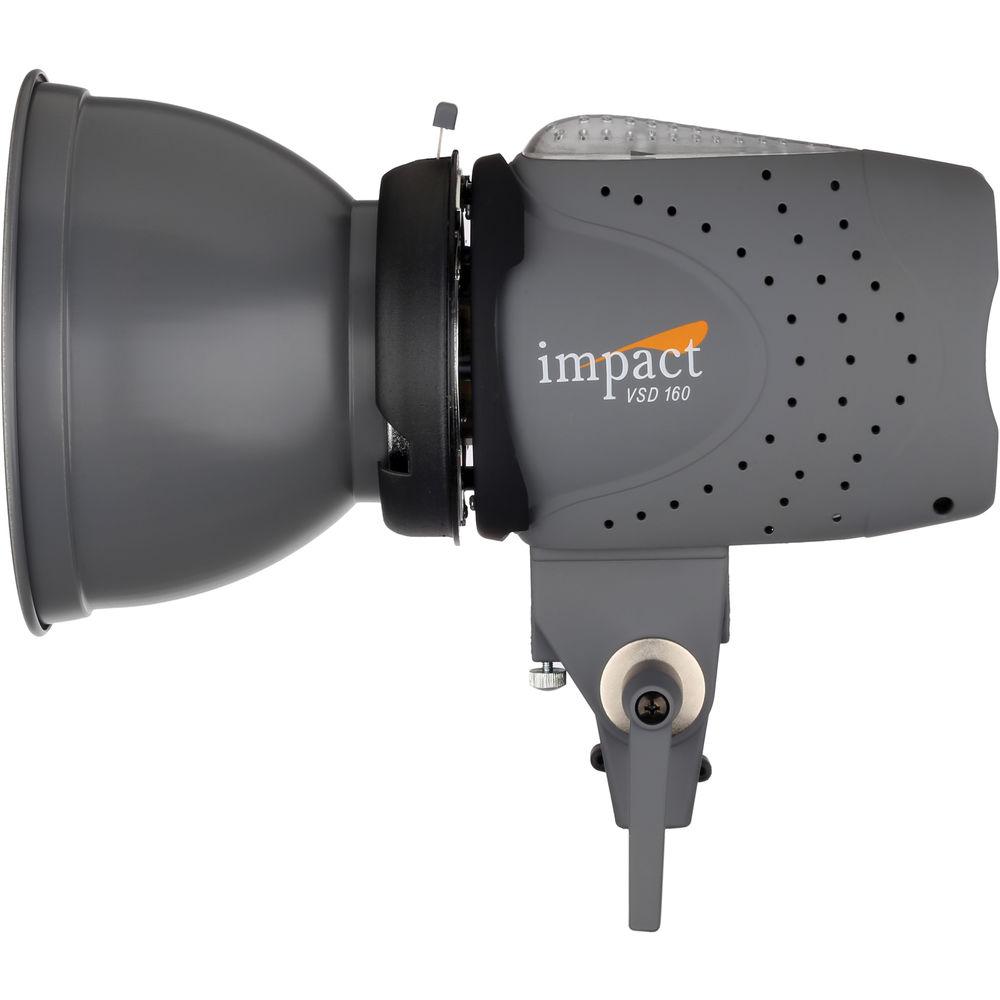

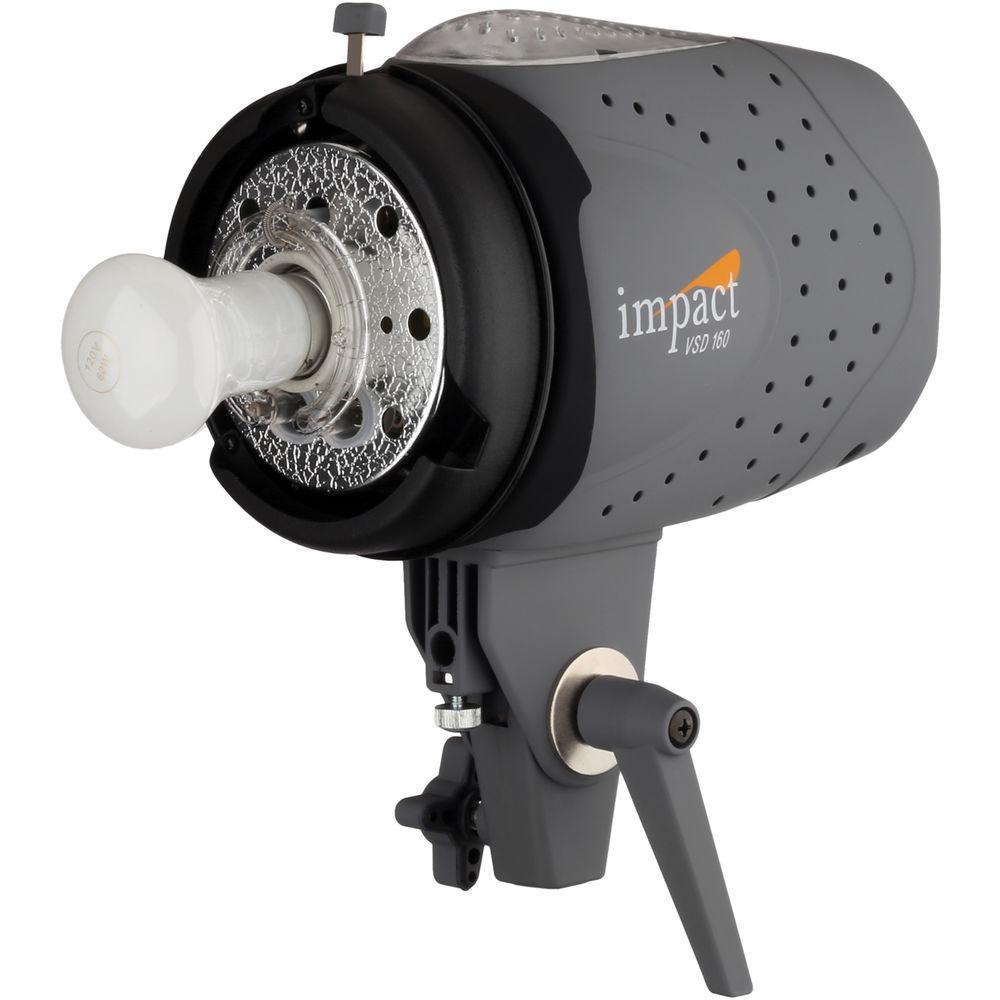

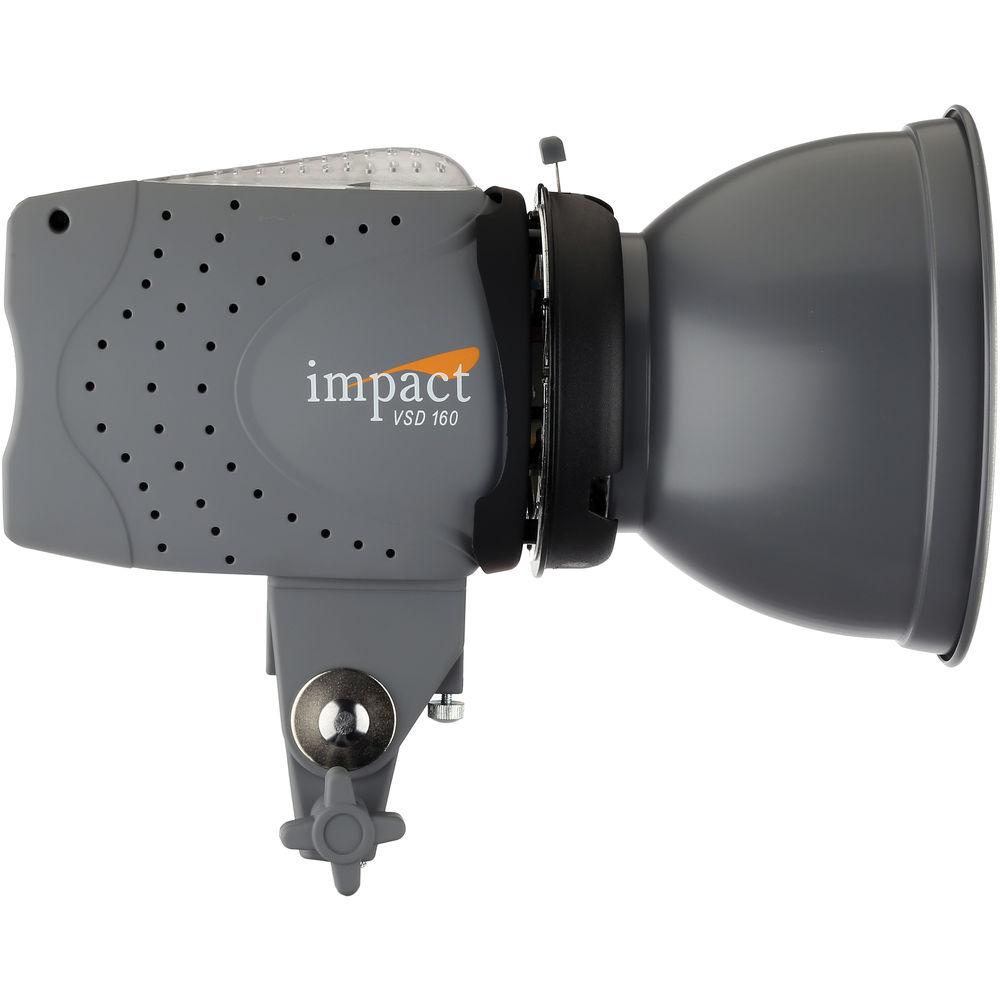

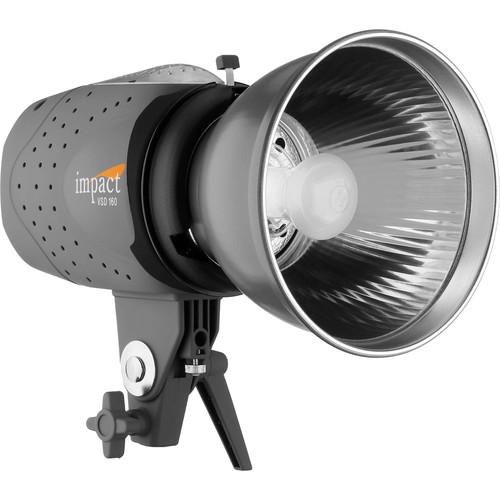

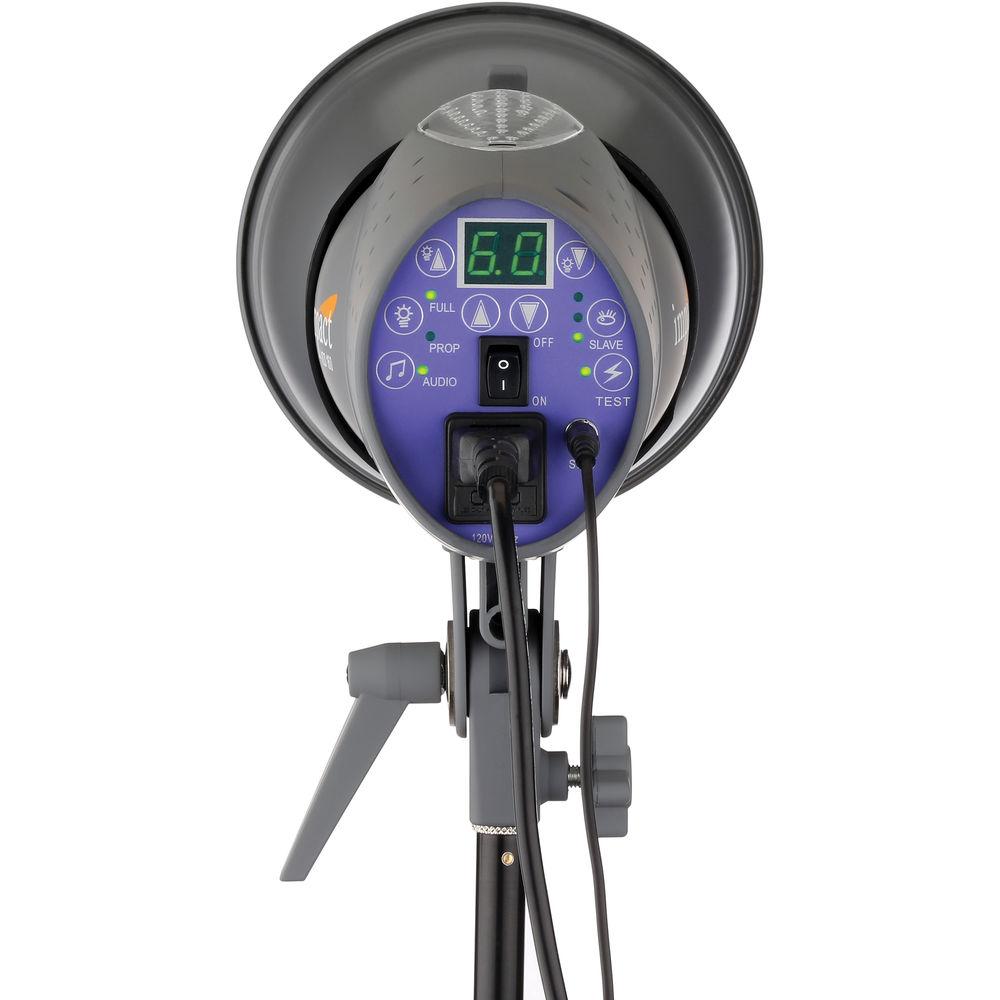

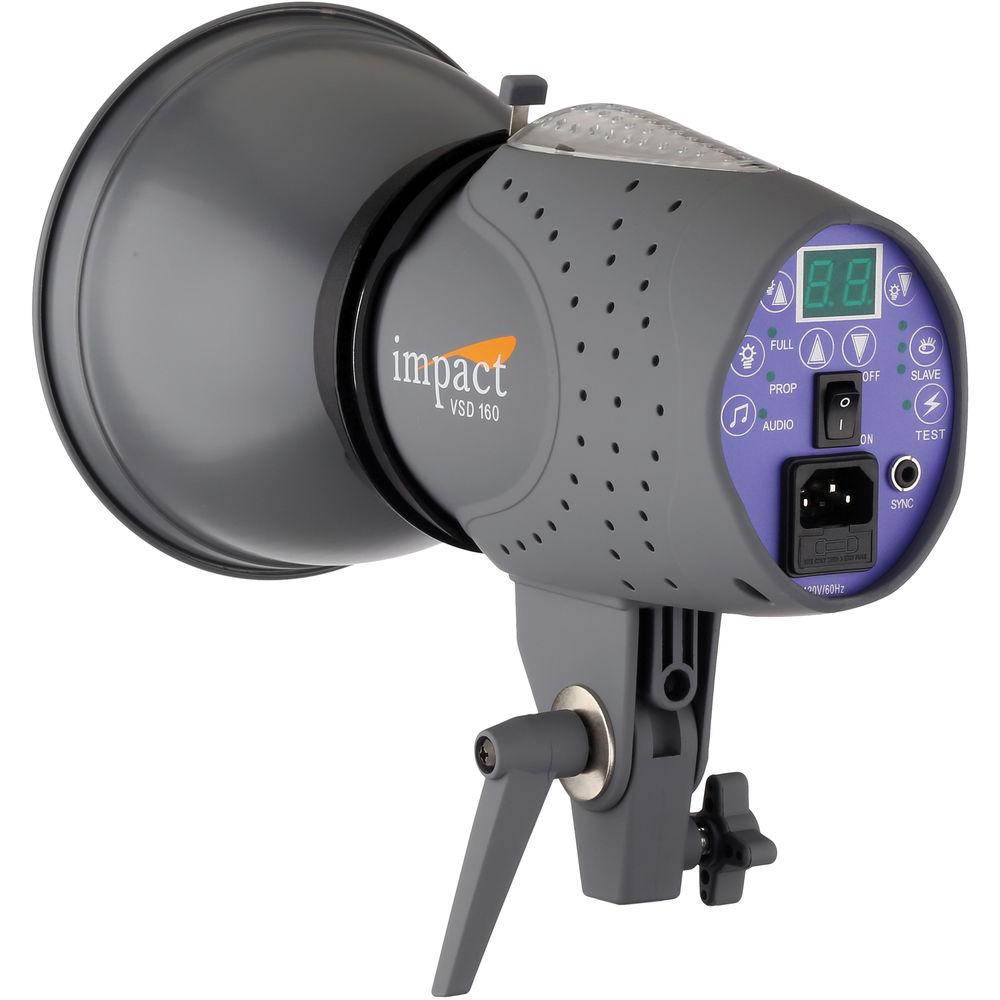

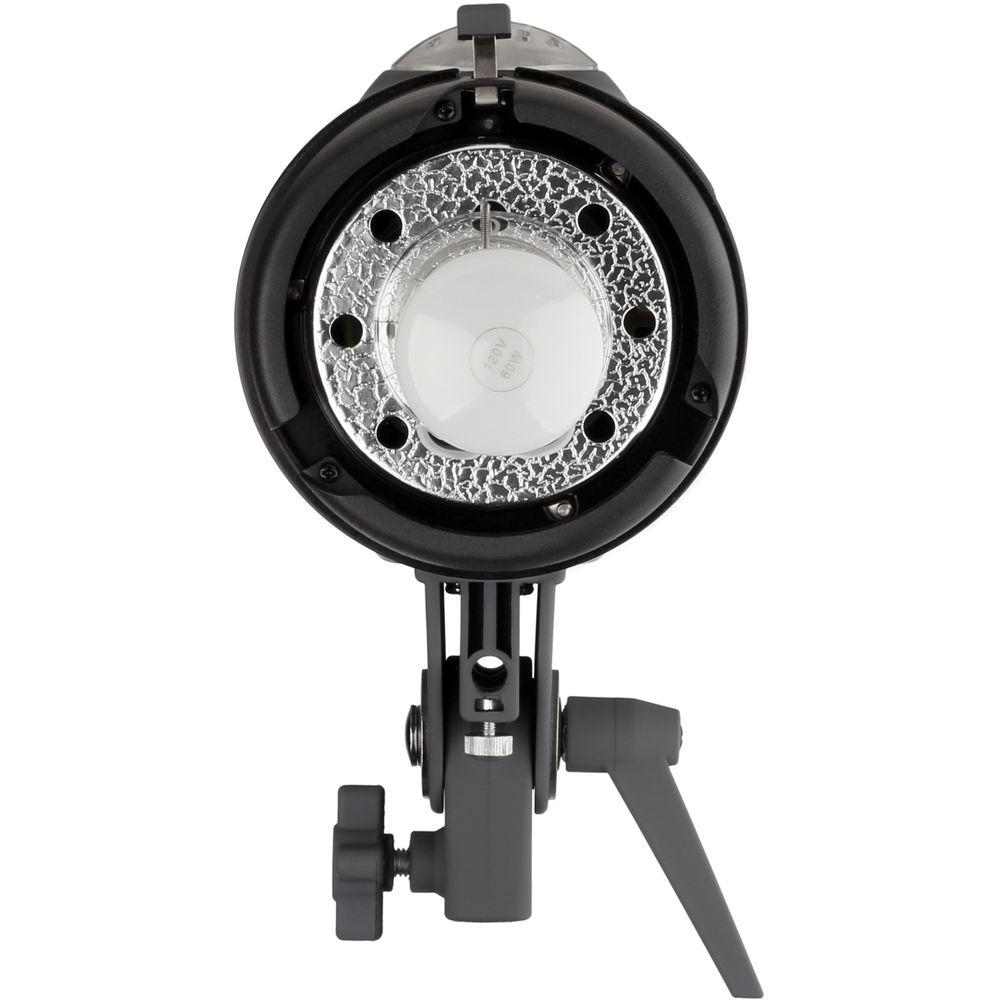

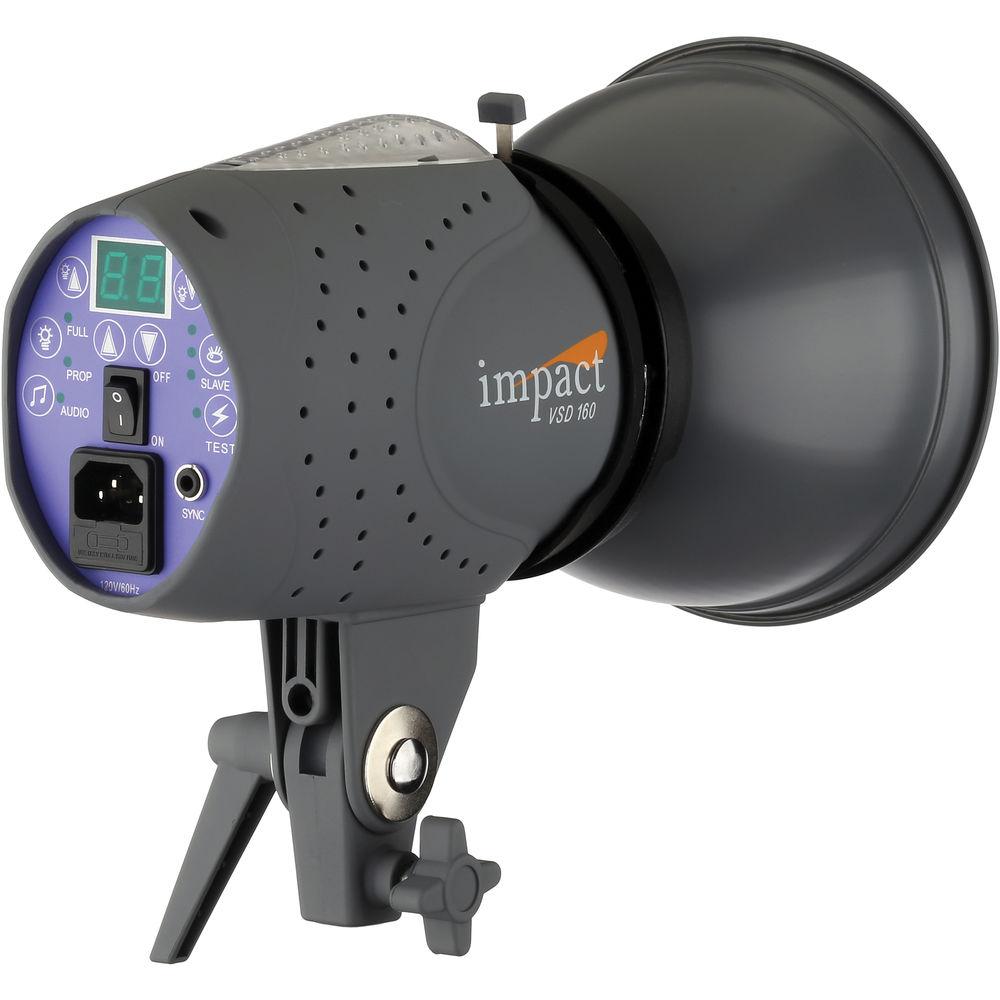

Product description The Impact Digital Monolight - 160W/s (120VAC) as part of the VSD Series of monolights is proof that a 160 watt/second monolight does not need to be expensive. The VSD160 provides enough stored power to light a head-shot portrait or small still-life setup. It has features found on monolights that cost twice as much. This monolight has a digital readout coupled with its four-stop power variator. It accepts S-type monolight reflectors and head accessories. The VSD160 has cushioned touch-pad function control buttons. Power is adjustable in 1/10 stop increments, from full to 1/8 power. Its model light intensity may be controlled coupled to, or independent from the strobe power levels you select. The VSD160 is available as part of several complete lighting kits. Two more powerful versions of this light are the VSD300 and VSD400. - This monolight has a limited "Auto Dump" feature, which automatically fires the strobe when you reset to a lower power level.
- Built-in optical slave "sees" the light from other flashes, and fires this monolight automatically.
- A Sync Cord with miniplug to PC connection is included.
- Its recycle beep tone may be switched on or off.
UPC: 847628013445 In the Box Impact Digital Monolight 160W/s (120VAC) Flashtube for VS160 Monolight 60W Modeling Light 7" Grid Reflector Mini to PC Sync Cord Spare Fuse Limited 1-Year Warranty
Includes Free - Umbrella - White Translucent (43")
- Air-Cushioned Light Stand (Black, 8')
User Manual PDF 22.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Digital Monolight 160W s in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersImpact VSD-160 Specs | | | Maximum Power | 160 Ws | | Power Control | 4 Stops in 1/10-Stop Increments | | Guide Number | 115' / 35.1 m at ISO100 | | Flash Duration | 1/2000 to 1/1000 Sec | | Recycle Time | 2 Sec (Full Power) | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Wattage | 60 W | | | | Sync Type | Optical | | Wireless Range | 33' / 10 m (Radio) | | | | AC Input Voltage | 110to120 VAC, 60 Hz | | Circuit Protection | Fuse | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | No | | Dimensions | H: 8.5 x W: 7.0 x L: 11.6" / H: 21.5 x W: 17.7 x L: 29.5 cm, Including Reflector | | Weight | 3.5 lb / 1.58 kg | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 22.0 x 10.5 x 6.5" |
