User Manual for Impact Digital Monolight 400W s Click to enlarge the picture
Contents of the user manual for the Impact Digital Monolight 400W s
- Product category: Monolights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Monolights
 |
User manual for the Impact Digital Monolight 400W s contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

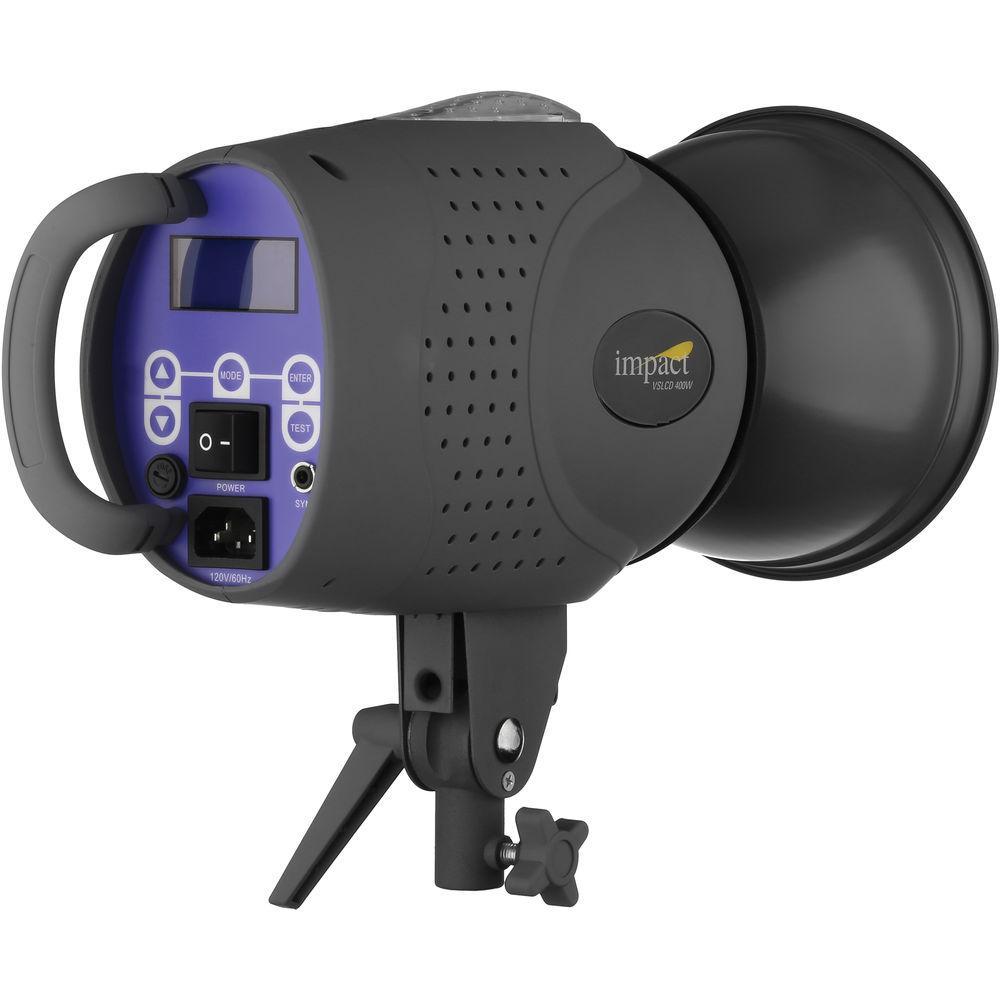

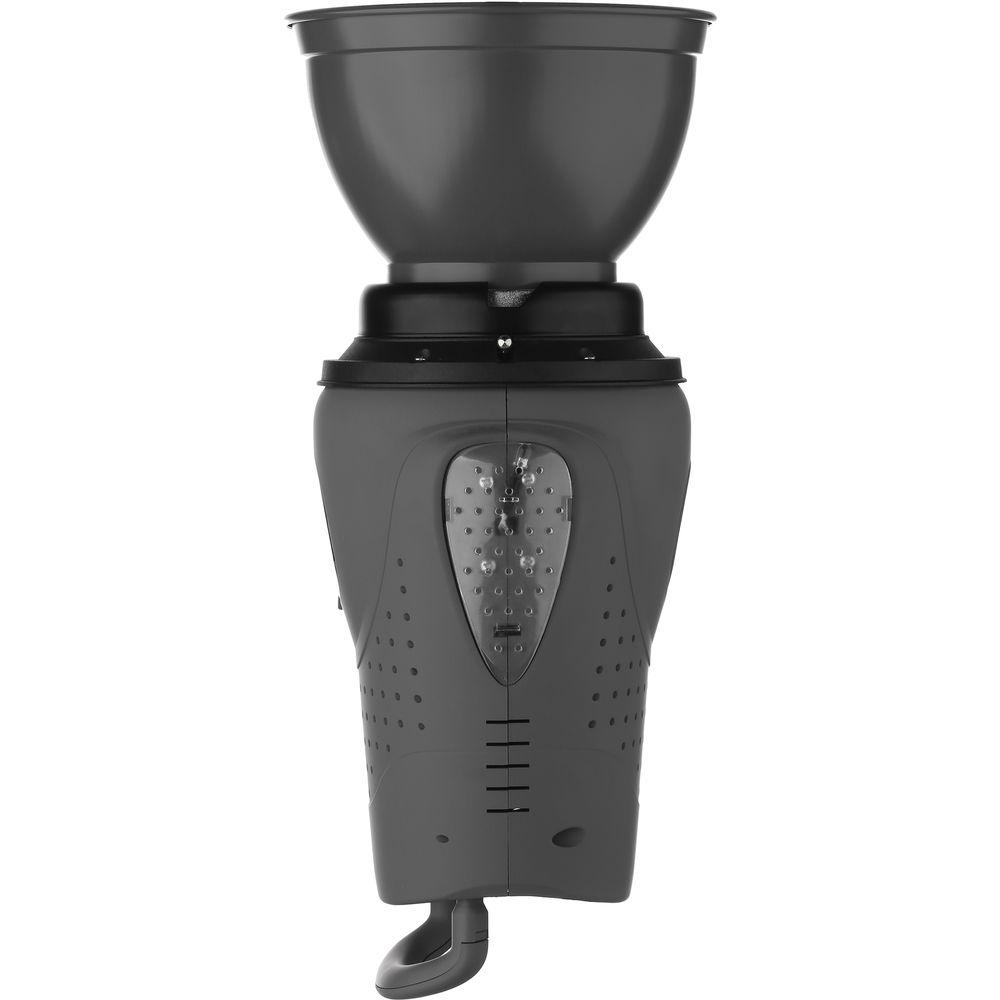

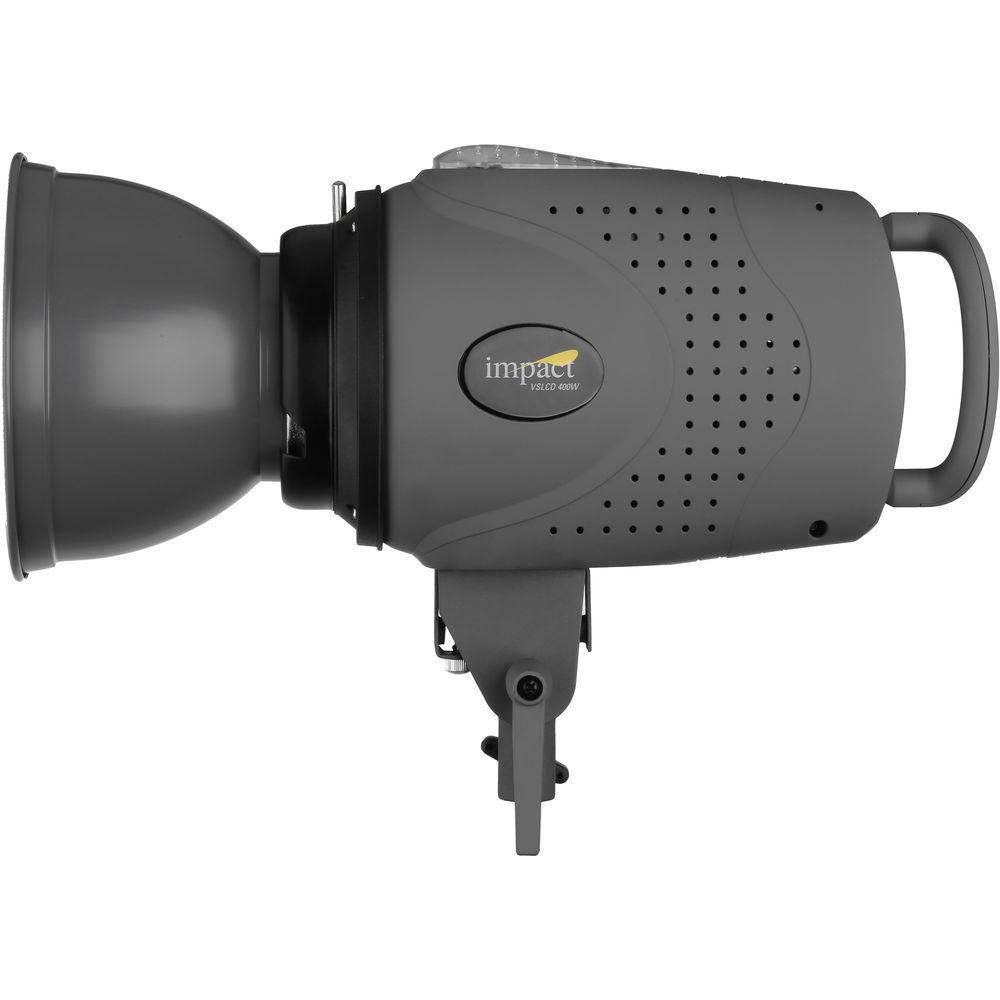

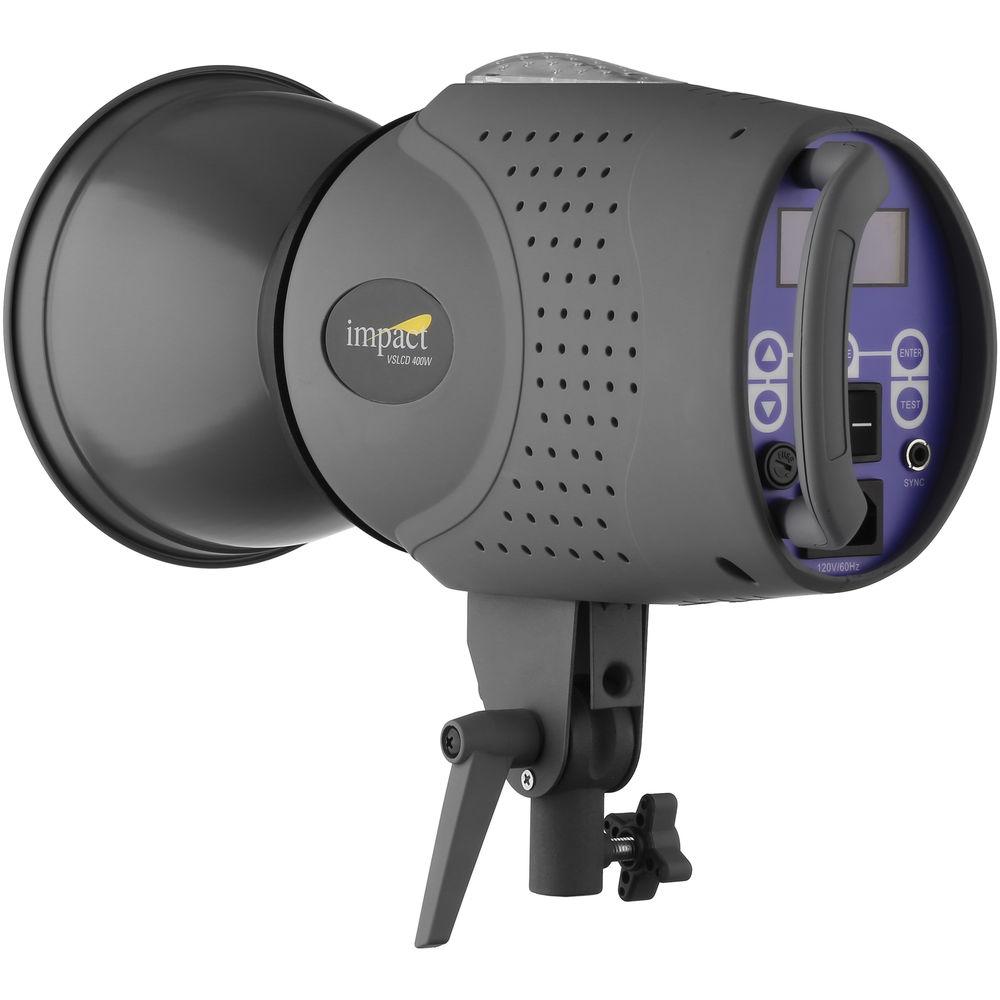

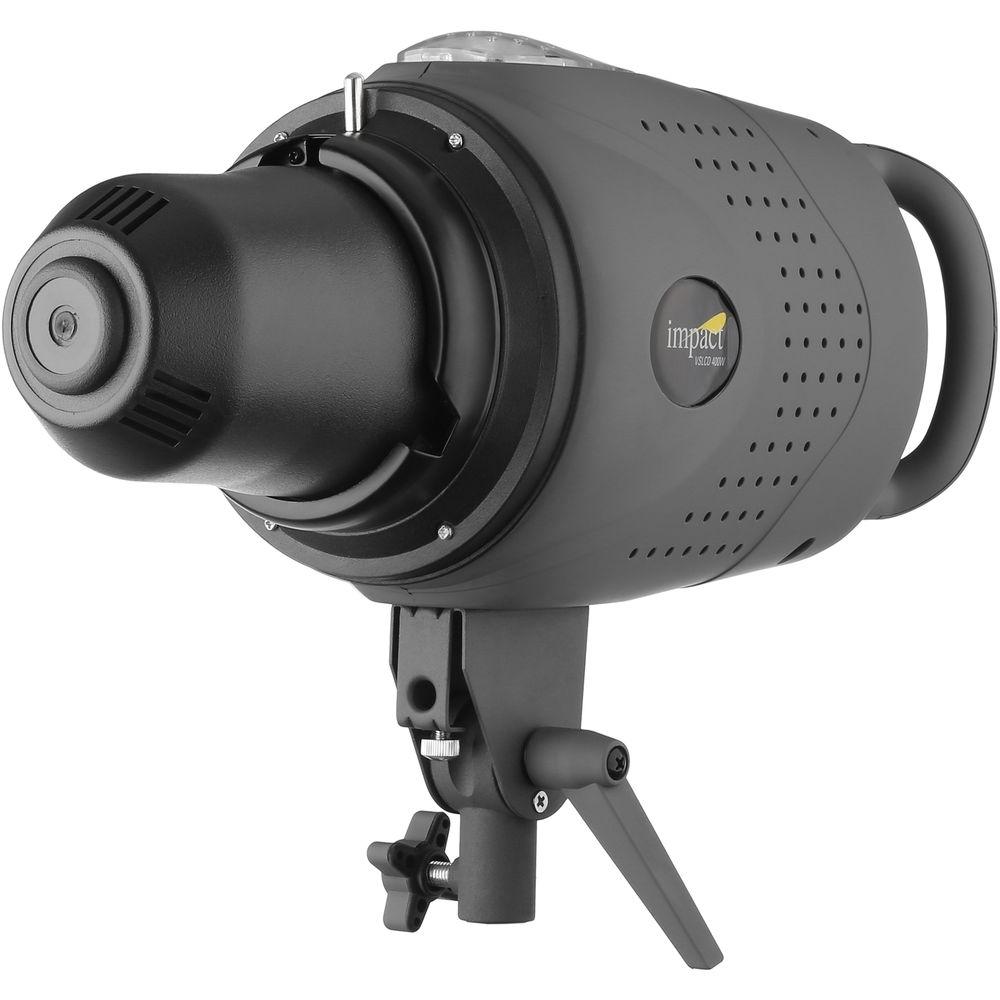

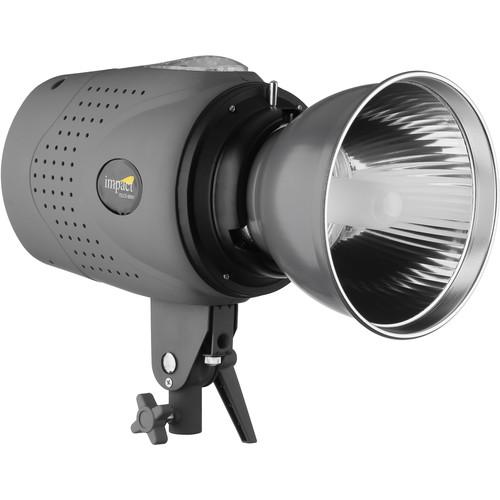

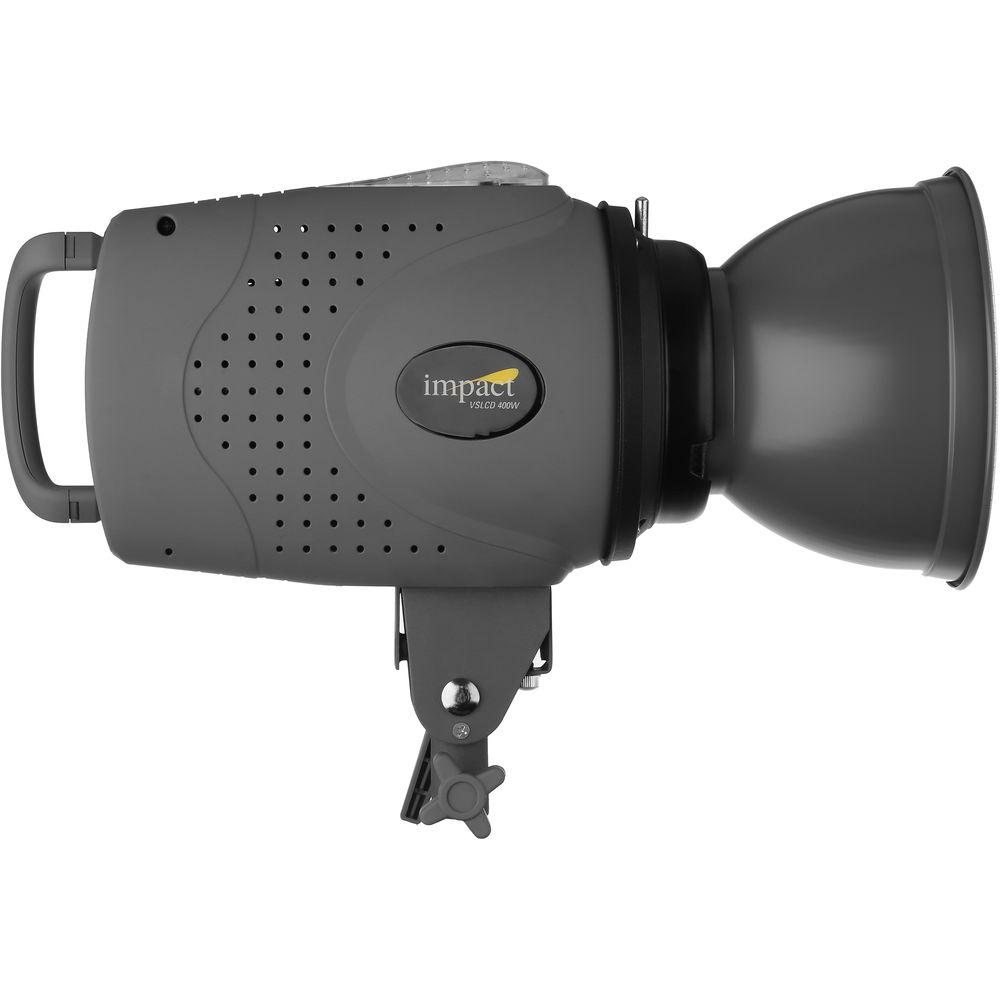

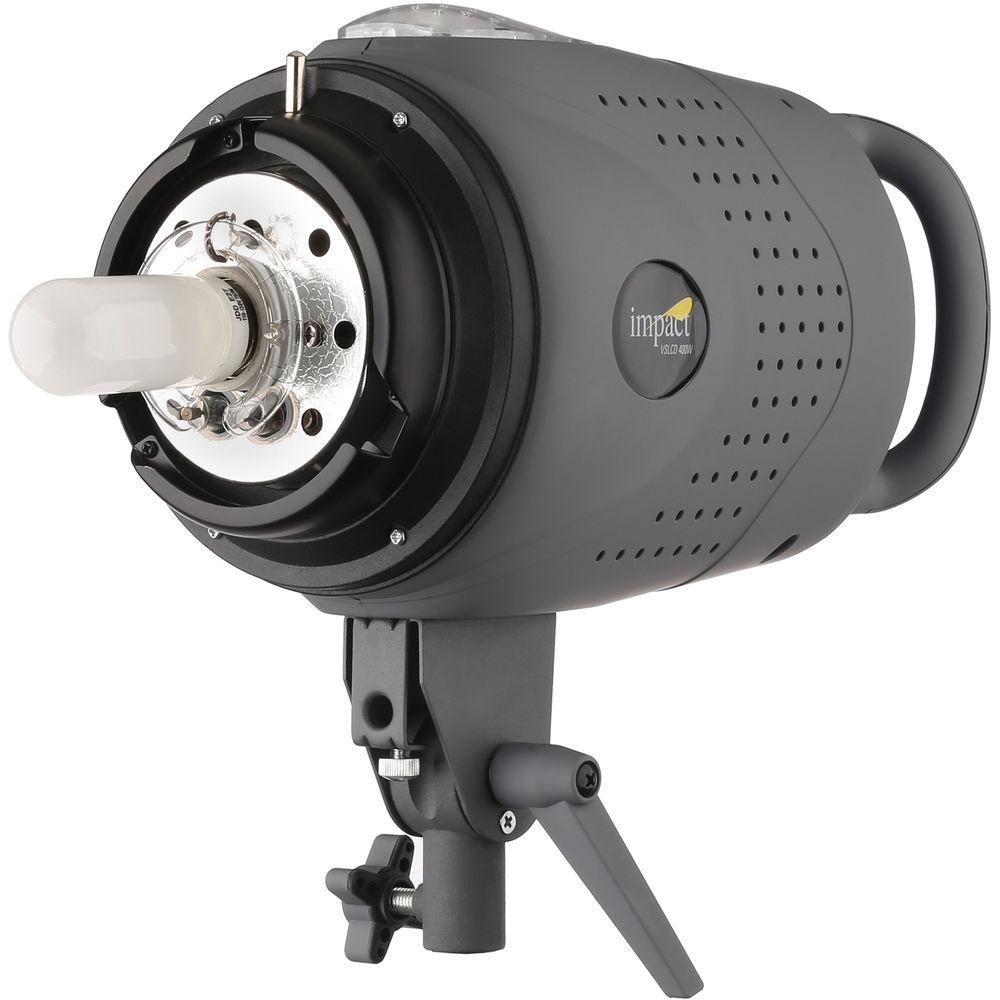

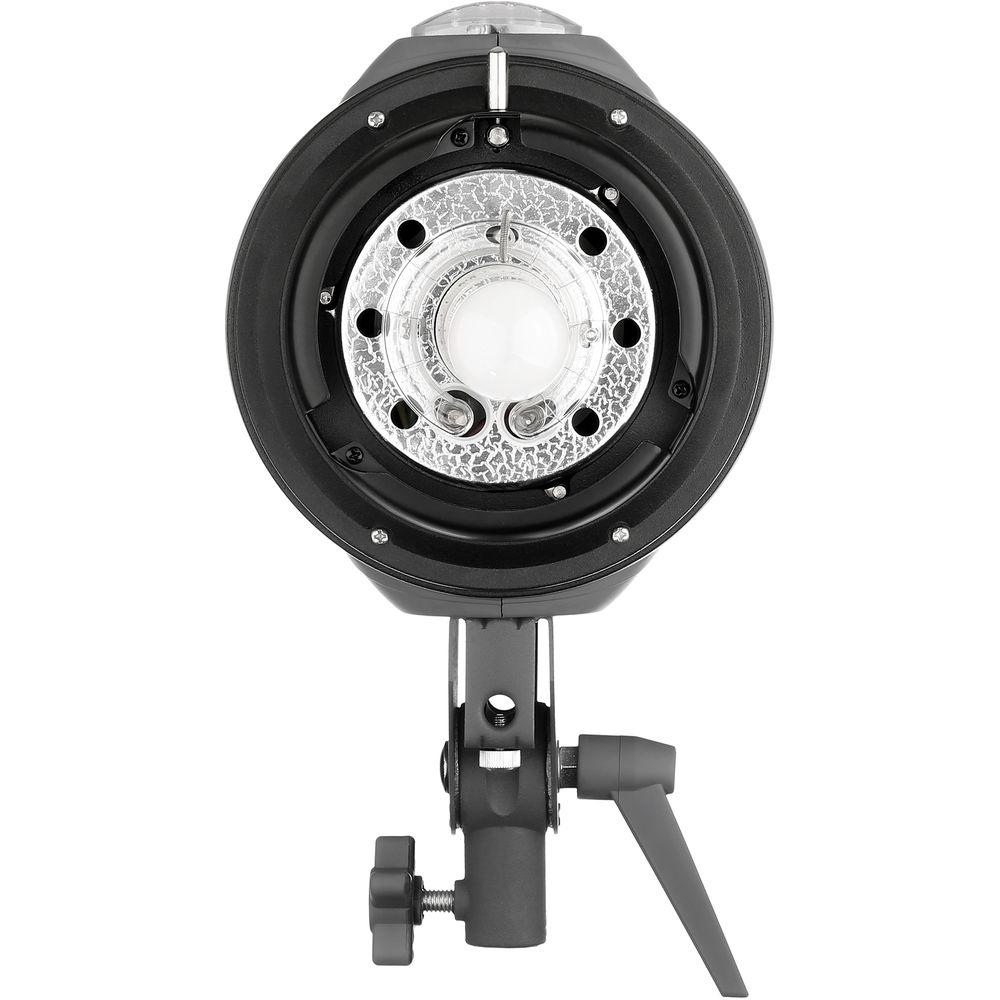

Product description You might be surprised at how many photo assignments you can handle with a compact, lightweight monolight like the Impact Digital Monolight 400W/s (120VAC). It's got 400w/s of power in an easily transportable package, and light output that can be varied in 1/10 stop stages over a 4-stop range, accessible through the digital readout. The 150W modeling light can be coupled to the flash, getting brighter or dimmer to match the actual light output, or independently set to the level you want. The monolight accepts S-type monolight reflectors and head accessories. It also has a limited Auto Dump function, firing the strobe when you reset to a different power level (so the strobe is automatically set to the correct setting for the next flash). A built-in optical slave allows the monolight to be triggered using another flash. Perfect for portraits, small still-lifes, and much more. - Power is variable over a 4-stop range

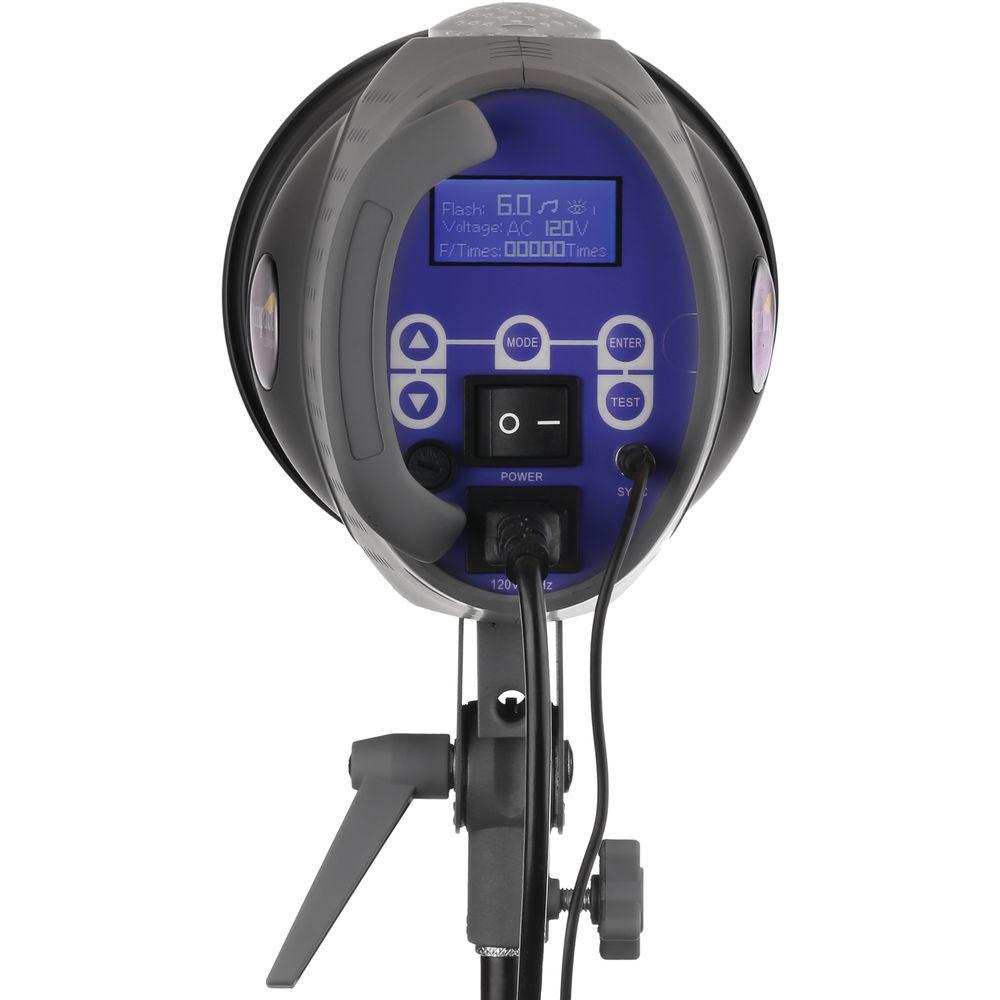

- Digital readout coupled with the power variator
- Accepts S-type monolight reflectors and head accessories
- Power is adjustable in 1/10 stop increments, from full to 1/8 power
- Model light intensity may be coupled to, or independent from, the flash output levels
- Limited Auto Dump feature automatically fires the strobe when you reset to a lower power level
- Built-in optical slave "sees" the light from other flashes, and fires monolight automatically
UPC: 847628013483 In the Box Impact Digital Monolight 400W/s (120VAC) Flashtube 150W Modeling Light 7" Grid Reflector Mini to PC Sync Cord Extra Fuse Limited 1-Year Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Digital Monolight 400W s in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersImpact VS-LCD400 Specs | | | Maximum Power | 400 Ws | | Power Control | 4 Stops in 1/10-Stop Increments | | Guide Number | 197' / 60 m at ISO100 | | Flash Duration | 1/1500 to 1/400 Sec | | Recycle Time | 2 Sec (Full Power) | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Wattage | 150 W | | | | Sync Type | Optical | | Wireless Range | 33' / 10 m (Radio) | | | | AC Input Voltage | 110to120 VAC, 60 Hz | | Circuit Protection | Fuse | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | No | | Dimensions | H: 8.5 x W: 6.0 x L: 11.6" / H: 21.5 x W: 15.5 x L: 29.5 cm, Including Reflector | | Weight | 6.75 lb / 3.06 kg | | | | Package Weight | 9.7 lb | | Box Dimensions (LxWxH) | 18.5 x 10.1 x 9.5" |
