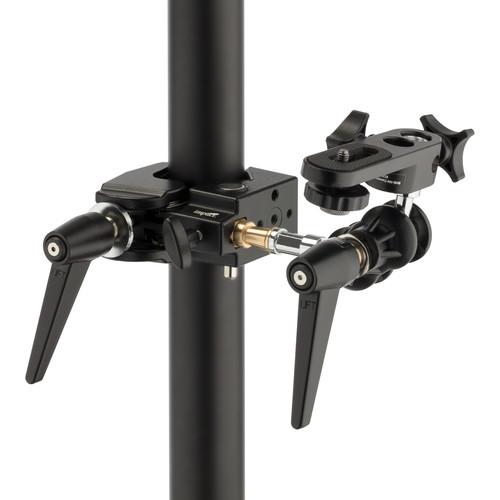

Product description The Impact Double Ball Joint Head with Super Clamp and Camera Platform Kit was put together by to offer photographers and videographers a camera support option to a traditional tripod. The Camera Platform has two 5/8" receivers for the head or other accessory with a matching stud. A 1/4"-20 threaded camera stud is pre-installed. The head has two 5/8" studs that can be tilted +/- 180 degrees and rotated 360 degrees. One stud has a 1/4"-20 tap and the other a 3/8"-16 tap for stands and accessories that have matching screws. The studs fit into a wide variety of grip gear with 5/8" receivers such as the included Impact Super Clamp that allows you mount to supports and poles from 0.5 - 2.1" thick. Once in position you can lock the head into place with its large ratcheting handle. The system will support cameras up to 5 lb. - Impact Double Ball Joint Head The Impact Double Ball Joint Head is an handy accessory for mounting lights or other gear in various situations where space and weight concerns are paramount. With an optional super clamp (Impact CC-106R) and camera platform (Impact BHE-104) you can mount a DSLR or video camera weighing up to 5.5 lb, on a pole or other support. UPC: 847628554832
- Impact BHE-104 Camera Platform for Flex Arm The Impact BHE-104 Camera Platform for Flex Arm supports lightweight cameras up to 1.0 lb on the Impact Flex Arm or similar accessory. The platform features a captive, sliding 1/4"-20 camera screw and a non-slip surface. There are two 5/8" receivers for the arm or a stud. UPC: 847628556102
- Impact Super Clamp with Ratchet Handle The Impact Super Clamp with Ratchet Handle is a versatile grip tool made of lightweight cast alloy. With a load capacity of 33 lb, the clamp can hold a wide variety of items such as cameras, lights, umbrellas, hooks, shelves, plate glass, cross bars, even other Super Clamps.The Super Clamp can be securely mounted on any tube or pipe from 0.5" to 2.1" and is supplied with a wedge insert for clamping onto flat surfaces. The ratchet handle allows you to disengage it and tighten it down from any angle; a very handy feature when you're using the clamp in tight quarters. A built-in socket holds 5/8" accessories such as the supplied SRP-102 Hex Stud with 1/4"-20 male thread. UPC: 847628538870
In the Box - Double Ball Joint Head vurzwwsesxwuzfe
- Limited 1-Year Warranty
- BHE-104 Camera Platform for Flex Arm
- Super Clamp with Ratchet Handle
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Double Ball Joint Head with Super Clamp and Camera Platform Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact Double Ball Joint Head
| Mounting | 1/4"-20 Female, 5/8" / 16 mm Stud (Connector 1)
3/8"-16 Female, 5/8" / 16 mm Stud (Connector 2) | | Load Capacity | 5.5 lb / 2.5 kg | | Material | Aluminum, Polymer | | Weight | 0.88 lb / 0.4 kg | | | | Box Dimensions (LxWxH) | 6.4 x 4.3 x 1.6" | - Impact BHE-104 Camera Platform for Flex Arm
| Construction | Black aluminum | | Mounting Screw | 1/4"-20 | | Mount | Dual 5/8" (16 mm) receivers | | Weight | 0.31 lb (0.14 kg) | | | | Box Dimensions (LxWxH) | 6.55 x 3.9 x 1.85" | - Impact Super Clamp with Ratchet Handle
| Clamp Type | Jaw | | Jaw Shape | Round | | Jaw Opening | 0.5 to 2.1 " / 1.3 to 5.3 cm | | Load Capacity | 33 lb / 15 kg | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 10.2 x 5.35 x 2.3" |
