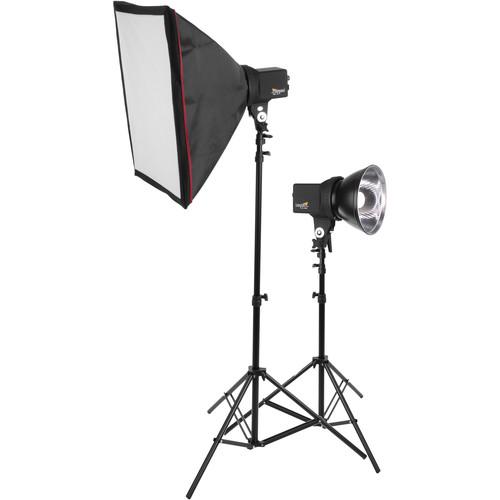

User Manual for Impact EX-100A 2-Monolight Kit with Softboxes and Stands Click to enlarge the picture
Contents of the user manual for the Impact EX-100A 2-Monolight Kit with Softboxes
- Product category: Monolights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Monolights
|
User manual for the Impact EX-100A 2-Monolight Kit with Softboxes contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|
Product description The Impact EX-100A 2-Monolight Kit with Softboxes and Stands was put together by to give photographers the advantage of a core lighting setup that includes two flash heads with solid, dependable, basic features. The kit includes two 100W/s EX-100A monolights with full to 1/8 power adjustment and a 60W modeling light which has a "proportionate" setting to allow you to preview your final image. Each light comes with an 8" grid reflector, 24x24" softbox with speedring, sync cord and an 8' air-cushioned light stand. - 2 x Impact One-Monolight Kit (120 VAC) The Impact One-Monolight Kit (120 VAC) is an economical 100-watt/second monolight with modeling light and power variator. This kit includes a softbox with mounting ring, to soften the light output.
- The included 24 x 24" softbox has a silver interior for crisper highlights.
- PC sync cord with monoplug is included.
- Line sync voltage is only 4.3 VDC (safe for any camera's circuitry).
UPC: 847628011243 - 2 x Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
- Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights.
- Available as accessories.
UPC: 847628012349 In the Box - 2 x One-Monolight Kit (120 VAC) tadreasxaqxd
- 24 x 24" Softbox
- 8" Reflector
- Flashtube for EX 100 Monolight
- Dedicated EX100A Speedring
- 60W Modeling Lamp
- Mini to PC Synch Cord
- Spare Fuse
- Limited 1-Year Warranty
- 2 x Air-Cushioned Light Stand (Black, 8')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact EX-100A 2-Monolight Kit with Softboxes and Stands in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Impact One-Monolight Kit (120 VAC)
| | | Maximum Power | 100 Ws | | Flash Duration | 1/1500 to 1/1000 Sec | | Recycle Time | 3 Sec (Full Power) | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Elinchrom Umbrella Shaft | | | | Type | Tungsten | | Wattage | 60 W | | | | AC Input Voltage | 120 VAC, 60 Hz | | Circuit Protection | Fuse | | | | Display | None | | Auto Dump | No | | Fan Cooled | No | | Dimensions | H: 7.8 x W: 5.0 x L: 9.5" / H: 19.7 x W: 12.7 x L: 24.1 cm | | Weight | 2.6 lb / 1.2 kg | | | | Box Dimensions (LxWxH) | 23.2 x 9.5 x 7.3" | - 2 x Impact Air-Cushioned Light Stand (Black, 8')
| Maximum Load | 8 lb (3.6 kg) | | Leg Tip | 20 mm | | Attachment Size | 5/8" Stud with 1/4"-20 in threaded tip | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Maximum Height | 96" (243.8 cm) | | Minimum Height | 34" (86.3 cm) | | Folded Height | 29.6 (75.2 cm) | | Footprint Diameter | 36" (91.4 cm) | | Weight | 2.05 lb (1 kg) | | | | Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.15" |
