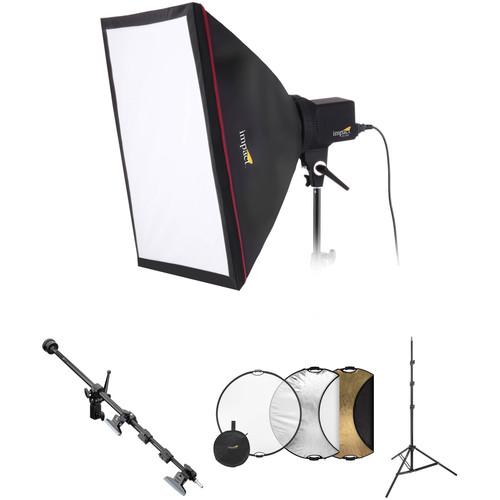

Impact EX-100A Portrait Kit

User Manual for Impact EX-100A Portrait Kit

• Product category: Monolights Impact
• Brand: Impact
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Impact Monolights

Product description

• Impact One-Monolight Kit (120 VAC) The Impact One-Monolight Kit (120 VAC) is an economical 100-watt/second monolight with modeling light and power variator. This kit includes a softbox with mounting ring, to soften the light output.
  • The included 24 x 24" softbox has a silver interior for crisper highlights.
  • PC sync cord with monoplug is included.
  • Line sync voltage is only 4.3 VDC (safe for any camera's circuitry).
  UPC: 847628011243
• Impact Telescopic Collapsible Reflector Holder The Impact Telescopic Collapsible Reflector Holder is ideal for mounting reflectors such as Impact, Flexfill, or Photoflex light discs up to 60" to a light stand. It mounts to any stand that has a 5/8" diameter top stud. It includes a 5/8" female stand adapter with female 3/8" and 1/4"-20 threads for stands topped with those threads. Alternately, it can hold a small light head to an extension of almost 3' from the center of your light stand (with the addition of a 3/8" to 5/8" adapter, not included).
  • Two-section support arm telescopes for use with different size reflectors.
  UPC: 847628011861
• Impact 5-in-1 Collapsible Circular Reflector with Handles (32") This two-handle 32" 5-1 Circular Collapsible Reflector with Handles from Impact adds a polished-looking quality of light to your photos or videos. The reflector is built around a translucent disc which doesn't reflect as much as the solid white surface, but does exhibit soft neutral reflection. Its primary purpose, however, is as a diffuser that will tame contrast by being held over a subject's head in the harsh noon-day sun. The disc can also be used in situations where you'd use a softbox. Using a disc holder or one of the 3/8" sockets, place your flash or constant light behind the suspended disc for soft, flattering light with open shadows.The 5-in-1 reflector has handy convenience features that make it easy to use and deliver impressive results, while saving space by folding down to approximately one third of its open size. Impact's smart design provides ergonomic handgrips that allow you to hold the disc in a flat or U-shaped position, or in any way that gets the job done. Each of the grips has additional 3/8"-16 threaded sockets for attachment to accessories or grip equipment. The 5-in-1 Reflector comes with a carry/storage case.The surfaces are available on two removable, reversible sleeves that slip over the disc. Silver offers very high reflective qualities that render a snappy high-contrast look with a cool color bias. Just the opposite, the Gold surface reflects a very warm quality; similar to late afternoon or sunset light. The Black fabric subtracts light from the subject, and can be used to block out unwanted light or to greatly reduce reflections on shiny or reflective surfaces. Finally, the flat White surface provides neutral reflectance with a soft quality of light. UPC: 847628598904
• Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
  Air Cushioned
  • Protects equipment from impact damage.
  Compact Design
  • Will fit easily into most location cases.
  Accepts Casters
  • Eases positioning of heavy lights.
  • Available as accessories.
  UPC: 847628012349

• One-Monolight Kit (120 VAC) vtaurszvacwuxstfebtqcxxuuvxdfwetuvfeb
• 24 x 24" Softbox
• 8" Reflector
• Flashtube for EX 100 Monolight
• Dedicated EX100A Speedring
• 60W Modeling Lamp
• Mini to PC Synch Cord
• Spare Fuse
• Limited 1-Year Warranty

• Telescopic Collapsible Reflector Holder

• 5-in-1 Collapsible Circular Reflector with Handles (32")

• Air-Cushioned Light Stand (Black, 8')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Impact One-Monolight Kit (120 VAC)

  Maximum Power	100 Ws
  Flash Duration	1/1500 to 1/1000 Sec
  Recycle Time	3 Sec (Full Power)
  Flash Ready Indicator	Visual
  Reflector	Changeable
  Accessory Fitting Type	Elinchrom Umbrella Shaft

  Type	Tungsten
  Wattage	60 W

  Sync Type	Optical

  AC Input Voltage	120 VAC, 60 Hz
  Circuit Protection	Fuse

  Display	None
  Auto Dump	No
  Fan Cooled	No
  Dimensions	H: 7.8 x W: 5.0 x L: 9.5" / H: 19.7 x W: 12.7 x L: 24.1 cm
  Weight	2.6 lb / 1.2 kg

  Box Dimensions (LxWxH)	23.2 x 9.5 x 7.3"

• Impact Telescopic Collapsible Reflector Holder

  Dimensions	Collapsed: 29" (74 cm) Fully extended: 67" (1.7 m)
  Weight	2.65 lbs (1.2 kg)

  Box Dimensions (LxWxH)	30.0 x 5.5 x 4.5"

• Impact 5-in-1 Collapsible Circular Reflector with Handles (32")

  Shape	Circular
  Open Diameter	32" (81.3 cm)
  Folded Diameter	Approximately 1/3 its open size
  Surfaces	Translucent disc with Silver, Gold, White and Black surface sleeves

  Box Dimensions (LxWxH)	11.75 x 11.7 x 3.0"

• Impact Air-Cushioned Light Stand (Black, 8')

  Maximum Load	8 lb (3.6 kg)
  Leg Tip	20 mm
  Attachment Size	5/8" Stud with 1/4"-20 in threaded tip
  Accepts Wheels	Yes
  Air Cushioned	Yes
  Maximum Height	96" (243.8 cm)
  Minimum Height	34" (86.3 cm)
  Folded Height	29.6 (75.2 cm)
  Footprint Diameter	36" (91.4 cm)
  Weight	2.05 lb (1 kg)

  Box Dimensions (LxWxH)	29.75 x 3.2 x 3.15"
