User manual

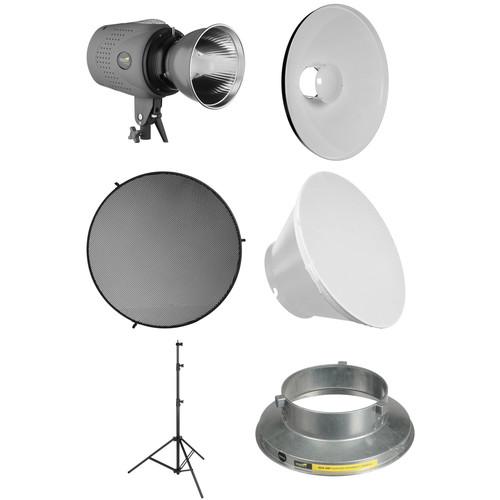

Impact Fashion Beauty Dish Kit

User Manual for Impact Fashion Beauty Dish Kit

• Product category: Monolights Impact
• Brand: Impact
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Impact Monolights

Product description

• Impact Digital Monolight 400W/s (120VAC) You might be surprised at how many photo assignments you can handle with a compact, lightweight monolight like the Impact Digital Monolight 400W/s (120VAC). It's got 400w/s of power in an easily transportable package, and light output that can be varied in 1/10 stop stages over a 4-stop range, accessible through the digital readout. The 150W modeling light can be coupled to the flash, getting brighter or dimmer to match the actual light output, or independently set to the level you want. The monolight accepts S-type monolight reflectors and head accessories. It also has a limited Auto Dump function, firing the strobe when you reset to a different power level (so the strobe is automatically set to the correct setting for the next flash). A built-in optical slave allows the monolight to be triggered using another flash. Perfect for portraits, small still-lifes, and much more.
  • Power is variable over a 4-stop range
  • Digital readout coupled with the power variator
  • Accepts S-type monolight reflectors and head accessories
  • Power is adjustable in 1/10 stop increments, from full to 1/8 power
  • Model light intensity may be coupled to, or independent from, the flash output levels
  • Limited Auto Dump feature automatically fires the strobe when you reset to a lower power level
  • Built-in optical slave "sees" the light from other flashes, and fires monolight automatically
  UPC: 847628013483
• Impact 22" Beauty Dish Reflector The beauty dish reflector is a legendary light shaping tool popularized by fashion and portrait photographers. This Impact 22" Beauty Dish Reflector lives up to its potential by offering a bridge between softboxes and umbrellas that yields a soft but crisp light with snappy contrast and a textural quality that flatters makeup on models and accentuates character in portrait subjects. The secret is a built-in deflector that bounces the flash's direct output backwards, filling the shallow dish and casting a wide beam of soft light forward. The Beauty Dish fits most major brands with the separate purchase of an adapter. The Beauty Dish can also be used in combination with a diffuser sock or honeycomb grid, which allows for further modification of the light output. Note: Beauty Dishes are not recommended for use with continues tungsten lights over 300 watts.
  • Features neutral white reflector
  • Ideal for fashion portrait photography
  • Combine with optional diffuser sock or honeycomb grid
  UPC: 847628551565
• Impact 40° Honeycomb Grid for 22" Beauty Dish Reflector The beauty dish reflector is a legendary light shaping tool popularized by fashion and portrait photographers. This Impact 40° Honeycomb Grid for 22" Beauty Dish Reflector alters the shape and light output of the reflector by tunneling the light forward into a narrower 40° beam. The grid offers slightly increased contrast, directionality and spill light control. It's an ideal tool for achieving Rembrandt-like lighting effects. UPC: 847628551602
• Impact 22" Diffuser Sock This Impact Diffuser Sock is a heat-resistant (see note), 22" nylon fabric light softener ringed with strong elastic for a snug fit around metal strobe head reflectors. In addition, it is also ideal for use with 20 and 20.5" diffusers. The diffuser softens the light output and reduces it by 1 stop.Diffuser Socks are stackable, offering the opportunity to increase the diffusion effect while reducing the light output. Note: Intended for use on flash heads or fluorescent sources. Do not use on continuous hot light sources.
  • Diffuses and softens the light output by 1 stop
  UPC: 847628011021
• Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5') This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628012004
• Impact Beauty Dish Adapter for Impact Monolights, Bowens, Travelite, Cowboy, Interfit Stellar, JTL, Photoflex, Rime Lite, Westcott Flash Heads This Impact Beauty Dish Adapter for Impact Monolights, Bowens, Travelite, Cowboy, Interfit Stellar, JTL, Photoflex, Rime Lite, Westcott Flash Heads features durable aluminum alloy construction and mounts quickly onto the flash head, allowing you to use 16", 20", 22", and 27" Impact Beauty Dishes on your studio flash. It is compatible with Bowens, Calumet Travelite, Cowboy, Impact VC-VS-VSD Monolights, Interfit Stellar, JTL, Photoflex, Rime Lite and Westcott Photo Basics flash heads. UPC: 847628551848

• Digital Monolight 400W/s (120VAC)
• Flashtube
• 150W Modeling Light
• 7" Grid Reflector
• Mini to PC Sync Cord
• Extra Fuse
• Limited 1-Year Warranty

• 22" Beauty Dish Reflector

• 40° Honeycomb Grid for 22" Beauty Dish Reflector

• 22" Diffuser Sock

• Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

• Beauty Dish Adapter for Impact Monolights, Bowens, Travelite, Cowboy, Interfit Stellar, JTL, Photoflex, Rime Lite, Westcott Flash Heads

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Impact Digital Monolight 400W/s (120VAC)

  Maximum Power	400 Ws
  Power Control	4 Stops in 1/10-Stop Increments
  Guide Number	197' / 60 m at ISO100
  Flash Duration	1/1500 to 1/400 Sec
  Recycle Time	2 Sec (Full Power)
  Flash Ready Indicator	Visual
  Reflector	Changeable
  Accessory Fitting Type	Bowens S Type

  Type	Tungsten
  Wattage	150 W

  Sync Type	Optical
  Wireless Range	33' / 10 m (Radio)

  AC Input Voltage	110to120 VAC, 60 Hz
  Circuit Protection	Fuse

  Display	None
  Auto Dump	Yes
  Fan Cooled	No
  Dimensions	H: 8.5 x W: 6.0 x L: 11.6" / H: 21.5 x W: 15.5 x L: 29.5 cm, Including Reflector
  Weight	6.75 lb / 3.06 kg

  Box Dimensions (LxWxH)	18.5 x 10.1 x 9.5"

• Impact 22" Beauty Dish Reflector

  Shape	Circular
  Interior	White
  Accepts Grids	Yes, Not Included
  Requires Speed Ring / Adapter	Yes, Not Included
  Umbrella Mount	No
  Maximum Wattage	300 W (Hot Lights)
  Material	Aluminum
  Dimensions	Rating 86% users recommend this product to others. And what about you? This product has already been rated by 84 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
