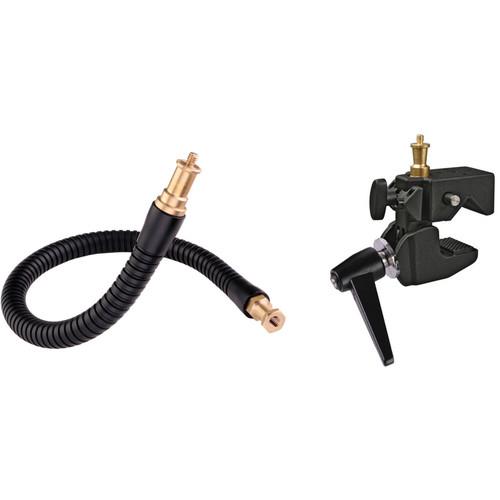

User Manual for Impact Flex Arm Super Clamp Kit Click to enlarge the picture
Contents of the user manual for the Impact Flex Arm Super Clamp Kit
- Product category: Clamps & Clips Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Clamps & Clips
|
User manual for the Impact Flex Arm Super Clamp Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|
Product description The Impact Flex Arm Super Clamp Kit is an ideal combination for placing grip gear in unusual or hard to reach places. The cast alloy clamp has a load capacity of 33 lb and can clamp and hold a wide variety of items such as cameras, lights, umbrellas, hooks, shelves, plate glass, cross bars, even other Super Clamps. The aluminum Heavy Duty Flex Arm measures 0.7" diameter and 21.65" in length and can be twisted into configurations that would be impossible with a jointed articulating arm. One end of the arm has a 3/8" female tapped hex stud to prevent torsion in the Super Clamp. The other end terminates in a 1/4"-20 screw on a 5/8" stud. The arm can hold 1.1 lb - Impact BHE-102 Heavy-Duty Flex Arm for Super Clamp This Impact BHE-108 Flex Arm for Super Clamp is ideal for supporting small lights, reflectors or other items up to 1.1 lb . Made of flexible aluminum, the 18 mm diameter arm measures 21.65" long and can be twisted into configurations that would be impossible with a jointed articulating arm. One end of the arm has a 3/8" female tapped hex stud to prevent torsion in the Super Clamp. The other end terminates in a 1/4"-20 screw on a 5/8" stud. UPC: 847628554795
- Impact Super Clamp with Ratchet Handle The Impact Super Clamp with Ratchet Handle is a versatile grip tool made of lightweight cast alloy. With a load capacity of 33 lb, the clamp can hold a wide variety of items such as cameras, lights, umbrellas, hooks, shelves, plate glass, cross bars, even other Super Clamps.The Super Clamp can be securely mounted on any tube or pipe from 0.5" to 2.1" and is supplied with a wedge insert for clamping onto flat surfaces. The ratchet handle allows you to disengage it and tighten it down from any angle; a very handy feature when you're using the clamp in tight quarters. A built-in socket holds 5/8" accessories such as the supplied SRP-102 Hex Stud with 1/4"-20 male thread. UPC: 847628538870
In the Box - BHE-102 Heavy-Duty Flex Arm for Super Clamp bqbebayxadtvctbctxbvusvfffdszaav
- Limited 1-Year Warranty
- Super Clamp with Ratchet Handle
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Flex Arm Super Clamp Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact BHE-102 Heavy-Duty Flex Arm for Super Clamp
| Construction | Aluminum, brass | | Load Capacity | 1.1 lb (0.49 kg) | | Dimensions | Length: 21.65" (55 cm)
Diameter: 0.7" (18 mm)
Studs: 5/8" (16 mm) hex with 3/8" tap
5/8" (16 mm) stud with 1/4"-20 male | | Weight | 1.57 lb (0.7 kg) | | | | Box Dimensions (LxWxH) | 24.05 x 1.55 x 1.3" | - Impact Super Clamp with Ratchet Handle
| Clamp Type | Jaw | | Jaw Shape | Round | | Jaw Opening | 0.5 to 2.1 " / 1.3 to 5.3 cm | | Load Capacity | 33 lb / 15 kg | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 10.2 x 5.35 x 2.3" |
