User Manual for Impact Fluorescent Floodlight Kit Click to enlarge the picture
Contents of the user manual for the Impact Fluorescent Floodlight Kit
- Product category: Fluorescent Lights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Fluorescent Lights
|
User manual for the Impact Fluorescent Floodlight Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

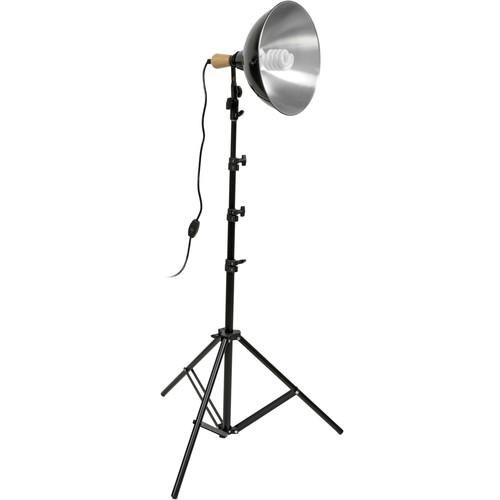

Product description This Impact Fluorescent Floodlight Kit consists of a ceramic socket with wooden handle, 12" aluminum reflector, a light stand, and a 32 watt screw-in fluorescent bulb. The reflector is made of heavy-grade brushed aluminum to maximize the light output. The light socket features a high heat ceramic socket and all high heat metal that won't melt like units with plastic sockets. It also features a wooden control handle that stays cool, and includes a built-in adjustable umbrella mount. The attached cord comes with an in-line switch, and the adjustable metal mount features a 5/8" receiver for light stands and an 8mm umbrella receptacle. A suitable economical 6' stand provides support for the entire setup. - Impact Porcelain Socket with Adjustable Umbrella Mount (500W) The Impact Porcelain Socket with Umbrella Mount (500W) is a cost-effective way to utilize a wide variety of E26 (Edison) based lamps for photo or video work. Options include simple household lamps as well as photoflood and quartz halogen bulbs. This highly versatile product has an adjustable metal mount with a 5/8" receiver for light stands and an 8mm umbrella receptacle. The Floodlight Socket tilts and locks in place at the desired angle by grasping the stay-cool wooden handle and releasing the locking knob. Lamps up to 500W won't melt the ceramic base which is impervious to heat. The socket also accepts screw-on reflectors of various sizes.
- High-heat ceramic socket won't melt like plastic sockets
- Supports 500W bulbs maximum
- Wooden control handle stays cool
- Accepts screw-on aluminum reflectors
- 10' 3-prong AC power cord with inline switch
- Built-in adjustable umbrella mount
UPC: 847628013636 - Impact Floodlight Reflector - 12" Replacement Reflector for the Impact 12" Floodlight.
Made of heavy-grade aluminum, are hand-spun and chemically etched to maximize the light output. Black painted exterior. The reflector mount size is 1 5/8". UPC: 847628012516 - Impact Light Stand, Black (6') This 6' Impact Black Light Stand is one of the most economical light stands available. It has a 5/8" stud top with a 1/4"-20 thread.
- For small light fixtures or boom arms.
UPC: 847628011953 - Impact Spiral Fluorescent Lamp (32W/120V) The SF-32-120 Impact Spiral Fluorescent Lamp is a 32W/120V E26 medium screw-base lamp that fits Impact fixtures such as the Octacool and VA902 as well as many other lamp head brands. The lamp is daylight color balanced and has an average lamp life of 10,000 hours. UPC: 847628571297
In the Box - Porcelain Socket with Adjustable Umbrella Mount (500W) zeqcbzfs
- Limited 1-Year Warranty
- Floodlight Reflector - 12"
- Spiral Fluorescent Lamp (32W/120V)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Fluorescent Floodlight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact Porcelain Socket with Adjustable Umbrella Mount (500W)
| Rating | 500 W | | Socket (Lampholder) | Ceramic E26 (Edison) | | Mount | 5/8" (16 mm) receiver for light stand
Tilting action with locking knob
8 mm (standard) umbrella receptacle with locking knob | | Cable | 10' / 3.0 m | | | | Box Dimensions (LxWxH) | 8.05 x 5.85 x 4.15" | - Impact Floodlight Reflector - 12"
| | | Box Dimensions (LxWxH) | 11.95 x 11.75 x 8.55" | - Impact Light Stand, Black (6')
| Load Capacity | 4 lb / 1.8 kg | | Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 6' / 1.8 m | | Minimum Working Height | 26.3" / 66.8 cm | | Collapsed Height | 26.3" / 66.8 cm | | Footprint Diameter | 30" / 76.20 cm | | Leg Shape | Round | | Accepts Wheels | Yes | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 26.4 x 3.5 x 3.5" | - Impact Spiral Fluorescent Lamp (32W/120V)
| Code | SF-32-120 | | Base Type | E26 | | Bulb Shape | Spiral | | Lumens | 1700 | | Wattage | 32 W | | Color Temperature | 5500K | | Color Temperature Tolerance | +/-300K | | Bulb Color | None | | Average Life | 10,000 Hours | | Maximum Overall Length (MOL) | 6.3" / 16.0 cm | | Maximum Overall Diameter (MOD) | 2.8" / 7.1 cm | | AC Input Power | 120 VAC, 60 Hz | | | | Box Dimensions (LxWxH) | 7.15 x 2.75 x 2.7" |
