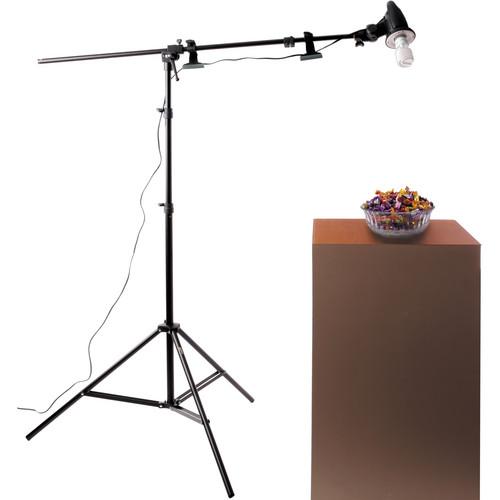

User Manual for Impact Food Photography Kit Click to enlarge the picture
Contents of the user manual for the Impact Food Photography Kit
- Product category: Fluorescent Lights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Fluorescent Lights
|
User manual for the Impact Food Photography Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|
Product description The Impact Food Photography Kit offers a compact, basic setup with a fluorescent lamp head and a versatile stand that will allow you to shoot your own cuisine or a wide variety of tabletop items. You can enhance the head's quality of light with an optional diffusion source such as Impact's 33" or 43" White Translucent Umbrella or one of Impact's line of collapsible reflectors. The Impact Convertible Boom Arm/Light Stand is a triple-duty support that can serve as a 13' light stand or as an overhead boom capable of supporting a small light head such as the included fluorescent fixture at an extension of almost 3.0' from the center of the stand. Alternately, you can bounce the light off of a reflector or pump it through diffusers up to 60" by supporting them with the stand's spring clips. The Single Socket Fluorescent Fixture comes with a 26W compact fluorescent lamp with a daylight balanced color temperature of 5000K. The fixture's bracket tilts and locks into position and features a standard 5/8" receiver that mounts on any 5/8" stud or accessory. - Impact Single Socket Fluorescent Fixture The Single Socket Fluorescent Fixture from Impact is a lightweight fixture in a polycarbonate housing designed to accept Edison-base compact fluorescent lamps. It can be used with up to 105W CFL bulbs. The fixture's bracket tilts and locks into position and features a standard 5/8" receiver that mounts on any 5/8" stud or accessory. UPC: 847628563582
- Impact Multiboom Light Stand and Reflector Holder - 13' (4m) This is an Impact Convertible Boom Arm/Light Stand. As a light stand, it can support a small or medium light head to a height of 13' (4 m). Raise the second section completely, click, and it is a boom stand.
As a boom, it can hold a small light head to an extension of almost 3' from the center of the stand.
It is a reflector holder by means of its two clips, which can support an Impact, Flexfill, or Photoflex light disc as large as 60".
A hole at the end of the arm allows an optional counterweight to be hung, for greater stability. - Instructions for Using This Stand as a Boom
- 1. Loosen the large long handle in the middle of the stand.
2. Loosen the top-most section of the stand. Pull that section all the way up.
3. Pull! - swing it horizontally for the boom feature, and lock it for the desired setup. UPC: 847628012042 - Eiko SP27/50K Spiral Fluorescent Lamp (26W/120V) The Eiko SP27/50K Spiral Fluorescent lamp (26/120V) is an Edison base (E26) screw-in bulb, for the SP Systems Cool Light, Interfit, Impact, Bowens Tri-Lite, or any other floodlight fixture that can accept a large bulb. The lamp has a color temperature of 5000° and an average life of 10,000 hours. This lamp is not for use with dimmers, electronic timers, photocells, totally enclosed fixtures, motion/occupancy sensors, or where directly exposed to water. UPC: 031293054159
In the Box - Single Socket Fluorescent Fixture yyzzycexzfzdfqvfuzaquauazs
- Limited 1-Year Warranty
- Multiboom Light Stand and Reflector Holder - 13' (4m)
- Eiko - SP27/50K Spiral Fluorescent Lamp (26W/120V)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Food Photography Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact Single Socket Fluorescent Fixture
| Input Voltage | 120VAC | | Lamps | CFL (compact fluorescent lamps) | | Ballast | In lamp | | Mounting | 5/8" (16 mm) | | Dimensions (L x W x H) | 6.5 x 4.1 x 6.5" (16.5 x 10.4 x 16.5 cm) | | Weight | 1.1 lb (500 g) | | | | Box Dimensions (LxWxH) | 7.65 x 6.95 x 4.6" | - Impact Multiboom Light Stand and Reflector Holder - 13' (4m)
| Minimum Height | 40" (102 cm) | | Maximum Height | 13' (4 m) as light stand
9'(2.7 m) as boom stand, with boom @ 90 degree angle
10.5'(3.2 m) as boom stand, with boom @ 135 degree angle | | Closed Length | 40" (102 cm) | | Footprint Diameter | 36" (91 cm) | | Leg Tip | 20mm | | Attachment Size | 5/8" stud with 1/4"-20 threaded top | | Accepts Wheels | Yes | | Air Cushioned | No | | Maximum Load | 5 lbs (2.3 kg) as light stand
3 lbs (1.4 kg) as boom stand | | Weight | 4.6 lbs (2.1 kg) | | | | Box Dimensions (LxWxH) | 42.0 x 4.8 x 4.8" | - Eiko SP27/50K Spiral Fluorescent Lamp (26W/120V)
| Code | SP27/50K | | Base Type | E26 | | Bulb Shape | Spiral | | Lumens | 1700 | | Wattage | 27 W | | Color Temperature | 5000K | | Bulb Color | None | | Color Accuracy Standard | CRI 80 | | Average Life | 10,000 Hours | | Maximum Overall Length (MOL) | 5.5" / 14.0 cm | | Maximum Overall Diameter (MOD) | 2.4" / 6.1 cm | | AC Input Power | 120 VAC, 60 Hz | | | | Box Dimensions (LxWxH) | 5.6 x 2.45 x 2.35" |
