User Manual for Impact FRC-RLSL Fluorescent 19" Ring Light with Dimmer Click to enlarge the picture
Contents of the user manual for the Impact FRC-RLSL Fluorescent 19" Ring Light
- Product category: Fluorescent Lights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Fluorescent Lights
 |
User manual for the Impact FRC-RLSL Fluorescent 19" Ring Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

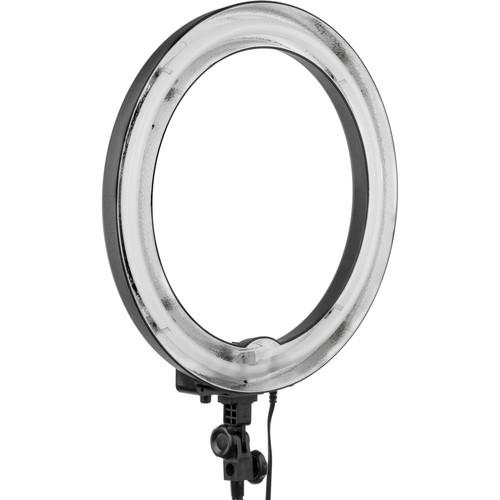

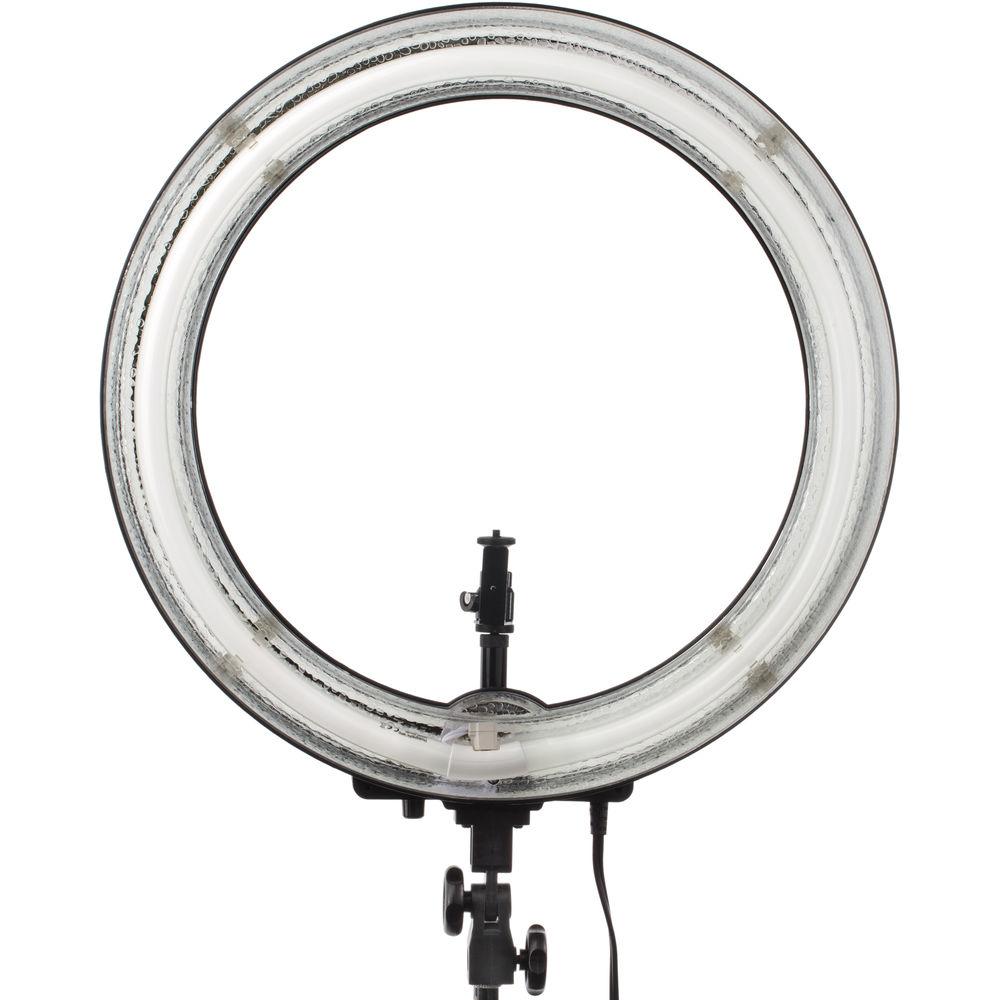

Product description The FRC-RLSL Fluorescent 19" Ring Light with Dimmer from Impact is a unique, constant light source with a natural daylight color balance of 5200K. Great for products and portraits, the ring light is meant for use with lighter weight cameras such as point and shoot or mirrorless cameras. A mini ball head and smartphone adapter are included for mounting cameras to the light. The ring light comes with a light stand swivel that accepts any 5/8" standard stud as well as a flexible arm to add versatility in positioning. The on-board dimmer allows you to vary the light intensity from 30-100%. The quality of light is soft, wrap-around, and nearly shadowless, but if you want it softer still, use the kit's snap on diffusers. There's also a 4-panel CTO filter for balancing with tungsten fixtures or creating warm lighting effects. A mirror attachment is included to help the subject prep for the shot. - 19" Continuous Light
- The Impact FRC-RLSL is a 19" continuous light source for portrait or product photography as well as video recording. It delivers a beautiful soft light that wraps around your subject without producing the harsh shadows from conventional light sources. It's effective in minimizing wrinkles and blemishes on your subject
- Color Temperature
- The Impact ring light emits a pleasing glow of 5200K, offering your photos a natural daylight color temperature
- Low Heat Output
- This ring light uses 65W of power which produces a low-heat output, allowing you to get close to your subject without causing them to overheat. This saves you from readjusting a model's make-up, or repositioning because your subject is uncomfortable

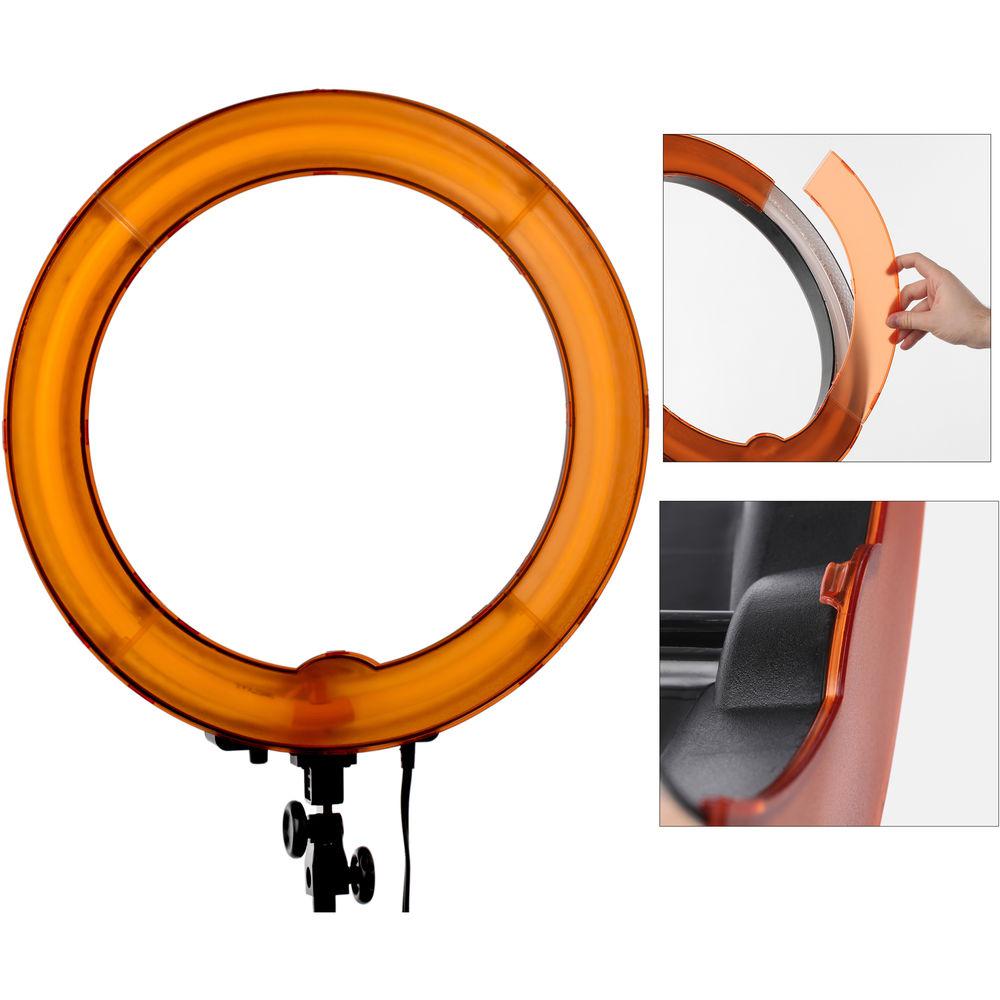

- Tungsten Conversion Panels
- Tungsten conversion panels adjust the ring light's output to cast a warmer color onto your scene. Match the look of candlelight or indoor lighting
- Clip-On Diffuser Panels
- Diffuser panels clip onto the ring light housing and spread the light outward for a more even cast on your subject

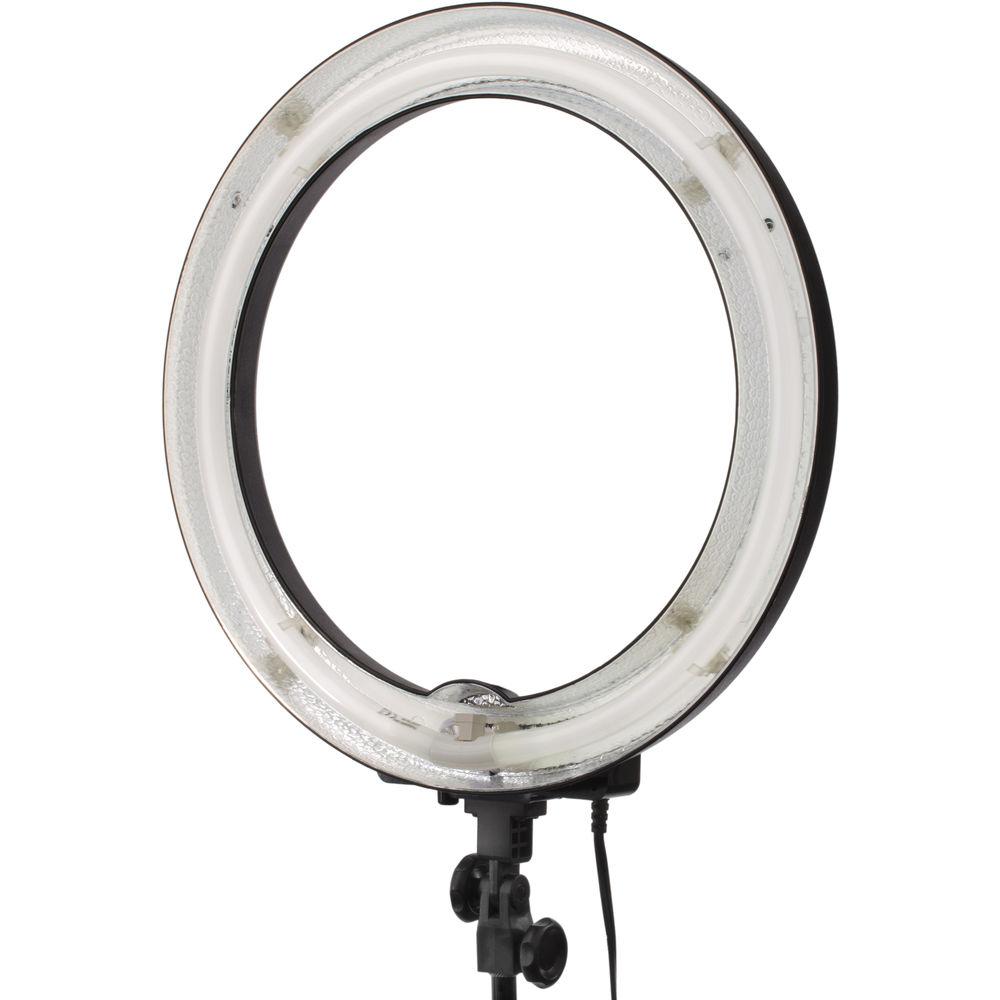

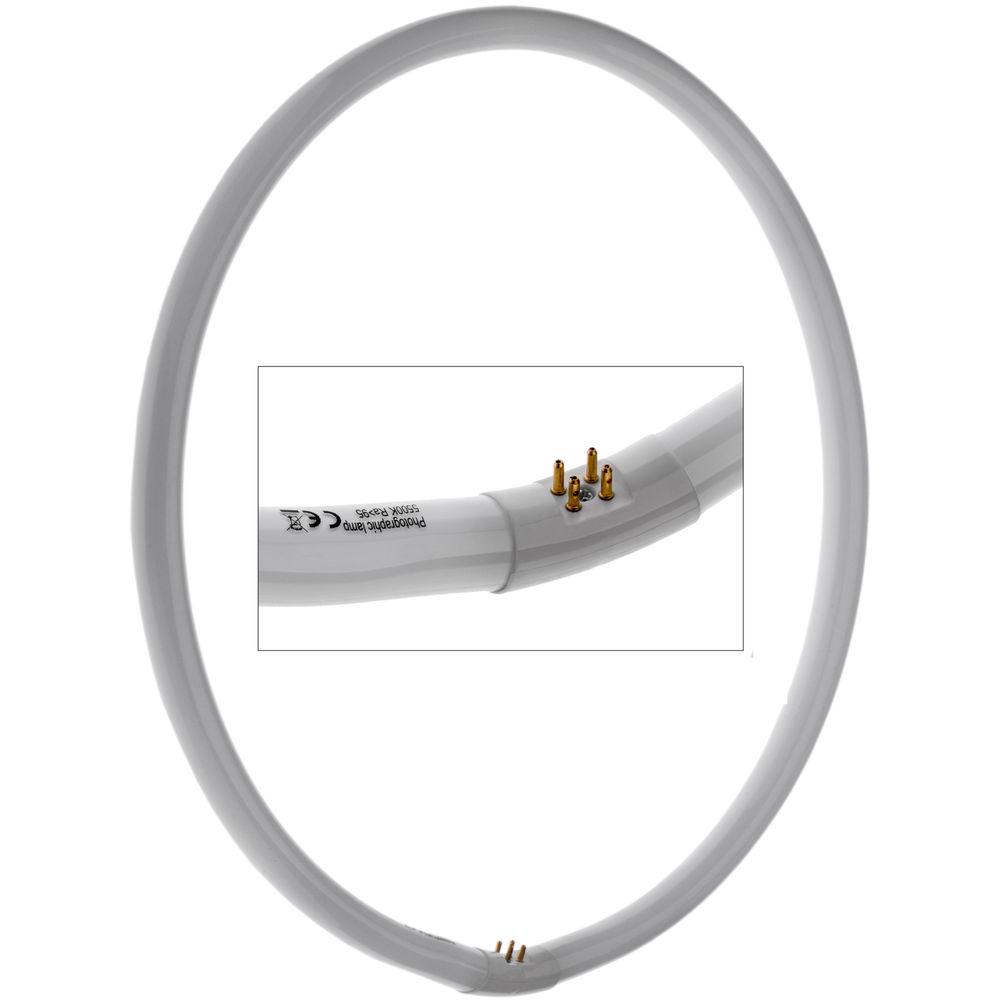

- Replaceable Fluorescent Ring Lamp
- If the light burns out you can replace the 18" ring lamp. Keep an extra on hand for a quick change so you can continue shooting

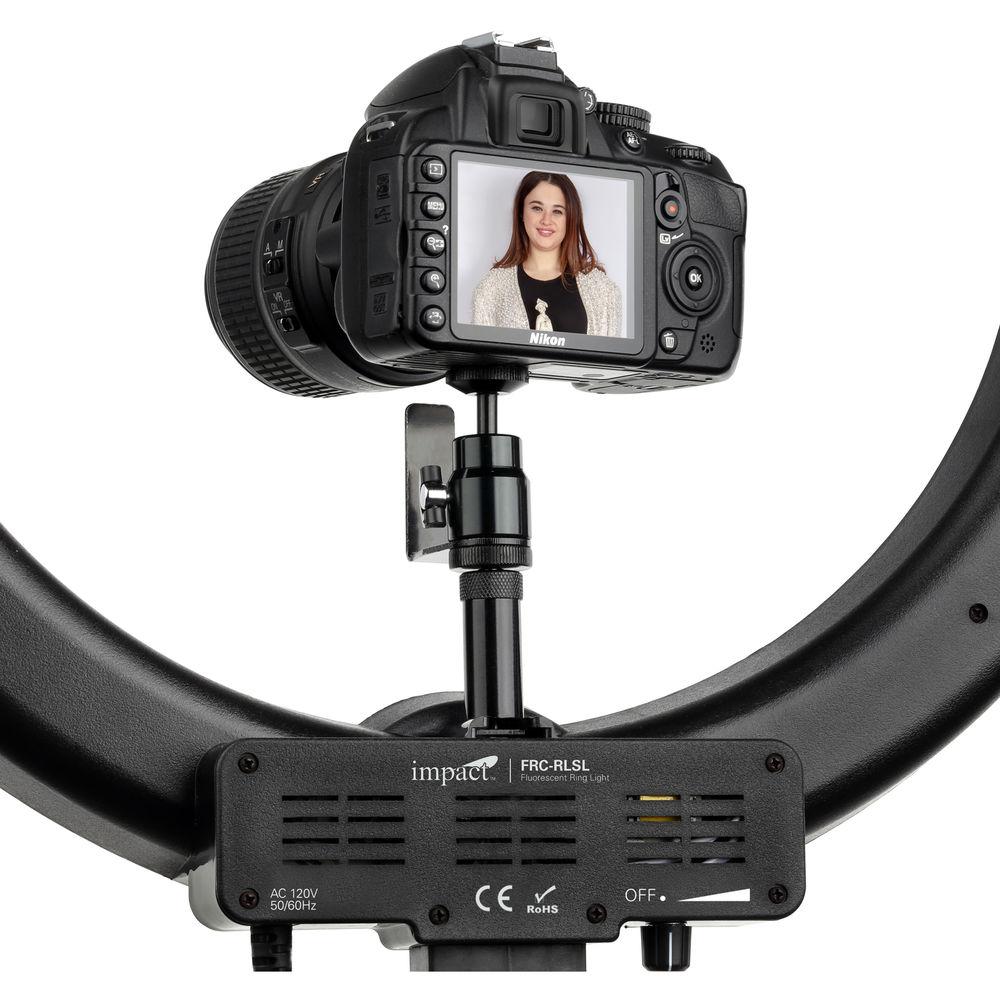

- Mini Ball Head
- The mini ball head allows you to attach a point-and-shoot or mirrorless camera in the center of the ring light. It has an adjustable ball head, so you can angle your camera in nearly any direction

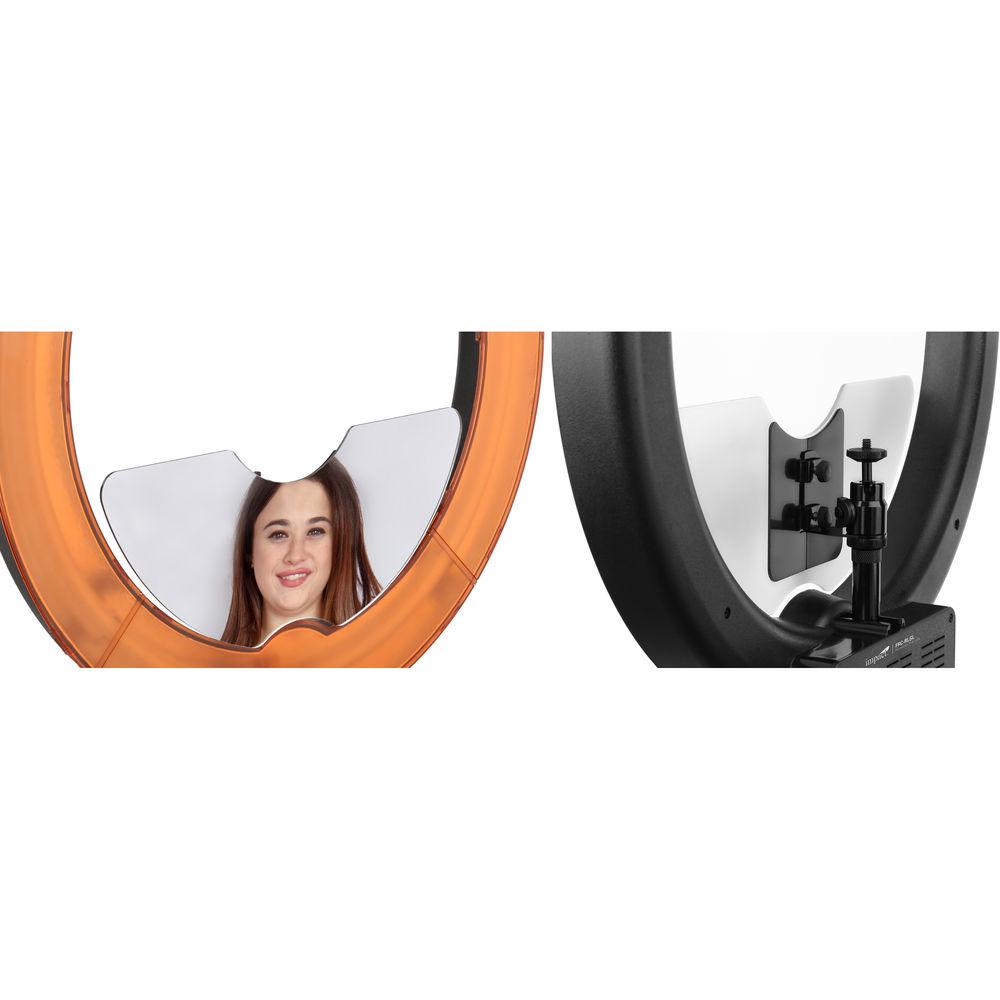

- Beauty Mirror
- The beauty mirror is perfect for portrait photography. If your model needs to make a quick touch-up, they can see themselves and make corrections while you're readying the next picture

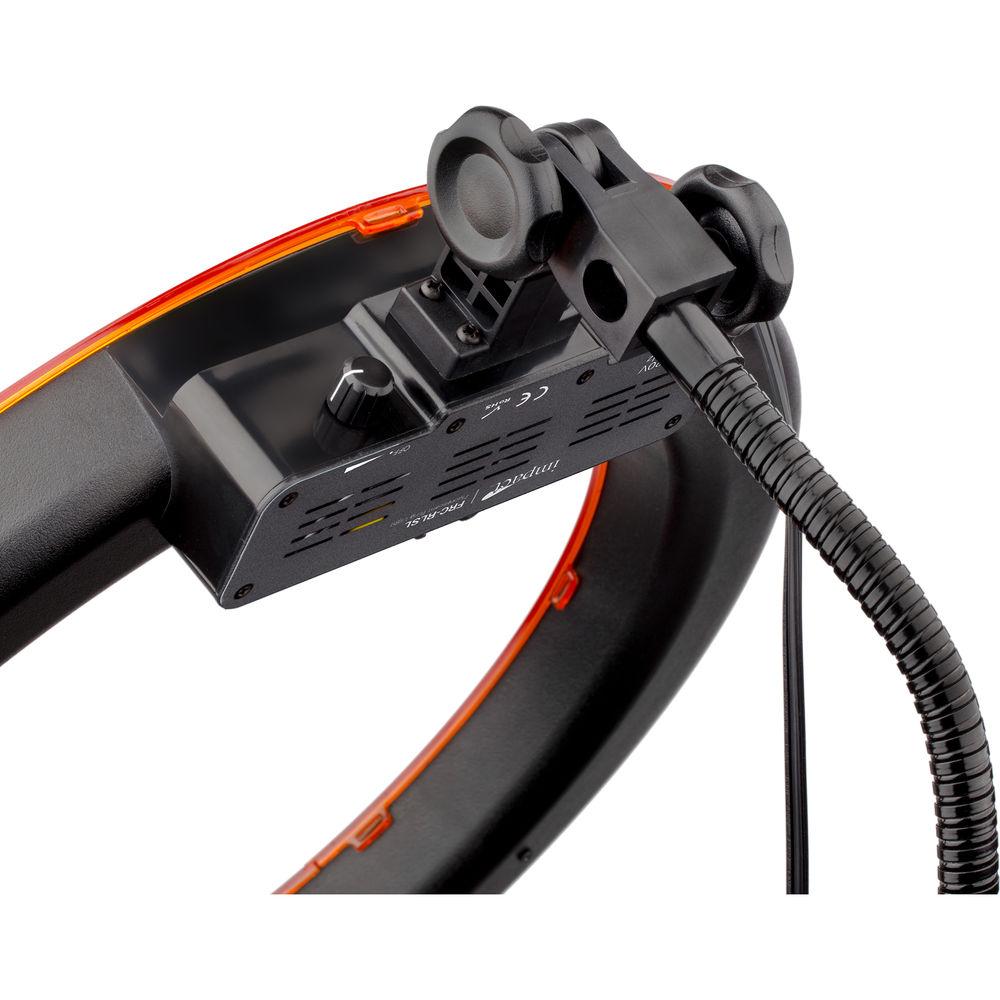

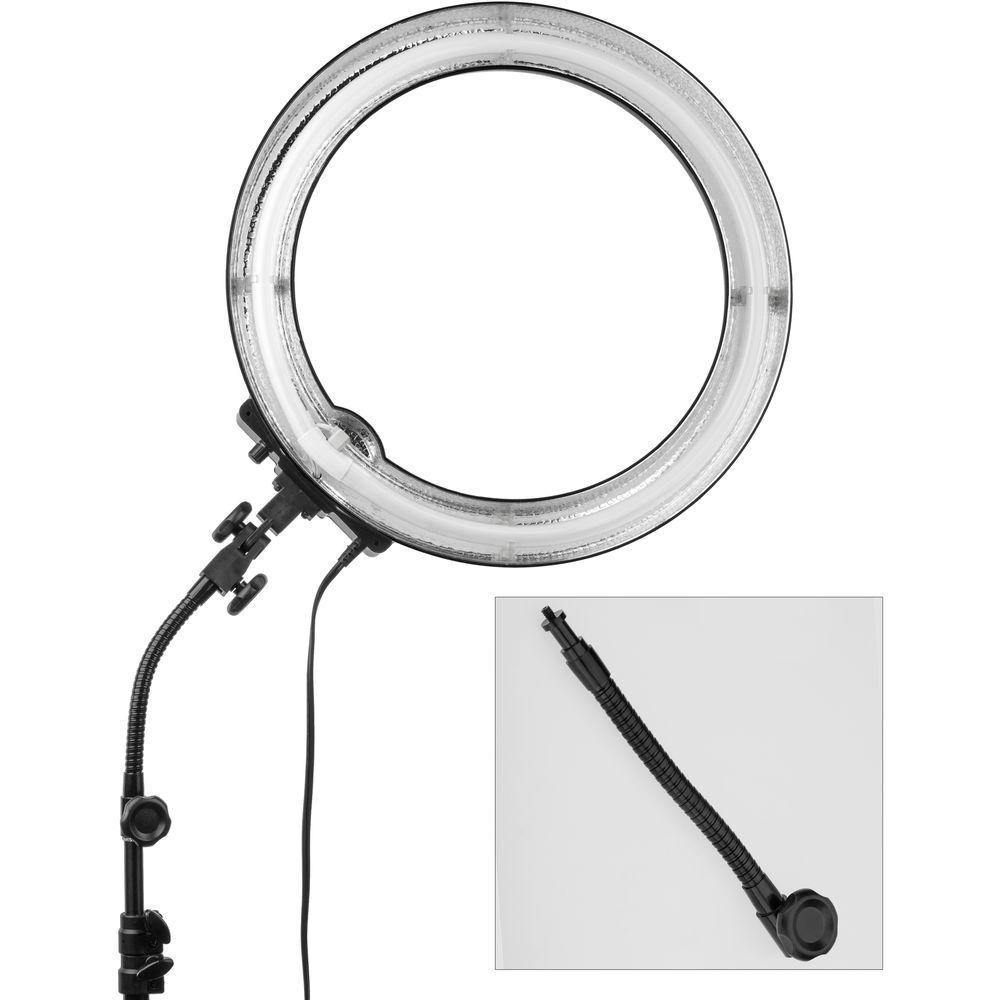

- Flexible Mounting Arm
- The flexible mounting arm attaches the ring light to any standard 5/8" studded light stand. From there, you can bend the ring light into any position you need to light your subject

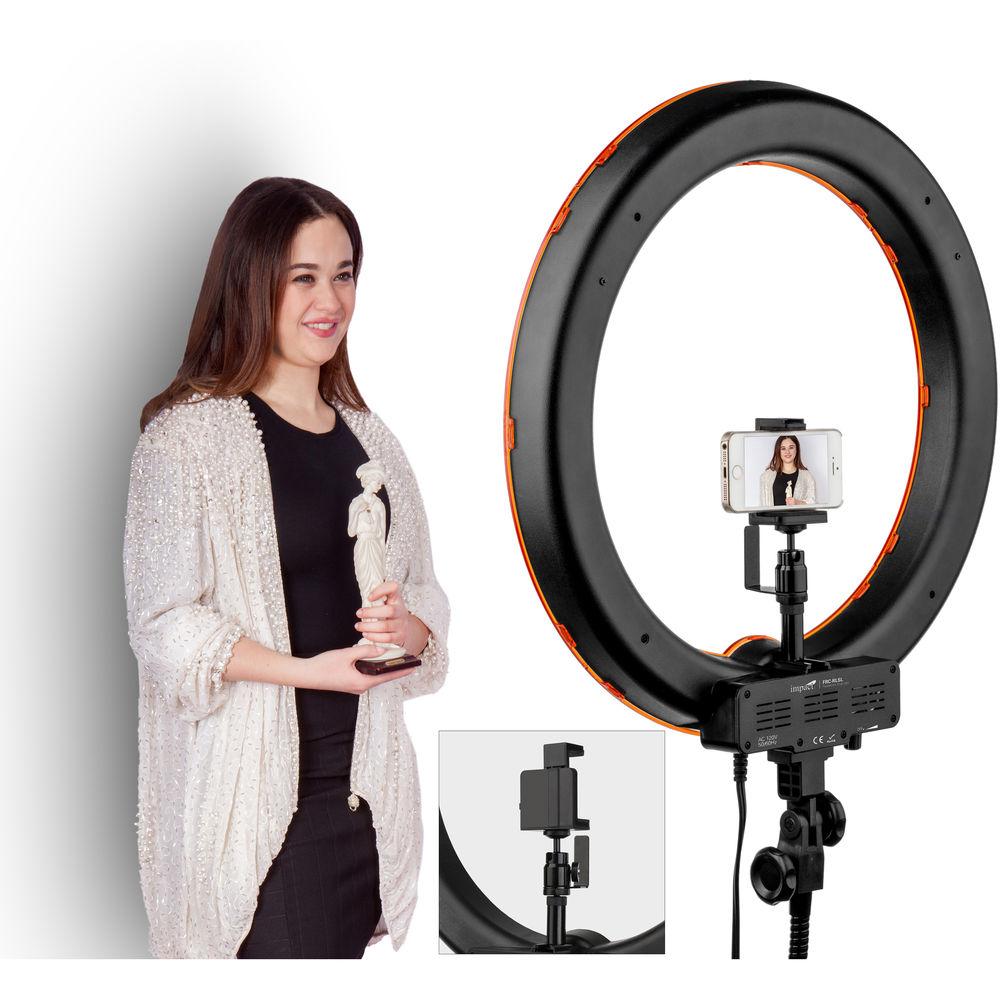

- Smartphone Cradle / Cold Shoe Extension
- Shoot with your smartphone like a pro. The smartphone cradle clamps gently on your smartphone and has a cold shoe extension for other attachments such as a microphone
- Padded Carrying Case
- A padded carrying case keeps everything secure when you're traveling from location to location
UPC: 847628595262 In the Box Impact FRC-RLSL Fluorescent 19" Ring Light with Dimmer Impact Ring Light (19") Replacement Lamp for FRC-RLSL Ring Light awrtezbedxfubqerwwrbydtttqeq 4 x Clip-On Diffusion Panels 4 x Tungsten Conversion Panels Mini Ball Head Mount Cold Shoe Extension / Smartphone Cradle Mirror Attachment FRC-RL19CASE Padded Carrying Case for LED or Fluorescent Ring Lights up to 19" (Black) awrtezbedxfubqerwwrbydtttqeq User Manual Limited 1-Year Warranty User Manual PDF 884.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact FRC-RLSL Fluorescent 19" Ring Light with Dimmer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersImpact FRC-RLSL Specs | Input Voltage | 120 VAC, 50/60 Hz | | Power Consumption | 70 W | | Tungsten Equivalent | 260 W | | Lamps | 18" Diameter fluorescent, 6,000 hr lamp life | | Reflector | Silver lining | | Color Temperature | 5200K (+/-200K) | | CRI | 90 | | Photometrics | Max. illuminance: 931 lux @ 3.3' (1.0 m)
Min. illuminance: 541 lux @ 3.3' (1.0 m) | | Dimming | 30-100% | | Ballast | In bulb | | Mounting | 5/8" (16 mm) Flexible mount
Mini ball head
Cold shoe extension / smartphone cradle | | Dimensions | Outer diameter: 19" (48.3 cm)
Inner diameter: 14.5" (36.8 cm)
Depth: 2.75" (7.0 cm)
Power cord length: 7.6' (2.3 m) | | Weight | 2.7 lb (1.22 kg) | | | | Package Weight | 9.6 lb | | Box Dimensions (LxWxH) | 19.921 x 19.921 x 4.409" |
