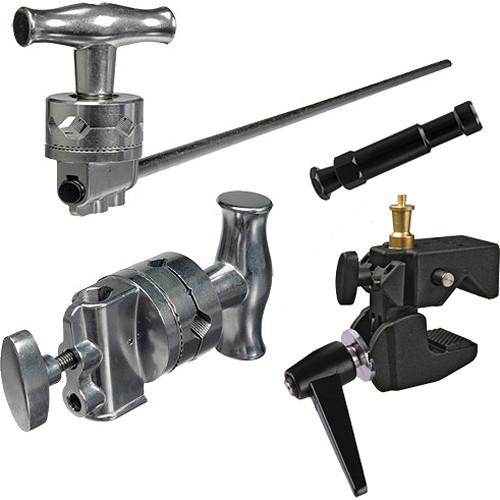

Product description The Impact Grip Kit is a great set of core gripware for single shooters or small production crews. The 40" Grip Arm is a great extension arm for extra lift or reach. It can hold a small light head, a flag, gobo, or reflector. The 2.5" Grip Head is designed to hold scrims, flags, floppies, cutters, etc. or mount on Century stands or butterfly frames. The Impact Super Clamp will securely mount to pipe or other items that are 1.2 - 2 1/8" in diameter. It accepts the included Snap-in Pin which has a 5/8" diameter, making it perfect for standard "baby" receiver lights and accessories. - Impact 5/8" Snap-in Pin for Super Clamps (Black) This is a 4.7" (11.9 cm) black 5/8" Snap-in Pin for Super Clamps from Impact. It has a 5/8" (16 mm) spigot (non-threaded) attachment one end, and the hexagonal Super Clamp type fitting on the other end. It can be used to connect a lighting fixture that has a 5/8" female receptor to a Super Clamp. It is constructed from aluminum, and comes finished in black. UPC: 847628538924
- Impact Grip Head for Lights and Accessories - 2.5" Diameter (Chrome) The Impact Grip Head for Lights and Accessories - 2.5" Diameter (Chrome) mounts lights, light modifiers, scrims, flags, cutters, and other lighting accessories onto C-stands or butterfly frames.
When trying to get the perfect shot, you often have various lighting accessories such as flags, scrims and cutters set up around your subject. A grip head holds each in a precise position, making it a fairly common piece of equipment on most any set. - Wide compatibility with standard grip equipment; fits 5/8" baby-studs or stand top-studs
UPC: 847628011793 - Impact 40" Extension Grip Arm (Silver) The Impact 40" Extension Grip Arm (Silver) is a staple of any film, video or photo production set. An ideal mate to an optional C-Stand, the 40" non-skid bar slips neatly into an optional grip head mounted to the stand allowing you to offset it and cantilever a flag, gobo, light or other accessory in front of it. The 40" bar has a permanently attached 2.5" grip head with a large ergonomic T-handle. The Grip Arm is often used as a short boom. UPC: 847628011809
- Impact Super Clamp with Ratchet Handle The Impact Super Clamp with Ratchet Handle is a versatile grip tool made of lightweight cast alloy. With a load capacity of 33 lb, the clamp can hold a wide variety of items such as cameras, lights, umbrellas, hooks, shelves, plate glass, cross bars, even other Super Clamps.The Super Clamp can be securely mounted on any tube or pipe from 0.5" to 2.1" and is supplied with a wedge insert for clamping onto flat surfaces. The ratchet handle allows you to disengage it and tighten it down from any angle; a very handy feature when you're using the clamp in tight quarters. A built-in socket holds 5/8" accessories such as the supplied SRP-102 Hex Stud with 1/4"-20 male thread. UPC: 847628538870
In the Box - 5/8" Snap-in Pin for Super Clamps (Black) sycxtuyztyzcsqds
- Limited 1-Year Warranty
- Grip Head for Lights and Accessories - 2.5" Diameter (Chrome)
- 40" Extension Grip Arm (Silver)
- Super Clamp with Ratchet Handle sycxtuyztyzcsqds
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Grip Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact 5/8" Snap-in Pin for Super Clamps (Black)
| Mounting | 5/8" / 16 mm Hex Stud (Connector 1)
5/8" / 16 mm Stud (Connector 2) | | Material | Aluminum | | Dimensions | L: 4.7" / L: 11.9 cm | | Weight | 1.8 oz / 50 g | | | | Box Dimensions (LxWxH) | 6.8 x 3.9 x 0.65" | - Impact Grip Head for Lights and Accessories - 2.5" Diameter (Chrome)
| Mounting Size | Up to 5/8" stud | | Diameter | 2.5" (6.35 cm) | | Weight | 1.75 lbs (800 g) | | | | Box Dimensions (LxWxH) | 8.05 x 4.55 x 3.05" | - Impact 40" Extension Grip Arm (Silver)
| Material | Steel and Aluminum | | Compatibility | 3/8" (9 mm) and 5/8" (16 mm) accessories | | Load Capacity | 10 lb (4.5 kg) | | Dimensions | Length: 40" (1 m)
Grip head: 2.5" (6.3 cm) | | Weight | 3.25 lb (1.47 kg) | | | | Box Dimensions (LxWxH) | 43.25 x 6.4 x 2.75" | - Impact Super Clamp with Ratchet Handle
| Clamp Type | Jaw | | Jaw Shape | Round | | Jaw Opening | 0.5 to 2.1 " / 1.3 to 5.3 cm | | Load Capacity | 33 lb / 15 kg | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 10.2 x 5.35 x 2.3" |
