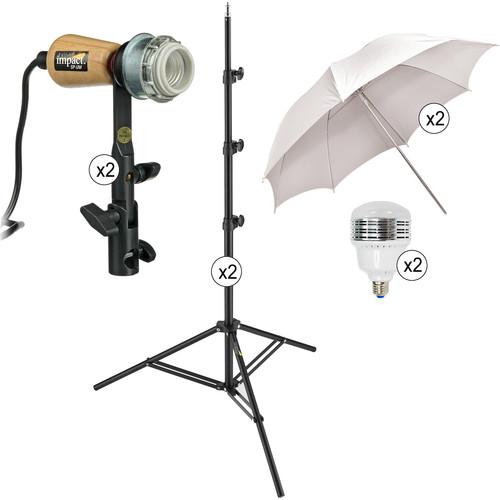

User Manual for Impact LED Studio Kit Click to enlarge the picture
Contents of the user manual for the Impact LED Studio Kit
- Product category: LED Lights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact LED Lights
|
User manual for the Impact LED Studio Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|
Product description Quickly create a beautiful soft color-accurate two-light setup by picking up this Impact LED Studio Kit from . It features two simple porcelain sockets that will accept nearly any Edison base bulb up to 500W and have a stay-cool handle/stand mount that lets them easily fit onto the two included 8' air-cushioned light stands. These sockets are designed to accept umbrellas, such as the two 33" white translucent umbrellas bundled here, as well as optional screw-on reflectors, enabling users to take control over their lighting. To complete the setup, this kit features two 30W LED Studio Lamps that offer a high CRI of 90 for color accurate imaging and a daylight-balanced color temperature of 5500K. These bulbs will create a soft, flattering light and will save energy compared to tungsten offerings. - 2 x Impact Porcelain Socket with Adjustable Umbrella Mount (500W) The Impact Porcelain Socket with Umbrella Mount (500W) is a cost-effective way to utilize a wide variety of E26 (Edison) based lamps for photo or video work. Options include simple household lamps as well as photoflood and quartz halogen bulbs. This highly versatile product has an adjustable metal mount with a 5/8" receiver for light stands and an 8mm umbrella receptacle. The Floodlight Socket tilts and locks in place at the desired angle by grasping the stay-cool wooden handle and releasing the locking knob. Lamps up to 500W won't melt the ceramic base which is impervious to heat. The socket also accepts screw-on reflectors of various sizes.
- High-heat ceramic socket won't melt like plastic sockets
- Supports 500W bulbs maximum
- Wooden control handle stays cool
- Accepts screw-on aluminum reflectors
- 10' 3-prong AC power cord with inline switch
- Built-in adjustable umbrella mount
UPC: 847628013636 - 2 x Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
- Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights.
- Available as accessories.
UPC: 847628012349 - 2 x Savage LED Studio Lamp (30W, 120V) Often used in lighting kits, the 5500K daylight-balanced 30W, 120V Savage LED Studio Lamp is a fan-cooled, tri-band technology LED light source with an E26 Edison base and a high CRI of 90 for accurate color rendition. Like all LED sources of this type it runs cool and consumes very little current. The 30W LED lamp is the equivalent of a 250W tungsten flood lamp. UPC: 731409053341
- 2 x Impact White Translucent Umbrella (33") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 33" White Translucent Umbrella is suggested for use in head-and-shoulders portraits for one or two persons. UPC: 847628013278
In the Box - 2 x Porcelain Socket with Adjustable Umbrella Mount (500W) ffrwrsrx
- Limited 1-Year Warranty
- 2 x Air-Cushioned Light Stand (Black, 8')
- 2 x Savage - LED Studio Lamp (30W, 120V)
- 2 x Umbrella - White Translucent (33")
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact LED Studio Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Impact Porcelain Socket with Adjustable Umbrella Mount (500W)
| | | Bulb Type | 1 x E26/E27 | | Max Bulb Wattage | 500 W | | Focusable | No | | Umbrella Mount | Yes | | | | AC Input Power | 120 VAC, 60 Hz | | Mounting | 5/8" Receiver (via Fixture) | | Cable Length | 10' / 3 m | | Inline Switch | Yes | | Weight | 1 lb / 454 g | | | | Box Dimensions (LxWxH) | 8.05 x 5.85 x 4.15" | - 2 x Impact Air-Cushioned Light Stand (Black, 8')
| Maximum Load | 8 lb (3.6 kg) | | Leg Tip | 20 mm | | Attachment Size | 5/8" Stud with 1/4"-20 in threaded tip | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Maximum Height | 96" (243.8 cm) | | Minimum Height | 34" (86.3 cm) | | Folded Height | 29.6 (75.2 cm) | | Footprint Diameter | 36" (91.4 cm) | | Weight | 2.05 lb (1 kg) | | | | Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.15" | - 2 x Savage LED Studio Lamp (30W, 120V)
| Base Type | E26 | | Color Temperature | 5500K | | Color Accuracy Standard | CRI 90 | | Tungsten-Lamp Equivalent | 250 W | | Dimming | No | | Light Source Life Expectancy | 20,000 Hours | | AC Input Power | 120 VAC, 60 Hz | | Weight | 1.0 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 7.5 x 3.95 x 3.9" | - 2 x Impact White Translucent Umbrella (33")
| Size | 33.0" / 83.8 cm | | Interior | White (Translucent) | | Shaft Diameter | 8 mm | | Folded Size | L: 23.0" / L: 58.4 cm | | | | Box Dimensions (LxWxH) | 21.55 x 3.7 x 1.6" |
