User Manual for Impact Lowboy Steel Stand with Wheels and Combo Head Click to enlarge the picture
Contents of the user manual for the Impact Lowboy Steel Stand with Wheels
- Product category: Light Stands Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Light Stands
 |
User manual for the Impact Lowboy Steel Stand with Wheels contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

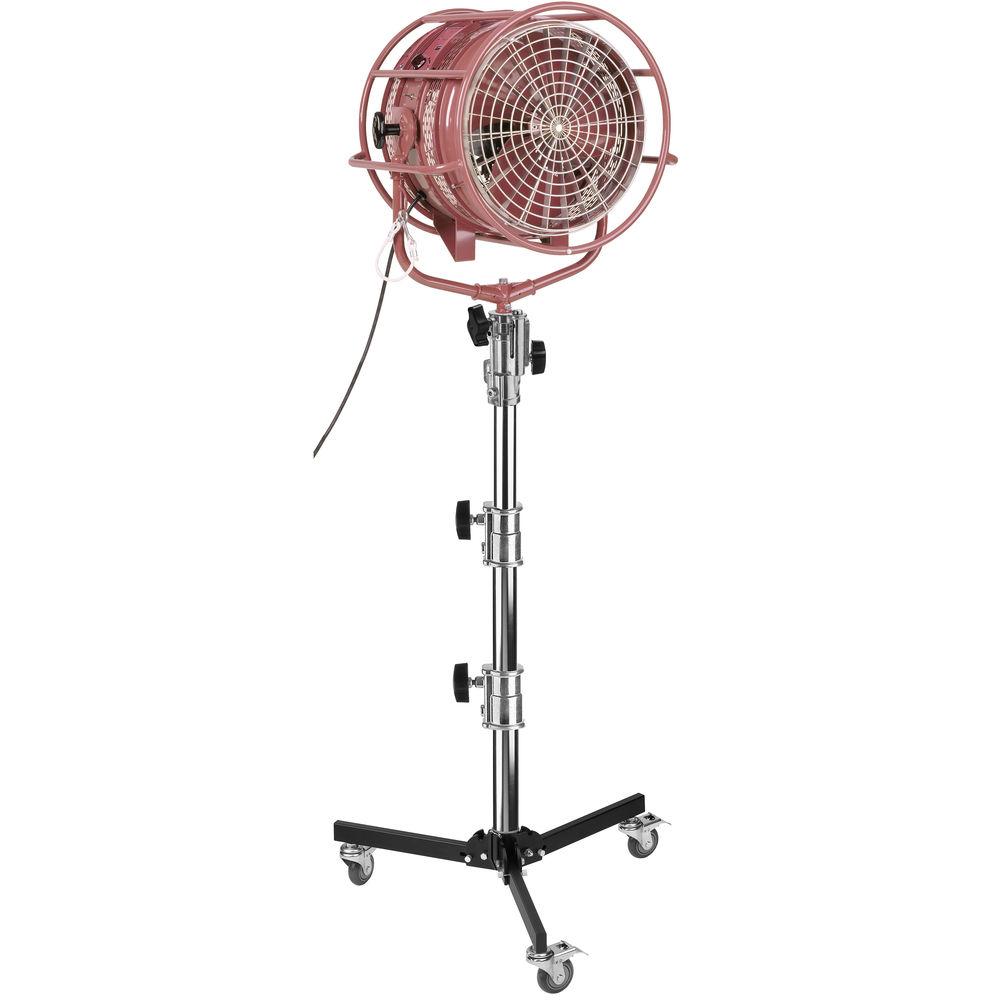

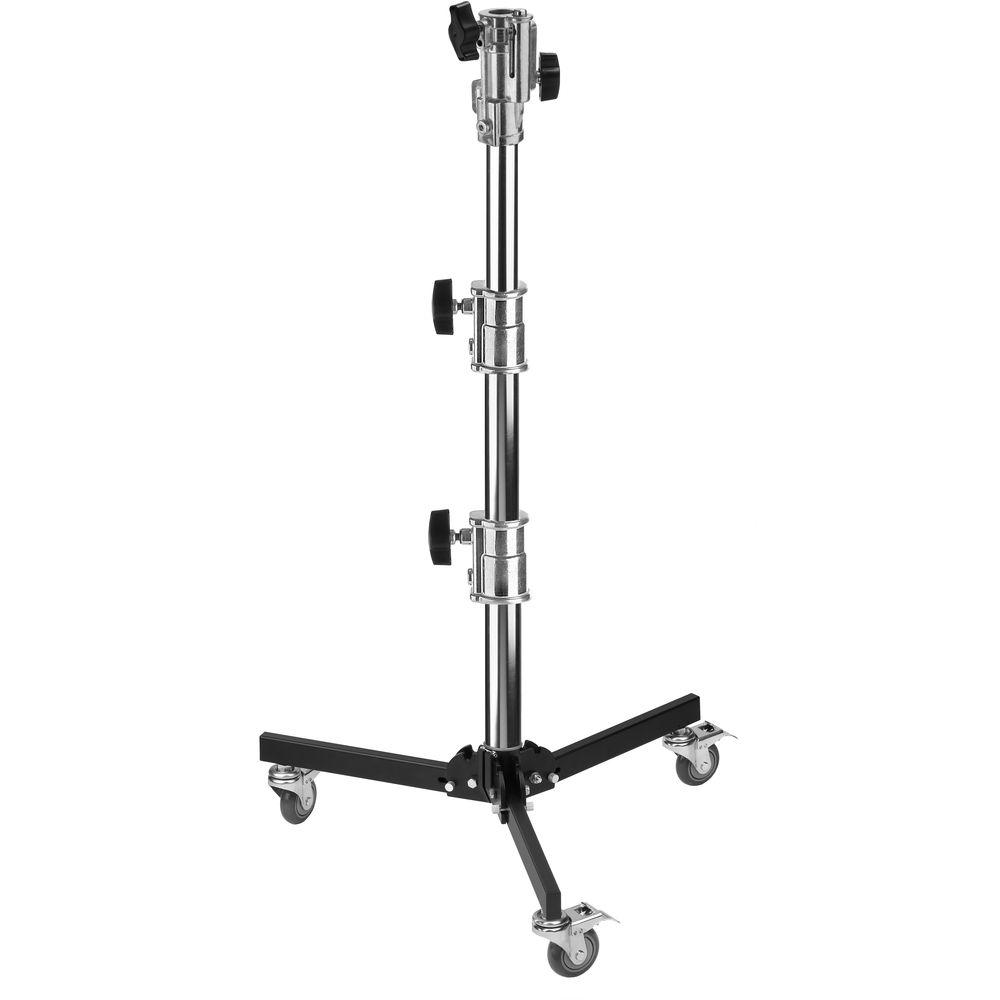

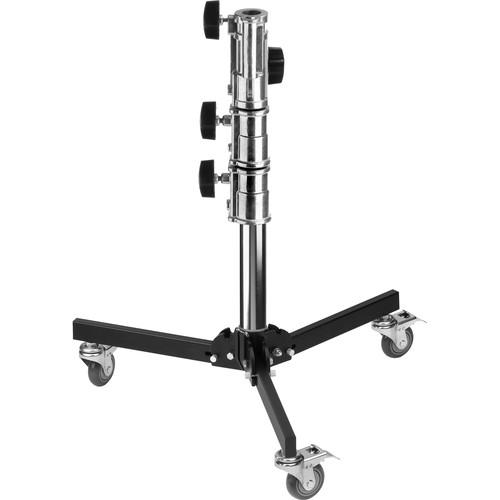

Product description The 4' Lowboy Steel Stand with Wheels and Combo Head from Impact is a heavy-duty, chrome-plated steel support that can handle gear weighing up to 55 lb. The stand rises to a maximum height of 48.5", has a minimum working height of 31.5", and folds down to 28". It features a low base and 30" footprint for extra stability, braking wheels, and two risers. With the legs folded up against the column for storage and transport, it measures 28" in length. The Impact Lowboy has a 1-1/8" Junior receiver and a retractable 5/8" pin that can be swung 90°, allowing gear to be mounted on it vertically or horizontally. - Heavy-Duty Support
- Heavy-duty steel and aluminum construction allows for support of gear weighing up to 55 lb.
- Adjustable Height
- The steel double risers have oversize, ergonomic handles for easy locking down.

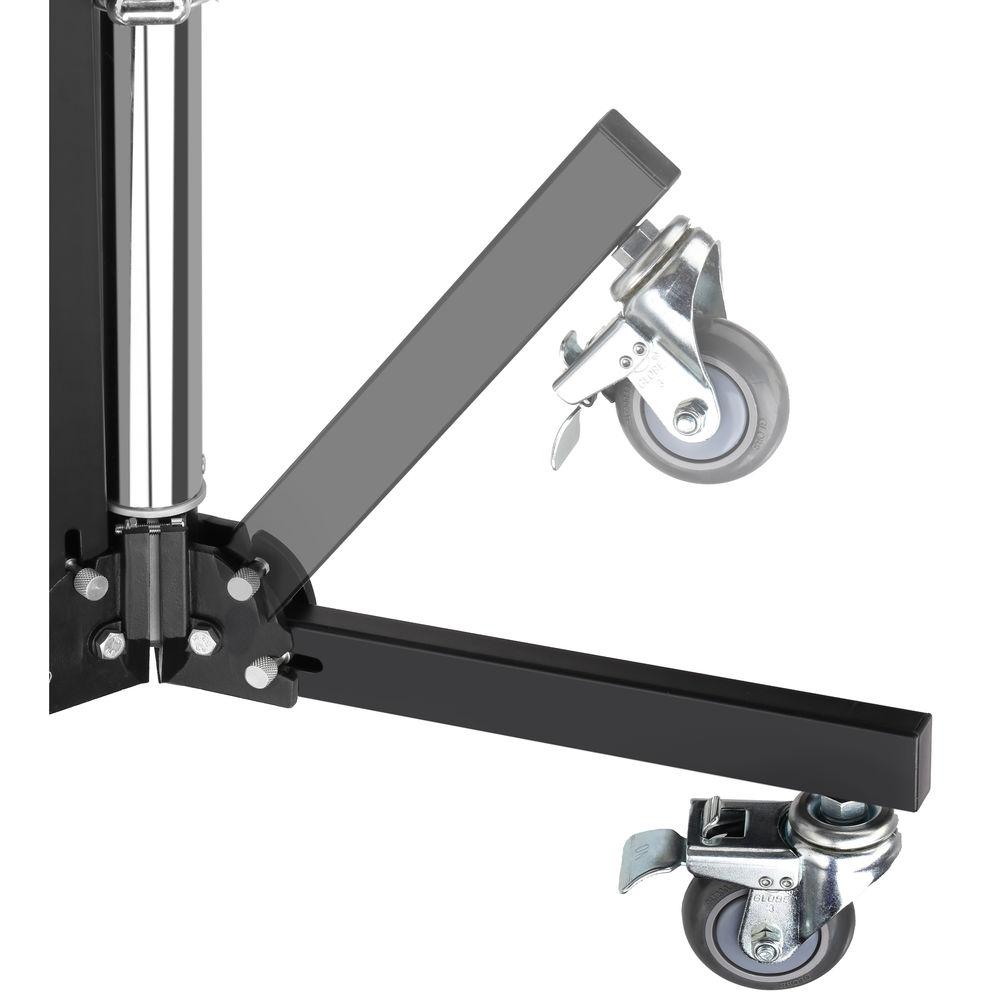

- Locking Wheels
- The stand's wheels make it easy to move around without lowering your gear. Once in place, they lock down securely.

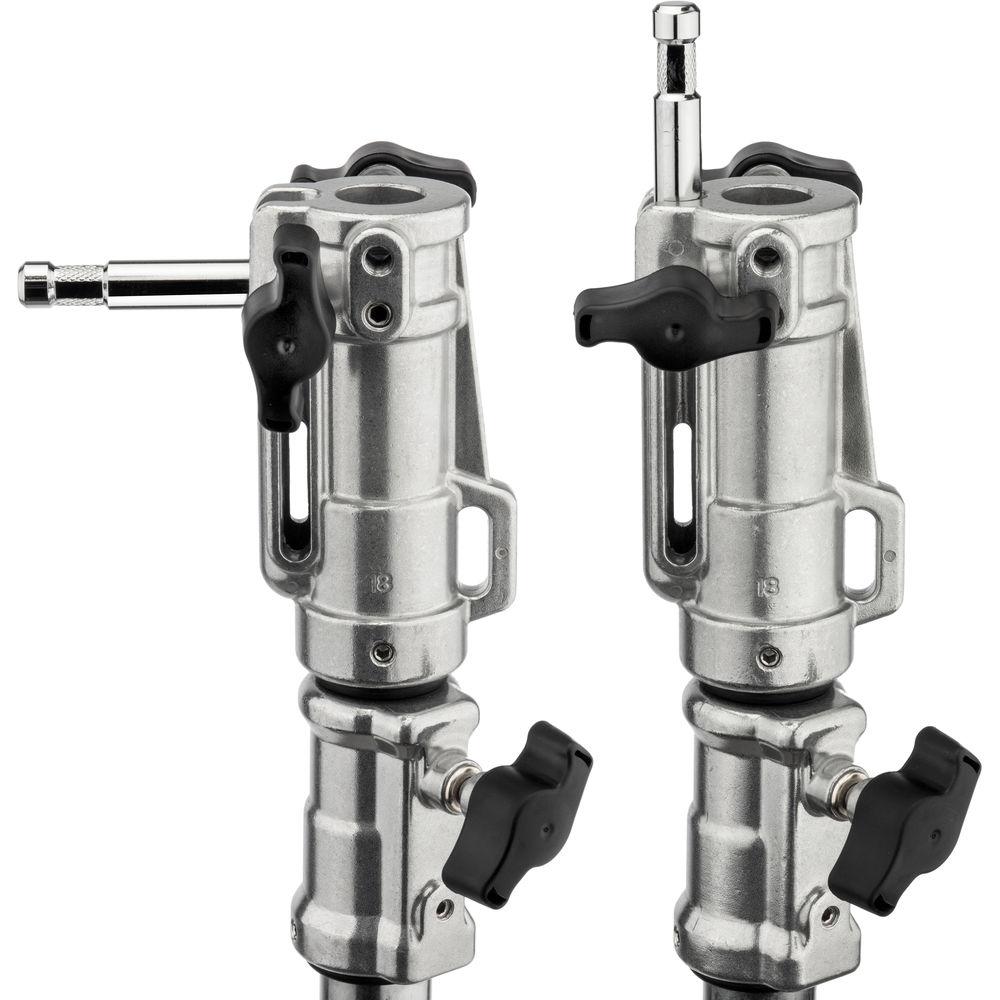

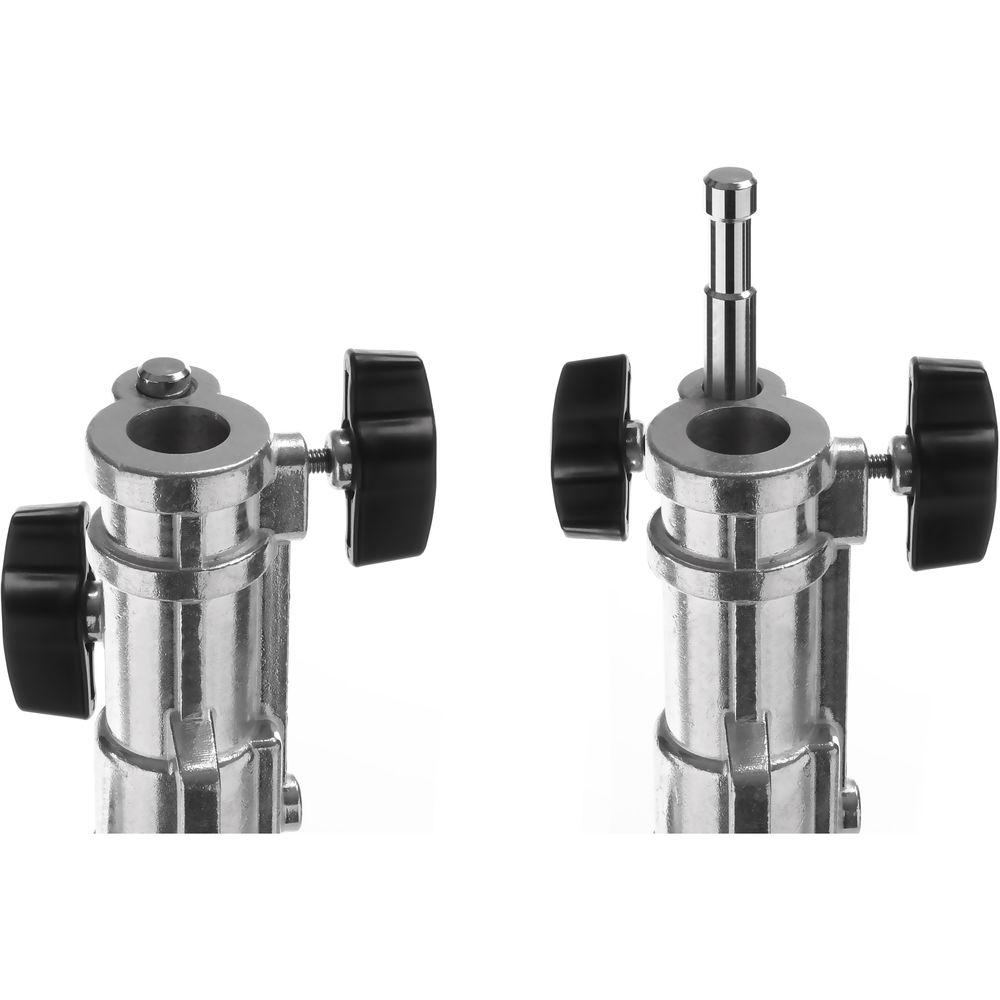

- Combo Head
- The Impact Lowboy has a 1-1/8" Junior receiver and a retractable 5/8" pin that can be swung 90°, allowing gear to be mounted on it vertically or horizontally.

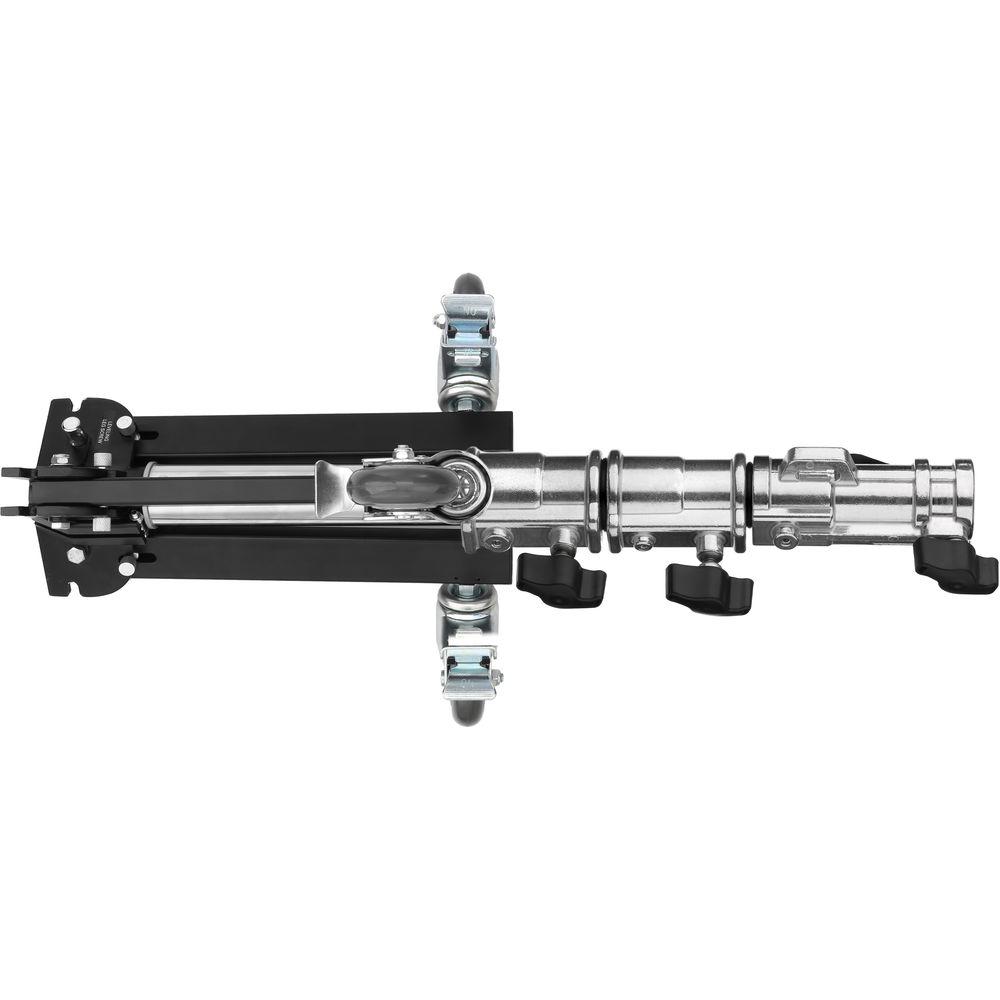

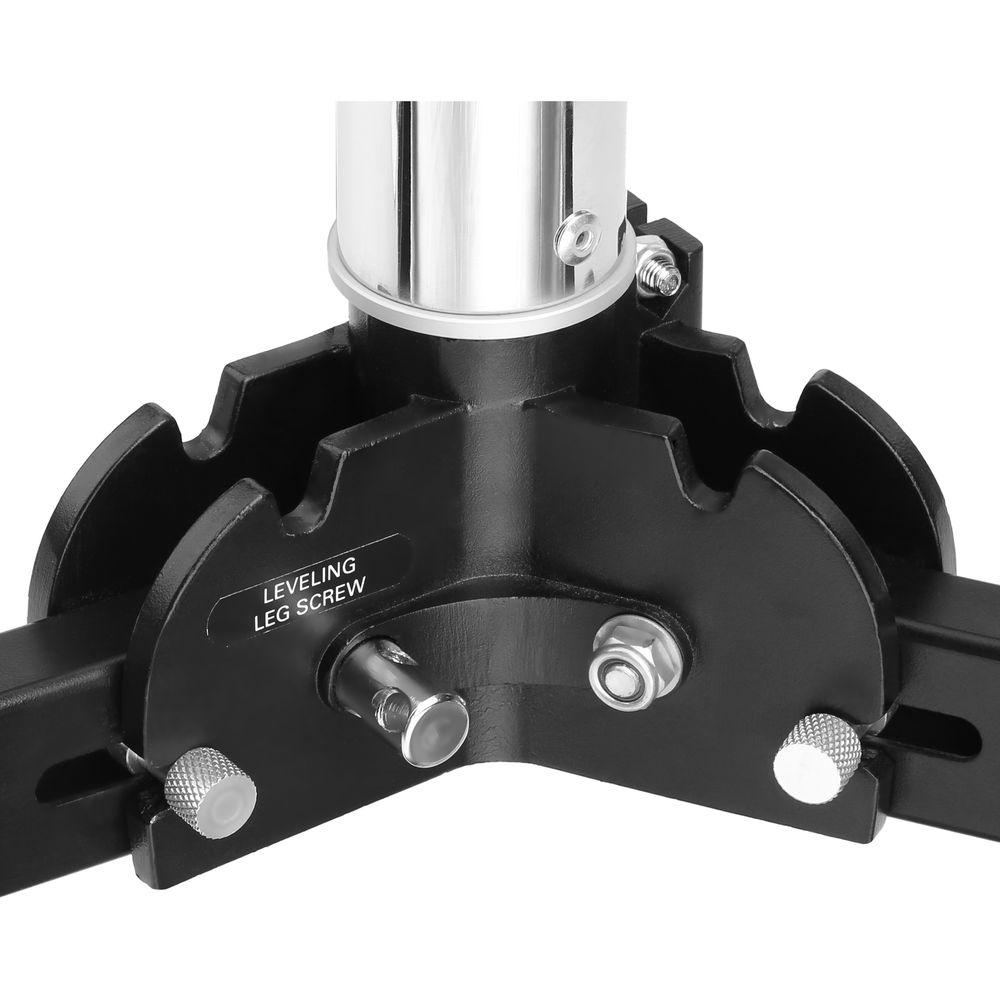

- Folding Base with Spring-Loaded Leg Locks
- The steel base employs a folding design that's simple to set up. Knurled spring-loaded locks secure the legs into the open or folded position.
- Safety Cable Mount
- The stand has a safety cable slot fixed to the combo head that ensures the security of your gear and the safety of those working around it.
UPC: 847628008809 In the Box Impact Lowboy Steel Stand with Wheels and Combo Head (4') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Lowboy Steel Stand with Wheels and Combo Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersImpact LSP-LBCH4 Specs | Load Capacity | 55 lb / 24.9 kg | | Mounting Options | 5/8" Stud
1-1/8" Receiver | | Number of Sections | 3 | | Column Diameter | 1.77" / 4.5 cm
1.57" / 4.0 cm
1.38" / 3.5 cm | | Maximum Working Height | 48.5" / 123.2 cm | | Minimum Working Height | 31.5" / 801 cm | | Collapsed Height | 28" / 71.1 cm | | Footprint Diameter | 30" / 76.20 cm | | Leg Shape | Rectangular | | Accepts Wheels | Included | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Chrome | | Material | Aluminum, Steel | | Weight | 18.5 lb / 8.39 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 17.2 lb | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
