User Manual for Impact Multiboom Light Stand and Reflector Holder - 13' Click to enlarge the picture
Contents of the user manual for the Impact Multiboom Light Stand and Reflector
- Product category: Uncategorized Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Uncategorized
 |
User manual for the Impact Multiboom Light Stand and Reflector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

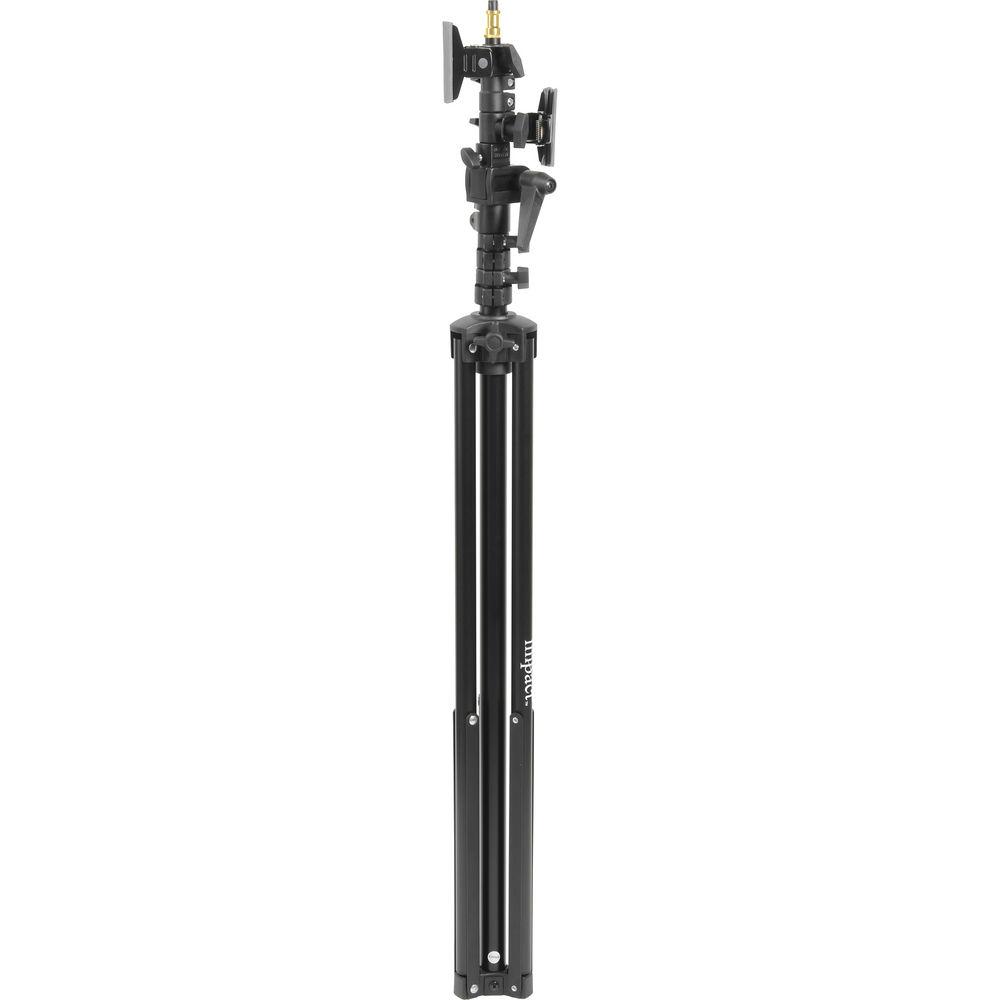

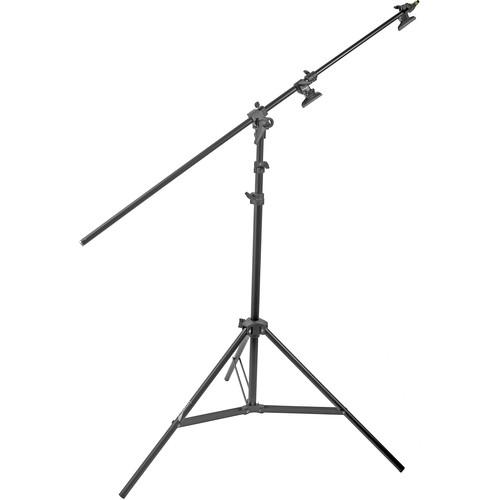

Product description This is an Impact Convertible Boom Arm/Light Stand. As a light stand, it can support a small or medium light head to a height of 13' (4 m). Raise the second section completely, click, and it is a boom stand.

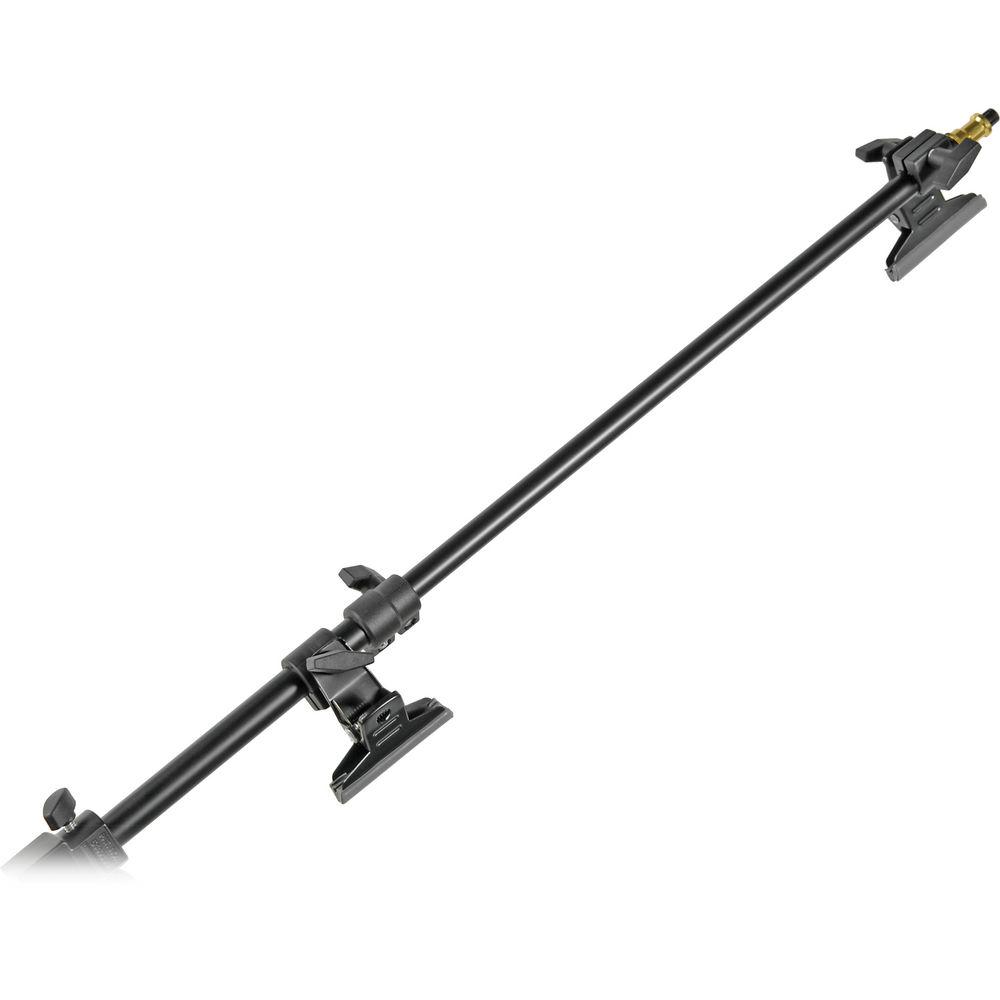

As a boom, it can hold a small light head to an extension of almost 3' from the center of the stand.

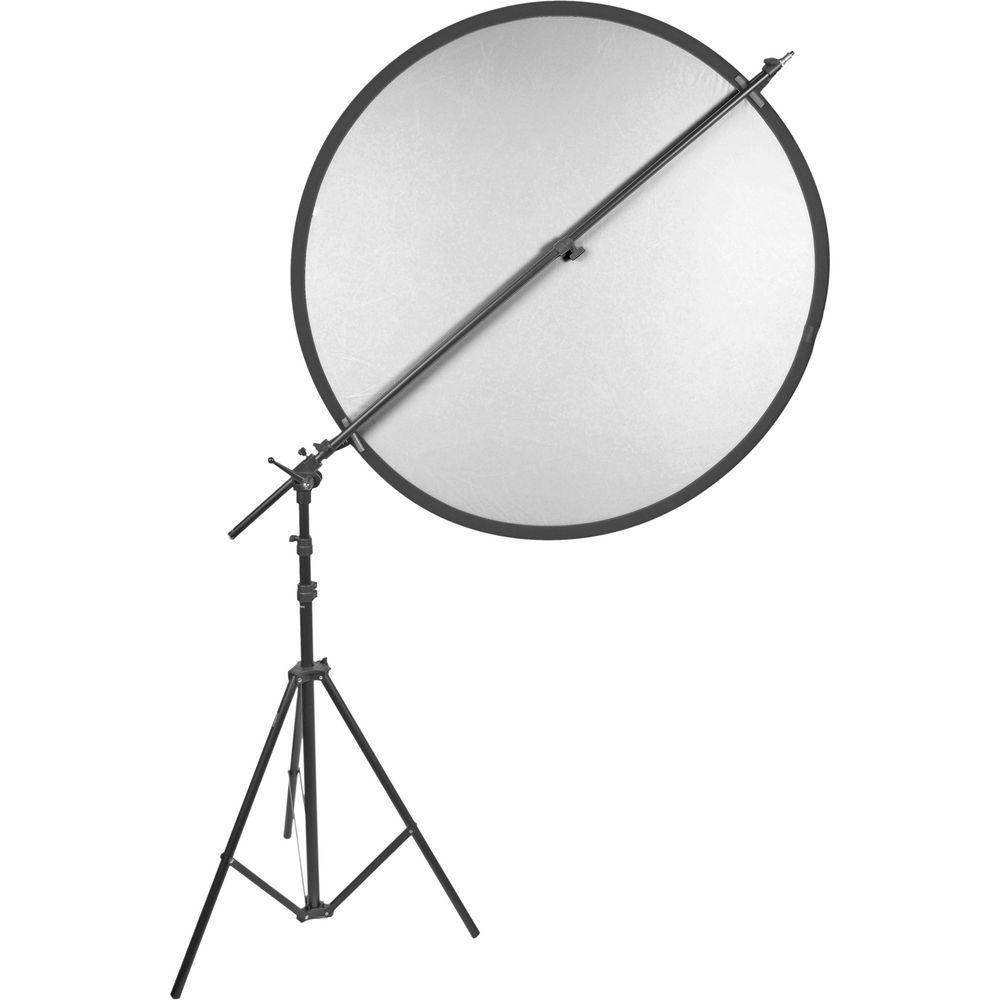

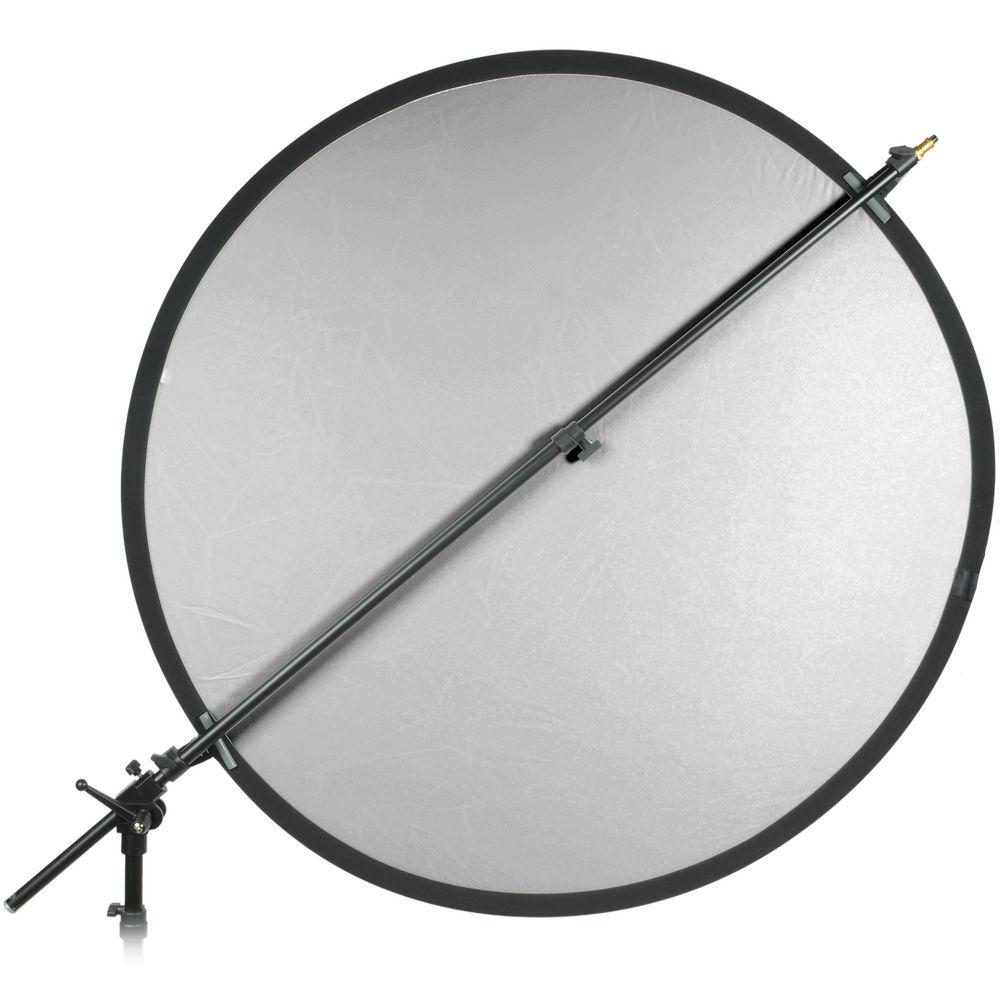

It is a reflector holder by means of its two clips, which can support an Impact, Flexfill, or Photoflex light disc as large as 60".

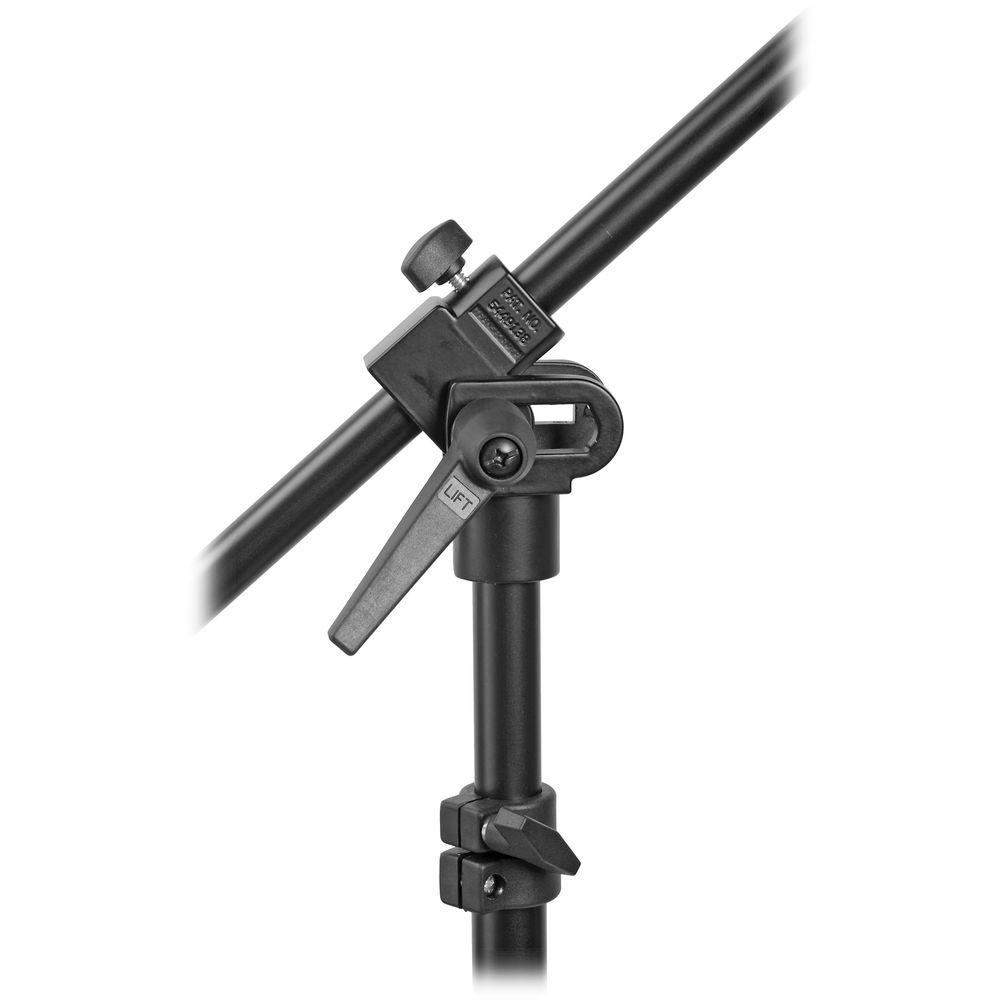

A hole at the end of the arm allows an optional counterweight to be hung, for greater stability. - Instructions for Using This Stand as a Boom
- 1. Loosen the large long handle in the middle of the stand.
2. Loosen the top-most section of the stand. Pull that section all the way up.
3. Pull! - swing it horizontally for the boom feature, and lock it for the desired setup. In the Box Impact Multiboom Light Stand and Reflector Holder - 13' (4m) 2 x Integral Reflector Clips Integral Locking Pivot Lever Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Multiboom Light Stand and Reflector Holder - 13' in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | Minimum Height | 40" (102 cm) | | Maximum Height | 13' (4 m) as light stand
9'(2.7 m) as boom stand, with boom @ 90 degree angle
10.5'(3.2 m) as boom stand, with boom @ 135 degree angle | | Closed Length | 40" (102 cm) | | Footprint Diameter | 36" (91 cm) | | Leg Tip | 20mm | | Attachment Size | 5/8" stud with 1/4"-20 threaded top | | Accepts Wheels | Yes | | Air Cushioned | No | | Maximum Load | 5 lbs (2.3 kg) as light stand
3 lbs (1.4 kg) as boom stand | | Weight | 4.6 lbs (2.1 kg) |
