Product description

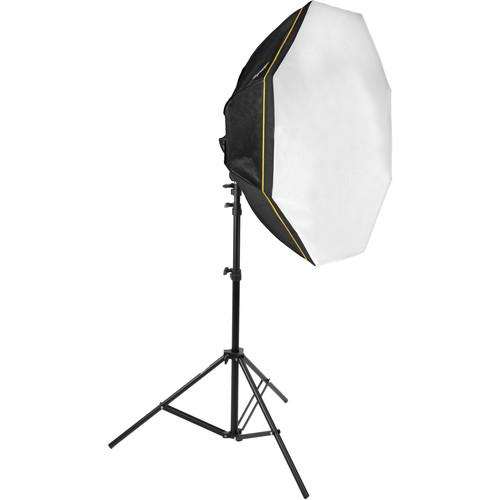

• Impact Octacool-6 Fluorescent Light Kit with Octabox (6 Lamps)
  • Impact Octacool Demo
  The Impact Octacool-6 Fluorescent Light Kit with Octabox (6 Lamps) is a great choice for the photographer or videographer seeking a broad, flattering light source with unique fall-off characteristics for portraiture, fashion, or events. Octagonal-shaped light sources have long had a reputation as the preferred portrait-shooter's light source. The shape offers an especially large surface area which produces wrap-around light, which envelopes the subject while creating natural-looking catchlights in the eyes. The kit is comprised of a separate 6-lamp Octacool light head and removable Octabox. Each of the daylight-balanced 32W lamps outputs 1400 lumens of light for a total of 8400 lumens measured at 3.3 feet. Three switches on the rear of the fixture control 2 lamps each allowing you to vary the output in 2800 lumen increments. The head's standard 5/8" receiver mounts to a huge variety of light stands and gripware with 5/8" studs.
  The included Octabox has a removable inner baffle and front face allowing even greater flexibility from hard to ultra-soft light. The light head also comes with a removable aluminum reflector for a bright, contrasty lighting option.
  • Includes a 29.5˝ Octabox that provides a soft, uniform, diffused light
  • Noiseless operation allows clear audio for video productions
  • Cool output allows heat-sensitive subjects to be safely photographed up close
  • 32W screw-in fluorescent lamps with a life expectancy of 6000-8000 hours
  UPC: 847628012202
• Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')
  • Impact Octacool Demo
  This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628012004

• Octacool-6 Fluorescent Light Kit with Octabox (6 Lamps) dwqcvsbcwbywte
• Octacool 6 Lamp Fixture
• Removable Aluminum Reflector
• 6 x Edison Base 32W Fluorescent Lamps
• 29.5" (75 cm) Octabox
• Internal Diffusion Baffle
• Octabox Diffuser
• 120 VAC Power Cord
• Limited 1-Year Warranty

• Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Impact Octacool-6 Fluorescent Light Kit with Octabox (6 Lamps)

  Input Voltage	110-120 VAC; 60 Hz; 3.5 A draw
  Lamps	27-32W screw-in (E-26) fluorescent
  Output	8400 lumens at 3.3' / 1 m
  Ballast	In lamps
  Mounting	5/8˝ standard stud
  Dimensions	Light Head: 9" / 29 cm diameter Octabox: 29.5" / 75 cm diameter
  Weight	Kit: 10.1 lb / 4.6 kg

  Box Dimensions (LxWxH)	18.5 x 18.0 x 9.8"

• Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

  Maximum Load	22 lb (10 kg)
  Maximum Height	114" (290 cm)
  Minimum Height	48" (123 cm)
  Closed Length	42" (106.7 cm)
  Footprint Diameter	52" (132 cm)
  Leg Tip	0.98" (25 mm)
  Attachment Size	Removable 5/8" (16 mm) spigot with 1/4"-20 and 3/8"-16 threaded ends
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	4.4 lb (2.0 kg)

  Box Dimensions (LxWxH)	42.8 x 5.5 x 5.2"
