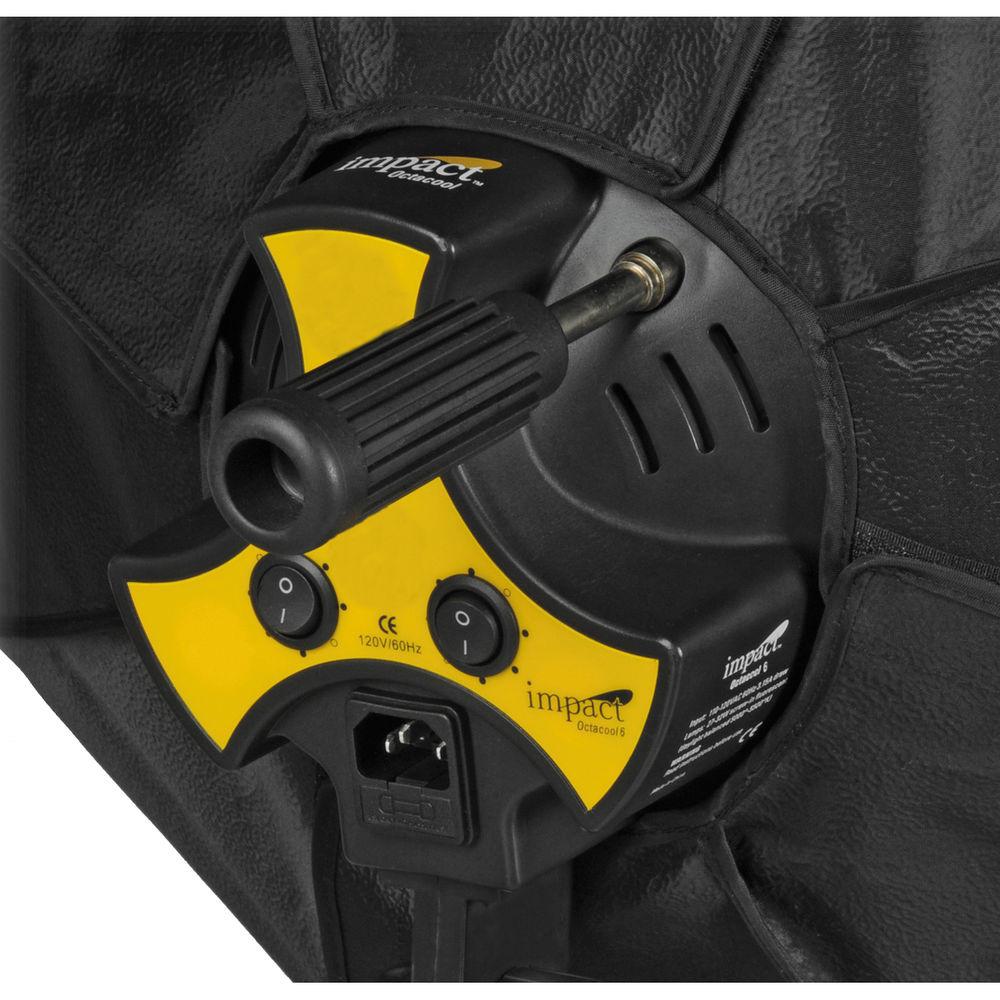

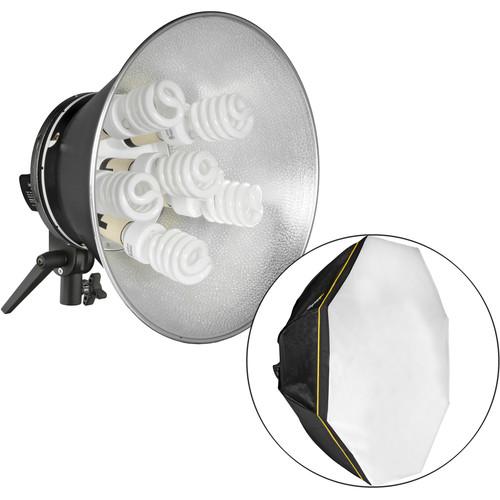

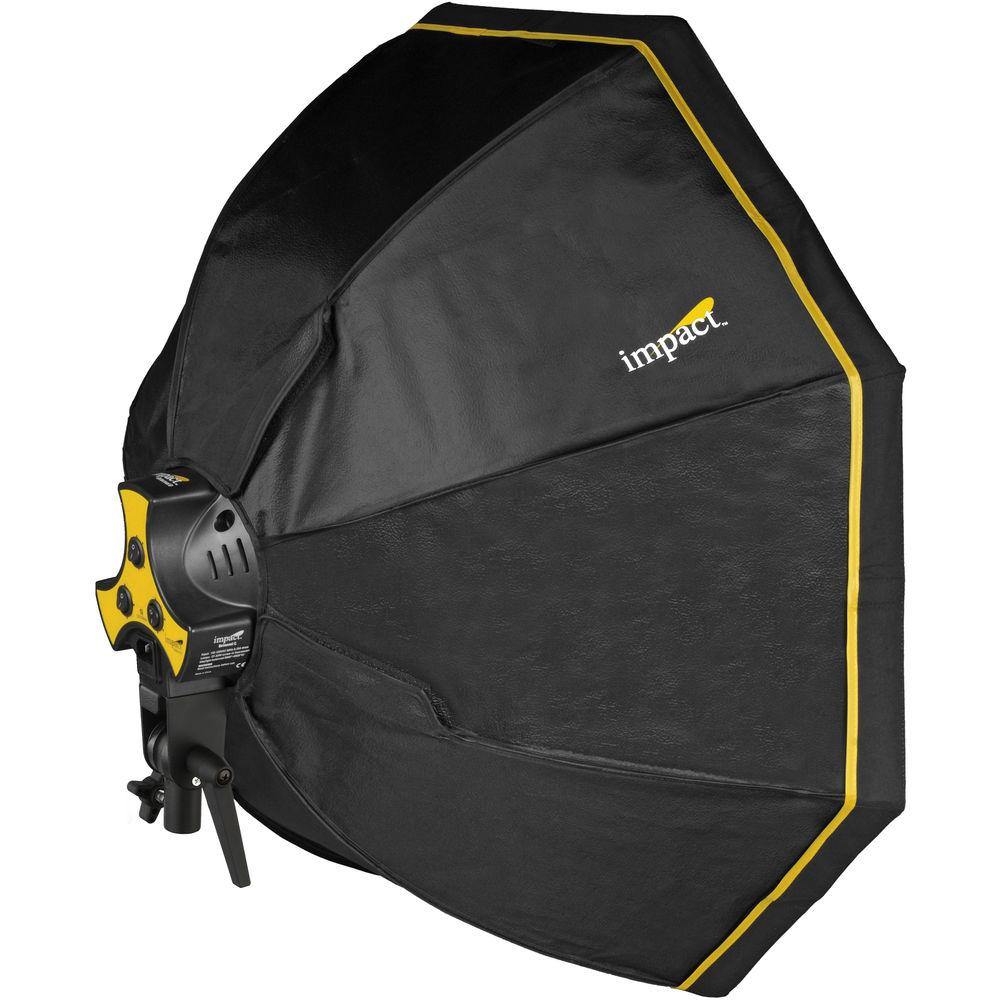

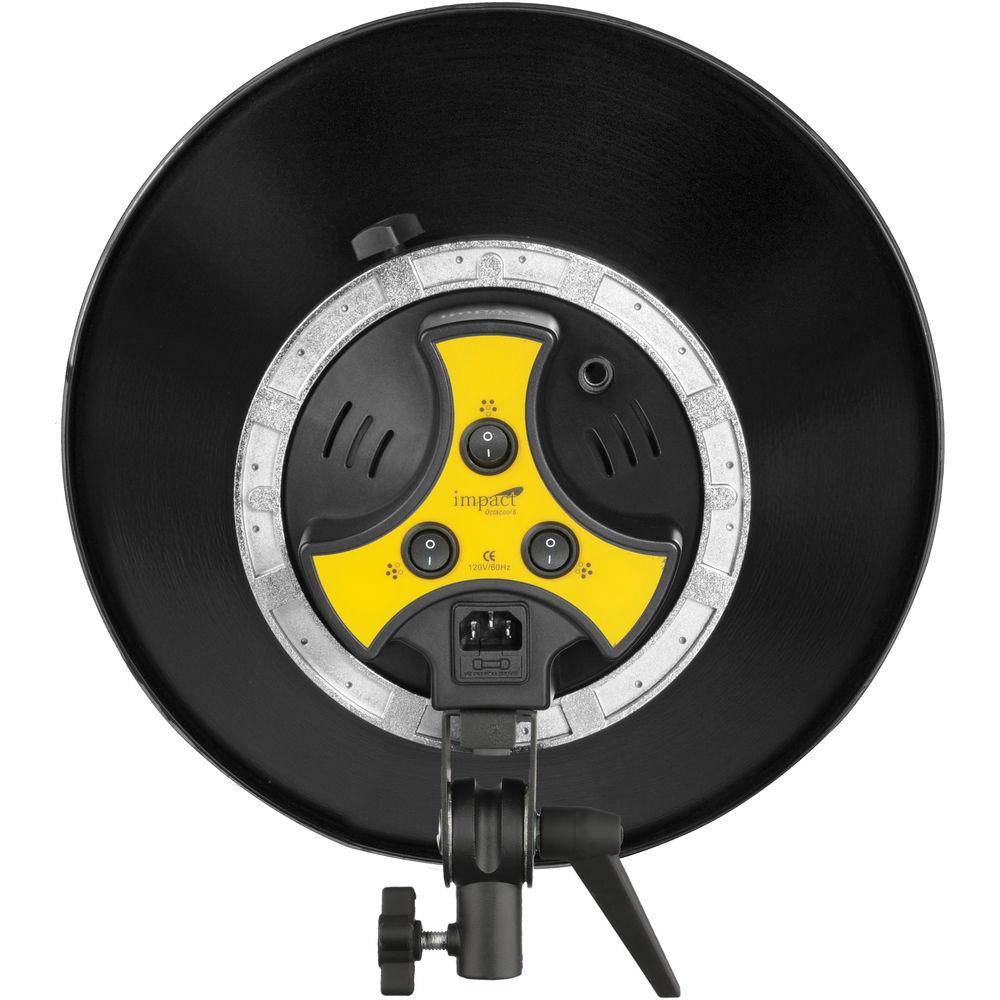

Product description The Impact Octacool-6 Fluorescent Light Kit with Octabox (6 Lamps) is a great choice for the photographer or videographer seeking a broad, flattering light source with unique fall-off characteristics for portraiture, fashion, or events. Octagonal-shaped light sources have long had a reputation as the preferred portrait-shooter's light source. The shape offers an especially large surface area which produces wrap-around light, which envelopes the subject while creating natural-looking catchlights in the eyes. The kit is comprised of a separate 6-lamp Octacool light head and removable Octabox. Each of the daylight-balanced 32W lamps outputs 1400 lumens of light for a total of 8400 lumens measured at 3.3 feet. Three switches on the rear of the fixture control 2 lamps each allowing you to vary the output in 2800 lumen increments. The head's standard 5/8" receiver mounts to a huge variety of light stands and gripware with 5/8" studs.

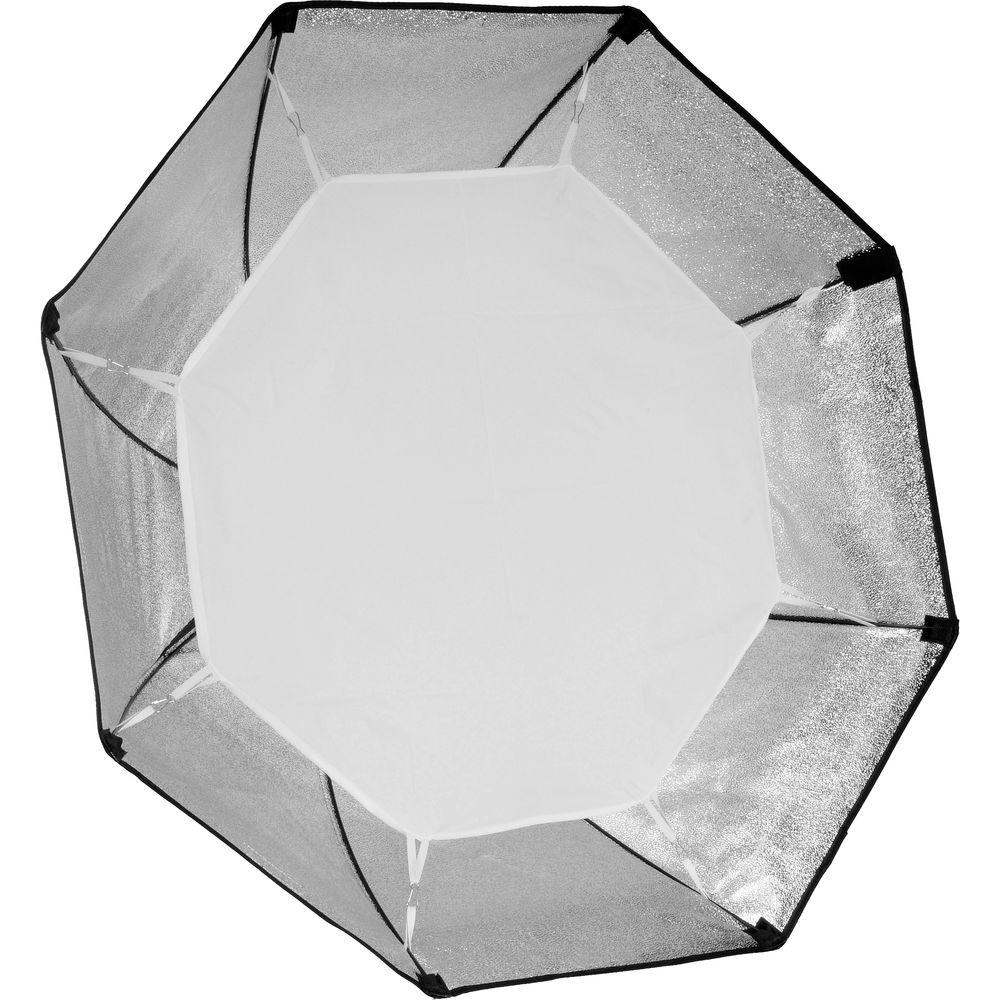

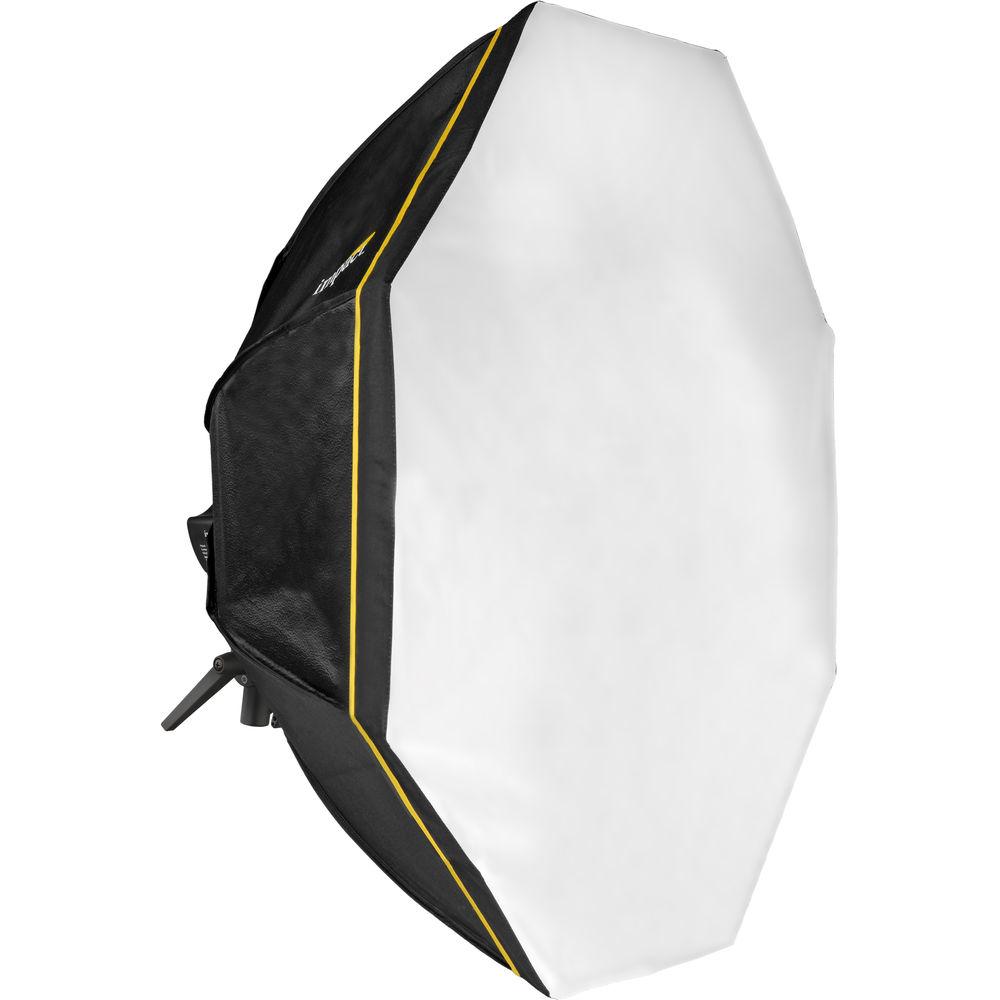

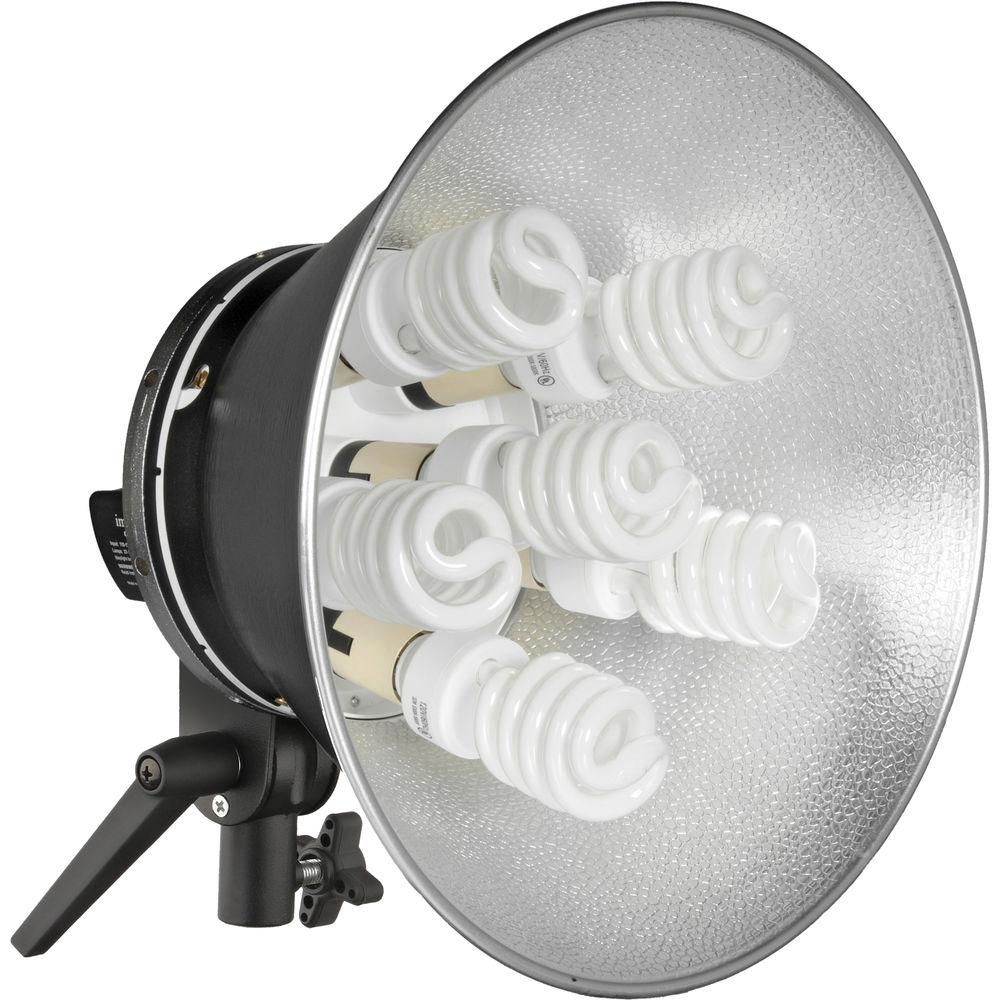

The included Octabox has a removable inner baffle and front face allowing even greater flexibility from hard to ultra-soft light. The light head also comes with a removable aluminum reflector for a bright, contrasty lighting option. - Includes a 29.5˝ Octabox that provides a soft, uniform, diffused light
- Noiseless operation allows clear audio for video productions
- Cool output allows heat-sensitive subjects to be safely photographed up close

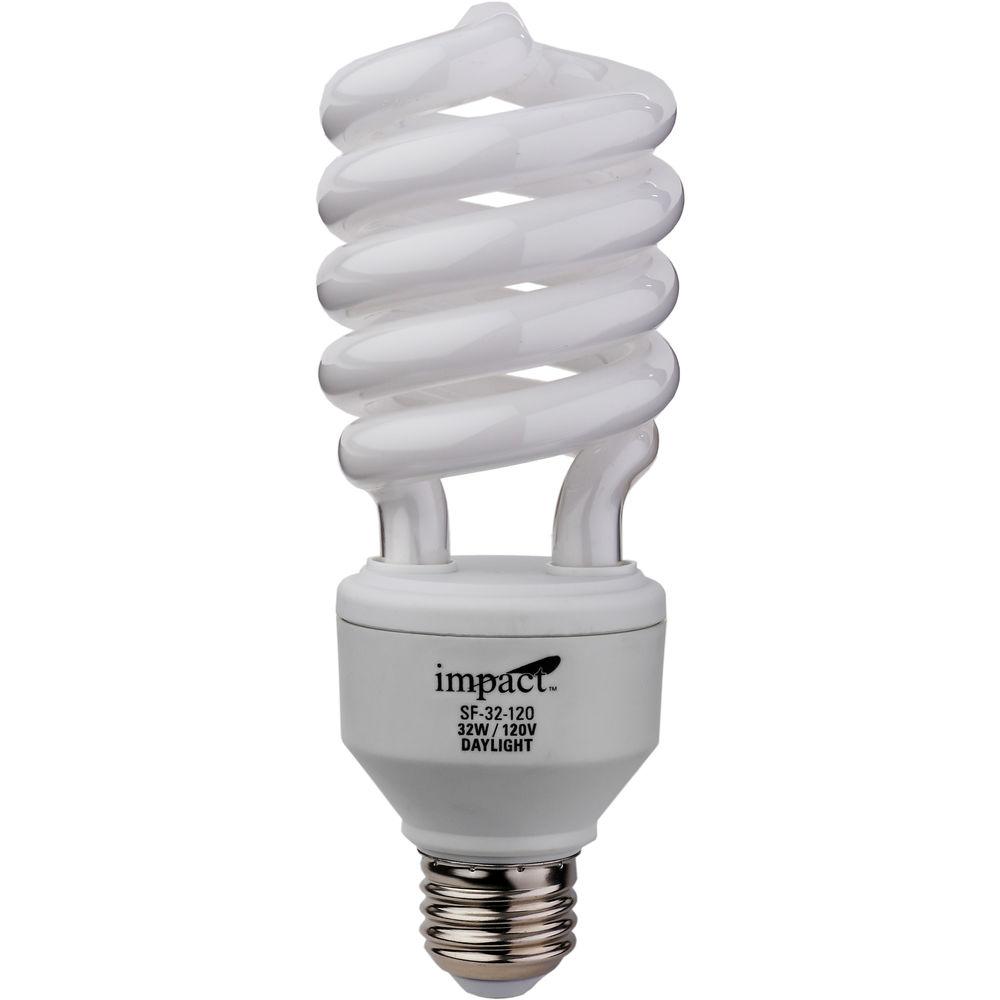

- 32W screw-in fluorescent lamps with a life expectancy of 6000-8000 hours
UPC: 847628012202 In the Box Impact Octacool-6 Fluorescent Light Kit with Octabox (6 Lamps) Octacool 6 Lamp Fixture Removable Aluminum Reflector 6 x Edison Base 32W Fluorescent Lamps 29.5" (75 cm) Octabox Internal Diffusion Baffle Octabox Diffuser 120 VAC Power Cord Limited 1-Year Warranty User Manual PDF 2mbuwqxzyrwtcxccwbawwfrwtzbvb Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Octacool-6 Fluorescent Light Kit with Octabox in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersImpact Octacool-6 Specs | Input Voltage | 110-120 VAC; 60 Hz; 3.5 A draw | | Lamps | 27-32W screw-in (E-26) fluorescent | | Output | 8400 lumens at 3.3' / 1 m | | Ballast | In lamps | | Mounting | 5/8˝ standard stud | | Dimensions | Light Head: 9" / 29 cm diameter
Octabox: 29.5" / 75 cm diameter | | Weight | Kit: 10.1 lb / 4.6 kg | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 18.5 x 18.0 x 9.8" |
