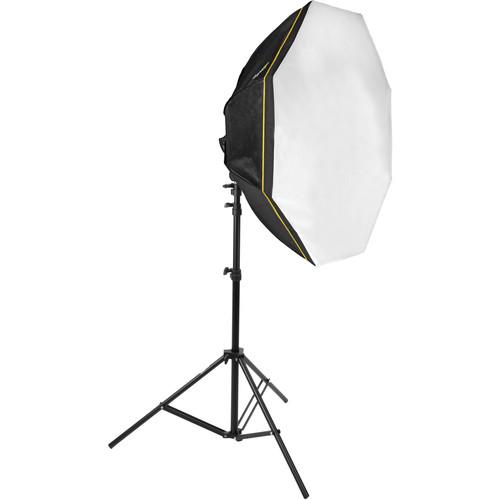

User Manual for Impact Octacool-9 Fluorescent 1-Light Kit with Octabox Click to enlarge the picture
Contents of the user manual for the Impact Octacool-9 Fluorescent 1-Light Kit with
- Product category: Fluorescent Lights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Fluorescent Lights
|
User manual for the Impact Octacool-9 Fluorescent 1-Light Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|
Product description The Impact Octacool-9 Fluorescent 1-Light Kit with Octabox (9 Lamps) is a great choice for the photographer or videographer seeking a broad, flattering light source with unique fall-off characteristics for portraiture, fashion, or events.Octagonal-shaped light sources have long had a reputation as the preferred portrait-shooter's light source. The shape offers an especially large surface area which produces wrap-around light, which envelopes the subject while creating natural-looking catchlights in the eyes. The kit is comprised of a separate 9-lamp Octacool light head and removable Octabox, and a light stand. Each of the provided daylight-balanced 27-32W (depending on supply) lamps outputs 1400 lumens of light for a total of 12,600 lumens measured at 3.3 feet. Five switches on the rear of the fixture allow individual control of lamps allowing 1-9 of them to be switched on or off, varying output in 1400 lumen increments. The head's standard 5/8" receiver mounts to a huge variety of light stands and gripware with 5/8" studs. A sturdy 9.5' air-cushioned light stand rounds out the kit. The included Octabox has a removable inner baffle and front face allowing even greater flexibility from hard to ultra-soft light. The light head also comes with a removable aluminum reflector for a bright, contrasty lighting option. Note: The Octacool is not recommended for hot lights. - Impact Octacool-9 Fluorescent Light with Octabox (9 Lamps) The Impact Octacool-9 Fluorescent Light with Octabox (9 Lamps) is a great choice for the photographer or videographer seeking a broad, flattering light source with unique fall-off characteristics for portraiture, fashion, or events.Octagonal-shaped light sources have long had a reputation as the preferred portrait-shooter's light source. The shape offers an especially large surface area which produces wrap-around light, which envelopes the subject while creating natural-looking catchlights in the eyes. Each daylight-balanced 28W lamp outputs 1400 lumens of light measured at 3.3 feet for a 9-lamp total of 12,600 lumens. Five switches on the rear of the fixture allow individual control of the lamps allowing 1 - 9 of them to be switched on or off, varying the output in 1400 lumen increments. The head's standard 5/8" receiver mounts to a huge variety of light stands and gripware with 5/8" studs. The included Octabox has a removable inner baffle and front face allowing even greater flexibility from hard to ultra-soft light. The light head also comes with a removable aluminum reflector for a bright, contrasty lighting option.
- Includes a 29.5˝ Octabox that provides a soft, uniform, diffused light
- Noiseless operation allows clear audio for video productions
- Cool output allows heat-sensitive subjects to be safely photographed up close
- 28W screw-in fluorescent lamps with a life expectancy of 6000-8000 hours
- Rear switches allow you to select to have only one bulb on, all bulbs on, or any number of bulbs in between
UPC: 847628012219 - Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5') This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
- Air-Cushioned
- Protects equipment and fingers from damage
- Compact Design
- Will fit easily into most location cases
- Accepts Casters
- For easy positioning of lights
UPC: 847628012004 In the Box - Octacool-9 Fluorescent Light with Octabox (9 Lamps) vwsaafrdxrazwbreuzftzubqbacr
- Octacool 9 Lamp Fixture
- Removable Aluminum Reflector
- 9 x Edison Base 28W Fluorescent Lamps
- 29.5" (75cm) Octabox
- Internal Diffusion Baffle
- Octabox Diffuser
- Power Cord
- Limited 1-Year Warranty
- Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Octacool-9 Fluorescent 1-Light Kit with Octabox in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact Octacool-9 Fluorescent Light with Octabox (9 Lamps)
| Input Voltage | 110-120 VAC; 60 Hz; 3.5 A draw | | Lamps | 27-32 W screw-in (E-26) fluorescent | | Output | 12,600 total (9 lamps) lumens at 3.3' / 1 m | | Ballast | In lamps | | Mounting | 5/8˝ standard stud | | Dimensions | Light Head: 9" / 29 cm diameter
Octabox: 29.5" / 75 cm diameter | | Weight | Kit: 12.5 lb / 5.6 kg | | | | Box Dimensions (LxWxH) | 18.5 x 18.0 x 9.8" | - Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')
| Maximum Load | 22 lb (10 kg) | | Maximum Height | 114" (290 cm) | | Minimum Height | 48" (123 cm) | | Closed Length | 42" (106.7 cm) | | Footprint Diameter | 52" (132 cm) | | Leg Tip | 0.98" (25 mm) | | Attachment Size | Removable 5/8" (16 mm) spigot with 1/4"-20 and 3/8"-16 threaded ends | | Accepts Wheels | Yes, casters | | Air Cushioned | Yes | | Weight | 4.4 lb (2.0 kg) | | | | Box Dimensions (LxWxH) | 42.8 x 5.5 x 5.2" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
