Impact Octacool-9 Fluorescent 2-Light Kit with

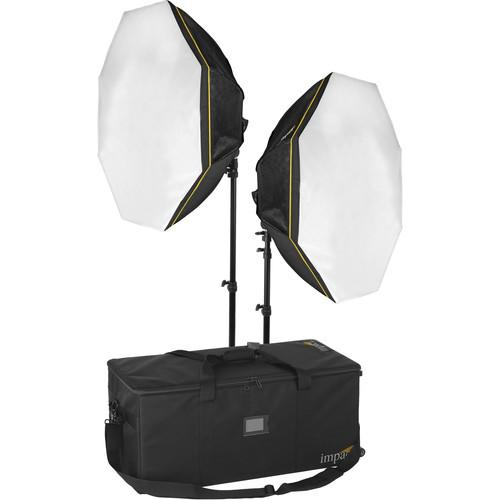

User Manual for Impact Octacool-9 Fluorescent 2-Light Kit with Stands and Roller Case

• Product category: Fluorescent Lights Impact
• Brand: Impact
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Impact Fluorescent Lights

Product description

• 2 x Impact Octacool-9 Fluorescent Light with Octabox (9 Lamps)
  • Impact Octacool Demo
  The Impact Octacool-9 Fluorescent Light with Octabox (9 Lamps) is a great choice for the photographer or videographer seeking a broad, flattering light source with unique fall-off characteristics for portraiture, fashion, or events.Octagonal-shaped light sources have long had a reputation as the preferred portrait-shooter's light source. The shape offers an especially large surface area which produces wrap-around light, which envelopes the subject while creating natural-looking catchlights in the eyes. Each daylight-balanced 28W lamp outputs 1400 lumens of light measured at 3.3 feet for a 9-lamp total of 12,600 lumens. Five switches on the rear of the fixture allow individual control of the lamps allowing 1 - 9 of them to be switched on or off, varying the output in 1400 lumen increments. The head's standard 5/8" receiver mounts to a huge variety of light stands and gripware with 5/8" studs. The included Octabox has a removable inner baffle and front face allowing even greater flexibility from hard to ultra-soft light. The light head also comes with a removable aluminum reflector for a bright, contrasty lighting option.
  • Includes a 29.5˝ Octabox that provides a soft, uniform, diffused light
  • Noiseless operation allows clear audio for video productions
  • Cool output allows heat-sensitive subjects to be safely photographed up close
  • 28W screw-in fluorescent lamps with a life expectancy of 6000-8000 hours
  • Rear switches allow you to select to have only one bulb on, all bulbs on, or any number of bulbs in between
  UPC: 847628012219
• 2 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')
  • Impact Octacool Demo
  This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628012004
• Impact LKB-JR Light Kit Bag Jumbo Roller
  • Impact Octacool Demo
  For the photographer who's going places, the LKB-JR Light Kit Bag Jumbo Roller from Impact will store and protect two fully-assembled OctaCool 6 or 9 lights, two softboxes, cables, gels, and related accessories. The inside of the bag features two compartments separated by a padded, touch-fastening divider. To simplify transport and eliminate lengthy assembly time, each compartment is designed to hold one OctaCool 6 or 9 light with installed CFL lamps, and reflector. Lights are secured by two padded, touch-fastening stabilizer panels with keyhole cutouts designed to fit over the back of each light.

  Underneath the lid are three zippered, mesh pockets. Two of the pockets will accommodate an OctaCool 6 or 9 softbox, with the third reserved for 2 light handles, 2 power cords, gels, and other accessories.

  The bag may be rolled on a pair of wheels, lifted by the handles or shoulder strap, and stored in an upright position on a set of rubber feet. For security, the heavy-duty zipper has twin metal pulls which may be connected with an optional padlock (user supplied).

  For protection and durability, the bag features heavy-duty outer walls encased in a thick layer of high-density foam, and covered with a shell of water-resistant 600D nylon. And for easy identification, the side of the bag has a clear slip-in ID pocket.
  Holds
  • • 2 OctaCool 6 or 9 lights with installed CFL lamps and reflector
    • 2 OctaCool 6 or 9 softboxes with diffusers and rods
    • 2 OctaCool 6 or 9 screw-in light handles, power cords, and accessories
  Construction
  • • Heavy-duty outer walls encased in a thick layer of high-density foam
    • Exterior shell is made of water-resistant 600D nylon
  Compartments
  • • 2 compartments which accommodate 1 OctaCool 6 or 9 light with installed CFL lamps and reflector
  Exterior Pocket
  • • 1 clear slip-in ID pocket
  Interior Pockets
  • • 2 zippered, mesh pockets under lid for storing OctaCool 6 or 9 softboxes
    • 1 zippered, mesh pocket under lid for storing OctaCool 6 or 9 handles, power cords, and accessories
  Shoulder Strap
  • • 1 adjustable, removable strap with 12" sliding pad
  Handles
  • • 1 rubber, contoured side grip handle
    • 2 overlapping, wraparound, 2" handle with padded, touch-connect enclosure
  Dividers
  • • 1 padded, removable, compartment divider with touch-fastening sides
  Stabilizer Panels
  • • 2 padded, removable, light stabilizer panels with keyhole cutout and touch-fastening sides
  Security
  • • Heavy-duty zipper with twin metal pulls which may be connected with an optional padlock
  Wheels & Feet
  • • 1 pair of wheels
    • 1 pair of rubber feet for upright storage
  Precautions
  • • Not recommended for air travel
    • Do not overload
  UPC: 847628577824

• 2 x Octacool-9 Fluorescent Light with Octabox (9 Lamps) btewcsfbeabzffrzddexqv
• Octacool 9 Lamp Fixture
• Removable Aluminum Reflector
• 9 x Edison Base 28W Fluorescent Lamps
• 29.5" (75cm) Octabox
• Internal Diffusion Baffle
• Octabox Diffuser
• Power Cord
• Limited 1-Year Warranty

• 2 x Heavy-Duty Air-Cushioned Light Stand (Black, 9.5') btewcsfbeabzffrzddexqv

• LKB-JR Light Kit Bag Jumbo Roller

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Impact Octacool-9 Fluorescent Light with Octabox (9 Lamps)

  Input Voltage	110-120 VAC; 60 Hz; 3.5 A draw
  Lamps	27-32 W screw-in (E-26) fluorescent
  Output	12,600 total (9 lamps) lumens at 3.3' / 1 m
  Ballast	In lamps
  Mounting	5/8˝ standard stud
  Dimensions	Light Head: 9" / 29 cm diameter Octabox: 29.5" / 75 cm diameter
  Weight	Kit: 12.5 lb / 5.6 kg

  Box Dimensions (LxWxH)	18.5 x 18.0 x 9.8"

• 2 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

  Maximum Load	22 lb (10 kg)
  Maximum Height	114" (290 cm)
  Minimum Height	48" (123 cm)
  Closed Length	42" (106.7 cm)
  Footprint Diameter	52" (132 cm)
  Leg Tip	0.98" (25 mm)
  Attachment Size	Removable 5/8" (16 mm) spigot with 1/4"-20 and 3/8"-16 threaded ends
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	4.4 lb (2.0 kg)

  Box Dimensions (LxWxH)	42.8 x 5.5 x 5.2"

• Impact LKB-JR Light Kit Bag Jumbo Roller

  Interior Dimensions	33.5 x 16.5 x 13.5" / 85 x 42 x 34 cm
  Padding	1" / 25.4 mm Foam

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap Handle Shoulder Strap
  Material of Construction	Nylon, Plastic
  Exterior Dimensions (W x H x D)	37.5 x 18 x 16" / 95 x 46 x 41 cm
  Weight	17.5 lb / 7.9 kg

  Box Dimensions (LxWxH)	38.0 x 18.5 x 16.0"
