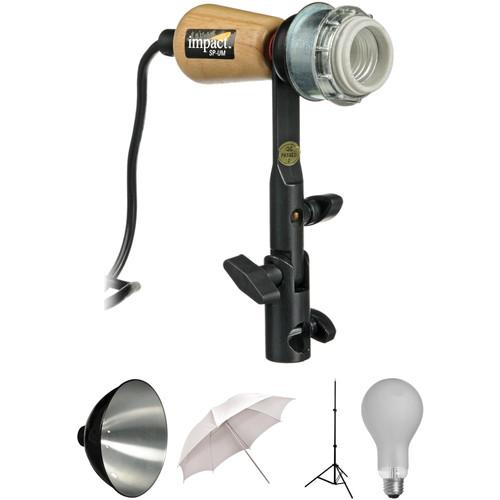

User Manual for Impact One-Light Umbrella Kit Click to enlarge the picture
Contents of the user manual for the Impact One-Light Umbrella Kit
- Product category: Tungsten Lights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Tungsten Lights
|
User manual for the Impact One-Light Umbrella Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|
Product description The Impact One-Light Umbrella Kit is built around the Impact 12" Floodlight. It's made of heavy-grade aluminum, hand-spun and chemically etched to maximize the light output. The reflector has a black painted exterior. The socket has a high-heat capacity, with a wooden handle and in-line power switch. This kit is designed for use with 110-120 voltage. It accepts screw-on aluminum reflectors of different diameters. This kit also includes a white, translucent umbrella, 500 watt bulb and air-cushioned light stand. - Impact Porcelain Socket with Adjustable Umbrella Mount (500W) The Impact Porcelain Socket with Umbrella Mount (500W) is a cost-effective way to utilize a wide variety of E26 (Edison) based lamps for photo or video work. Options include simple household lamps as well as photoflood and quartz halogen bulbs. This highly versatile product has an adjustable metal mount with a 5/8" receiver for light stands and an 8mm umbrella receptacle. The Floodlight Socket tilts and locks in place at the desired angle by grasping the stay-cool wooden handle and releasing the locking knob. Lamps up to 500W won't melt the ceramic base which is impervious to heat. The socket also accepts screw-on reflectors of various sizes.
- High-heat ceramic socket won't melt like plastic sockets
- Supports 500W bulbs maximum
- Wooden control handle stays cool
- Accepts screw-on aluminum reflectors
- 10' 3-prong AC power cord with inline switch
- Built-in adjustable umbrella mount
UPC: 847628013636 - Impact Floodlight Reflector - 12" Replacement Reflector for the Impact 12" Floodlight.
Made of heavy-grade aluminum, are hand-spun and chemically etched to maximize the light output. Black painted exterior. The reflector mount size is 1 5/8". UPC: 847628012516 - Impact White Translucent Umbrella (43") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 43" White Translucent Umbrella is suggested for use in mid-length portraits for one or two persons. UPC: 847628013292
- Impact Light Stand, Black (6') This 6' Impact Black Light Stand is one of the most economical light stands available. It has a 5/8" stud top with a 1/4"-20 thread.
- For small light fixtures or boom arms.
UPC: 847628011953 - Ushio ECT Photoflood (500W/120V) This Ushio ECT Photoflood (500W/120V) is an incandescent bulb with an E26 (Edison) screw-in base compatible with lighting fixtures that have a 500W rating. It has a color temperature of 3,200K and an average life of 60 hours. UPC: 048777117156
In the Box - Porcelain Socket with Adjustable Umbrella Mount (500W) rfqbtsqwryte
- Limited 1-Year Warranty
- Floodlight Reflector - 12"
- Umbrella - White Translucent (43")
- Ushio - ECT Photoflood (500W/120V) rfqbtsqwryte
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact One-Light Umbrella Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact Porcelain Socket with Adjustable Umbrella Mount (500W)
| Rating | 500 W | | Socket (Lampholder) | Ceramic E26 (Edison) | | Mount | 5/8" (16 mm) receiver for light stand
Tilting action with locking knob
8 mm (standard) umbrella receptacle with locking knob | | Cable | 10' / 3.0 m | | | | Box Dimensions (LxWxH) | 8.05 x 5.85 x 4.15" | - Impact Floodlight Reflector - 12"
| | | Box Dimensions (LxWxH) | 11.95 x 11.75 x 8.55" | - Impact White Translucent Umbrella (43")
| Size | 43.0" / 109.2 cm | | Interior | White (Translucent) | | Shaft Diameter | 8 mm | | Folded Size | L: 28.3" / L: 71.8 cm | | | | Box Dimensions (LxWxH) | 29.0 x 2.7 x 1.65" | - Impact Light Stand, Black (6')
| Load Capacity | 4 lb / 1.8 kg | | Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 6' / 1.8 m | | Minimum Working Height | 26.3" / 66.8 cm | | Collapsed Height | 26.3" / 66.8 cm | | Footprint Diameter | 30" / 76.20 cm | | Leg Shape | Round | | Accepts Wheels | Yes | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 26.4 x 3.5 x 3.5" | - Ushio ECT Photoflood (500W/120V)
| Bulb Type | PS25 | | Base Type | E26 | | ANSI Code | ECT | | Wattage | 500 W | | Voltage | 120 V | | Lumens | 13,650 | | Burning Position | Any | | Color Temperature | 3200K | | Bulb Finish | Frost | | Average Life | 60 Hours | | Maximum Overall Length (MOL) | 5.98" / 152 mm | | Maximum Overall Diameter (MOD) | 3.12" / 79.38 mm | | | | Box Dimensions (LxWxH) | 6.3 x 3.45 x 3.25" |
