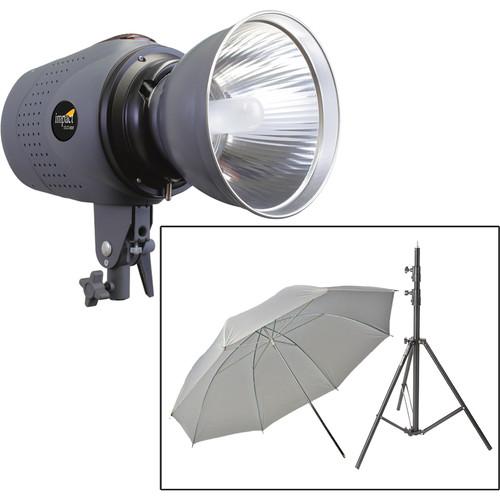

Product description How many kinds of photo assignments can you can handle with a compact outfit like the Impact VS-LCD400 400W Digital Monolight 1-Light Kit? You'd be surprised. It's got a VS-LCD 400w/s digital monolight--400w/s of power in an easily transportable package--one light stand and one white translucent umbrella. Light output can be varied in 1/10-stop stages over a 4-stop range, accessible through the digital readout. The 150W modeling light can be coupled to the flash, getting brighter or dimmer to match the actual light output, or independently set to the level you want. The monolight accepts S-type monolight reflectors and head accessories. It also has a limited Auto Dump function, firing the strobe when you reset to a different power level (so the strobe is automatically set to the correct setting for the next flash). A built-in optical slave allows the monolight to be triggered using another flash. The white umbrella softens and broadens the light. An air cushioned light stand provides protection from impact damage while adjusting its height. And the light stands will accept casters, which makes positioning the lights a snap. - Impact Digital Monolight 400W/s (120VAC) You might be surprised at how many photo assignments you can handle with a compact, lightweight monolight like the Impact Digital Monolight 400W/s (120VAC). It's got 400w/s of power in an easily transportable package, and light output that can be varied in 1/10 stop stages over a 4-stop range, accessible through the digital readout. The 150W modeling light can be coupled to the flash, getting brighter or dimmer to match the actual light output, or independently set to the level you want. The monolight accepts S-type monolight reflectors and head accessories. It also has a limited Auto Dump function, firing the strobe when you reset to a different power level (so the strobe is automatically set to the correct setting for the next flash). A built-in optical slave allows the monolight to be triggered using another flash. Perfect for portraits, small still-lifes, and much more.
- Power is variable over a 4-stop range
- Digital readout coupled with the power variator
- Accepts S-type monolight reflectors and head accessories
- Power is adjustable in 1/10 stop increments, from full to 1/8 power
- Model light intensity may be coupled to, or independent from, the flash output levels
- Limited Auto Dump feature automatically fires the strobe when you reset to a lower power level
- Built-in optical slave "sees" the light from other flashes, and fires monolight automatically
UPC: 847628013483 - Impact White Translucent Umbrella (43") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 43" White Translucent Umbrella is suggested for use in mid-length portraits for one or two persons. UPC: 847628013292
- Impact Air-Cushioned Light Stand (Black, 10') This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
- Air-Cushioned
- Protects equipment and fingers from damage
- Compact Design
- Will fit easily into most location cases
- Accepts Casters
- For easy positioning of lights
UPC: 847628030626 In the Box - Digital Monolight 400W/s (120VAC) baaywcqrrsbcwqxbxexwae
- Flashtube
- 150W Modeling Light
- 7" Grid Reflector
- Mini to PC Sync Cord
- Extra Fuse
- Limited 1-Year Warranty
- Umbrella - White Translucent (43") baaywcqrrsbcwqxbxexwae
- Air-Cushioned Light Stand (Black, 10')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact One Monolight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact Digital Monolight 400W/s (120VAC)
| | | Maximum Power | 400 Ws | | Power Control | 4 Stops in 1/10-Stop Increments | | Guide Number | 197' / 60 m at ISO100 | | Flash Duration | 1/1500 to 1/400 Sec | | Recycle Time | 2 Sec (Full Power) | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Wattage | 150 W | | | | Sync Type | Optical | | Wireless Range | 33' / 10 m (Radio) | | | | AC Input Voltage | 110to120 VAC, 60 Hz | | Circuit Protection | Fuse | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | No | | Dimensions | H: 8.5 x W: 6.0 x L: 11.6" / H: 21.5 x W: 15.5 x L: 29.5 cm, Including Reflector | | Weight | 6.75 lb / 3.06 kg | | | | Box Dimensions (LxWxH) | 18.5 x 10.1 x 9.5" | - Impact White Translucent Umbrella (43")
| Size | 43.0" / 109.2 cm | | Interior | White (Translucent) | | Shaft Diameter | 8 mm | | Folded Size | L: 28.3" / L: 71.8 cm | | | | Box Dimensions (LxWxH) | 29.0 x 2.7 x 1.65" | - Impact Air-Cushioned Light Stand (Black, 10')
| Maximum Load | 8.5 lb (3.8 kg) | | Maximum Height | 121.5" (308.6 cm) | | Minimum Height | 40.5" (102.9 cm) | | Closed Length | 33.5" (85 cm) | | Footprint Diameter | 38" (96.5 cm) | | Leg Tip | 0.8" (20 mm) | | Attachment Size | 5/8" (16 mm) stud with 1/4"-20 male threads | | Accepts Wheels | Yes, casters | | Air Cushioned | Yes | | Weight | 2.4 lb (1.1 kg) | | | | Box Dimensions (LxWxH) | 34.0 x 3.0 x 3.0" |
