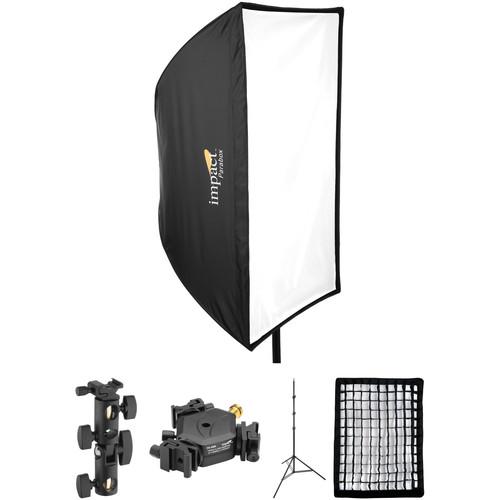

User Manual for Impact Parabox Speedlight Kit Click to enlarge the picture
Contents of the user manual for the Impact Parabox Speedlight Kit
- Product category: Softboxes Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Softboxes
|
User manual for the Impact Parabox Speedlight Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|
Product description The Impact Parabox Speedlight Kit was put together by to maximize the potential of up to 3 on-camera flashes. The kit includes a 24 x 36" Parabox easy-setup softbox, an umbrella stand adapter, locking triple flash adapter and a 10' air-cushioned light stand. The Impact Parabox Softbox uses a durable, dual-rod, umbrella-type construction that dramatically shortens setup and takedown time. Compatible with hot-shoe flash speedlights, compact studio strobes or portable battery-powered strobe systems, the Parabox features zippered panels on the long and short side of the softbox for your flash head to offer the option of vertical or horizontal orientation. The softbox's 8mm shaft fits any standard umbrella mount or stand adapters with an umbrella receiver. The Umbrella Bracket with Adjustable Shoe is a versatile, lightweight metal bracket that will fit on almost any light stand. It includes a removable, reversible female stud to adapt to light stands with top studs smaller than the standard 5/8". An additional removable, reversible male stud mounts to the included flash shoe at the 1/4"-20 end, or to another accessory at the 3/8" end. The metal shoe features a knurled locking knob for secure mounting of all standard shoe-mount flashes, including the Nikon SB-900 and SB-910. The FA-330L Adjustable Locking Triple Flash Adapter with Umbrella Socket by Impact allows you to triple your on-camera flash power when using an umbrella or compatible softbox. The adapter features 3 insulated, locking flash shoes with knurled, screw-down locking pins for secure mounting. The central umbrella socket is compatible with the Parabox and all Impact umbrellas and with most other brands. The adapter has a brass 1/4"-20 female thread for mounting on light stands having a 1/4"-20 male threaded top stud or adapter. The aluminum IMLS10AB Impact Light Stand is a 4-section support that extends to 10' and folds down to 34". Its air-cushioning ensures a "soft landing" for your gear when lowering it. - Impact Parabox Softbox (24 x 36") The 24 x 36" Parabox Softbox from Impact features a durable dual-rod umbrella-type construction that dramatically shortens setup and takedown time. Compatible with hot-shoe flash speedlights, compact studio strobes or portable battery-powered strobe systems, the Parabox features zippered panels on the long and short side of the softbox for your flash head to offer the option of vertical or horizontal orientation. The softbox's 8mm shaft fits any standard umbrella mount or stand adapters with an umbrella receiver.
- Compatibility
- At 24 x 36" the Impact Parabox is a great match for hotshoe flashes, compact studio strobes and portable battery-powered strobe systems
- Easy Setup and Takedown
- Photographers on the go will appreciate the Parabox's rugged dual-rod design, which contributes to a quick and easy setup. This is ideal for wedding and event photography, on-location portrait shoots, or any situation where time is limited and professional results are expected
- No Speed Ring Required
- The Parabox Softbox features an 8mm umbrella shaft, making it compatible with any standard umbrella mount or adapter. Since a speed ring is not required, the Parabox is a good value for beginner photographers and professionals alike
- Versatility
- Two zippered panels allow for vertical (portrait) and horizontal (landscape) positioning, while the reflective silver interior, removable front diffuser, and compatibility with touch-fastener grids offer additional light modification opportunities. Use as a rim light, hair light, accent light, or as a main light
UPC: 847628581371 - Impact Deluxe Umbrella Mount with Adjustable Shoe A useful and versatile addition to any lighting kit, the Deluxe Umbrella Mount with Adjustable Shoe from Impact is designed to maximize the utility small lights or shoe-mount flashes while the heavy-duty mount has a socket that can support umbrellas up to 60" in diameter.Able to tilt 180-degrees and swivel 360-degrees, the anodized black aluminum Umbrella Mount can be installed on any industry-standard light stand with a 5/8" top stud from either end of the mount. Additional 5/8" holes are tapped into to unit to allow you to mount it vertically or horizontally for maximum versatility. The Deluxe Umbrella Mount includes removable 3/8"-16 and 1/4"-20 brass stud adapters to support accessories. One of them, for example, fastens a cold shoe with a knurled locking knob for a secure connection to your flash.
- Tilt and Swivel
- 180-degree tilt and 360-degree swivel
- Vertical or Horizontal Mounting
- Bottom and side taps allow space-saving mounting options
- Adjustable Cold Shoe
- Allows you to maximize the potential of your shoe-mount flash
- Umbrella Socket
- Supports up to 60" umbrellas
- Included Adapters
- Female 3/8"-16 and male 1/4"-20 stud adapters add compatibility with various accessories
- Mounting Options and Adjustments
- Adds significant flexibility to a simple light stand
UPC: 847628000636 - Impact FA-330L Adjustable Locking Triple Flash Adapter with Umbrella Socket The FA-330L Adjustable Locking Triple Flash Adapter with Umbrella Socket by Impact allows you to triple your on-camera flash power when using an umbrella. You can fire the flashes at full power for greater light output or, for faster recycle times, fire them at half power to conserve the energy. The adapter features 3 insulated, locking flash shoes with knurled, screw-down locking pins for secure mounting. The central umbrella socket is compatible with all Impact umbrellas and with most other brands. This allows it to be used combined with an umbrella, light panel, or other lighting accessories. The Triple Flash Adapter has a brass 1/4"-20 female thread for mounting on light stands having a 1/4"-20 male threaded top stud or adapter.
- Use up to three shoe mount flashes from single mounting point
- Central umbrella socket, compatible with all Impact umbrellas and with most other brands
- Mount the adapter onto the 1/4"-20 screw on a stand, tripod, ball head, etc
UPC: 847628553255 - Impact Air-Cushioned Light Stand (Black, 10') This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
- Air-Cushioned
- Protects equipment and fingers from damage
- Compact Design
- Will fit easily into most location cases
- Accepts Casters
- For easy positioning of lights
UPC: 847628030626 - Impact Fabric Grid for Parabox Softbox (24x36") This 24 x 36" Fabric Grid for Parabox Softbox from Impact fits on the recessed front face of the Parabox via touch-fasteners. The grid narrows the softbox's beam while eliminating spill light and offering directional control of its output. The grid folds flat for storage and transport when not in use. UPC: 847628597204
In the Box - Parabox Softbox (24 x 36") rqaqsszfarwadyytsadyaxu
- Front Diffuser
- Carrying Case
- User Manual
- Limited 1-Year Warranty
- Deluxe Umbrella Mount with Adjustable Shoe rqaqsszfarwadyytsadyaxu
- FA-330L Adjustable Locking Triple Flash Adapter with Umbrella Socket
- Air-Cushioned Light Stand (Black, 10')
Includes Free - Fabric Grid for Parabox Softbox (24x36")
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Parabox Speedlight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact Parabox Softbox (24 x 36")
| Shape | Rectangular | | Interior | Silver | | Requires Speed Ring | No | | Accepts Grids | Yes | | Maximum Wattage | 250 W | | Removable Front Face | Yes | | Removable Interior Baffle | No | | Material | Nylon | | Rectangular Dimensions | W: 24.0 x H: 36.0 x D: 17.0" / W: 60.9 x H: 91.4 x D: 43.1 cm | | Weight | 1.25 lb / 567 g | | | | Box Dimensions (LxWxH) | 30.0 x 4.0 x 2.5" | - Impact Deluxe Umbrella Mount with Adjustable Shoe
| Adjustments | 360° swivel, 180° tilt | | Material of Construction | Anodized black aluminum | | Mount | 5/8" (16 mm) receiver
3/8"-16 female stud adapter
1/4"-20 male stud adapter | | | | Box Dimensions (LxWxH) | 8.3 x 4.2 x 1.7" | - Impact FA-330L Adjustable Locking Triple Flash Adapter with Umbrella Socket
| Material | Polycarbonate | | Shoe Mounts | 3x Standard locking shoe mounts | | Mount Thread | 1/4"-20 female | | Compatibility | 8mm umbrella shafts | | Weight | 6.9 oz (195 g) | | | | Box Dimensions (LxWxH) | 5.0 x 4.2 x 1.8" | - Impact Air-Cushioned Light Stand (Black, 10')
| Maximum Load | 8.5 lb (3.8 kg) | | Maximum Height | 121.5" (308.6 cm) | | Minimum Height | 40.5" (102.9 cm) | | Closed Length | 33.5" (85 cm) | | Footprint Diameter | 38" (96.5 cm) | | Leg Tip | 0.8" (20 mm) | | Attachment Size | 5/8" (16 mm) stud with 1/4"-20 male threads | | Accepts Wheels | Yes, casters | | Air Cushioned | Yes | | Weight | 2.4 lb (1.1 kg) | | | | Box Dimensions (LxWxH) | 34.0 x 3.0 x 3.0" | - Impact Fabric Grid for Parabox Softbox (24x36")
| Material | Fabric | | Size | Approximately 24 x 36" (61 x 91 cm) | | | | Box Dimensions (LxWxH) | 12.7 x 3.75 x 2.0" |
