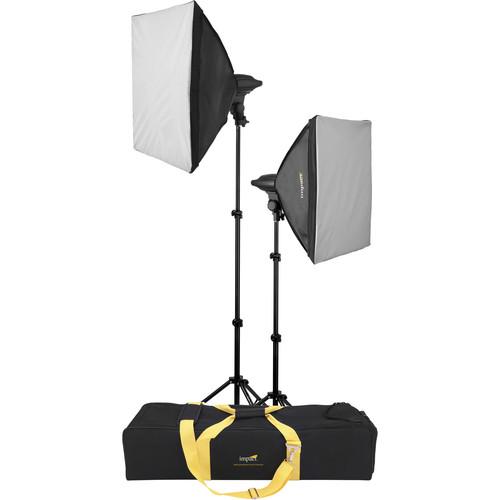

User Manual for Impact Photo Portrait Studio Kit Click to enlarge the picture
Contents of the user manual for the Impact Photo Portrait Studio Kit
- Product category: Fluorescent Lights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Fluorescent Lights
|
User manual for the Impact Photo Portrait Studio Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|
Product description Using predominantly Impact gear, B&H has put together this Photo Studio Light Kit which is a great solution for photographing everything from products to people or for e-commerce. The kit includes two fluorescent 4-lamp fixtures, eight 40W daylight-balanced lamps, two 6' stands, and a stand and umbrella case.Kit Components:The 4-Socket Fluorescent Fixture from Impact is a lightweight fixture in a polycarbonate housing that accepts Edison-base compact fluorescent lamps up to 50W, for a four-socket total of 200W. The fixture's bracket tilts and locks into position and features a standard 5/8" receiver that mounts on any 5/8" stud or accessory, and also accepts standard photo umbrellas..The 3-section, 6' Impact Black Light Stand is an economical support with an industry-standard 5/8" stud top with a 1/4"-20 thread. The stand folds down to 26.3" and weighs 1.8 lb.The 50 x 50 cm Softbox for Fluorescent Fixtures is a light modifier that softens the output from Impact FF-S1 and FF-S4 single and four-socket fluorescent fixtures, as well as Impact's SF-ABRL160 Slave Flash. Installation is easy, no speed ring is needed; each of these heads has four receptacles located around the face of the fixture. The softbox can be used with up to four 50W fluorescent lamps for a total of 200W.The padded nylon Stand and Umbrella Case measures 36 x 9 x 9" and allows you to carry up to 25 lb of gear. It has a webbed double carry handle that is stitched completely around the outside of the case, as well a removable shoulder strap. - 2 x Impact 4 Socket Fluorescent Fixture The 4 Socket Fluorescent Fixture from Impact is a lightweight fixture in a polycarbonate housing that accepts Edison-base compact fluorescent lamps up to 50W, for a four-socket total of 200W. The fixture's bracket tilts and locks into position and features a standard 5/8" receiver that mounts on any 5/8" stud or accessory, and also accepts standard photo umbrellas. UPC: 847628563599
- 2 x Impact Light Stand, Black (6') This 6' Impact Black Light Stand is one of the most economical light stands available. It has a 5/8" stud top with a 1/4"-20 thread.
- For small light fixtures or boom arms.
UPC: 847628011953 - 2 x Impact 50 x 50 cm Softbox for Fluorescent Fixtures The 50 x 50 cm Softbox for Fluorescent Fixtures by Impact is a light modifier that softens the output from Impact FF-S1 and FF-S4 single- and four-socket fluorescent fixtures, as well as Impact's SF-ABRL160 Slave Flash. Installation is easy - no speed ring is needed; each of these heads has four receptacles located around the face of the fixture. The softbox can be used with up to four 50W fluorescent lamps for a total of 200W. UPC: 847628563612
- General Brand Stand & Umbrella Case Carry up to 25 lb of lighting gear with this General Brand Stand & Umbrella Case. It measures 36 x 9 x 9" which makes it well suited to transporting light stands and umbrellas and is padded to keep your gear safe. Also, each side has a grab handle that makes carrying the bag easy and it comes with a removable shoulder strap. UPC: 847628591264
- 8 x Eiko Spiral Fluorescent Lamp 40W/120V 5000K E26 Base This is the Eiko Spiral Fluorescent 40W/120V 5500K E26 Base Lamp. It fits Photoflex StarliteQL, Westcott Spiderlite, or any other floodlight fixture that can accept a floodlight bulb. It provides 5000° Kelvin (daylight), equivalent in brightness to a 150 watt tungsten bulb.
- Low heat, long life - 10,000 hours
UPC: 031293054234 In the Box - 2 x 4 Socket Fluorescent Fixture xxbrbuarfqwweufsbbuawbrvdbfzbwys
- Limited 1-Year Warranty
- 2 x Light Stand, Black (6')
- 2 x 50 x 50 cm Softbox for Fluorescent Fixtures
- General Brand - Stand & Umbrella Case
- 8 x Eiko - Spiral Fluorescent Lamp 40W/120V 5000K E26 Base
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Photo Portrait Studio Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Impact 4 Socket Fluorescent Fixture
| Input Voltage | 120 VAC | | Lamps | 4 CFL (compact fluorescent lamps) | | Ballast | In lamps | | Mounting | 5/8" / 16 mm | | Dimensions (LxWxH) | 6.5 x 6.25 x 7.25" / 16.5 x 15.8 x 18.4 cm | | Weight | 1.3 lb / 590 g | | | | Box Dimensions (LxWxH) | 8.45 x 7.65 x 6.15" | - 2 x Impact Light Stand, Black (6')
| Load Capacity | 4 lb / 1.8 kg | | Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 6' / 1.8 m | | Minimum Working Height | 26.3" / 66.8 cm | | Collapsed Height | 26.3" / 66.8 cm | | Footprint Diameter | 30" / 76.20 cm | | Leg Shape | Round | | Accepts Wheels | Yes | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 26.4 x 3.5 x 3.5" | - 2 x Impact 50 x 50 cm Softbox for Fluorescent Fixtures
| Shape | Square | | Interior | Silver | | Requires Speed Ring | No | | Accepts Grids | No | | Maximum Wattage | 250 W | | Removable Front Face | Yes | | Removable Interior Baffle | No | | Rectangular Dimensions | W: 20.0 x H: 20.0" / W: 50.8 x H: 50.8 cm | | | | Box Dimensions (LxWxH) | 17.75 x 8.5 x 1.5" | - General Brand Stand & Umbrella Case
| Material | Nylon | | Type of Closure | Zipper | | Load Capacity | 25 lb (11.3 kg) | | Carrying/Transport Options | Grab handles
Shoulder strap | | Exterior Dimensions | 36 x 9 x 9" (91.4 x 22.9 x 22.9 cm) | | Interior Dimensions | 35 x 8 x 8" (88.9 x 20.3 x 20.3 cm) | | Weight | 4.0 lb (1.8 kg) | | | | Box Dimensions (LxWxH) | 38.0 x 10.5 x 10.5" | - 8 x Eiko Spiral Fluorescent Lamp 40W/120V 5000K E26 Base
| Code | SP42/50K | | Base Type | E26 | | Bulb Shape | Spiral | | Lumens | 2650 | | Wattage | 40 W | | Color Temperature | 5000K | | Bulb Color | None | | Color Accuracy Standard | CRI 80 | | Average Life | 10,000 Hours | | Maximum Overall Length (MOL) | 7.1" / 18.0 cm | | AC Input Power | 120 VAC, 60 Hz | | | | Box Dimensions (LxWxH) | 7.8 x 2.95 x 2.9" |
