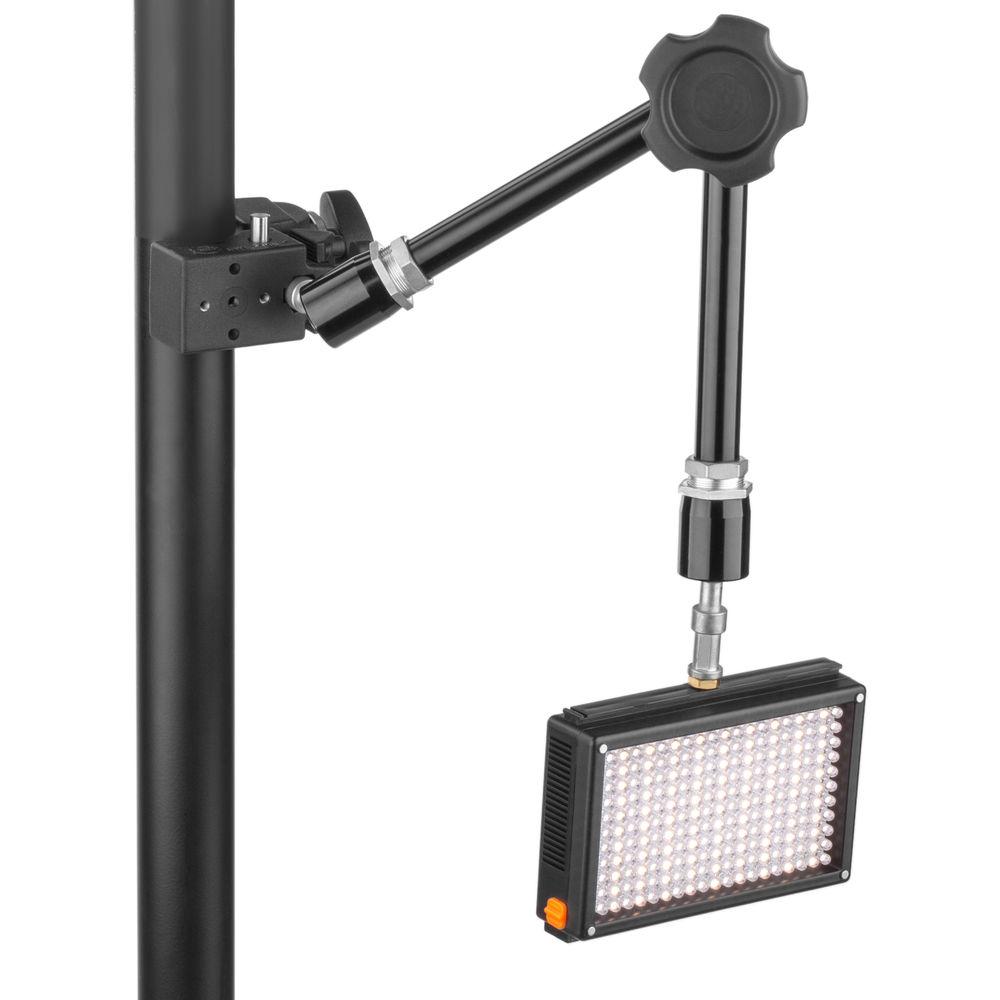

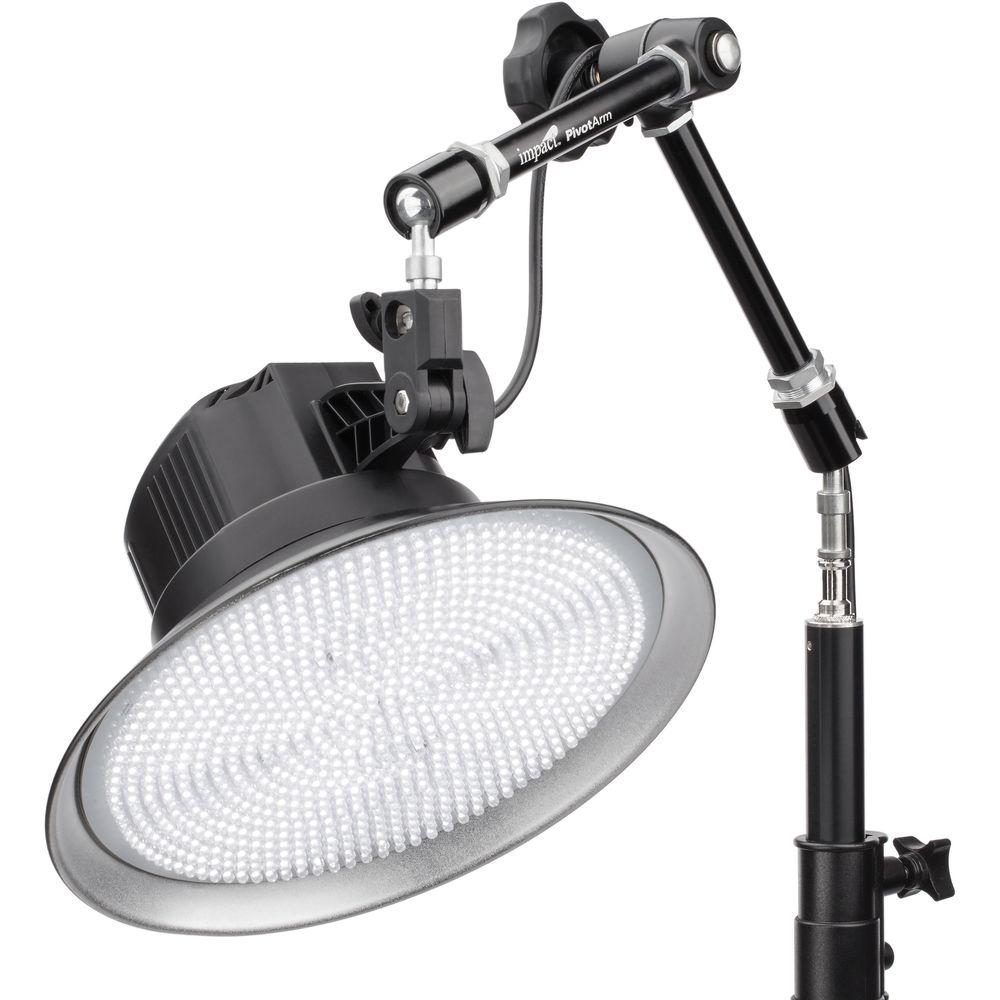

Product description Designed to hold a light fixture or accessory in place, the Pivot Arm 20" with Adjustable Wheel Lock Control is a space-saving grip tool for a variety of applications. It's a great match-up with a super clamp, for instance, with an optional camera platform for highly mobile work. The wheel at the arm's elbow is capable of tension adjustment so that you can easily secure gear weighing up to 8 lb in the position you've chosen. - Position your lighting or camera gear where you need it with 360° rotation of the pivot arms. Maximum extension is 20".

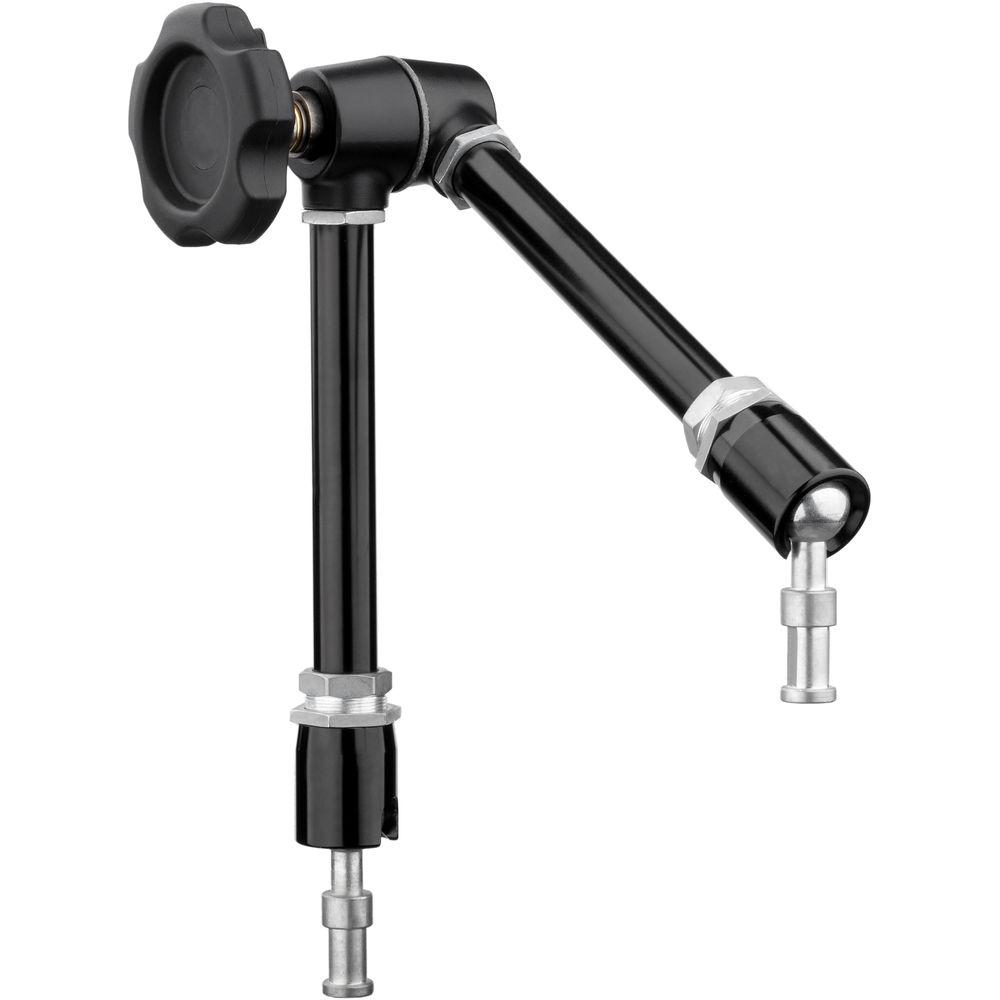

- One baby pin is threaded female 1/4ʺ-20 and the other female 3/8ʺ-16 threaded for flexibility in the type of gear you can mount.
- Lock the position of the pivot arms and baby pins simply by twisting the adjustable wheel lock control. Further adjustment to the positioning of your equipment is made by altering the tension of the internal locking mechanism.
- The pins at the end of each arm are capable of swiveling on their ball-and-socket joints providing extra flexibility for positioning your equipment.
UPC: 847628559189 In the Box Impact Pivot Arm 20" with Adjustable Wheel Lock Control Limited 1-Year Warranty User Manual PDF 486.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Pivot Arm 20" with Adjustable Wheel Lock Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersImpact BHE-115 Specs | Material | Aluminum | | Load Capacity | 8.0 lb (3.6 kg) | | Dimensions | Extended: 20" (50.8 cm)
Folded: 10" (25.4 cm)
Arm Diameter: 0.78: (20 mm) | | Attachment | 2x 5/8" (16 mm) with one female 1/4"-20 tap and the other 3/8"-16 tap | | Weight | 2.0 lb (.91 kg) | | | | Package Weight | 2.51 lb | | Box Dimensions (LxWxH) | 13.9 x 6.7 x 3.8" |
