User Manual for Impact Pivot Arm 20" with Locking Lever Click to enlarge the picture
Contents of the user manual for the Impact Pivot Arm 20" with Locking
- Product category: Extension Arms Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Extension Arms
 |
User manual for the Impact Pivot Arm 20" with Locking contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

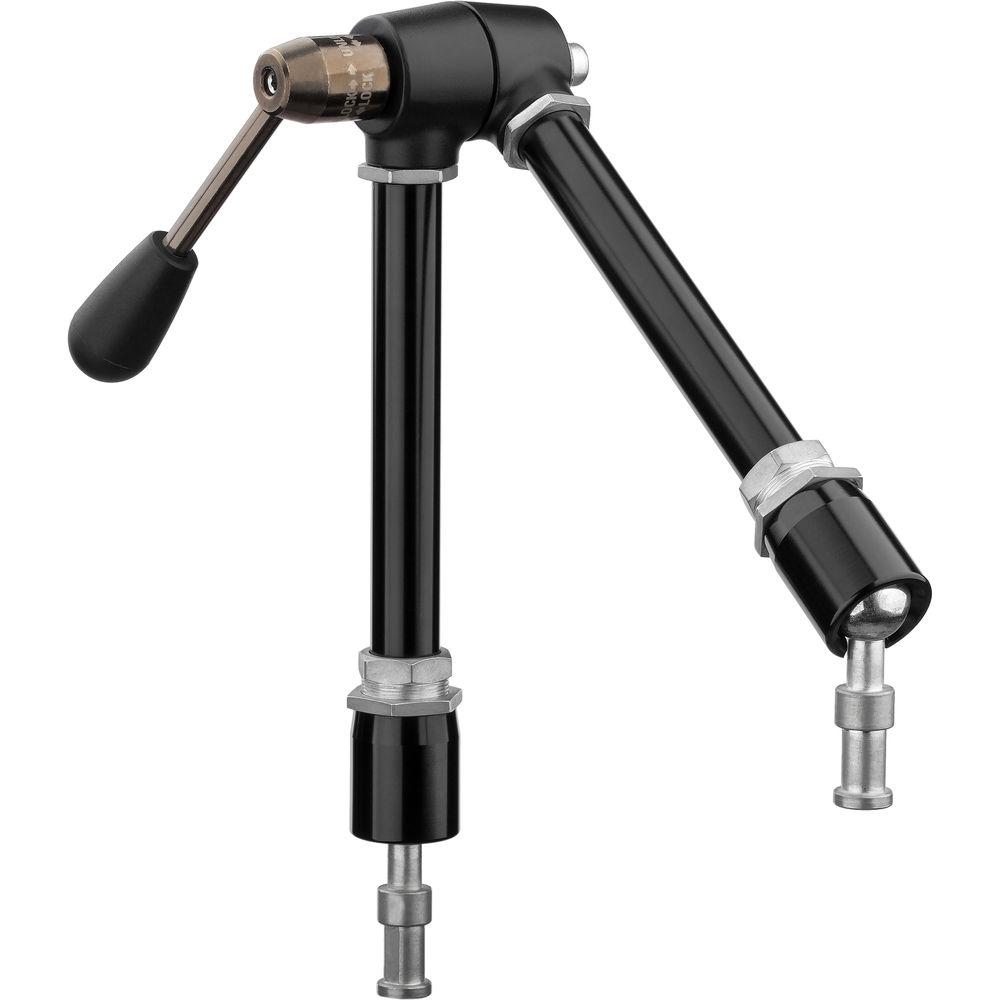

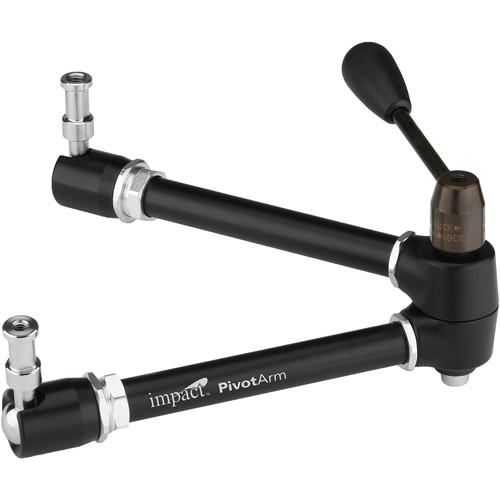

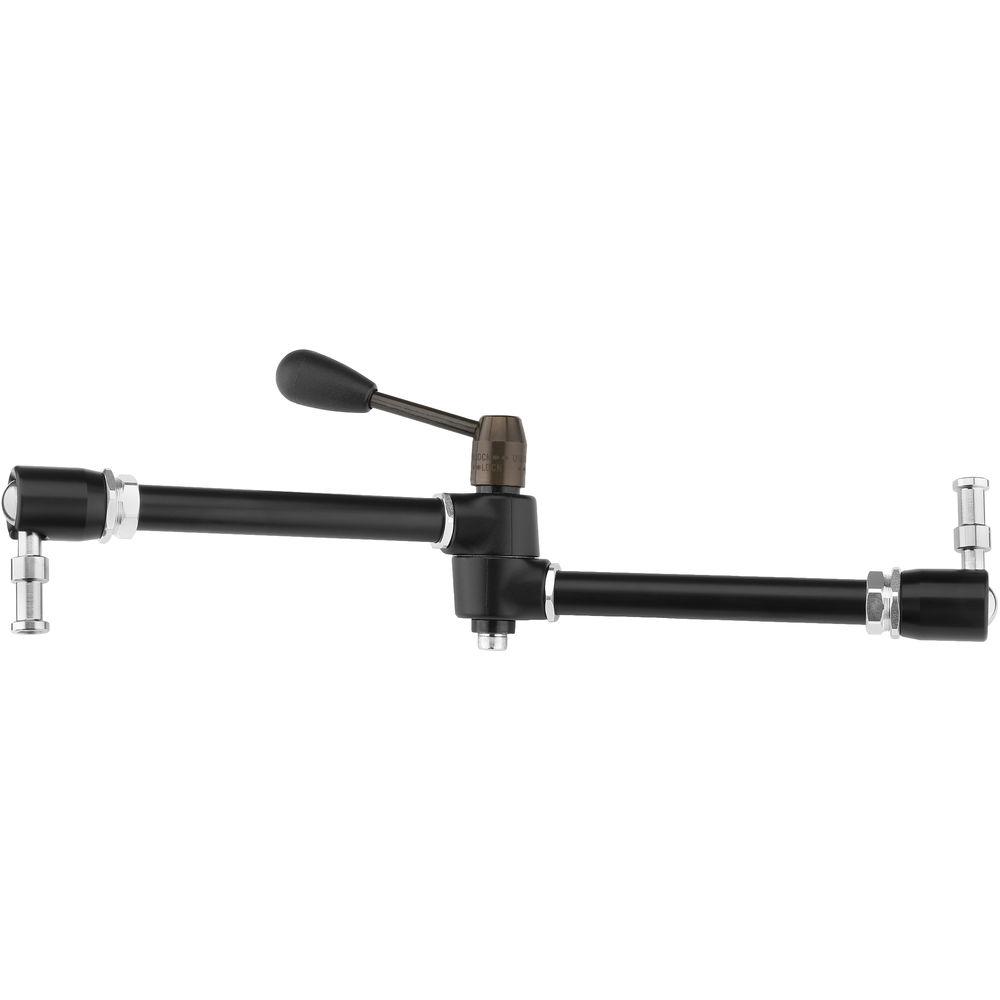

Product description Designed to hold a light fixture or accessory in place, the Impact Pivot Arm 20ʺ with Locking Lever is a space-saving grip tool for a variety of applications. It's a great matchup with a super clamp, for instance, with an optional camera platform for highly mobile work. The lever at the arm's elbow locks down securely in the position you've chosen and will support gear weighing up to 8 lb. - Position your lighting or camera gear where you need it with 360° rotation of the pivot arms. Maximum extension is 20"
- One baby pin is threaded female 1/4ʺ-20 and the other female 3/8ʺ for flexibility in the type of gear you can mount
- The intra-locking lever freezes the pivot arms and baby pins in position with one movement of the internal quick-locking mechanism
- The pins at the end of each arm are capable of swiveling on their ball and socket joints providing extra flexibility for positioning your equipment
UPC: 847628559172 In the Box Impact Pivot Arm 20" with Locking Lever 2 x Allen Wrench User Manual Limited 1-Year Warranty User Manual PDF 504.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Pivot Arm 20" with Locking Lever in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersImpact BHE-114 Specs | Material | Aluminum | | Load Capacity | 8.0 lb (3.6 kg) | | Dimensions | Extended: 20" (50.8 cm)
Folded: 10" (25.4 cm)
Arm diameter: 0.78: (20 mm) | | Attachment | 2x 5/8" (16 mm) with one having 1 female 1/4"-20 tap and the other 3/8-16 tap | | Weight | 2.0 lb (.91 kg) | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 13.55 x 7.85 x 3.2" |
