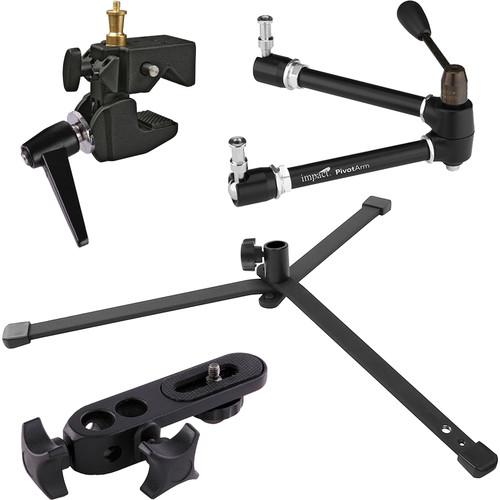

Product description A handy group of items to have on location or in the studio, the Impact Pivot Arm Kit was put together by B&H to offer the photographer various hands-free shooting and grip options. The kit includes a pivot arm, backlight stand base, super clamp and a camera platform.Pivot Arm
Designed to hold a light fixture or accessory in place, the 20" Impact Pivot Arm with Locking Lever is a space-saving grip tool for a variety of applications. It's a great matchup with a super clamp, for instance, with an optional camera platform for highly mobile work. The lever at the arm's elbow locks down securely in the position you've chosen and will support gear weighing up to eight pounds.Backlight Stand Base
The Impact Backlight Stand Base is a sturdy, all-steel lighting accessory that is ideal for low-angle applications such as mounting lighting fixtures and other accessories close to the floor or at table level. A 5/8" Baby receiver is built-in for mounting a light stand riser. With a footprint diameter of 20 inches, the rubber-tipped, tri-leg base provides stability and prevents slipping on a smooth surface. It sets up quickly, and the legs fold flat for easy moving and storage.Super Clamp
The Impact Super Clamp with Ratchet Handle is a versatile grip tool made of lightweight cast alloy. With a load capacity of 33 lb, the clamp can hold a wide variety of items such as cameras, lights, umbrellas, hooks, shelves, plate glass, cross bars, even other Super Clamps.The Super Clamp can be securely mounted on any tube or pipe from 0.5" to 2.1" and is supplied with a wedge insert for clamping onto flat surfaces. The ratchet handle allows you to disengage it and tighten it down from any angle; a very handy feature when you're using the clamp in tight quarters. A built-in socket holds 5/8" accessories such as the supplied SRP-102 Hex Stud with 1/4"-20 male thread.Camera Platform
The Impact Camera Platform supports lightweight cameras on the pivot arm or similar accessory. The platform features a captive, sliding 1/4"-20 camera screw and a non-slip surface. There are two 5/8" receivers for the arm or a stud. - Impact Pivot Arm 20" with Locking Lever Designed to hold a light fixture or accessory in place, the Impact Pivot Arm 20ʺ with Locking Lever is a space-saving grip tool for a variety of applications. It's a great matchup with a super clamp, for instance, with an optional camera platform for highly mobile work. The lever at the arm's elbow locks down securely in the position you've chosen and will support gear weighing up to 8 lb.
- Position your lighting or camera gear where you need it with 360° rotation of the pivot arms. Maximum extension is 20"
- One baby pin is threaded female 1/4ʺ-20 and the other female 3/8ʺ for flexibility in the type of gear you can mount
- The intra-locking lever freezes the pivot arms and baby pins in position with one movement of the internal quick-locking mechanism
- The pins at the end of each arm are capable of swiveling on their ball and socket joints providing extra flexibility for positioning your equipment
UPC: 847628559172 - Impact Backlight Stand Base The Impact Backlight Stand Base is a sturdy, all-steel lighting accessory that is ideal for low-angle applications such as mounting lighting fixtures and other accessories close to the floor or at table level. A 5/8" Baby receiver is built-in for mounting a light stand riser. With a footprint diameter of 20 inches, the rubber-tipped, tri-leg base provides stability and prevents slipping on a smooth surface. It sets up quickly, and the legs fold flat for easy moving and storage.
- Low-Angle Lighting Applications
- Mount lighting fixtures and accessories at floor or table level
- 5/8" Baby Receiver
- Allows for mounting a 5/8" (16 mm) spigot, pole, or light stand riser
- Sturdy
- All-steel construction offers durable support for lighting fixtures or accessories
- Stability
- The tri-leg base provides stability under recommended loads
UPC: 847628587762 - Impact Super Clamp with Ratchet Handle The Impact Super Clamp with Ratchet Handle is a versatile grip tool made of lightweight cast alloy. With a load capacity of 33 lb, the clamp can hold a wide variety of items such as cameras, lights, umbrellas, hooks, shelves, plate glass, cross bars, even other Super Clamps.The Super Clamp can be securely mounted on any tube or pipe from 0.5" to 2.1" and is supplied with a wedge insert for clamping onto flat surfaces. The ratchet handle allows you to disengage it and tighten it down from any angle; a very handy feature when you're using the clamp in tight quarters. A built-in socket holds 5/8" accessories such as the supplied SRP-102 Hex Stud with 1/4"-20 male thread. UPC: 847628538870
- Impact BHE-104 Camera Platform for Flex Arm The Impact BHE-104 Camera Platform for Flex Arm supports lightweight cameras up to 1.0 lb on the Impact Flex Arm or similar accessory. The platform features a captive, sliding 1/4"-20 camera screw and a non-slip surface. There are two 5/8" receivers for the arm or a stud. UPC: 847628556102
In the Box - Pivot Arm 20" with Locking Lever yyxxccxqrqdu
- 2 x Allen Wrench
- User Manual
- Limited 1-Year Warranty
- Super Clamp with Ratchet Handle
- BHE-104 Camera Platform for Flex Arm
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Pivot Arm Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact Pivot Arm 20" with Locking Lever
| Material | Aluminum | | Load Capacity | 8.0 lb (3.6 kg) | | Dimensions | Extended: 20" (50.8 cm)
Folded: 10" (25.4 cm)
Arm diameter: 0.78: (20 mm) | | Attachment | 2x 5/8" (16 mm) with one having 1 female 1/4"-20 tap and the other 3/8-16 tap | | Weight | 2.0 lb (.91 kg) | | | | Box Dimensions (LxWxH) | 13.55 x 7.85 x 3.2" | - Impact Backlight Stand Base
| Load Capacity | 33 lb / 15 kg | | Mounting Options | 5/8" Receiver | | Maximum Working Height | 4.2" / 10.8 cm | | Collapsed Height | 13.2" / 33.6 cm | | Footprint Diameter | 20" / 51 cm | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Material | Steel | | Weight | 3.0 lb / 1.4 kg | | | | Box Dimensions (LxWxH) | 15.6 x 3.15 x 3.15" | - Impact Super Clamp with Ratchet Handle
| Clamp Type | Jaw | | Jaw Shape | Round | | Jaw Opening | 0.5 to 2.1 " / 1.3 to 5.3 cm | | Load Capacity | 33 lb / 15 kg | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 10.2 x 5.35 x 2.3" | - Impact BHE-104 Camera Platform for Flex Arm
| Construction | Black aluminum | | Mounting Screw | 1/4"-20 | | Mount | Dual 5/8" (16 mm) receivers | | Weight | 0.31 lb (0.14 kg) | | | | Box Dimensions (LxWxH) | 6.55 x 3.9 x 1.85" |
