User manual

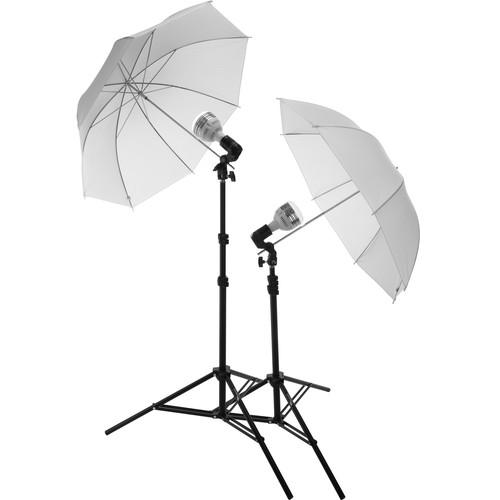

Impact Portrait Light Kit with 6'

User Manual for Impact Portrait Light Kit with 6' Light Stand, LED Fluorescent Lamp Holder, 60W Bulb, and Umbrella

• Product category: LED Lights Impact
• Brand: Impact
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Impact LED Lights

Product description

• 2 x Impact Light Stand, Black (6') This 6' Impact Black Light Stand is one of the most economical light stands available. It has a 5/8" stud top with a 1/4"-20 thread.
  • For small light fixtures or boom arms.
  UPC: 847628011953
• 2 x Raya Single LED/Fluorescent Lamp Holder with Umbrella Socket The Single LED/Fluorescent Lamp Holder with Umbrella Socket is a compact and convenient way to power E26/E27 Edison household base LED or fluorescent bulbs. The fixture has a 7.5' power cord and can be used bare-bulb or with an umbrella up to 60" (thanks to the umbrella socket) to soften the output. The Lamp Holder has tilting adjustment, and can be mounted vertically or horizontally on a light stand via its 5/8" receiver.
  Benefits
  • The socket accepts any LED or fluorescent bulb with an Edison base.
  • The fixture's adjustable tilt lets you experiment with light angle.
  • If a softer and more diffused light is desired, the FF-SULH is designed with a mounting socket for a photo umbrella up to 60".
  • The fixture can be mounted vertically or horizontally for greater control over your light.
  UPC: 847628599505
• 2 x Raya 60W LED Daylight Studio Bulb Create a photo quality continuous light source anywhere with a standard E26 Edison socket with this 60W LED Daylight Studio Bulb from Raya. Able to produce daylight-balanced 5400K light, this bulb can find uses in a variety of applications, especially being multi-voltage and switching from 100-240 VAC for worldwide use. Equivalent to a 250W incandescent bulb, it delivers a brightness of 4200 lumens at 3.3'. Also, it has a CRI of 84 for creating accurate colors. LED technology allows the light to run cool, and this is further assisted by a built-in fan. Additionally, it has a frosted finish for a soft output, as well as a rated average lifetime of 30,000 hours. UPC: 847628599475
• 2 x Impact White Translucent Umbrella (33") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 33" White Translucent Umbrella is suggested for use in head-and-shoulders portraits for one or two persons. UPC: 847628013278

• 2 x Light Stand, Black (6') brxvdfreaz
• Limited 1-Year Warranty

• 2 x Raya - Single LED/Fluorescent Lamp Holder with Umbrella Socket

• 2 x Raya - 60W LED Daylight Studio Bulb

• 2 x Umbrella - White Translucent (33")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Impact Light Stand, Black (6')

  Load Capacity	4 lb / 1.8 kg
  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Maximum Working Height	6' / 1.8 m
  Minimum Working Height	26.3" / 66.8 cm
  Collapsed Height	26.3" / 66.8 cm
  Footprint Diameter	30" / 76.20 cm
  Leg Shape	Round
  Accepts Wheels	Yes
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Weight	1.8 lb / 0.8 kg

  Box Dimensions (LxWxH)	26.4 x 3.5 x 3.5"

• 2 x Raya Single LED/Fluorescent Lamp Holder with Umbrella Socket

  Operating Voltage	100 to 240 VAC, 50/60 Hz with appropriate plug adapter for regions other than USA and Canada
  Base	E26 / E27 Edison
  Dimming	No
  Cable	7.5' (2.3 m)
  Mount	5/8" (16 mm) receiver
  Dimensions	6.0 x 2.25 x 1.5" (15.2 x 5.7 x 3.8 cm)
  Weight	0.45 lb (204.1 g)

  Box Dimensions (LxWxH)	5.65 x 3.4 x 3.1"

• 2 x Raya 60W LED Daylight Studio Bulb

  Type	LED
  Wattage	60 W
  CRI	84
  Base	E26 Edison
  Color Temperature	5400K
  Brightness	4200 lumens at 3.3' / 1 m
  Dimming	No
  Finish	Frosted
  Cooling	Fan
  Average Life Hours	30,000 hours
  Power Requirements	100-250 VAC, 50/60 Hz
  Dimensions (Diam. x L)	3.7 x 5.9" / 9.4 x 14.6 cm
  Weight	8.4 oz / 238 g

  Box Dimensions (LxWxH)	11.8 x 6.25 x 3.8"

• 2 x Impact White Translucent Umbrella (33")

  Size	33.0" / 83.8 cm
  Interior	White (Translucent)
  Shaft Diameter	8 mm
  Folded Size	L: 23.0" / L: 58.4 cm

  Box Dimensions (LxWxH)	21.55 x 3.7 x 1.6"
