User Manual for Impact PowerTrigger 16 Channel Studio Receiver Click to enlarge the picture
Contents of the user manual for the Impact PowerTrigger 16 Channel Studio Receiver
- Product category: Radio & Infrared Transmitters Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Radio & Infrared Transmitters
 |
User manual for the Impact PowerTrigger 16 Channel Studio Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

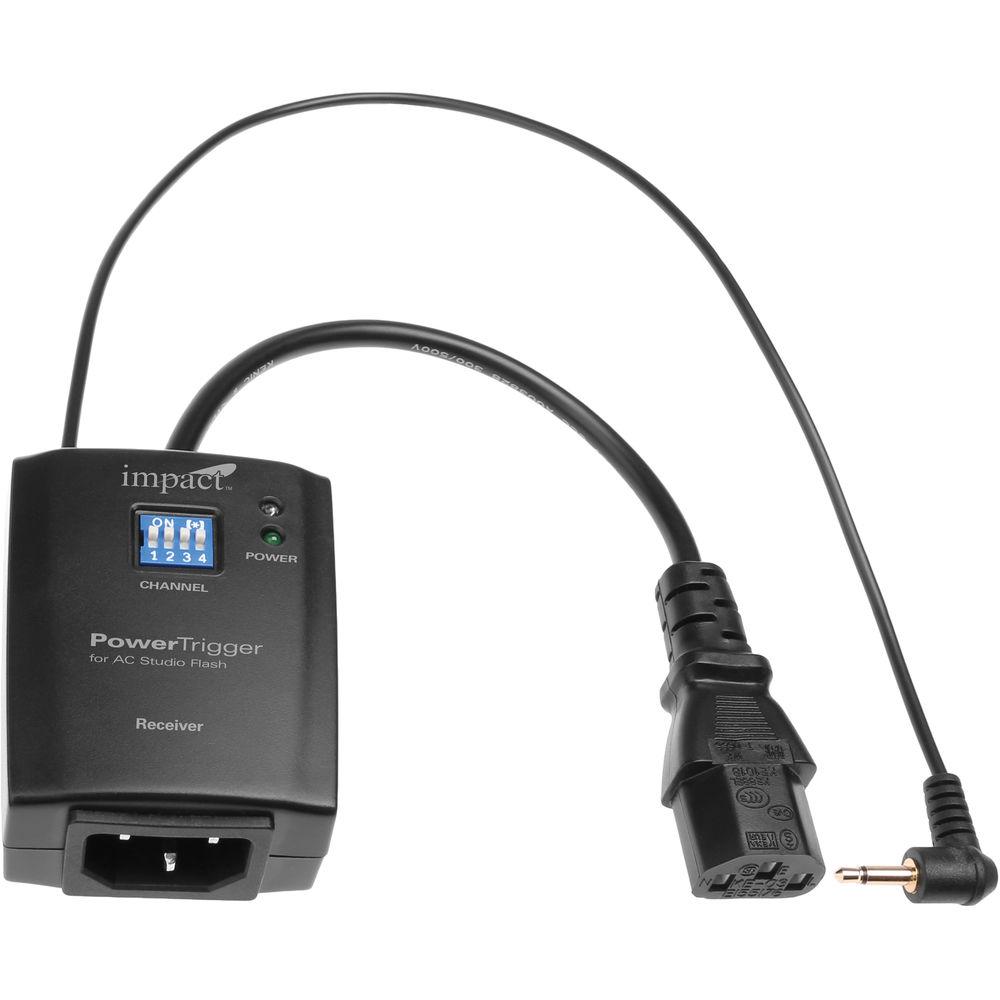

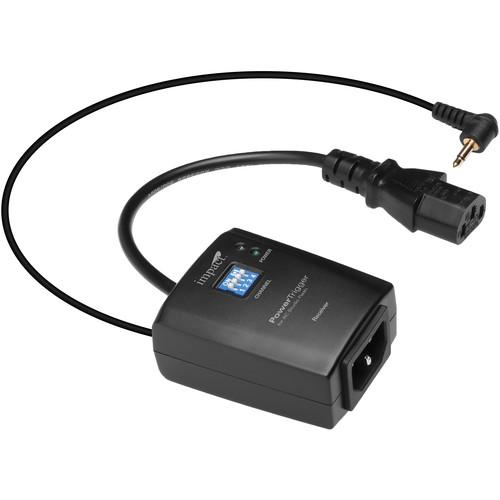

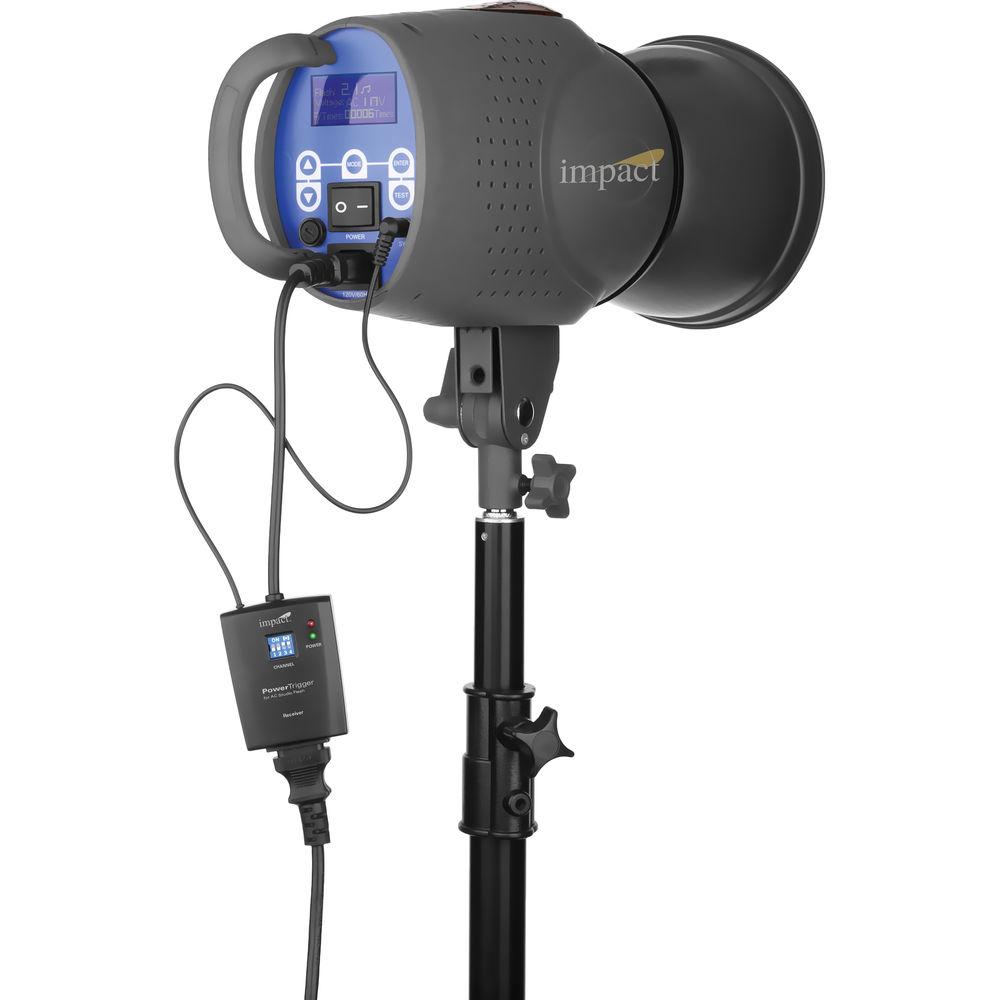

Product description The PowerTrigger 16 Channel Receiver from Impact is a convenient tool when used with its optional transmitter that allows you to wirelessly trigger your studio AC flash unit at distances up to 75'. Unlike the transmitter, the PowerTrigger receiver doesn't use batteries and is instead powered by the same AC cord that's used for your monolight. Think of it as an in-line receiver. Simply plug the end of the power cord into the receiver then plug the receiver's power cord into the head's power outlet. Finally, plug the PowerTrigger's attached 3.5mm sync cable into the flash. A 1/4" mono plug adapter is provided if the head doesn't have 3.5mm input. If you don't know what your flash head's sync voltage is, or if you're using an older unit you might want to purchase a Wein Safe-Sync adapter (MFR# 990-510) to insure that the sync voltage remains under 6V. The Safe Sync's monoplug attachment can be easily adapted to 3.5mm if necessary. - AC Receiver / AC Power
- The AC-powered receiver does not require the use of batteries
- 433 MHz Radio Signal
- Using a powerful radio signal allows you to trigger your studio flash without line of sight positioning
- Flash Sync Speed of up to 1/200 Sec.
- Take advantage of sync speeds up to 1/200 of a second with compatible cameras
- Wireless
- Cable-free triggering allows you to activate a studio flash from up to 75' (22.8m) away without a physical connection
- 16 User-selectable Channels
- Multiple channels allow you to change your receiver settings to avoid interference from other wireless devices
- LED Indicator
- Confirms sending/receiving signals and active AC power
- Multi-voltage
- 100-230 VAC, 50/60 Hz
UPC: 847628579514 In the Box Impact PowerTrigger 16 Channel Studio Receiver Monoplug Adapter (3.5 mm to 1/4") Instruction Manual Limited 1-Year Warranty User Manual PDF 1.2mbcqustfxtddstsuxafawvcefrtzr Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact PowerTrigger 16 Channel Studio Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersImpact PT-AC16R Specs | | | Channels | 16 | | Wireless Range | 75' / 22.8 m | | Radio Frequency | 433 MHz | | | | Dimensions | 1.3 x 2.2 x 2.8" / 3.4 x 5.7 x 7.1 cm (Receiver) | | Weight | 3.9 oz / 110.5 g | | | | Package Weight | 0.34 lb | | Box Dimensions (LxWxH) | 15.25 x 8.0 x 1.8" |
