User Manual for Impact Qualite 300 Focusing Flood 2 Light Kit Click to enlarge the picture
Contents of the user manual for the Impact Qualite 300 Focusing Flood 2
- Product category: Tungsten Lights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Tungsten Lights
|
User manual for the Impact Qualite 300 Focusing Flood 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

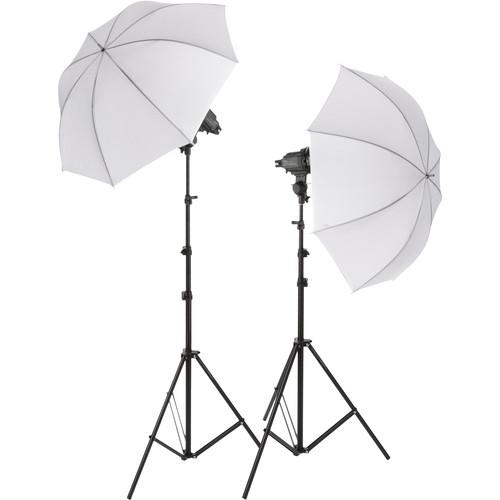

Product description This Impact Qualite 300 Two Light Kit is centered around the Impact Qualite 300 Focusing Flood Light. The QL300 provides 300 watts of even light. It has a cool-touch handle for aiming the fixture, and the beam ranges from 21-40°. Each QL300 comes with a 4-leaf barndoor set, safety glass, and 300W bulb. Each fixture sets up quickly on the included Impact Air Cushioned Light Stands. The 33" translucent umbrellas allow you to soften the light emitted from the fixtures for better portraits and more even lighting for still-life subjects. - 2 x Angler Shadow Focus Spot 300 Focusing Flood Light The Angler Shadow Focus Spot 300 Focusing Flood Light is a 300W focusable fixture with a wide-angle 21-40° beam angle that's variable with a simple knob. The safety-glass-protected, separately purchased lamp has a color temperature of approximately 3100K with an average lamp life of 100 hours. Four-way barndoors are included to put the light where you want it and keep it off of areas that you don't. Convenience features include a cool-touch handle for safe tilting adjustments and a 12.5' power cable with an in-line switch and a grounded 3-prong US/North American plug.
- Beam Angle
- Flood Beam angle is variable from 21 to 40 degrees
- Cool-Touch Handle
- Allows tilt adjustment without burning hands
- Barndoors
- 4-leaf barndoor set included to control beam spread
- Heavy Duty Cable
- 18-gauge power cord with inline switch
- Lightweight
- Lightweight synthetic construction
UPC: 847628589254 - 2 x Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
- Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights.
- Available as accessories.
UPC: 847628012349 - 2 x Impact White Translucent Umbrella (33") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 33" White Translucent Umbrella is suggested for use in head-and-shoulders portraits for one or two persons. UPC: 847628013278
In the Box - 2 x Angler - Shadow Focus Spot 300 Focusing Flood Light xuqbyucfxbucsswtvubdxewau
- Four-Way Barndoor Set
- Safety Glass
- Limited 1-Year Warranty
- 2 x Air-Cushioned Light Stand (Black, 8')
- 2 x Umbrella - White Translucent (33") xuqbyucfxbucsswtvubdxewau
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Qualite 300 Focusing Flood 2 Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Angler Shadow Focus Spot 300 Focusing Flood Light
| Material of Construction | Synthetic housing, 4" aluminum reflector | | Light Source | Quartz halogen | | Lamp | 300 W (purchased separately)
Lamp Life: Approximately 100 hours | | Socket (Lampholder) | 2-pin (GY9.5) | | Light Intensity | Approximately 7500 lumens | | Color Temperature | 3100K | | Cooling | Convection | | Focus Adjustment | 21-40° Beam | | Power Cable | 12.5' / 3.8 m, 18-gauge with 3-prong US/North American plug and inline switch | | Power Requirements | 120 VAC, 60 Hz | | Mounting | 5/8" / 16 mm receiver | | Dimensions | 8.75 x 8.75 x 6.0" / 22 x 22 x 15 cm | | Weight | 3.46 lb / 1.5 kg | | | | Box Dimensions (LxWxH) | 10.55 x 8.4 x 7.45" | - 2 x Impact Air-Cushioned Light Stand (Black, 8')
| Maximum Load | 8 lb (3.6 kg) | | Leg Tip | 20 mm | | Attachment Size | 5/8" Stud with 1/4"-20 in threaded tip | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Maximum Height | 96" (243.8 cm) | | Minimum Height | 34" (86.3 cm) | | Folded Height | 29.6 (75.2 cm) | | Footprint Diameter | 36" (91.4 cm) | | Weight | 2.05 lb (1 kg) | | | | Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.15" | - 2 x Impact White Translucent Umbrella (33")
| Size | 33.0" / 83.8 cm | | Interior | White (Translucent) | | Shaft Diameter | 8 mm | | Folded Size | L: 23.0" / L: 58.4 cm | | | | Box Dimensions (LxWxH) | 21.55 x 3.7 x 1.6" |
