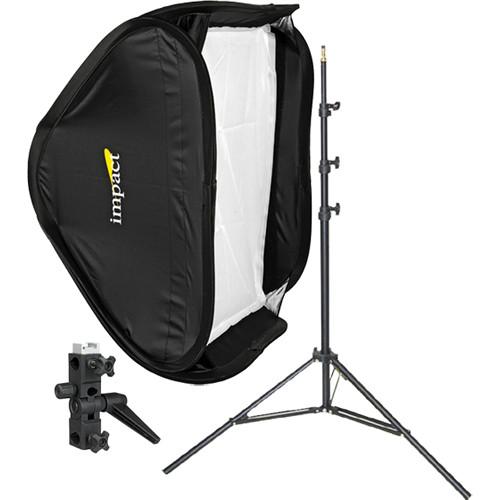

User Manual for Impact Quikbox Softbox Kit Click to enlarge the picture
Contents of the user manual for the Impact Quikbox Softbox Kit
- Product category: Softboxes Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Softboxes
|
User manual for the Impact Quikbox Softbox Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|
Product description The Impact Quikbox Softbox Kit (24 x 24") is a great way to expand the capabilities of your shoe mount stand flash unit. The Quikbox lives up to its name by popping open and assembling in a couple of minutes. Just pop open the softbox, add the diffusers and included adapter ring and shoe adapter. Mount to the included umbrella bracket, slip it onto the provided air-cushioned light stand and you're ready to shoot. Using a softbox with your shoe-mounted flash will help to diffuse and to evenly distribute the light output of the flash. This will help to reduce those harsh shadows which are often the result of flash photography. Also included is an internal diffuser, to minimize the possibility of hotspots. In addition, the recessed front face helps to control light spill. The included flash bracket is adjustable vertically, and features a universal shoe which is adjustable horizontally. These adjustments make this unit compatible with virtually all standard flash units (incl. Nikon SB-900 & SB-910), as well as radio receivers. In addition, for those receivers that do not feature a bottom shoe connector, the bracket shoe is removable to expose a male 1/4"-20 screw. There are also three plastic washers included in the shoe assembly, to accommodate receivers of various sizes. - Impact Quikbox Softbox with Shoe Mount Flash Bracket (24 x 24")
- A Beginner's Guide to Using Softboxes Demo
The Impact Quikbox (24 x 24") is a great way to expand the capabilities of your on-camera, shoe-mount flash. The Quikbox lives up to its name by popping open and assembling in a couple of minutes. Just pop open the softbox, add the diffusers and included adapter ring and shoe adapter, mount on a lightstand and you're ready to shoot. Using a softbox with your shoe-mounted flash will help to diffuse and to evenly distribute the light output of the flash. This will help to reduce those harsh shadows which are often the result of flash photography. Also included is an internal diffuser, to minimize the possibility of hotspots. In addition, the recessed front face helps to control light spill. The included flash bracket is adjustable vertically, and features a universal shoe which is adjustable horizontally. These adjustments make this unit compatible with virtually all standard flash units (incl. Nikon SB-900 & SB-910), as well as radio receivers. In addition, for those receivers that do not feature a bottom shoe connector, the bracket shoe is removable to expose a male 1/4"-20 screw. There are also three plastic washers included in the shoe assembly, to accommodate receivers of various sizes. - Sets up in minutes - no troublesome rods
UPC: 847628012479 - Impact Air-Cushioned Light Stand (Black, 8')
- A Beginner's Guide to Using Softboxes Demo
This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions. - Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights.
- Available as accessories.
UPC: 847628012349 - Impact Umbrella Bracket
- A Beginner's Guide to Using Softboxes Demo
The Impact Shoe Mount Umbrella Bracket is a versatile bracket that will fit on almost any light stand. It includes two removable, reversible studs to adapt to light stands with top studs smaller than the standard 5/8". This bracket tilts and swivels to make aiming the light or flash easy. It also includes a cold shoe mount, which will accept virtually any shoe-mount flash unit (except Minolta/Sony). Note: Not compatible with Nikon SB-900, SB-910, or Canon 600EX-RT. As an alternative, please see Impact #9101880. - Two Removable Studs
- The provided studs can be removed from the interior of the bracket by totally loosening the wing knobs and letting them slide out. These studs can be used to mount the bracket to a 1/4"-20 (standard) and 3/8" threaded stand or tripod tops. One stud is used for the flash shoe. The shoe may be unscrewed from this stud.
- Top Swivel Section
- Identified by the small round umbrella socket and locking knob
- Bottom Section
- Contains the locking swivel lever
- Vertical Or Horizontal Use
- Once the stud is removed, the bracket may be mounted vertically, or horizontally out from the top of almost any stand with a 5/8" (Baby) top.
UPC: 847628010819 - Impact Fabric Grid for 24 x 24" Quikbox
- A Beginner's Guide to Using Softboxes Demo
The Impact Fabric Grid for 24 x 24" Quikbox gives you all of the benefits of a soft, low-contrast light source with the addition of the control and directionality you would normally get from a reflector. The grid tunnels the light forward, reducing spill light that might compromise your background lighting or produce flare. It attaches via simple touch fasteners and quickly folds flat to a fraction of its open size for storage. UPC: 847628561533 In the Box - Quikbox Softbox with Shoe Mount Flash Bracket (24 x 24") fterbwtcfwzzsysdsbzbdbdw
- Softbox
- Interior Diffuser
- Exterior Diffuser
- Adapter Ring
- Mounting Bracket with Removable Shoe
- 3 x Plastic Washer
- Carry Bag for Whole Kit
- User Manual
- Limited 1-Year Warranty
- Air-Cushioned Light Stand (Black, 8') fterbwtcfwzzsysdsbzbdbdw
Includes Free - Fabric Grid for 24 x 24" Quikbox
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Quikbox Softbox Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact Quikbox Softbox with Shoe Mount Flash Bracket (24 x 24")
| Shape | Square | | Interior | Silver | | Requires Speed Ring | Yes, Included | | Accepts Grids | Yes | | Maximum Wattage | 250 W | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Rectangular Dimensions | W: 24.0 x H: 24.0" / W: 61.0 x H: 61.0 cm | | Weight | 2.8 lb / 1.270 kg (with Case) | | | | Box Dimensions (LxWxH) | 24.0 x 13.5 x 3.8" | - Impact Air-Cushioned Light Stand (Black, 8')
| Maximum Load | 8 lb (3.6 kg) | | Leg Tip | 20 mm | | Attachment Size | 5/8" Stud with 1/4"-20 in threaded tip | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Maximum Height | 96" (243.8 cm) | | Minimum Height | 34" (86.3 cm) | | Folded Height | 29.6 (75.2 cm) | | Footprint Diameter | 36" (91.4 cm) | | Weight | 2.05 lb (1 kg) | | | | Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.15" | - Impact Umbrella Bracket
| | | Box Dimensions (LxWxH) | 8.45 x 5.95 x 2.7" | - Impact Fabric Grid for 24 x 24" Quikbox
| Construction | Nylon | | Dimensions | 24 x 24 x 2.0" / 61 x 61 x 5.0 cm | | Weight | 0.15 lb / 0.068 kg | | | | Box Dimensions (LxWxH) | 14.7 x 5.05 x 2.3" |
