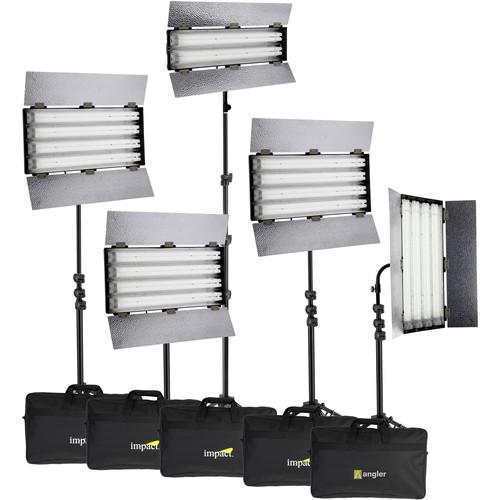

Product description The Impact 5 Fluorescent Light Kit was put together by to offer image makers a complete lighting kit for a mid-sized studio or small production on location. The kit includes 4 READY COOL 4 Lamp Fluorescent Fixtures with 2/4 lamp switching and 1 READY COOL 2 Light Fixture. Each light comes complete with built-in barndoors, daylight-balanced lamps, a 10' air-cushioned light stand, and an individual padded carry case. - 4 x Impact READY COOL 4-Lamp Fluorescent Fixture The Impact READY COOL 4-Lamp Fluorescent Fixture is an economical light source that combines an efficient reflector with built-in hammered aluminum reflective barndoors to give you a fixture capable of an impressive output equivalent to a 1000W hot light. However, unlike tungsten lights, the FRC-24 has a very low power draw and emits very little heat, meaning reduced operational costs and minimal potential harm to your set or talent. Additionally, with lamp life up to 8000 hours the FRC-24 is virtually maintenance-free. One of the FRC-24's most useful features is 2-lamp/4-lamp switching, that allows you to reduce the power to 50% for low light shooting. It's also possible to install both tungsten balanced and daylight-balanced lamps for dual color capability. The FRC-24 comes with the fixture, lamps, power cord, flexible gooseneck stand mount with 5/8" receiver, and a padded carrying bag to transport or store it all. The FRC-24 is a muti voltage fixture that can be used anywhere in the world with 110-220 VAC, 50/60 Hz. An optional plug adapter will be needed for outlets outside of the U.S.
- Cool-running daylight-balanced fluorescent light
- Built-in fused circuit protection
UPC: 847628569607 - Angler Steady Cool 2-Lamp Fluorescent Fixture The IUF-55 Steady Cool 2-Lamp Fluorescent Fixture from Angler is a lightweight fixture that serves as an ideal portable core unit for any setup. The 22.25 x 7 x 3.25" fixture weighs just 3.75 lb and comes with two 55W daylight-balanced lamps that can be swapped out for optional tungsten bulbs. Its hammered reflective silver barndoors help control the IUF-55's output as well as containing spill light. Its flexible gooseneck mount allows for multiple setup options while its 5/8" receiver accepts light stands with a matching stud.The IUF-55 Steady Cool draws very little power for a fast ROI in the studio while its multi-voltage 110-220 VAC power supply allows location use anywhere in the world. The light comes with a padded carry case for storage and transport.
- Cool running, low power draw, daylight-balanced fluorescent light
- Air-cooled for quiet operation
UPC: 847628589049 - 5 x Impact Air-Cushioned Light Stand (Black, 10') This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
- Air-Cushioned
- Protects equipment and fingers from damage
- Compact Design
- Will fit easily into most location cases
- Accepts Casters
- For easy positioning of lights
UPC: 847628030626 In the Box - 4 x READY COOL 4-Lamp Fluorescent Fixture zvfszxbu
- Light Fixture
- 4 x Twin-Tube 4-Pin 55W Daylight Fluorescent Bulbs
- AC Power Cord
- Flexible Light Stand Adapter
- 2 x Spare Fuses (20mm)
- Soft Padded Carrying Case
- Limited 1-Year Warranty
- Angler - Steady Cool 2-Lamp Fluorescent Fixture
- 5 x Air-Cushioned Light Stand (Black, 10')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact READY COOL Fluorescent 5-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4 x Impact READY COOL 4-Lamp Fluorescent Fixture
Construction | Aluminum | Input Voltage | 110-220 VAC @ 50/60 Hz | Lamps | 4 x Twin-tube 55 W daylight balanced fluorescent | Lamp Life | Up to 8000 hours | CRI | >90 | Base | 2G11 | Ballast | Built-in | Mounting | 5/8" / 16 mm | Power Requirements | 110-220 VAC | Amperage | 1.1 A | Dimensions | 22.25 x 10.9 x 3.5" / 56.5 x 27.6 x 9.0 cm | Weight | 4.75 lb / 2.15 kg | | Box Dimensions (LxWxH) | 26.0 x 13.0 x 5.5" | - Angler Steady Cool 2-Lamp Fluorescent Fixture
Construction | Aluminum | Lamps | 2 x Included 55 W daylight-balanced fluorescent | Mounting | 5/8" / 16 mm | Input Voltage | 110-220 VAC @ 50/60 Hz, 1.1 A | Amperage | 1.1 A | Dimensions | 22.25 x 7.0 x 3.25" / 56.5 x 17.8 x 8.25 cm | Weight | 3.75 lb / 1.7 kg | | Box Dimensions (LxWxH) | 26.0 x 9.0 x 5.0" | - 5 x Impact Air-Cushioned Light Stand (Black, 10')
Maximum Load | 8.5 lb (3.8 kg) | Maximum Height | 121.5" (308.6 cm) | Minimum Height | 40.5" (102.9 cm) | Closed Length | 33.5" (85 cm) | Footprint Diameter | 38" (96.5 cm) | Leg Tip | 0.8" (20 mm) | Attachment Size | 5/8" (16 mm) stud with 1/4"-20 male threads | Accepts Wheels | Yes, casters | Air Cushioned | Yes | Weight | 2.4 lb (1.1 kg) | | Box Dimensions (LxWxH) | 34.0 x 3.0 x 3.0" |
