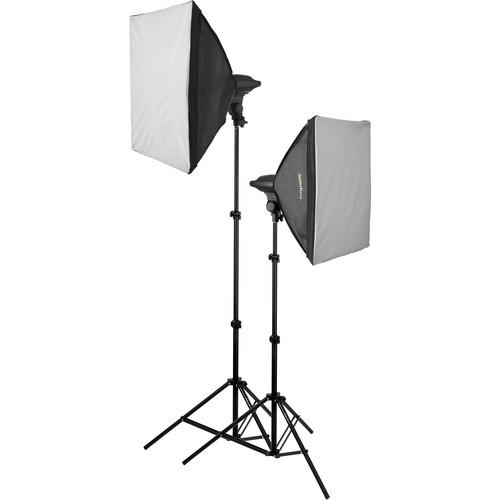

Product description The Impact Soft and Natural Single Socket 2-Light Kit was put together to help image makers who need a lightweight setup for a wide variety of subjects. The two included Impact Single Socket Fluorescent Fixtures accept lamps up to 105W and have built-in tilting brackets and 5/8" receivers for the included 6.0' light stands. Instead of a speed ring, these lights have four receptacles around the head that accept the poles from the included 20 x 20" softboxes. The kit includes two digital-friendly CFL fluorescent lamps with E26 screw-in bases and a daylight temperature of 5000K. - 2 x Impact Single Socket Fluorescent Fixture The Single Socket Fluorescent Fixture from Impact is a lightweight fixture in a polycarbonate housing designed to accept Edison-base compact fluorescent lamps. It can be used with up to 105W CFL bulbs. The fixture's bracket tilts and locks into position and features a standard 5/8" receiver that mounts on any 5/8" stud or accessory. UPC: 847628563582
- 2 x Impact Light Stand, Black (6') This 6' Impact Black Light Stand is one of the most economical light stands available. It has a 5/8" stud top with a 1/4"-20 thread.
- For small light fixtures or boom arms.
UPC: 847628011953 - 2 x Impact 50 x 50 cm Softbox for Fluorescent Fixtures The 50 x 50 cm Softbox for Fluorescent Fixtures by Impact is a light modifier that softens the output from Impact FF-S1 and FF-S4 single- and four-socket fluorescent fixtures, as well as Impact's SF-ABRL160 Slave Flash. Installation is easy - no speed ring is needed; each of these heads has four receptacles located around the face of the fixture. The softbox can be used with up to four 50W fluorescent lamps for a total of 200W. UPC: 847628563612
- 2 x Eiko SP27/50K Spiral Fluorescent Lamp (26W/120V) The Eiko SP27/50K Spiral Fluorescent lamp (26/120V) is an Edison base (E26) screw-in bulb, for the SP Systems Cool Light, Interfit, Impact, Bowens Tri-Lite, or any other floodlight fixture that can accept a large bulb. The lamp has a color temperature of 5000° and an average life of 10,000 hours. This lamp is not for use with dimmers, electronic timers, photocells, totally enclosed fixtures, motion/occupancy sensors, or where directly exposed to water. UPC: 031293054159
In the Box - 2 x Single Socket Fluorescent Fixture aeaycetreyasevxyautbxvawdyvxstevcecwxw
- Limited 1-Year Warranty
- 2 x Light Stand, Black (6')
- 2 x 50 x 50 cm Softbox for Fluorescent Fixtures
- 2 x Eiko - SP27/50K Spiral Fluorescent Lamp (26W/120V) aeaycetreyasevxyautbxvawdyvxstevcecwxw
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Soft and Natural Single Socket 2-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Impact Single Socket Fluorescent Fixture
| Input Voltage | 120VAC | | Lamps | CFL (compact fluorescent lamps) | | Ballast | In lamp | | Mounting | 5/8" (16 mm) | | Dimensions (L x W x H) | 6.5 x 4.1 x 6.5" (16.5 x 10.4 x 16.5 cm) | | Weight | 1.1 lb (500 g) | | | | Box Dimensions (LxWxH) | 7.65 x 6.95 x 4.6" | - 2 x Impact Light Stand, Black (6')
| Load Capacity | 4 lb / 1.8 kg | | Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 6' / 1.8 m | | Minimum Working Height | 26.3" / 66.8 cm | | Collapsed Height | 26.3" / 66.8 cm | | Footprint Diameter | 30" / 76.20 cm | | Leg Shape | Round | | Accepts Wheels | Yes | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 26.4 x 3.5 x 3.5" | - 2 x Impact 50 x 50 cm Softbox for Fluorescent Fixtures
| Shape | Square | | Interior | Silver | | Requires Speed Ring | No | | Accepts Grids | No | | Maximum Wattage | 250 W | | Removable Front Face | Yes | | Removable Interior Baffle | No | | Rectangular Dimensions | W: 20.0 x H: 20.0" / W: 50.8 x H: 50.8 cm | | | | Box Dimensions (LxWxH) | 17.75 x 8.5 x 1.5" | - 2 x Eiko SP27/50K Spiral Fluorescent Lamp (26W/120V)
| Code | SP27/50K | | Base Type | E26 | | Bulb Shape | Spiral | | Lumens | 1700 | | Wattage | 27 W | | Color Temperature | 5000K | | Bulb Color | None | | Color Accuracy Standard | CRI 80 | | Average Life | 10,000 Hours | | Maximum Overall Length (MOL) | 5.5" / 14.0 cm | | Maximum Overall Diameter (MOD) | 2.4" / 6.1 cm | | AC Input Power | 120 VAC, 60 Hz | | | | Box Dimensions (LxWxH) | 5.6 x 2.45 x 2.35" |
