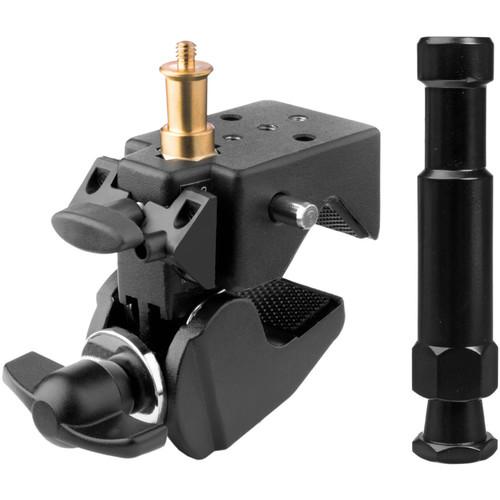

User Manual for Impact Super Clamp with 5 8" Snap-In Pin Click to enlarge the picture
Contents of the user manual for the Impact Super Clamp with 5 8"
- Product category: Clamps & Clips Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Clamps & Clips
|
User manual for the Impact Super Clamp with 5 8" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|
Product description With its small form factor and light weight, the Impact Super Clamp with 5/8" Snap-In Pin from B&H is a handy piece of grip gear with a variety of uses on set or on the road. Although small in size, the clamp can support lights or accessories that are 0.5 to 2.1" in thickness and weigh up to 33 lb. The clamp is provided with a brass 5/8" pin with 1/4"-20 threads for use in the receiver of a light or to screw into threaded accessories. A 4.7" long, black 5/8" aluminum pin with an anti-twist hex base is also included for support of more than one item. The clamp comes with a polymer wedge for a more secure grip on flat objects. - Impact Super Clamp with T-Handle The Impact Super Clamp with T-Handle is a staple on any set or shoot. Like gaffer's tape, this is a piece of gear that you'll always find a use for. Its strong rubber-padded jaws open up to 2.16", then lock securely with the short, ergonomic knob. For better grip on flat surfaces, a furniture wedge is included . The Super Clamp has 1/4"-20 female threads and a push-button, locking 5/8" hexagonal female receiver. A hex-base 5/8" Baby stud with a 1/4"-20 male threads on top is included for camera and light accessories. UPC: 847628563360
- Impact 5/8" Snap-in Pin for Super Clamps (Black) This is a 4.7" (11.9 cm) black 5/8" Snap-in Pin for Super Clamps from Impact. It has a 5/8" (16 mm) spigot (non-threaded) attachment one end, and the hexagonal Super Clamp type fitting on the other end. It can be used to connect a lighting fixture that has a 5/8" female receptor to a Super Clamp. It is constructed from aluminum, and comes finished in black. UPC: 847628538924
In the Box - Super Clamp with T-Handle bwdytdswwztbtxzcfdwytwubsz
- Standard Stud for Super Clamp with 1/4"-20 Male Threads
- Furniture Wedge
- Limited 1-Year Warranty
- 5/8" Snap-in Pin for Super Clamps (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Super Clamp with 5 8" Snap-In Pin in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Impact Super Clamp with T-Handle
| Clamp Type | Jaw | | Jaw Shape | Round | | Jaw Opening | 0.5 to 2.1 " / 1.3 to 5.3 cm | | Mount Type | 1 x 5/8" Receiver
1 x 1/4"-20 Male | | Load Capacity | 33 lb / 15 kg | | Material | Aluminum | | Weight | 1.1 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 10.15 x 5.35 x 2.5" | - Impact 5/8" Snap-in Pin for Super Clamps (Black)
| Mounting | 5/8" / 16 mm Hex Stud (Connector 1)
5/8" / 16 mm Stud (Connector 2) | | Material | Aluminum | | Dimensions | L: 4.7" / L: 11.9 cm | | Weight | 1.8 oz / 50 g | | | | Box Dimensions (LxWxH) | 6.8 x 3.9 x 0.65" |
