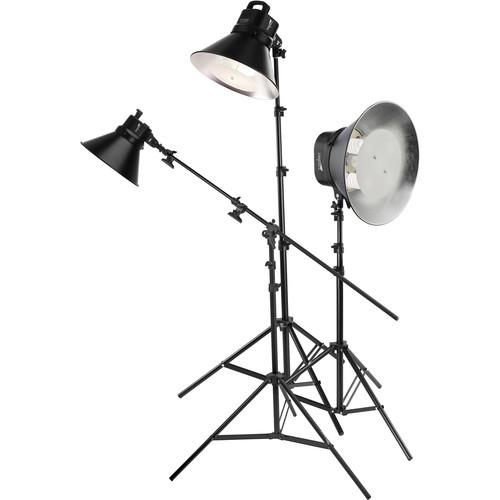

User Manual for Impact Three-Light Fluorescent Cool Light Kit with Stands Click to enlarge the picture
Contents of the user manual for the Impact Three-Light Fluorescent Cool Light Kit
- Product category: Fluorescent Lights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Fluorescent Lights
|
User manual for the Impact Three-Light Fluorescent Cool Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|
Product description The Impact Three-Light Fluorescent Cool Light Kit with Stands was put together by B&H to provide image-makers with a versatile lighting setup that can be configured for different situations as they arise. The kit includes three VA902 3-lamp fixtures with 13" reflectors and 27/30W lamps, two 8' air-cushioned light stands, and one Multiboom combination light stand, boom, and reflector holder. The Impact VA902 Three-Lamp Cool Light is an economical fluorescent head that delivers 4500 lumens while drawing only 90W using 3CFL 5500K daylight-balanced lamps without the need for color conversion filters. The fixture's included 13" reflector renders a wide, even spread of light that can be softened like a beauty dish by using the provided translucent diffuser. The VA902 has a 5/8" stand mount and is easily tilted via a convenient handle. A detachable, 13', grounded power cord is included.The versatile Multiboom can be used as a standard 13' light stand to support 5 lb of gear or when pivoted horizontally, used as an overhead boom that will support up to 3 lb. Yet another use for the Multiboom is as a holder for reflectors up 60" in width, thanks to its attached spring-clamps. The Impact air-cushioned 8' light stand has a 5/8" stud and lowers slowly to avoid damage during height adjustments. - 3 x Impact VA902 3-Lamp Fluorescent Cool Light (120 VAC) The Impact VA902 3-Lamp Cool Light is an economical fluorescent head that draws only 90 watts, yet delivers 4500 lumens and is 5500K daylight balanced without the need for color conversion filters. The included 13" reflector provides a wide, even spread of light, and a diffusion panel (also included) can optionally be used for even softer portrait lighting.
- The head angle is easily adjusted with its convenient positioning handle and tilting 5/8" light stand mount.
- It includes a 13' detachable grounded power cord.
UPC: 847628013377 - Impact Multiboom Light Stand and Reflector Holder - 13' (4m) This is an Impact Convertible Boom Arm/Light Stand. As a light stand, it can support a small or medium light head to a height of 13' (4 m). Raise the second section completely, click, and it is a boom stand.
As a boom, it can hold a small light head to an extension of almost 3' from the center of the stand.
It is a reflector holder by means of its two clips, which can support an Impact, Flexfill, or Photoflex light disc as large as 60".
A hole at the end of the arm allows an optional counterweight to be hung, for greater stability. - Instructions for Using This Stand as a Boom
- 1. Loosen the large long handle in the middle of the stand.
2. Loosen the top-most section of the stand. Pull that section all the way up.
3. Pull! - swing it horizontally for the boom feature, and lock it for the desired setup. UPC: 847628012042 - 2 x Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
- Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights.
- Available as accessories.
UPC: 847628012349 In the Box - 3 x VA902 3-Lamp Fluorescent Cool Light (120 VAC) xuseystcbbdvwcffuzeueaywwxewcxta
- 3 x Spiral Fluorescent Lamp - 27/30 Watts/120 Volts
- Diffusion Panel
- Limited 1-Year Warranty
- Multiboom Light Stand and Reflector Holder - 13' (4m) xuseystcbbdvwcffuzeueaywwxewcxta
- 2 x Air-Cushioned Light Stand (Black, 8') xuseystcbbdvwcffuzeueaywwxewcxta
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Three-Light Fluorescent Cool Light Kit with Stands in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 3 x Impact VA902 3-Lamp Fluorescent Cool Light (120 VAC)
| Input Voltage | 120 VAC | | Lamps | 3 x 30 W, E26 base, included | | Ballast | In each bulb | | Mounting | 5/8" Baby mount | | Weight | 7 lb / 3.2 kg | | Dimensions | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 15.5 x 15.5 x 8.0" | - Impact Multiboom Light Stand and Reflector Holder - 13' (4m)
| Minimum Height | 40" (102 cm) | | Maximum Height | 13' (4 m) as light stand
9'(2.7 m) as boom stand, with boom @ 90 degree angle
10.5'(3.2 m) as boom stand, with boom @ 135 degree angle | | Closed Length | 40" (102 cm) | | Footprint Diameter | 36" (91 cm) | | Leg Tip | 20mm | | Attachment Size | 5/8" stud with 1/4"-20 threaded top | | Accepts Wheels | Yes | | Air Cushioned | No | | Maximum Load | 5 lbs (2.3 kg) as light stand
3 lbs (1.4 kg) as boom stand | | Weight | 4.6 lbs (2.1 kg) | | | | Box Dimensions (LxWxH) | 42.0 x 4.8 x 4.8" | - 2 x Impact Air-Cushioned Light Stand (Black, 8')
| Maximum Load | 8 lb (3.6 kg) | | Leg Tip | 20 mm | | Attachment Size | 5/8" Stud with 1/4"-20 in threaded tip | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Maximum Height | 96" (243.8 cm) | | Minimum Height | 34" (86.3 cm) | | Folded Height | 29.6 (75.2 cm) | | Footprint Diameter | 36" (91.4 cm) | | Weight | 2.05 lb (1 kg) | | | | Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.15" |
