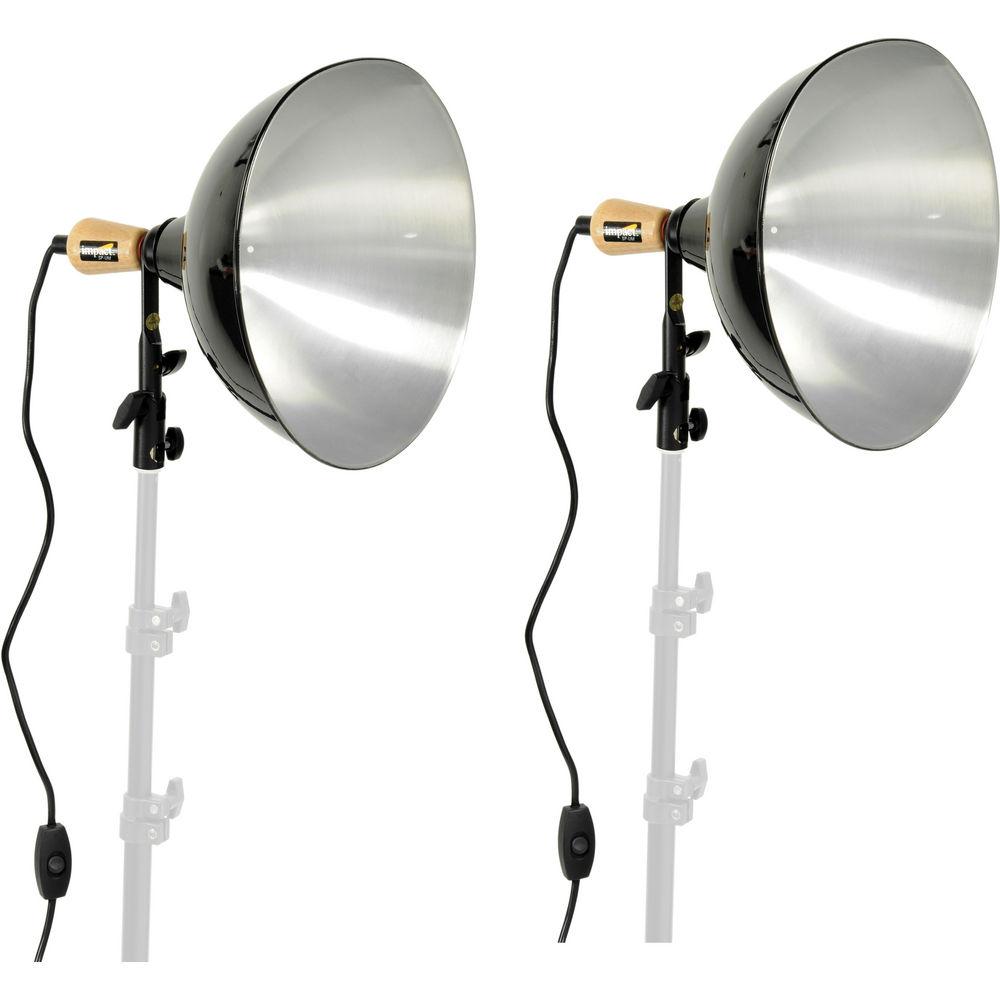

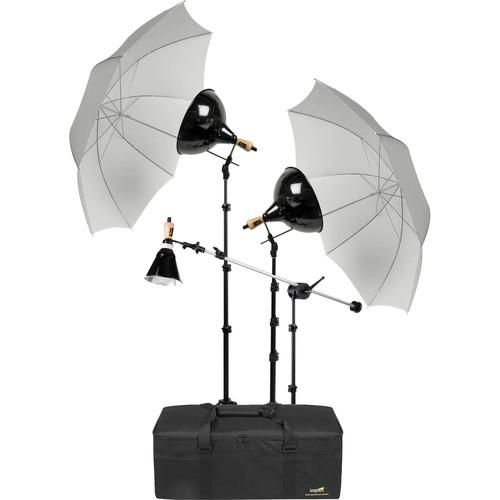

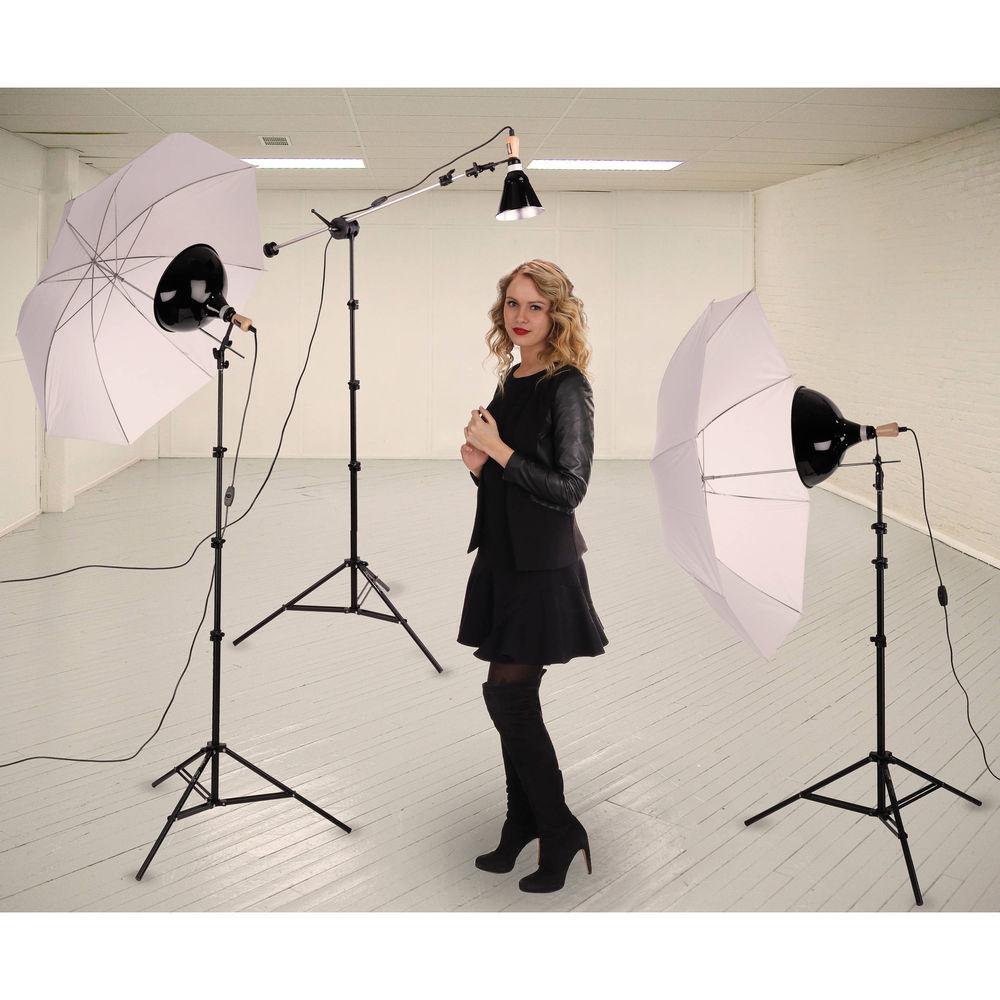

Product description This is an Impact Three-Light Mini-Boom Kit built around the Impact 12" and 5" reflector units with a high-heat ceramic socket. Each light's wooden control handle stays cool, and each light has a cord with an in-line switch.This unique kit includes umbrellas, a boom arm, air-cushioned light stands, and a case for transport and storage. - Floodlight Reflector - 12" Replacement Reflector for the Impact 12" Floodlight.
Made of heavy-grade aluminum, are hand-spun and chemically etched to maximize the light output. Black painted exterior. The reflector mount size is 1 5/8". UPC: 847628012516 - Porcelain Socket with Adjustable Umbrella Mount (500W) The Impact Porcelain Socket with Umbrella Mount (500W) is a cost-effective way to utilize a wide variety of E26 (Edison) based lamps for photo or video work. Options include simple household lamps as well as photoflood and quartz halogen bulbs. This highly versatile product has an adjustable metal mount with a 5/8" receiver for light stands and an 8mm umbrella receptacle. The Floodlight Socket tilts and locks in place at the desired angle by grasping the stay-cool wooden handle and releasing the locking knob. Lamps up to 500W won't melt the ceramic base which is impervious to heat. The socket also accepts screw-on reflectors of various sizes.
- High-heat ceramic socket won't melt like plastic sockets
- Supports 500W bulbs maximum
- Wooden control handle stays cool
- Accepts screw-on aluminum reflectors
- 10' 3-prong AC power cord with inline switch
- Built-in adjustable umbrella mount

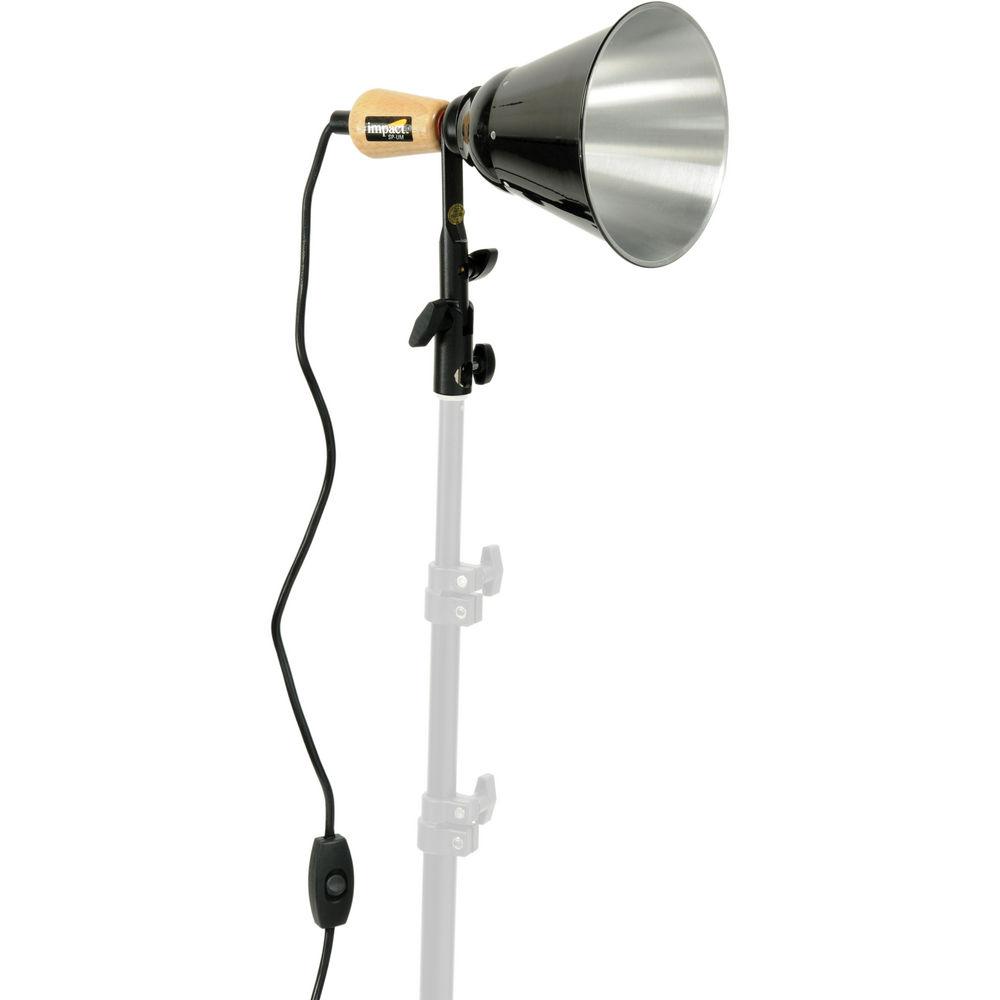

UPC: 847628013636 - Floodlight Reflector - 5" Replacement Reflector for the Impact 10" Floodlight.
Made of heavy-grade aluminum, are hand-spun and chemically etched to maximize the light output. Black painted exterior. UPC: 847628012523 - Porcelain Socket with Adjustable Umbrella Mount (500W) The Impact Porcelain Socket with Umbrella Mount (500W) is a cost-effective way to utilize a wide variety of E26 (Edison) based lamps for photo or video work. Options include simple household lamps as well as photoflood and quartz halogen bulbs. This highly versatile product has an adjustable metal mount with a 5/8" receiver for light stands and an 8mm umbrella receptacle. The Floodlight Socket tilts and locks in place at the desired angle by grasping the stay-cool wooden handle and releasing the locking knob. Lamps up to 500W won't melt the ceramic base which is impervious to heat. The socket also accepts screw-on reflectors of various sizes.
- High-heat ceramic socket won't melt like plastic sockets
- Supports 500W bulbs maximum
- Wooden control handle stays cool
- Accepts screw-on aluminum reflectors
- 10' 3-prong AC power cord with inline switch
- Built-in adjustable umbrella mount

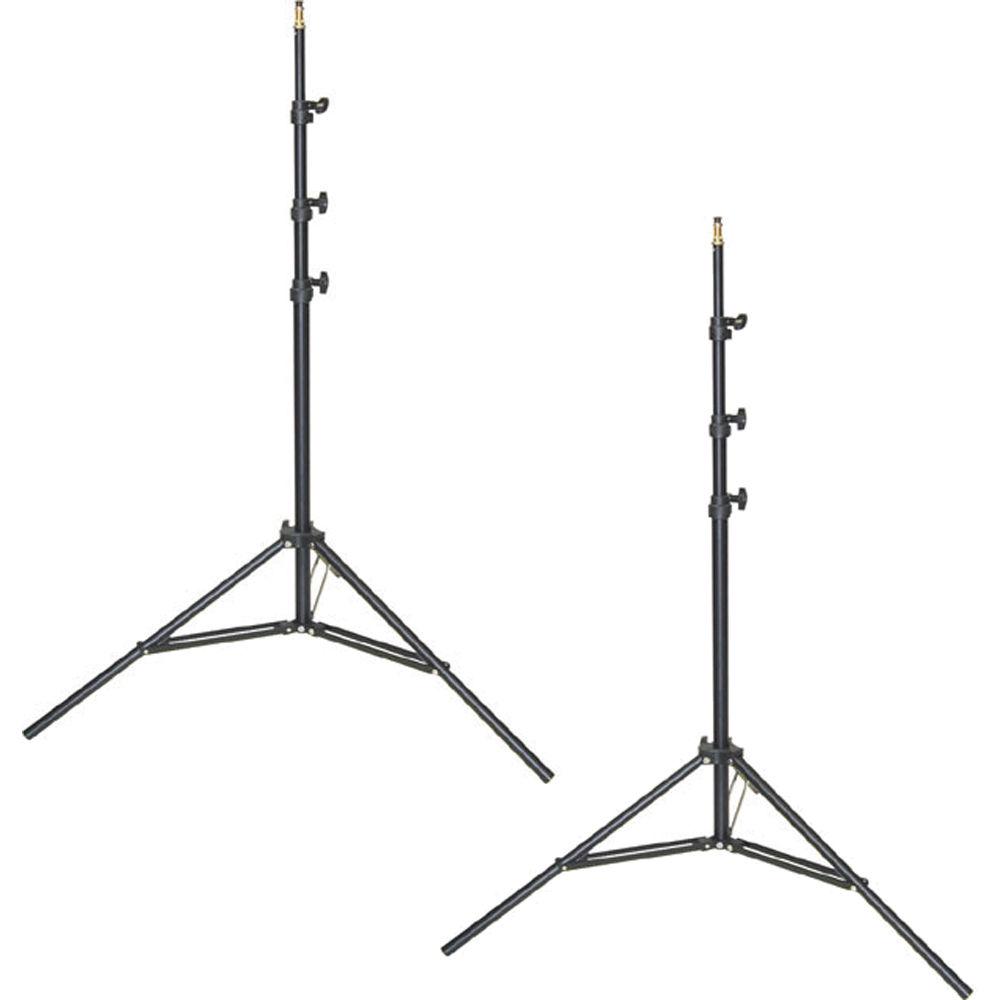

UPC: 847628013636 - Air-cushioned Light Stand (Black, 8') This aluminum 8' Impact Air-cushioned Light Stand is 4-section light support with sure-twist section locks.If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
- Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights
- Available as accessories
- White Translucent Umbrella (43") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 43" White Translucent Umbrella is suggested for use in mid-length portraits for one or two persons. UPC: 847628013292

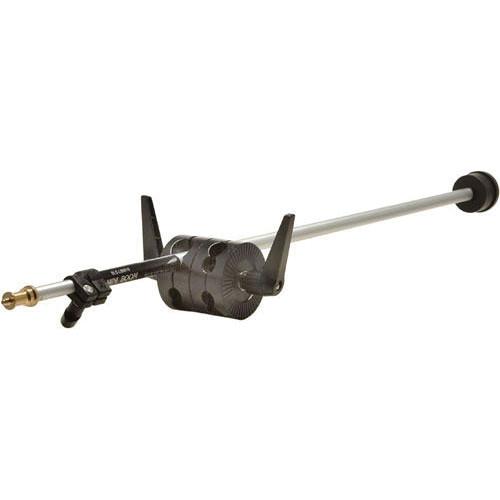

- Mini Boom Arm - 5' 3" This Impact Mini Boom Arm is an aluminum lightweight boom arm with a 1 lb counterweight and swivel handle light stand mount. It can hold a small light fixture. UPC: 847628012059

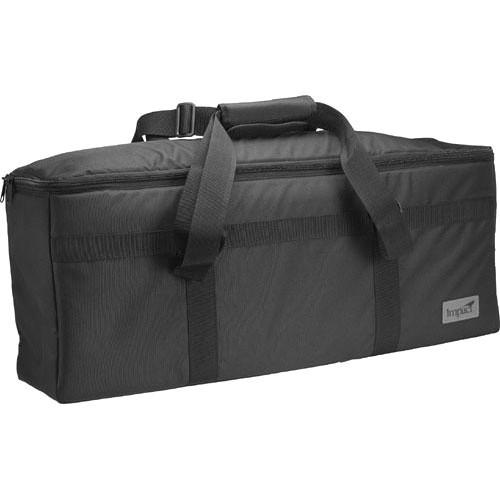

- Light Kit Bag #2 (34 x 13.5 x 12") The black Light Kit Bag #2 (34 x 13.5 x 12") from Impact makes transporting your lighting kit easy and secure. The bag is designed to hold three monolights along with their reflectors (such as Impact VC500LR), four stands, boom, umbrellas, cables and other support gear but can also be used to hold other lighting equipment instead. You'll have plenty of room to take along enough lighting gear for a portrait session - all packed in an organized and accessible way. A touch fastened divider tray separates the stands, boom and umbrellas from the lights preventing them from bumping together and causing scratches or damage. For additional smaller equipment such as cables and small accessories, there are three interior 10.5 x 8.0" zippered mesh pockets.The bag is made from soft, padded water-resistant nylon and contains six movable touch fastened interior dividers (6 large, 2 small) that will permit you to configure the bag to accommodate the gear you need that day. The Light Kit Bag is carried by its two 2" wide overlapping top carry handles that can easily be extended into dual shoulder straps. The contents are accessed via dual zippers that when placed together will accept a user-supplied lock. For even more protection, the bottom of the bag contains three rubber feet for when the bag is placed on the ground. And the bag folds down to a quarter of its height for convenient storage and easy setup. Whether for storage or transport, the Impact Light Kit Bag will serve both pro or amateur well.
- The soft padded carry case is designed to hold three monolights with reflectors, four light stands, umbrellas, cables and other accessories
- The interior has six movable, touch fastened dividers that permit you to configure the bag to suit your needs; dividers consist of six large and two smaller styles
- 2" (5.1 cm) wide overlapping dual carry handles that convert to a shoulder strap
- Interior has three zippered 10.5 x 8.0" mesh pockets (26.7 x 20.3 cm)
- Touch fastened protective nylon tray separates light stands and umbrellas from monolights
- Water-resistant padded nylon construction
- Folds down to less then 4" for convenient storage and easy setup
- Dual zippered opening; accepts user-supplied lock
UPC: 847628030619 In the Box Bundle Items 2 x Floodlight Reflector - 12" tbavrxwtrbq 2 x Porcelain Socket with Adjustable Umbrella Mount (500W) tbavrxwtrbq Floodlight Reflector - 5" Porcelain Socket with Adjustable Umbrella Mount (500W) 3 x Air-cushioned Light Stand (Black, 8') tbavrxwtrbq 2 x White Translucent Umbrella (43") Mini Boom Arm - 5' 3" Light Kit Bag #2 (34 x 13.5 x 12") - Dual Carry Handles that Convert to Shoulder Straps
- Touch Fastened Divider Tray
- 6 x Touch Fastened Dividers
Also Includes - One-Year Manufacturer's Warranty

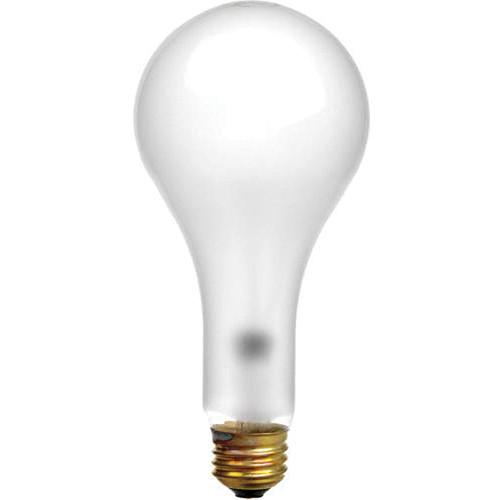

Includes Free - Eiko - ECA Lamp (250W/120V)

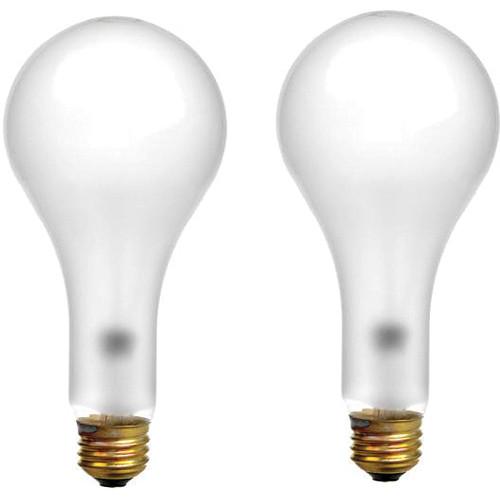

- 2 x Eiko - ECT Lamp (500W/120V)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Three-Light Mini-Boom Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Floodlight Reflector - 12"
| | | Box Dimensions (LxWxH) | 11.95 x 11.75 x 8.55" | - Porcelain Socket with Adjustable Umbrella Mount (500W)
| | | Bulb Type | 1 x E26/E27 | | Max Bulb Wattage | 500 W | | Focusable | No | | Umbrella Mount | Yes | | | | AC Input Power | 120 VAC, 60 Hz | | Mounting | 5/8" Receiver (via Fixture) | | Cable Length | 10' / 3 m | | Inline Switch | Yes | | Weight | 1 lb / 454 g | | | | Box Dimensions (LxWxH) | 8.05 x 5.85 x 4.15" | - Floodlight Reflector - 5"
| | | Box Dimensions (LxWxH) | 7.3 x 7.15 x 6.05" | - Porcelain Socket with Adjustable Umbrella Mount (500W)
| | | Bulb Type | 1 x E26/E27 | | Max Bulb Wattage | 500 W | | Focusable | No | | Umbrella Mount | Yes | | | | AC Input Power | 120 VAC, 60 Hz | | Mounting | 5/8" Receiver (via Fixture) | | Cable Length | 10' / 3 m | | Inline Switch | Yes | | Weight | 1 lb / 454 g | | | | Box Dimensions (LxWxH) | 8.05 x 5.85 x 4.15" | - Air-cushioned Light Stand (Black, 8')
| Minimum Height | 26.75 in (68 cm) | | Maximum Height | 8 ft (2.4 M) | | Closed Length | 27 in (68.5 cm) | | Footprint Diameter | 3 ft (91.4 cm) | | Leg Tip | 20mm | | Weight | 2.4 lbs (1 kg) | | Maximum Load | 7.5 lb (3.4 kg) | | Attachment Size | 5/8 in stud with 1/4"-20 in threaded tip | | Accepts Wheels | Yes | | Air Cushioned | Yes | | | | Box Dimensions (LxWxH) | 27.0 x 3.8 x 3.5" | - White Translucent Umbrella (43")
| Size | 43.0" / 109.2 cm | | Interior | White (Translucent) | | Shaft Diameter | 8 mm | | Folded Size | L: 28.3" / L: 71.8 cm | | | | Box Dimensions (LxWxH) | 29.0 x 2.7 x 1.65" | - Mini Boom Arm - 5' 3"
| Extended Length | 5.3 ft (1.6 m) | | Closed Length | 35" (89 cm) | | Weight | 2.25 lb (1.1 kg) | | Maximum Load | 1.75 lb (.8 kg) | | Attachment Size | 5/8 in male stud with 1/4-20 in screw thread | | | | Box Dimensions (LxWxH) | 36.0 x 8.0 x 3.5" | - Light Kit Bag #2 (34 x 13.5 x 12")
| | | Interior Dimensions | 34 x 13.5 x 12" / 86.4 x 34.3 x 30.5 cm | | | | Closure Type | Zipper | | Carry and Transport Options | 2 x Connecting Handstrap | | Material of Construction | Nylon | | Exterior Dimensions (W x H x D) | 34.5 x 14 x 13" / 87.6 x 35.6 x 33 cm | | Weight | 5.8 lb / 2.6 kg | | | | Box Dimensions (LxWxH) | 35.0 x 14.0 x 12.5" |
