User Manual for Impact Tungsten 10" Reflector Floodlight Kit Click to enlarge the picture
Contents of the user manual for the Impact Tungsten 10" Reflector Floodlight Kit
- Product category: Tungsten Lights Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Tungsten Lights
|
User manual for the Impact Tungsten 10" Reflector Floodlight Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

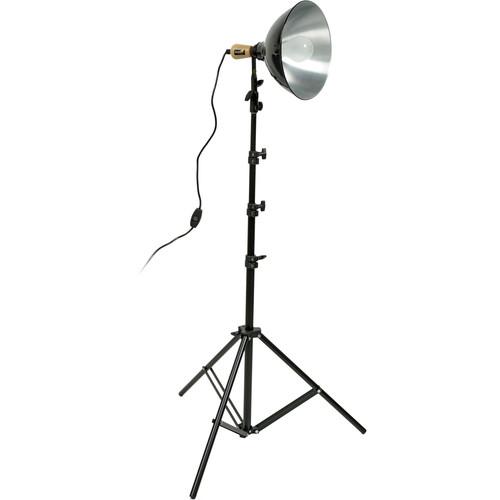

Product description This Impact Tungsten 10" Reflector Floodlight Kit consists of a ceramic socket with wooden handle, 10" aluminum reflector, a light stand, and a 250 watt tungsten bulb. The reflectors are made of heavy-grade brushed aluminum to maximize the light output. The light socket features a high heat ceramic socket and all high heat metal that won't melt like units with plastic sockets. It also features a wooden control handle that stays cool, and includes a built-in adjustable umbrella mount. The attached cord comes with an in-line switch, and the adjustable metal mount features a 5/8" receiver for light stands and an 8mm umbrella receptacle. The light stand is air cushioned. Air cushioning gently lowers the light, preventing damage to light fixtures and fingers when section locks have not been properly tightened. - Eiko ECA Lamp (250W/120V) The Eiko ECA Lamp (250W/120V) is a white interior-frosted bulb with an E26 (Edison) base and a color temperature of 3,200K. It is commonly used in photo, video or theatrical fixtures. UPC: 031293019707
- Impact Floodlight Reflector - 10" Replacement Reflector for the Impact 10" Floodlight.
Made of heavy-grade aluminum, are hand-spun and chemically etched to maximize the light output. Black painted exterior. UPC: 847628012509 - Impact Porcelain Socket with Adjustable Umbrella Mount (500W) The Impact Porcelain Socket with Umbrella Mount (500W) is a cost-effective way to utilize a wide variety of E26 (Edison) based lamps for photo or video work. Options include simple household lamps as well as photoflood and quartz halogen bulbs. This highly versatile product has an adjustable metal mount with a 5/8" receiver for light stands and an 8mm umbrella receptacle. The Floodlight Socket tilts and locks in place at the desired angle by grasping the stay-cool wooden handle and releasing the locking knob. Lamps up to 500W won't melt the ceramic base which is impervious to heat. The socket also accepts screw-on reflectors of various sizes.
- High-heat ceramic socket won't melt like plastic sockets
- Supports 500W bulbs maximum
- Wooden control handle stays cool
- Accepts screw-on aluminum reflectors
- 10' 3-prong AC power cord with inline switch
- Built-in adjustable umbrella mount
UPC: 847628013636 - Impact Light Stand, Black (6') This 6' Impact Black Light Stand is one of the most economical light stands available. It has a 5/8" stud top with a 1/4"-20 thread.
- For small light fixtures or boom arms.
UPC: 847628011953 In the Box - Eiko - ECA Lamp (250W/120V) dfszqvvyaudubvwdwzxwfqdevtfzxcewvddsvv
- Floodlight Reflector Only - 10"
- Porcelain Socket with Adjustable Umbrella Mount (500W)
- Light Stand, Black (6') dfszqvvyaudubvwdwzxwfqdevtfzxcewvddsvv
Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Tungsten 10" Reflector Floodlight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Eiko ECA Lamp (250W/120V)
| Bulb Type | A23 | | Base Type | E26 | | Filament Type | C-9 | | ANSI Code | ECA | | Possible Substitute ANSI Code | ECA-LN | | Wattage | 250 W | | Voltage | 120 V | | Lumens | 6500 | | Burning Position | Any | | Color Temperature | 3200K | | Bulb Finish | Frost | | Average Life | 20 Hours | | Maximum Overall Length (MOL) | 5.52" / 140.2 mm | | Maximum Overall Diameter (MOD) | 2.76" / 70 mm | | | | Box Dimensions (LxWxH) | 5.75 x 3.0 x 3.0" | - Impact Floodlight Reflector - 10"
| | | Box Dimensions (LxWxH) | 10.7 x 10.2 x 6.1" | - Impact Porcelain Socket with Adjustable Umbrella Mount (500W)
| Rating | 500 W | | Socket (Lampholder) | Ceramic E26 (Edison) | | Mount | 5/8" (16 mm) receiver for light stand
Tilting action with locking knob
8 mm (standard) umbrella receptacle with locking knob | | Cable | 10' / 3.0 m | | | | Box Dimensions (LxWxH) | 8.05 x 5.85 x 4.15" | - Impact Light Stand, Black (6')
| Load Capacity | 4 lb / 1.8 kg | | Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 6' / 1.8 m | | Minimum Working Height | 26.3" / 66.8 cm | | Collapsed Height | 26.3" / 66.8 cm | | Footprint Diameter | 30" / 76.20 cm | | Leg Shape | Round | | Accepts Wheels | Yes | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 26.4 x 3.5 x 3.5" |
