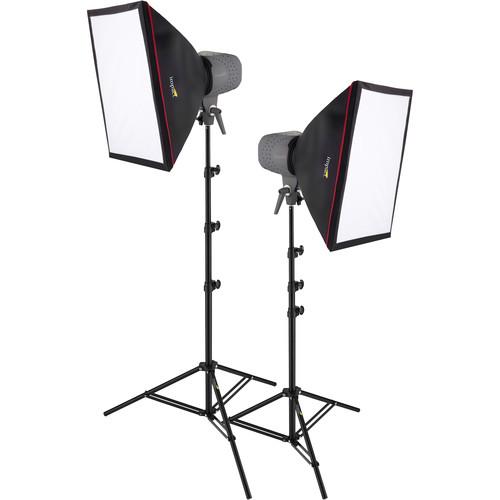

Impact Two Monolight Softbox Kit

User Manual for Impact Two Monolight Softbox Kit

• Product category: Monolights Impact
• Brand: Impact
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Impact Monolights

Product description

• 2 x Impact Digital Monolight 160W/s (120VAC) The Impact Digital Monolight - 160W/s (120VAC) as part of the VSD Series of monolights is proof that a 160 watt/second monolight does not need to be expensive. The VSD160 provides enough stored power to light a head-shot portrait or small still-life setup. It has features found on monolights that cost twice as much. This monolight has a digital readout coupled with its four-stop power variator. It accepts S-type monolight reflectors and head accessories. The VSD160 has cushioned touch-pad function control buttons. Power is adjustable in 1/10 stop increments, from full to 1/8 power. Its model light intensity may be controlled coupled to, or independent from the strobe power levels you select. The VSD160 is available as part of several complete lighting kits. Two more powerful versions of this light are the VSD300 and VSD400.
  • This monolight has a limited "Auto Dump" feature, which automatically fires the strobe when you reset to a lower power level.
  • Built-in optical slave "sees" the light from other flashes, and fires this monolight automatically.
  • A Sync Cord with miniplug to PC connection is included.
  • Its recycle beep tone may be switched on or off.
  UPC: 847628013445
• 2 x Impact Softbox 24 x 32" (61 x 80cm) The Impact 24 x 32" Softbox includes a Bowens-type speed ring, so that it is directly compatible with current Bowens and Impact monolights (except the 100EX). When compared to larger softboxes, this size will provide a light quality which is more spectral, with a faster gradation from highlight to shadow areas. 24 x 32" is best-suited for a 1/2 length portrait of 1 or 2 people, or a product shot of 2 or 3 smaller-than-a-breadbox items. The softbox features a beaded silver interior, and its front face can be removed for easy access to the light and the interior baffle from the front. Also, it provides the option of shooting without the front face for an increased output and more specular quality of light.
  • Adapter ring makes it compatible with current Bowens and Impact (except the 100EX) monolights.
  UPC: 847628012950
• 2 x Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
  Air Cushioned
  • Protects equipment from impact damage.
  Compact Design
  • Will fit easily into most location cases.
  Accepts Casters
  • Eases positioning of heavy lights.
  • Available as accessories.
  UPC: 847628012349

• 2 x Digital Monolight 160W/s (120VAC) swftwfctdsfxasvdusvxae
• Flashtube for VS160 Monolight
• 60W Modeling Light
• 7" Grid Reflector
• Mini to PC Sync Cord
• Spare Fuse
• Limited 1-Year Warranty

• 2 x Softbox 24 x 32" (61 x 80cm) swftwfctdsfxasvdusvxae

• 2 x Air-Cushioned Light Stand (Black, 8')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Impact Digital Monolight 160W/s (120VAC)

  Maximum Power	160 Ws
  Power Control	4 Stops in 1/10-Stop Increments
  Guide Number	115' / 35.1 m at ISO100
  Flash Duration	1/2000 to 1/1000 Sec
  Recycle Time	2 Sec (Full Power)
  Flash Ready Indicator	Visual
  Reflector	Changeable
  Accessory Fitting Type	Bowens S Type

  Type	Tungsten
  Wattage	60 W

  Sync Type	Optical
  Wireless Range	33' / 10 m (Radio)

  AC Input Voltage	110to120 VAC, 60 Hz
  Circuit Protection	Fuse

  Display	None
  Auto Dump	Yes
  Fan Cooled	No
  Dimensions	H: 8.5 x W: 7.0 x L: 11.6" / H: 21.5 x W: 17.7 x L: 29.5 cm, Including Reflector
  Weight	3.5 lb / 1.58 kg

  Box Dimensions (LxWxH)	22.0 x 10.5 x 6.5"

• 2 x Impact Softbox 24 x 32" (61 x 80cm)

  Size	24 x 32" (60 x 80 cm)
  Shape	Rectangle
  Compatibility	Current Bowens and Impact (except the 100EX) monolights
  Removable Face	Yes
  Removable Baffle	Yes
  Accepts Grids	No
  Requires Speed Ring	Bowens style - included For other popular heads, see "Accessories" Tab

  Box Dimensions (LxWxH)	28.0 x 10.0 x 3.0"

• 2 x Impact Air-Cushioned Light Stand (Black, 8')

  Maximum Load	8 lb (3.6 kg)
  Leg Tip	20 mm
  Attachment Size	5/8" Stud with 1/4"-20 in threaded tip
  Accepts Wheels	Yes
  Air Cushioned	Yes
  Maximum Height	96" (243.8 cm)
  Minimum Height	34" (86.3 cm)
  Folded Height	29.6 (75.2 cm)
  Footprint Diameter	36" (91.4 cm)
  Weight	2.05 lb (1 kg)

  Box Dimensions (LxWxH)	29.75 x 3.2 x 3.15"
