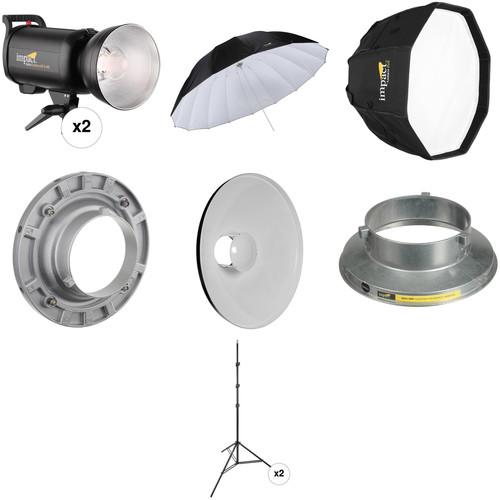

Impact Ultimate Monolight Portrait Kit

User Manual for Impact Ultimate Monolight Portrait Kit

• Product category: Monolights Impact
• Brand: Impact
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Impact Monolights

Product description

• 2 x Impact Astral Extreme AS-X-400 Monolight When describing the aptly-named 400Ws Astral Extreme AS-X-400 Monolight from Impact the operative word is speed. The light is designed so you'll never miss a shot while waiting for it to recycle. Recycling time is a fast 0.4 seconds at full power, flash duration is an impressive 1/5,000 of a second, and continuous shooting speed can reach a rapid-fire 10 frames per second. This strong emphasis on speed makes the Astral Extreme a smart choice for fashion and event shooting and since it's fast enough to capture almost any movement at its peak, it's ideal for high-speed photography. You can even bring the Astral Extreme on location, powering it from a generator or inverter if there's no AC power available.Easy might be the next way to describe AS-X-400. Adjustments are easily made on the light's back panel which incorporates a carry handle. Soft push buttons control the modeling light, ready beep, and optical slave on/off function. The slave allows you set Instant-Fire or Skip Pre-flash modes and trigger the flash head at distances up to 33'. You can also hard wire the AS-X-400 to your camera via the included 1/4" phono sync cord, or easier still, use an optional wireless radio system such as Impact's ControlSync 16 to trigger the flash from up to 150' away and remotely control its power, modeling and audible alert.The Astral Extreme's power level, which is adjustable in 1/10 stops over a 6 stop range is displayed on an easy-to-read LCD screen. Both power and modeling lamp intensity are adjustable via simple knobs. The 150W modeling light dims when the flash is triggered while a switchable beep indicates full recycling.A handy feature of the AS-X-400 is the adjustable mounting bracket that allows you to find the center of gravity for better balance when using heavy front accessories such as large softboxes. A built-in receiver can support umbrella shafts up to 8mm and umbrellas up to 7' in diameter. The speedring/reflector mount is S-type, providing you with a wide range of choices, not only from Impact but from the many manufacturers who have standardized on this mount. Impact includes a reflector that accepts 7" grids.
  Benefits and Attributes
  • Ultra-fast 0.4 sec. recycle time at full power means you'll never miss a shot while waiting for your light to recycle
  • Speedy 1/5,000 sec. flash duration and 10 fps continuous shooting speed make this monolight great for event work as well as high-speed photography
  • Flash power output is up to 400Ws, with precise output control in 0.1 stop increments over a 6 stop range
  • Built-in 8mm umbrella mount and S-type bayonet mount allow you to attach light-modifiers like umbrellas, softboxes, and beauty dishes to customize and shape your light
  • Fan-cooling system, heat sinks, and speed-dedicated internal components prevent overheating when shooting at high speeds
  UPC: 847628575707
• Impact 7' Improved Parabolic Umbrella (White/Black) If you had to choose a single light shaping tool, you might do well to pick the Impact 7' Improved Parabolic Umbrella with a black exterior and a white interior. First of all, it's a huge broad light source that wraps light around your subject, yielding clean highlights and rich open shadows. But due to the special shape of the umbrella there's a unique mix of soft enveloping light with the kind of crisp detail you only get from reflectors. Put another way, if you combined a beauty dish with a softbox, you'd have a parabolic umbrella.This umbrella has a unique structural design as well. Instead of bendable metal, the 16 inner ribs are made of durable fiberglass. The fixed black backing ensures that all of the light output is bounced back on your subject instead of through the umbrella. You can also vary the light-to-umbrella distance along the shaft for a harder or softer look, or for longer throw capability. In addition, an optional diffuser is available for this umbrella, which effectively converts it to a large softbox with just a 1/2 stop loss of output. The umbrella features an improved finger-friendly locking mechanism for secure and fast set up and break down.
  Improved Locking Mechanism
  • Improved locking mechanism provides fast and secure and "finger-friendly" set up and break down.
  Parabolic Shape
  • The parabolic shape produces a more natural wraparound light than a regular umbrella. This soft and natural light is what makes this umbrella a favorite of wedding and portrait photographers.
  Wide Diameter
  • The 7-foot diameter ensures a soft light quality. This umbrella produces enough light for stunning group photos. It will also emit a broad enough beam for full-length portraits.
  White Interior, Black Exterior
  • The white interior produces a broad light that delivers an even throw, which is perfect for portraits and groups. The soft quality of the light is great for creamy skin tones. The black backing efficiently eliminates back spill so light isn't lost when bouncing the beam toward your subject.
  16-Rib Design
  • For an umbrella to be effective, it needs to maintain its shape, and the fabric should remain taut. The umbrella features a 16-rib design that maintains the shape of the umbrella and the tension of the fabric for an even light spread.
  UPC: 847628008939
• Impact Luxbanx Duo Deep Extra-Small Octagonal Softbox (18") The Impact Luxbanx Duo Deep Extra-Small Octagonal Softbox is a versatile 18" diameter light shaping tool with a textured silver interior for high output, removable front diffuser and a removable interior baffle. It's compatible with strobe lights, fluorescent, or LED light sources. It's also compatible with hot lights up to 500W. When using it with hot lights remove the interior baffle. The Duo Octa's shape renders a signature quality of soft wrap-around light due to its large surface area and creates round, natural catchlights in your subject's eyes, making it ideal for portraiture and fashion. Separate purchase of a speed ring is required for use and Impact makes models to fit most popular brands. Do not use inner baffle with hot lights. UPC: 847628564503
• Impact Speed Ring for Impact, Bowens S, Westcott & Aputure The Speed Ring for Impact, Bowens S, Westcott & Aputure from Impact features indexed flex rod holes that allow you to effortlessly mount any square, rectangular, strip, or octagonal Luxbanx softbox to Impact, Bowens S, Westcott, and Aputure heads. The ring will also fit most other brands of softbox. The sturdy all-metal ring rotates 360 degrees to facilitate orientation or to clear obstacles in tight quarters. It has 3/8"-16 taps on two sides to allow mounting directly to grip gear such as Impact's Swivel Umbrella Adapter, 3 Section Double Articulated Arm, Super Clamp, and more. UPC: 847628003309
• Impact 20" Beauty Dish Reflector The beauty dish reflector is a legendary light shaping tool popularized by fashion and portrait photographers. This Impact 20" Beauty Dish Reflector lives up to its potential by offering a bridge between softboxes and umbrellas that yields a soft but crisp light with snappy contrast and a textural quality that flatters makeup on models and accentuates character in portrait subjects. The secret is a built-in deflector that bounces the flash's direct output backwards, filling the shallow dish and casting a wide beam of soft light forward. The Beauty Dish fits most major brands with the separate purchase of an adapter. The Beauty Dish can also be used in combination with a diffuser sock or honeycomb grid, which allows for further modification of the light output. Note: Beauty Dishes are not recommended for use with continues tungsten lights over 300 watts.
  • Features neutral white reflector
  • Ideal for fashion portrait photography
  • Combine with optional diffuser sock or honeycomb grid
  UPC: 847628551558
• Impact Beauty Dish Adapter for Impact Monolights, Bowens, Travelite, Cowboy, Interfit Stellar, JTL, Photoflex, Rime Lite, Westcott Flash Heads This Impact Beauty Dish Adapter for Impact Monolights, Bowens, Travelite, Cowboy, Interfit Stellar, JTL, Photoflex, Rime Lite, Westcott Flash Heads features durable aluminum alloy construction and mounts quickly onto the flash head, allowing you to use 16", 20", 22", and 27" Impact Beauty Dishes on your studio flash. It is compatible with Bowens, Calumet Travelite, Cowboy, Impact VC-VS-VSD Monolights, Interfit Stellar, JTL, Photoflex, Rime Lite and Westcott Photo Basics flash heads. UPC: 847628551848
• 2 x Impact Air-Cushioned Light Stand (Black, 10') This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628030626

• 2 x Astral Extreme AS-X-400 Monolight vwrracauacxxyubrrctccwvaxyed
• Flash Tube
• Modeling Lamp
• Protective Glass Dome
• Transport Cover
• Grid Reflector (7")
• Power Cord
• PC Sync to 1/4˝ Phono Cord
• Spare Fuse
• User Manual
• Limited 1-Year Warranty

• 7' Improved Parabolic Umbrella (White/Black)

• Luxbanx Duo Deep Extra-Small Octagonal Softbox (18")

• Speed Ring for Impact, Bowens S, Westcott & Aputure

• 20" Beauty Dish Reflector

• Beauty Dish Adapter for Impact Monolights, Bowens, Travelite, Cowboy, Interfit Stellar, JTL, Photoflex, Rime Lite, Westcott Flash Heads

• 2 x Air-Cushioned Light Stand (Black, 10')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Impact Astral Extreme AS-X-400 Monolight

  Maximum Power	400 Ws
  Power Control	6 Stops in 1/10-Stop Increments
  Guide Number	213' / 65 m at ISO100
  Flash Duration	1/8000 to 1/5000 Sec
  Recycle Time	0.4 Sec
  Color Temperature	5600K ± 100K
  Flash Ready Indicator	Audio
  Reflector	7.0" / 17.8 cm Changeable
  Accessory Fitting Type	8 mm Umbrella Shaft, Bowens S Type

  Type	Tungsten
  Base Type	E27
  Wattage	150 W

  Sync Type	Button, Cable, Optical, Radio
  Interface	1/4" Sync

  AC Input Voltage	110 VAC, 60 Hz
  Circuit Protection	Fuse
  Fuse	8 A

  Display	None
  Mount	5/8" / 16 mm Receptacle
  Fan Cooled	Yes
  Dimensions	H: 5.5 x W: 5.5 x L: 16.1" / H: 14.0 x W: 14.0 x L: 41.0 cm
  Weight	7.15 lb / 3.24 kg, Including Flash Tube, Modeling Lamp, and Reflector

  Box Dimensions (LxWxH)	18.7 x 10.9 x 8.6"

• Impact 7' Improved Parabolic Umbrella (White/Black)

  Size	84.0" / 213.4 cm
  Interior	White
  Exterior	Black
  Shaft Diameter	8 mm
  Rods	16
  Material of Construction	Fiberglass
  Folded Size	L: 43.5" / L: 110.5 cm
  Weight	2.4 lb / 1.1 kg

  Box Dimensions (LxWxH)	45.2 x 4.0 x 3.1"

• Impact Luxbanx Duo Deep Extra-Small Octagonal Softbox (18")

  Shape	Octagon
  Interior	Silver
  Requires Speed Ring	Yes, Not Included
  Accepts Grids	Yes
  Maximum Wattage	500 W (Hot Lights)
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
  Circular Dimensions	Rating 70% users recommend this product to others. And what about you? This product has already been rated by 81 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
