User Manual for Impact Umbrella Bracket Click to enlarge the picture
Contents of the user manual for the Impact Umbrella Bracket
- Product category: Flash & Umbrella Mounting Accessories Impact
- Brand: Impact
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Impact Flash & Umbrella Mounting Accessories
 |
User manual for the Impact Umbrella Bracket contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Impact product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Impact user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Impact product will considerably shorten its lifespan!
|

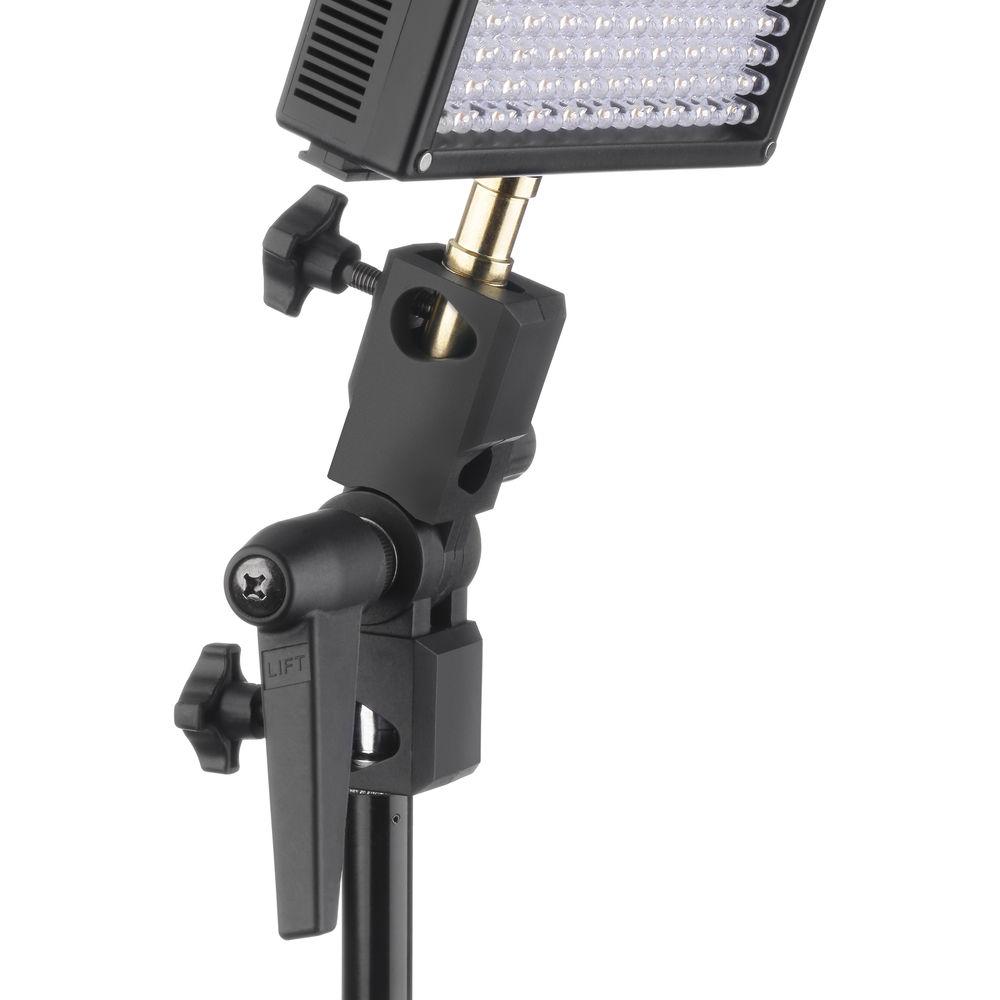

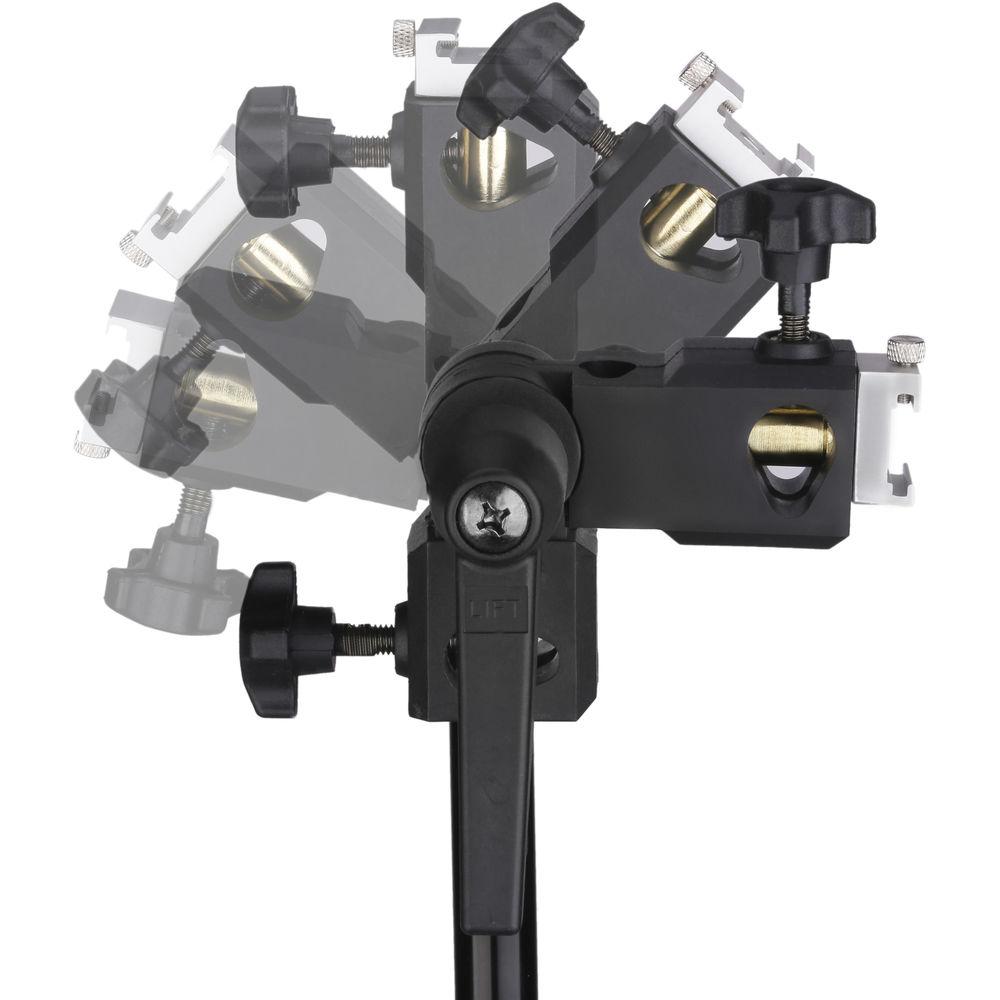

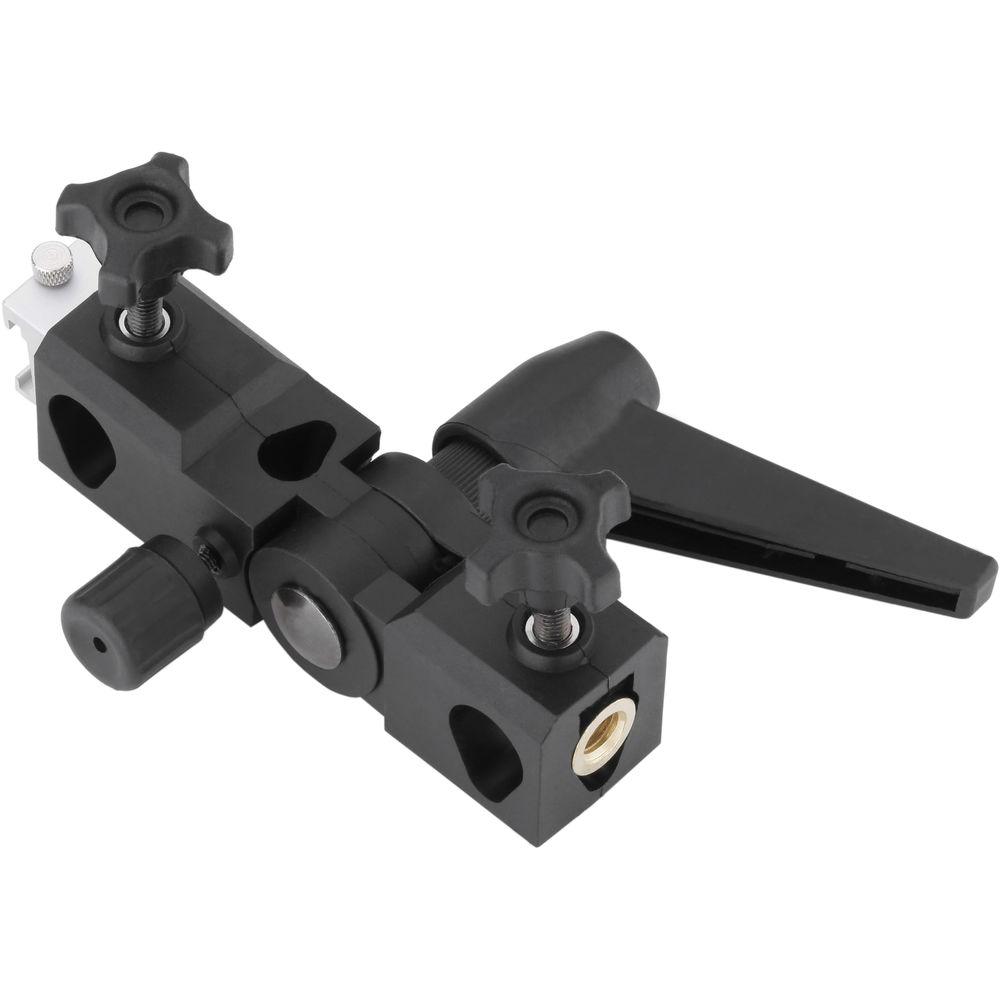

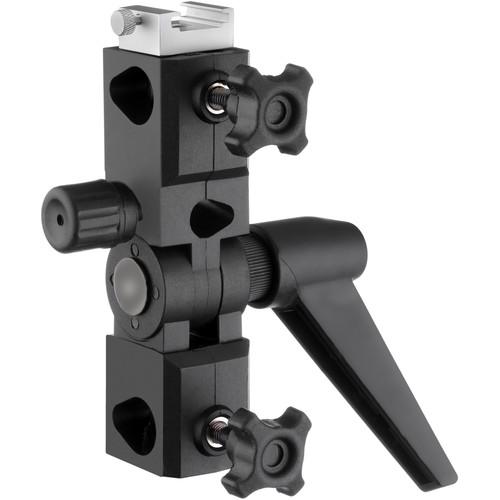

Product description The Impact Shoe Mount Umbrella Bracket is a versatile bracket that will fit on almost any light stand. It includes two removable, reversible studs to adapt to light stands with top studs smaller than the standard 5/8". This bracket tilts and swivels to make aiming the light or flash easy. It also includes a cold shoe mount, which will accept virtually any shoe-mount flash unit (except Minolta/Sony). Note: Not compatible with Nikon SB-900, SB-910, or Canon 600EX-RT. As an alternative, please see Impact #9101880. - Two Removable Studs

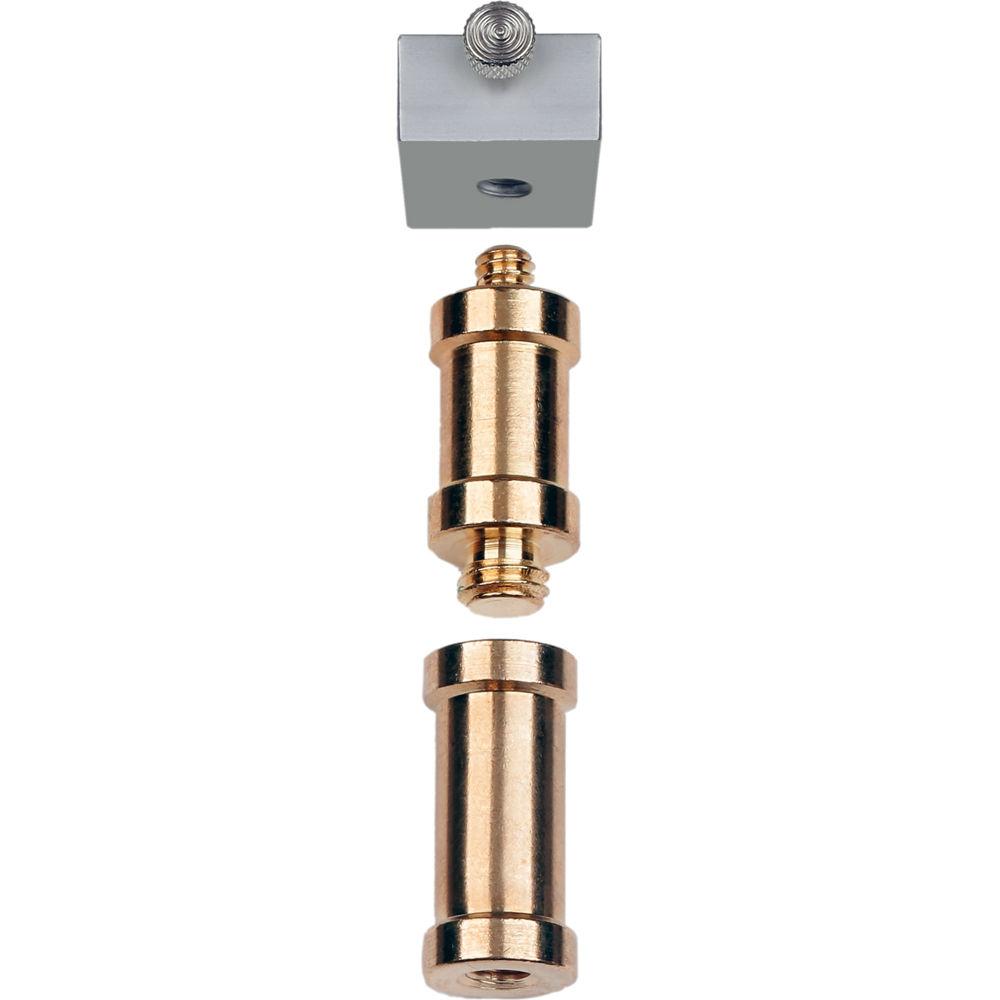

- The provided studs can be removed from the interior of the bracket by totally loosening the wing knobs and letting them slide out. These studs can be used to mount the bracket to a 1/4"-20 (standard) and 3/8" threaded stand or tripod tops. One stud is used for the flash shoe. The shoe may be unscrewed from this stud.
- Top Swivel Section
- Identified by the small round umbrella socket and locking knob
- Bottom Section
- Contains the locking swivel lever
- Vertical Or Horizontal Use
- Once the stud is removed, the bracket may be mounted vertically, or horizontally out from the top of almost any stand with a 5/8" (Baby) top.
UPC: 847628010819 In the Box Impact Umbrella Bracket Reversible Male Stud with 1/4"-20 & 3/8" Screw Thread Reversible Female Stud with 1/4"-20 & 3/8" Female Thread Shoe Mount 1-Year Warranty User Manual PDF 8.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Impact Umbrella Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersImpact 3117 Specs | | | Package Weight | 0.725 lb | | Box Dimensions (LxWxH) | 8.45 x 5.95 x 2.7" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
